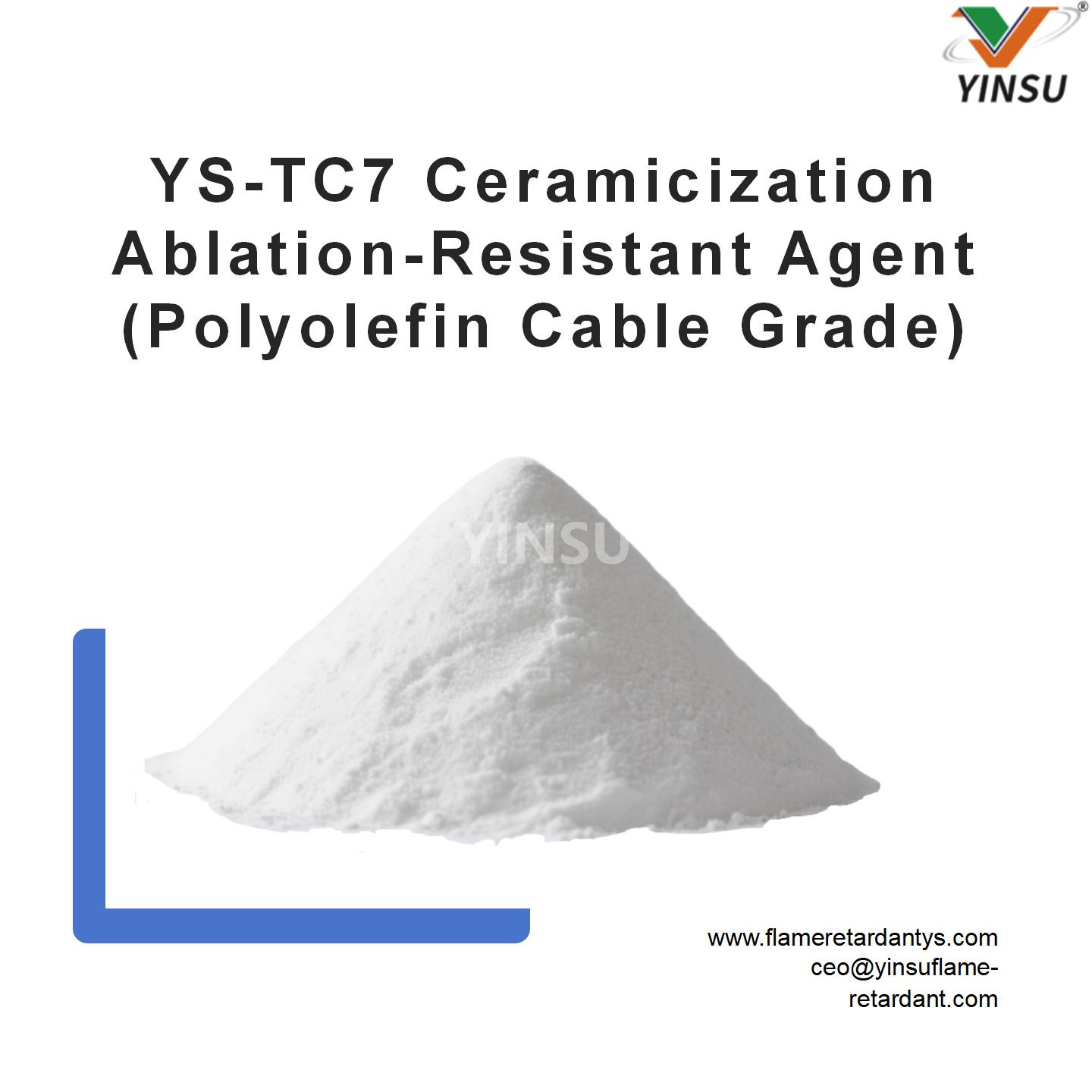

YS-TC7 Ceramicization Ablation-Resistant Agent (Polyolefin Cable Grade)

YS-TC7 Ceramicization Ablation-Resistant Flame Retardant

(Polyolefin Cable Grade)

I. Product Introduction

Under flame exposure or high-temperature conditions, YS-TC7 can form a hard ceramic-like shell  that does not melt or drip. It can withstand water spray and mechanical vibration, with excellent  thermal and fire insulation effects, as well as outstanding mechanical and electrical properties.

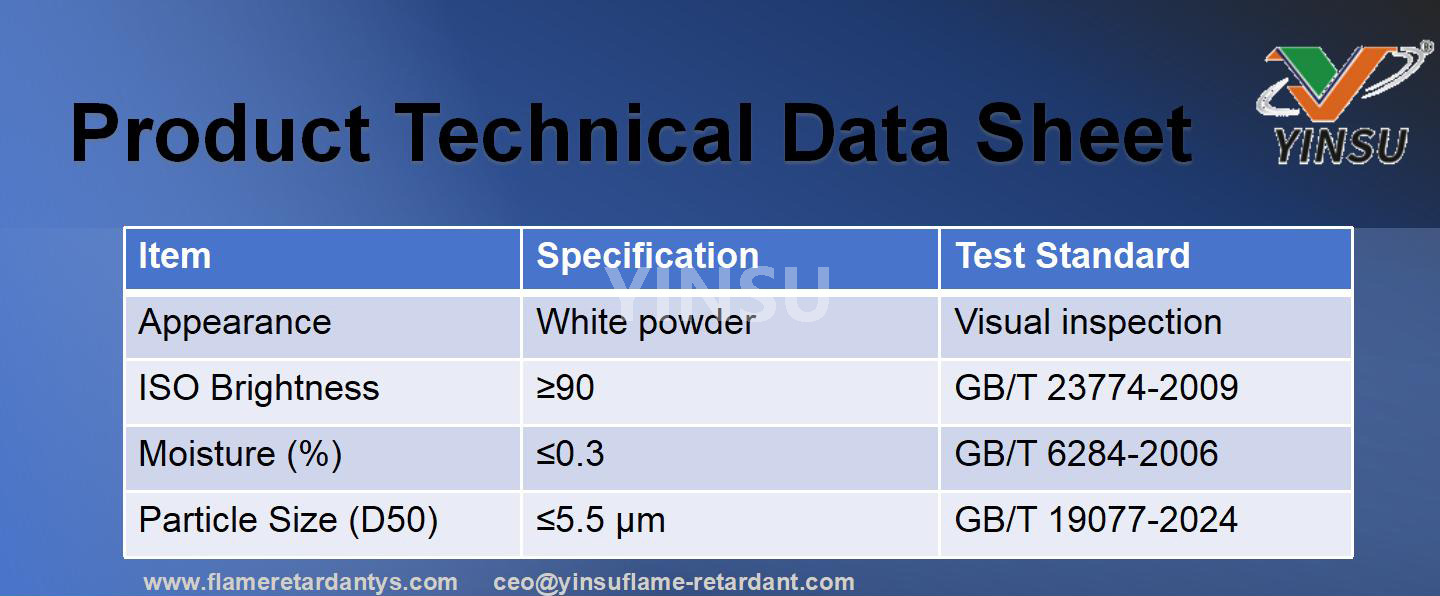

II. Product Technical Data Sheet

Note: The above technical data are representative values for this product. Final results may vary depending  on formulation system, processing conditions, and replacement ratio.

III. Product Features

1. Excellent compatibility and dispersibility with polyolefin-based systems;

2. The produced cable compounds exhibit superior insulation and fire resistance. After ablation,  the coating shows good adhesion, no cracking or dripping, dense ablation surface, high strength,  and good processability;

3. All products are green, eco-friendly, halogen-free, and non-toxic; compliant with REACH/RoHS;

4. Continuous follow-up optimization services are provided from product testing through post-purchase, until successful scale-up to mass production; 5. Tailored optimization solutions based on customers' specific application scenarios.

IV. Application Guidelines

Ceramicized low-smoke halogen-free polyolefin for medium- and low-voltage fire-resistant power  cables, mining cables, marine cables, oil field and offshore platform fire-resistant cables, optical fiber  cables, and other fire-resistant cables.

Usage Recommendation: It is recommended to dry the powder first, then mix it evenly with other powder additives before  blending with the resin, to avoid the impact of moisture and uneven pre-mixing of powders on the  final results. Mixing ratio: Polyolefin : Powder = 1 : 1.8 to 1.9 Fire-resistant cables produced using Yinsu's ceramicization ablation-resistant agent to make  ceramicized low-smoke halogen-free polyolefin fire-resistant compounds can meet the following  standard requirements:

1. GB/T 19216 standard and GB/T 19666-2019 standard / BS 6387 CWZ highest fire resistance  grade

2. IEC 60331 standard / GA 306.2 standard

V. Package Storage & Transportation

1. Packaging: 25 kg/bag, inner PE liner with outer woven bag.

2. Transportation: Classified as non‑dangerous chemical for shipping.

3. Storage: Store in a cool, dry, and well‑ventilated area, protected from direct sunlight. Keep sealed;  shelf life: 12 months from date of manufacture.
