Overcoming PVC Cable Flame Retardant Pain Points: Material Formulation And Performance Balance

Overcoming PVC Cable Flame Retardant Pain Points: Material Formulation and Performance Balance

Modern PVC cable compounds face a critical trade-off: achieving high flame retardancy often undermines mechanical flexibility, while halogenated flame retardants bring smoke and toxicity concerns. Traditional PVC jackets rely on chlorine and antimony trioxide, which emit dense, acidic smoke and corrosive gases (HCl) during fires. These byproducts (and even toxic dioxins) create hazards for people and equipment, especially in confined or industrial environments. Cable makers must also meet stricter safety standards (e.g. IEC 60332 flame tests, IEC 60754/61034 LSZH limits) without dramatically raising cost. At the same time, outdoor and industrial cables (for power distribution, construction, EV charging, etc.) demand improved wear resistance and weatherability. In short, the pain points are balancing high flame resistance, low smoke/toxicity, mechanical flexibility, and cost in PVC cable compounds.

This article explores key challenges and the latest innovations in flame-retardant PVC compounds, with a focus on advanced polymer technologies and eco-friendly flame retardants. We also highlight YINSU's FR-03 additive as a viable antimony-free solution.

I. Key Pain Points in Flame Retardant PVC Cables

1. Smoke and Toxic Gas Release – Conventional PVC compounds with halogens and antimony produce heavy smoke and toxic gases (e.g. HCl, dioxins) during fires.

2. Rigidity and Brittleness – Enhancing flame resistance often reduces flexibility, limiting use in dynamic or harsh environments.

3. Regulatory Compliance – Meeting flame spread, smoke density, and low-halogen requirements (e.g. UL 94 V-0, IEC 60332-3 Class A, IEC 60754/61034) requires optimized formulations.

4. Cost Pressure – Advanced flame retardants and LSZH (Low Smoke Zero Halogen) alternatives can increase compound cost.

The industry goal is to formulate PVC cable compounds that balance flame safety, low smoke/toxicity, mechanical durability, and cost-effectiveness.

II. Material Innovation: High-Polymer PVC & Eco-Friendly Formulations

To address these conflicts, material scientists are innovating PVC formulations that break the traditional trade-offs. Two key strategies have emerged: ultra-high polymerization PVC that boosts strength and flexibility, and halogen-free modified PVC systems that suppress smoke while retaining PVC’s cost advantage. These new compounds target tough requirements (UL 94 V-0 flame class, IEC 60332-3 Class A, UL 2263 EV-cable tests, etc.) even as they aim for LSZH (“low smoke zero halogen”) performance. The goal is a cable that meets flame tests and IEC/UL standards for flame spread and smoke, while staying economical and durable.

III. Ultra-High-Polymerization PVC for EV Charging Cables

One solution comes from ultra-high molecular weight PVC. A standout example is LG Chem' s HRTP4000, a next-generation PVC material designed for EV charging and outdoor industrial cables. Key features:

· ~4x molecular weight of standard PVC

· Higher flexibility (approx. 30% better than conventional PVC)

· Improved heat resistance and wear durability

· Designed for recyclability

Applications:

· EV charging cables (meets UL 2263)

· Outdoor construction power cables

· Renewable energy (solar, wind) installations

Ultra-high molecular weight PVC (HRTP4000) offers improved heat resistance and flexibility for cables. A breakthrough example is LG Chem' s HRTP4000 (Heat-resistant Recyclable Thermal Plastic), an ultra-high-polymer PVC with ~4× the molecular weight of normal PVC. This material combines very long polymer chains and optimized crystallinity to simultaneously boost heat resistance, wear durability, and flame suppression. In EV charging cables—where heavy bending and high current create a fire risk—HRTP4000 has shown about 30% higher flexibility than conventional PVC formulations, without sacrificing flame retardancy. It can pass demanding flame spread tests and self-extinguish quickly. Importantly, HRTP4000 is formulated to be recyclable after cable use, aligning with circular economy goals.

The EV cable market exemplifies the demand: Li-ion chargers and fast-chargers have high-power cables that must not burn or kink. LG Chem announced an MOU with EL Electric to develop EV charger cables using ultra-high PVC. Tests showed the new material is easier to bend (30% more flexibility), enabling women and the elderly to handle heavy charging guns, yet still blocks fire spread. It is also designed for UL 2263 certification (an EV cable flame test). As one report notes, high-polymer PVC cables “effectively prevent the spread of fire” during a fault. This innovation directly meets the “high-flexibility + high-flame-retardant” demand of charging infrastructure. With the global EV charging market doubling every few years (projected from $44.1B in 2022 to $418B by 2030 ~32% CAGR), cable makers value such materials that improve user safety and cable lifetime without switching to costly alternatives.

Besides EVs, ultra-high PVC can serve other industrial uses (outdoor power, solar farm cables, construction wiring) where heat and flame resistance are needed. Its high molecular weight also enhances wear resistance for moving cables. In EV charging and other outdoor/industrial applications, the combination of flame safety, durability, and cost-effectiveness makes high-polymer PVC a breakthrough for PVC cable compounds.

IV. Halogen-Free Modified PVC for Low-Smoke Performance

Another route is halogen-free PVC formulations that avoid chlorine-based retardants.

Innovations include:

· Epoxidized plasticizers + activated kaolin (Guangdong Qilian Cable)

· Nano-montmorillonite + phosphorus-nitrogen flame retardants (Shanghai Kaibo)

Benefits:

· Lower smoke and acid gas release

· Maintains electrical insulation and mechanical performance

· Targets IEC 60754-1/2 (halogen gas), IEC 61034 (smoke density), IEC 60332-3 (flame spread)

Traditional PVC with antimony generates heavy smoke and toxic gases in fires, so researchers are modifying PVC to approach LSZH behavior. For example, a Chinese cable patent (by Guangdong Qilian Cable) reportedly combines epoxidized plasticizers and activated kaolin filler: the epoxide (e.g. epoxidized soybean oil) partially replaces traditional plasticizer, while kaolin acts as a smoke suppressant. This system reduces halogen and smoke output, yet still maintains insulation integrity and even anti-EMI (electromagnetic interference) performance. In effect, it pushes PVC toward LSZH specs without abandoning PVC' s low material cost.

Similarly, Shanghai Kaibo (a specialty materials developer) has reported using nano-montmorillonite clay with phosphorus-nitrogen synergists in PVC. The nanoclay provides a char-forming barrier, while the P-N agents (typical intumescent components) help char-layer formation. The result was a PVC compound with a limiting oxygen index (LOI) above 35% and passing Class A vertical flame tests, rivalling true LSZH cables. These advances demonstrate that cleverly blended fillers and flame additives can make PVC behave more like a halogen-free polymer: low smoke, low acid gas, yet keeping PVC' s processing ease and price level.

In practical terms, these halogen-free PVC compounds target cables that must meet international safety codes (IEC 60332 flame tests plus IEC 60754-1/2 for acid gas, IEC 61034 for smoke density). By approaching LSZH safety limits, they allow PVC to be used in settings (public buildings, transport tunnels, industrial plants) where low-smoke cable is required. The trade-off is a more complex compound recipe, but suppliers emphasize that costs remain competitive with conventional PVC mixes. Overall, this material innovation aims to break the deadlock: give PVC cable compounds LSZH-like flame safety while retaining the flexibility and cost-efficiency that users expect. These blends help PVC behave more like LSZH compounds, making them suitable for buildings, tunnels, transportation, and enclosed industrial spaces.

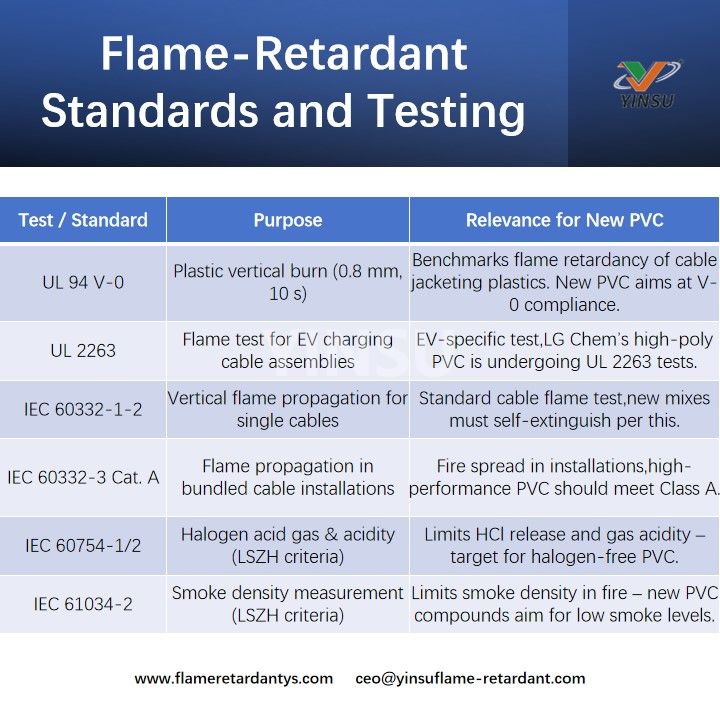

V. Flame-Retardant Standards and Testing

Meeting evolving cable safety standards is crucial. New cable formulations are designed for strict international tests, for example:

Cable engineers also consider UL 1581/VW-1 and other tests for cable jackets. The emerging PVC compounds are being validated against these standards to ensure fire safety. For instance, LG Chem/EL Electric aim to meet UL 2263 for EV cables, while LSZH-type PVC will be judged by IEC 60754/61034 limits.

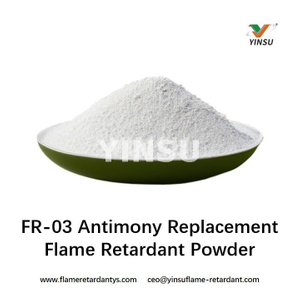

YINSU Antimony Replacement Flame Retardant (FR-03)

For cable compound formulators seeking to reduce antimony trioxide altogether, YINSU offers a non-halogen antimony replacement called FR-03.

· Fully replaces Sb₂O₃ in PVC compounds

· Maintains UL 94 V-0 rating and oxygen index

· Fine particle size ensures easy dispersion

· High thermal stability

· Lower cost than traditional antimony systems

This product is an activated composite that “can replace the amount of antimony trioxide” in flame-retardant PVC formulations. In practice, adding FR-03 (instead of pure Sb₂O₃) yields the same flame retardancy: the oxygen index and UL rating remain similar. At the same time, FR-03 particles are fine and thermally stable, providing good dispersion and high-temperature endurance. YINSU reports that FR-03 achieves this completely replacing effect while lowering cost – it has a much cheaper price than raw antimony oxide.

In other words, FR-03 addresses another PVC cable pain point: replacing traditional halogenated or heavy-metal additives with economical, eco-friendly alternatives. Cable compounds using FR-03 can still pass flame tests (e.g. UL 94 V-0) and produce lower smoke, since no extra antimony is needed. This complements the above innovations: ultra-high PVC and halogen-free additives improve the polymer matrix, while YINSU' s FR-03 replaces critical flame-retardant filler.

In summary, PVC cable compounds are evolving to meet modern flame-safety demands. Advances like ultra-high-polymer PVCs and halogen-free formulations strike a new balance between flame retardancy and performance. Combined with innovative additives (such as YINSU' s antimony-free FR-03), these solutions help manufacturers produce low-smoke, high-safety PVC cables suitable for EV chargers, industrial power lines, and outdoor infrastructure, all while complying with the latest UL/IEC standards
