Flame-Retardant Glass Fiber Reinforced PP: 8 Pitfalls To Avoid

Flame-Retardant Glass Fiber Reinforced PP: 8 Pitfalls to Avoid

Formulators working with glass fiber (GF) reinforced PP have almost all encountered these strange issues: plenty of flame retardant added, yet testing keeps failing; products developing a white surface bloom after two weeks; extruded strands sticking and gumming up the water bath, halting production... Below are 8 frequently asked questions, explained in one go.

1. Why does flame retardancy drop after adding glass fiber?

Phenomenon: Pure PP passes V-0 with a certain flame retardant, but after adding 20-30% GF, the same loading drops to V-2.

Root Cause: Glass fiber damages intumescent flame retardants (IFRs) in multiple ways. First, GF itself does not participate in char formation, but during combustion it physically punctures the expanded foam char layer. Once the originally continuous, dense intumescent char is "pierced" by GF, oxygen directly contacts the internal polymer, and flames spread along the glass fibers. Second, GF surfaces typically contain organic sizing agents (e.g., silane coupling agents) that decompose at high temperatures, releasing flammable gases and further worsening the flame-retardant environment. Additionally, GF alters melt rheology, leading to uneven dispersion of the flame retardant during processing and locally low concentrations.

Solution: In halogen-free PP formulations, avoid adding GF if possible. If GF is mandatory, increase the flame retardant loading by approximately 20-30% compared to the pure PP formulation. Also, select flame retardant systems compatible with GF surface sizing to reduce interfacial interference. Some manufacturers use pre-treated GF or add compatibilizers to improve interfacial bonding.

2. Why do calcium carbonate or talc "kill" the flame retardant?

Phenomenon: Adding a small amount of filler to reduce cost causes complete flame retardant failure.

Root Cause: Fillers like calcium carbonate and talc are mostly alkaline or neutral-to-alkaline. Phosphorus-nitrogen intumescent flame retardants require an acidic environment for esterification reactions at high temperatures. Alkaline fillers neutralize phosphoric acid and polyphosphoric acid produced by flame retardant decomposition, preventing esterification with the charring agent and blocking intumescent char formation. Filler particles also physically disrupt char layer continuity, like mixing gravel into a wall, reducing its strength. More subtly, certain fillers (e.g., calcium carbonate) decompose at high temperatures releasing CO₂. While not flammable, this dilutes flame-retardant gas-phase concentrations, and their endothermic decomposition heat is far lower than aluminum hydroxide, contributing little to cooling.

Solution: In GF-reinforced PP, minimize or avoid alkaline fillers. If cost reduction is essential, switch to neutral or acidic fillers (e.g., barium sulfate, wollastonite) and strictly control loading below 5 phr. Simultaneously increase flame retardant dosage to compensate for filler interference.

3. Why does oil or powder surface-bloom after storage?

Phenomenon: Parts look normal initially, but after two weeks of storage, white powdery bloom or oily substances appear on the surface.

Root Cause: This is classic migration and exudation. Traditional phosphorus-nitrogen flame retardants often contain small-molecule water-soluble components, such as incompletely polymerized phosphates, melamine, and its derivatives. These components have very poor compatibility with PP. During processing they are forcibly dispersed in the melt, but after cooling, these small molecules slowly migrate to the surface over time, forming white bloom (solid exudation) or oil films (liquid exudation). Exudation not only affects appearance but also depletes effective flame retardant content, lowering flame retardancy ratings. Higher temperatures and humidity accelerate exudation.

Solution: Select high-molecular-weight, water-insoluble flame retardants, or use masterbatch forms (e.g., Yinsu flame retardant PQ-75M masterbatch, which employs pre-dispersion technology where the active flame retardant is encapsulated by carrier resin, significantly reducing migration). Adding compatibilizers (e.g., PP-g-MAH) can also improve interfacial bonding between flame retardant and PP, reducing exudation. Post-processing annealing (80-100°C for 2-4 hours) can accelerate early-stage exudation, reducing later storage issues.

4. Why does processing cause foaming and gray/yellow discoloration?

Phenomenon: During extrusion, material bubbles, parts show voids in cross-section, and color turns gray or yellow.

Root Cause: The thermal decomposition temperature of the flame retardant does not match PP processing temperatures. PP plasticizes typically at 190-230°C. If the flame retardant's onset decomposition temperature is below 200°C, it decomposes prematurely during processing, releasing water vapor, ammonia, or carbon dioxide, causing melt foaming. Colored decomposition products (e.g., melem, carbides) also cause graying or yellowing. Additionally, excessive screw shear or long residence time intensifies premature decomposition. Excessive moisture is another common cause—flame retardants absorb moisture, significantly reducing thermal stability.

Solution: Choose flame retardants with thermal decomposition temperatures at least 50°C above PP plasticization temperature (e.g., ≥280°C). Ensure both flame retardant and PP resin are thoroughly dried before processing (moisture <0.2%). Reduce processing temperature as low as possible while maintaining adequate plasticization, shorten residence time in the screw, and increase vacuum venting to promptly remove decomposed small molecules.

5. Why do extruded strands stick in the water bath, affecting production?

Phenomenon: Hot strands become sticky after passing through the cooling water bath, causing traction difficulties or even strand breakage.

Root Cause: The flame retardant contains water-soluble components such as unreacted melamine or urea phosphate. When hot strands enter the cooling bath, the rapid surface temperature drop causes water-soluble components to quickly exude and dissolve in water, but some remain on the strand surface, forming a sticky wet film. This film not only makes strands tacky but also attracts dust, affecting subsequent pelletizing and packaging. In severe cases, exudates clog the bath filter, increasing cleaning frequency.

Solution: Select water-insoluble flame retardants, or use masterbatch forms that pre-encapsulate the flame retardant in resin. For example, Yinsu PQ-75M is a masterbatch where the active flame retardant is coated by carrier resin; it does not exude in water, and its TDS explicitly states "no aqueous slippage." If powder must be used, increase the cooling bath temperature (from 20°C to 40-50°C) to reduce the temperature differential and lower exudation rate. Additionally, install an air-knife drying unit at the extruder end to promptly blow off surface water.

6. Why does the same flame retardant perform very differently in different PP grades?

Phenomenon: The same flame retardant easily achieves V-0 in homopolymer PP, but drops to V-2 in copolymer PP (containing ethylene).

Root Cause: Copolymer PP contains ethylene segments (typically 5-15%), which cannot form effective char structures. Ethylene readily cracks into small flammable molecules at high temperatures, and its alkyl structure interferes with flame retardant dispersion and char-forming reactions. Homopolymer PP has regular molecular chains, making char formation relatively easy. Copolymer PP has more amorphous regions where flame retardants easily migrate, and lower melt viscosity during combustion leads to more severe dripping. Additionally, copolymer PP typically processes at lower temperatures than homopolymer PP, potentially causing inadequate flame retardant dispersion.

Solution: When using copolymer PP, increase flame retardant loading by 20-30%. Alternatively, select specialized flame retardants more effective for copolymer systems (e.g., masterbatches containing specific compatibilizing additives). Blending copolymer PP with homopolymer PP can also reduce flame retardant difficulty. Adjust processing parameters by appropriately increasing screw speed and shear intensity to improve dispersion.

7. Is lighter testing of specimens accurate?

Phenomenon: A specimen self-extinguishes when burned with a lighter, but fails UL94 testing.

Root Cause: Lighter testing is only suitable for rapid preliminary screening and has significant limitations. First, lighter flame temperature is unstable (approximately 800-1000°C), and flame angle and distance are uncontrollable, whereas UL94 standards specify exact height (20 mm) and angle. Second, nitrogen-phosphorus intumescent flame retardants rely on complete char formation. In lighter testing, repeated ignition or localized overheating may destroy the char layer, or low specimen density (e.g., compression-molded specimens containing bubbles) may result in different flame retardant distribution than injection-molded parts. Furthermore, lighter testing cannot quantify afterflame time, dripping, or cotton ignition—key UL94 criteria.

Correct Approach: Use lighter testing only for formulation comparison and rapid screening. Final validation must follow standard UL94 or GB/T 2408 testing. Before submission, ensure specimen thickness and molding process match the actual product, and avoid specimens with bubbles or defects.

8. Can reducing flame retardant loading downgrade from V-0 to V-2?

Phenomenon: A customer requests downgrading from V-0 to V-2. The engineer tries reducing flame retardant loading, but the material drops directly to HB (non-flame-retardant).

Root Cause: Phosphorus-nitrogen intumescent flame retardants work by forming a complete, dense intumescent char layer. This char requires sufficient acid source, gas source, and carbon source working synergistically. When loading falls below the critical value, the char becomes discontinuous, develops holes, or fails to form entirely. Flames can pass directly through holes to contact internal polymer, causing rapid combustion. The transition from V-0 to V-2 is not linear but involves a threshold—below the threshold, flame retardancy drops precipitously. Moreover, V-2 allows melt dripping without cotton ignition, while phosphorus-nitrogen systems typically either form complete char (no dripping, V-0) or char rupture (severe dripping and ignition, below V-2), making precise V-2 control difficult.

Recommendation: Do not attempt to "downgrade" by reducing loading. If a customer genuinely needs V-2 rating, switch to a different flame retardant system (e.g., halogenated flame retardants or adding small amounts of anti-dripping agents) rather than simply reducing the intumescent formulation. Alternatively, add small amounts of fillers (e.g., talc) to reduce flame retardant efficiency, but verify carefully.

Summary: Four Core Principles for Selecting Flame Retardants

For flame-retardant GF-reinforced PP, remember these four points:

1. Adequate Thermal Stability: Decomposition temperature at least 50°C above processing temperature to avoid foaming and discoloration.

2. Good Water Resistance: Water-insoluble components to prevent aqueous slippage during extrusion and long-term exudation.

3. GF Compatibility: Dense char formation that resists GF puncture, or appropriately increased loading to compensate.

4. Matrix Matching: Copolymer PP requires more flame retardant; avoid combined use with alkaline fillers.

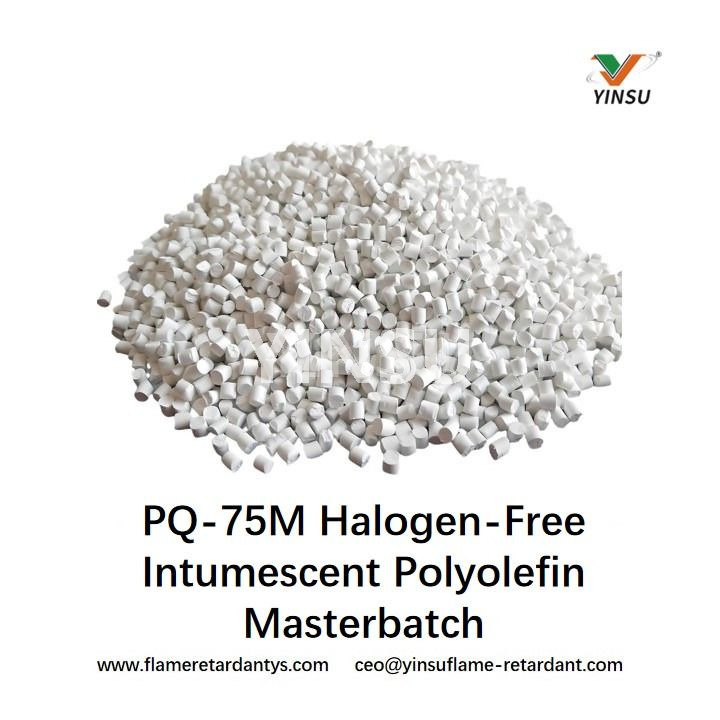

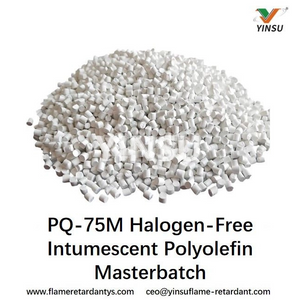

5. Yinsu PQ-75M is a polyolefin-specific halogen-free intumescent flame retardant masterbatch designed based on these principles:

l Thermal decomposition temperature ≥280°C, wide processing window

l Masterbatch form, no aqueous slippage or exudation, passes UL746C water immersion testing

l Specifically for GF-reinforced PP: V-0 at 1.5 mm with 30% GF, LOI 35

l Contains no ammonium polyphosphate, avoiding aqueous slippage and exudation issues of traditional systems

l If you are struggling with flame retardancy in GF-reinforced PP, we welcome you to provide your current formulation for a free comparative analysis.
