Introduction

Red phosphorus flame-retardant nylon is typical of high efficiency yet difficult to handle. Its flame-retardant mechanism works by forming polyphosphoric acid during combustion, which promotes charring in nylon and creates a dense char layer to block oxygen. However, red phosphorus is sensitive to moisture and oxygen. Improper processing or application can easily cause hydrolysis into phosphoric acid, which migrates to the surface, spoiling appearance and impairing performance.

Today, we thoroughly explain how to achieve anti-blooming and pass the Dual 85-Degree Aging Test for red phosphorus flame-retardant nylon, from two core aspects: formulation design and processing technology.

I. Formulation Design: Lay the Foundation for Anti-Blooming

Blooming in red phosphorus flame retardant nylon stems from hydrolysis and migration of red phosphorus. The core of formulation design is to seal the source and neutralize the consequences.

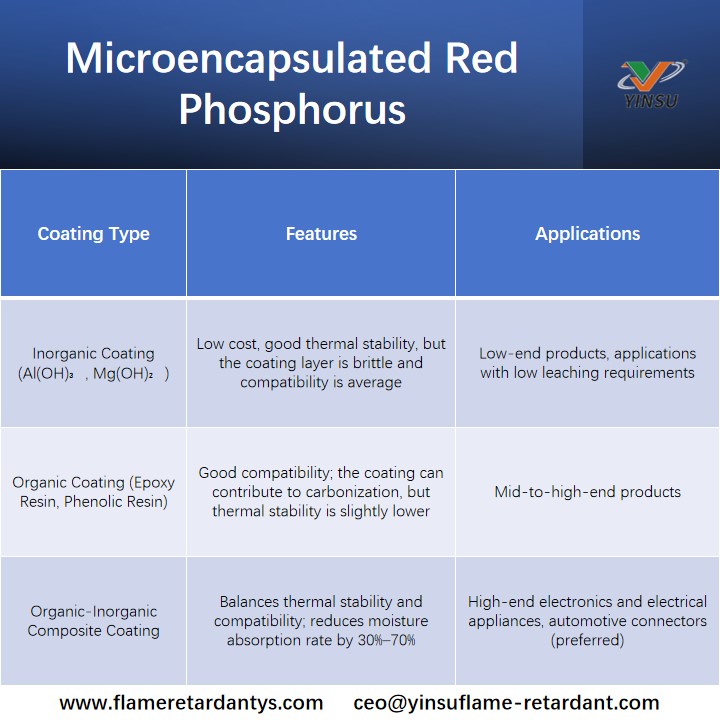

1.1 Encapsulated Red Phosphorus Is a Must; Composite Encapsulation Is Preferred

Unencapsulated red phosphorus is highly hygroscopic, tends to release toxic PH₃ during processing, and has poor compatibility with nylon, making it unsuitable for direct use. All commercial red phosphorus flame retardants are microencapsulated.

For parts requiring Dual 85-Degree Aging Test compliance, organic-inorganic composite encapsulated red phosphorus is the top pick. The dual coating acts as a double protective layer, maximizing moisture resistance.

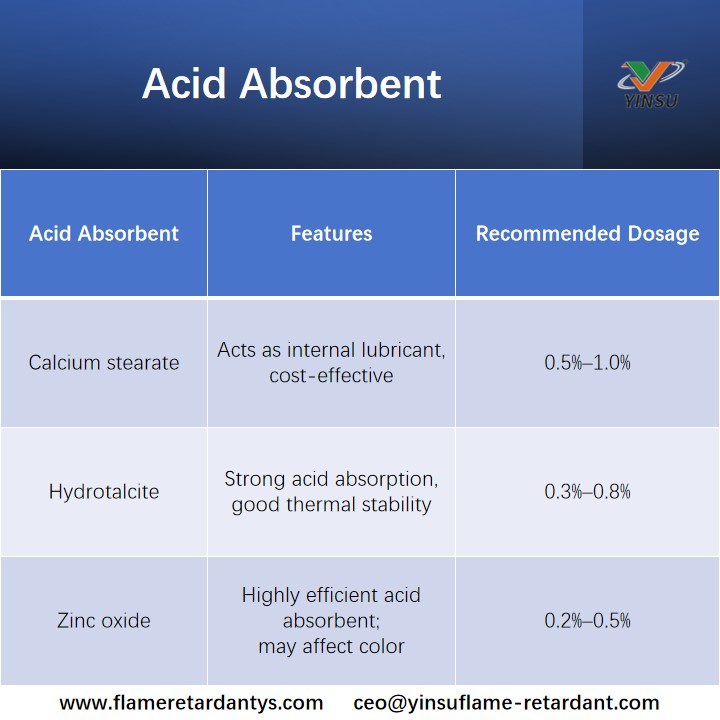

1.2 Acid Absorbent: Indispensable

Phosphoric acid (H₃PO₄) from red phosphorus hydrolysis is the main cause of surface blooming and metal corrosion. Acid Absorbent must be added to neutralize phosphoric acid.

Common Acid Absorbent: calcium stearate, hydrotalcite, zinc oxide, magnesium hydroxide, etc.

Key point: Acid Absorbent must be well pre-mixed with red phosphorus masterbatch to ensure timely neutralization during extrusion, not after injection molding.

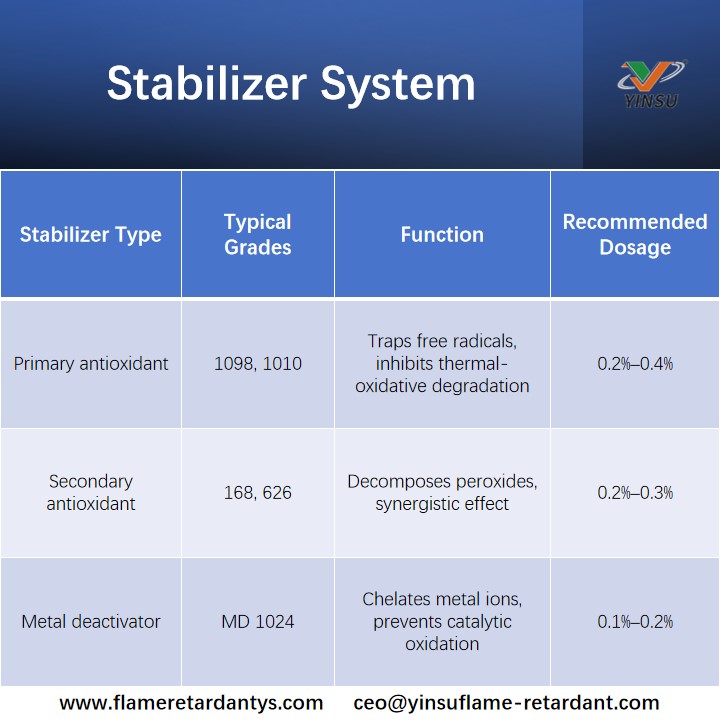

1.3 Stabilizer System: More Than Just Antioxidant

Red phosphorus flame retardant nylon faces triple aging stresses: heat, oxygen, and hydrolysis. The stabilizer system must be multi functional.

For long-term hot-humid aging, add a small amount of hydrolysis stabilizer (e.g., polycarbodiimide) to capture carboxylic end groups and delay chain scission.

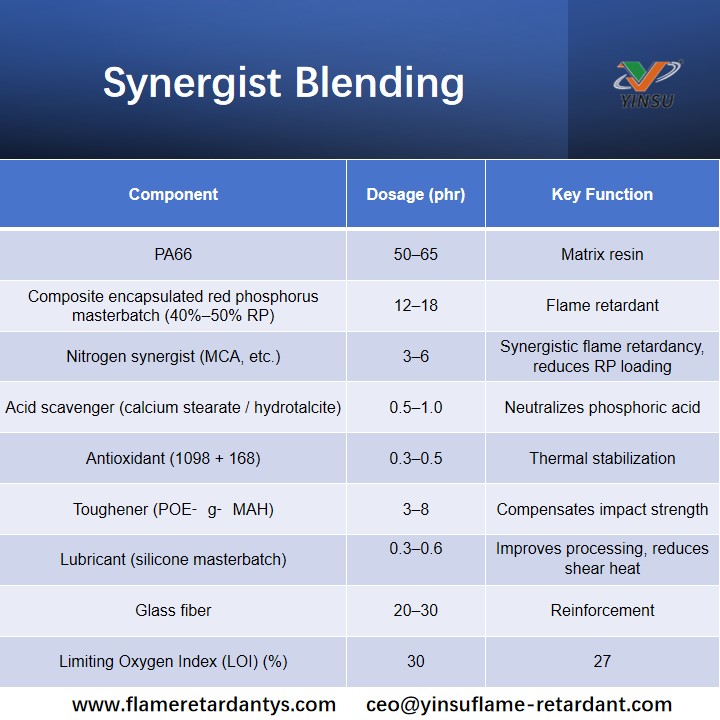

1.4 Synergist Blending: Lower Loading, Higher Stability

II. Processing Tips: Realize the Full Potential of Your Formulation

Even an excellent formulation will fail with poor processing. For red phosphorus flame retardant nylon, the rule is simple: Low Temp, Short Time, Low Shear.

2.1 Drying: Moisture Control Comes First

Both red phosphorus masterbatch and nylon resin must be strictly dried.

· Nylon resin: 100–120°C for 4–6 h; moisture < 0.1%

· Red phosphorus masterbatch: 80–90°C for 2–4 h (high temperature may damage the coating)

Use immediately after drying to avoid reabsorbing moisture.

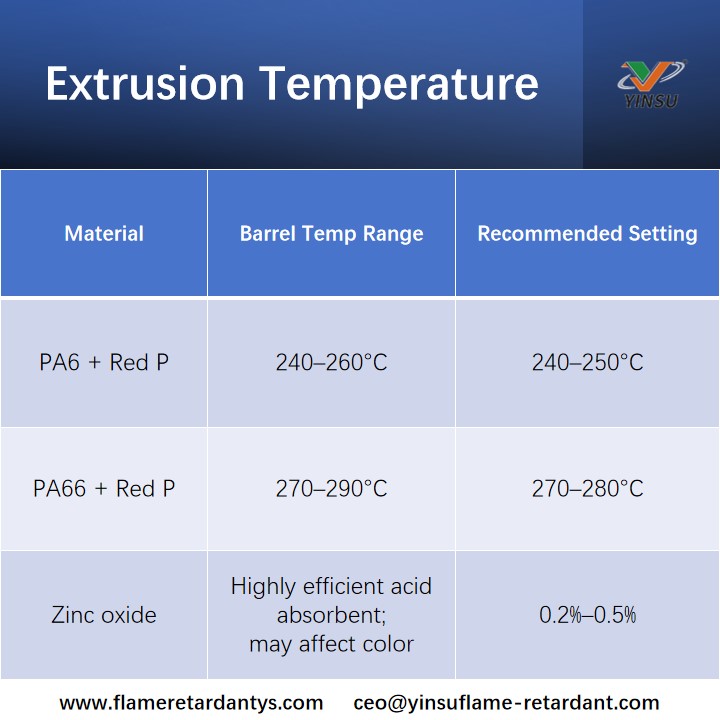

2.2 Extrusion Temperature: Better Low Than High

Decomposition temperature of red phosphorus is about 300°C (slightly higher after encapsulation). Always keep a safe margin.

Rule: Use the minimum feasible temperature for full melting and plasticization. Strictly control high temperature zones (compression, metering) to avoid local overheating.

2.3 Shear Control: Low RPM, High L/D

High shear generates excessive frictional heat, causing local RP decomposition and higher blooming risk.

· Screw speed: 200–300 rpm (20%–30% lower than standard modification)

· Screw configuration: high L/D ratio (L/D ≥ 40); low shear elements (e.g., toothed disks) in the dispersing zone; fewer kneading blocks

2.4 Vacuum Venting: Remove Hidden Risks

Twin-screw extruders must use vacuum venting (vacuum ≥ −0.06 MPa) to remove trace moisture and decomposition by products.

Injection Molding: Control Temp & Speed

Avoid overheating the melt during injection.

· Barrel temperature: 5–10°C lower than extrusion

· Mold temperature: 80–120°C (improves crystallization, reduces stress)

· Injection speed: moderate; avoid high shear

2.5 Equipment Cleaning: Prevent Residue

Residues may remain in the screw and barrel. Before long shutdowns, purge with pure nylon or PP to avoid corrosion from moistened residues.

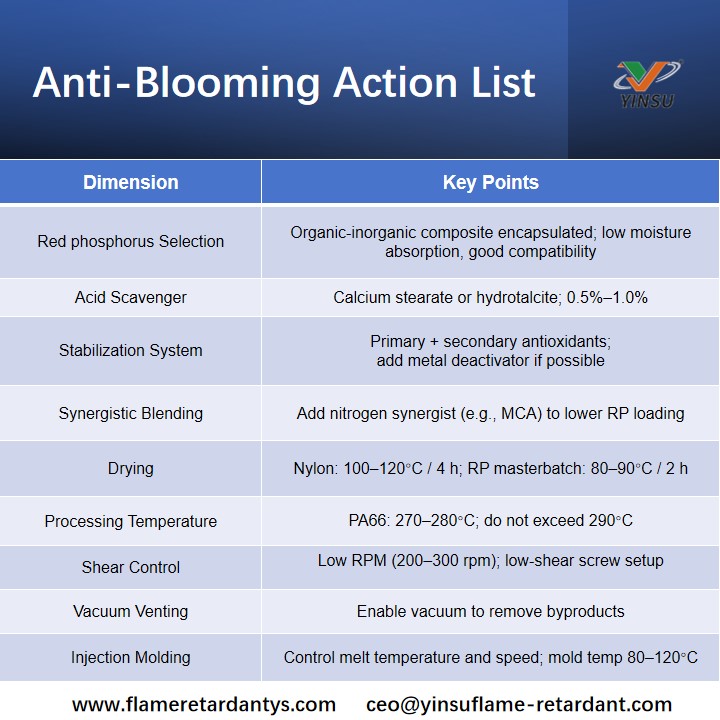

III. Summary: Anti-Blooming Action List

To pass the Dual 85-Degree Aging Test (no blooming, no corrosion after 1000 h), follow these key points:

Anti-blooming for red phosphorus flame retardant nylon has no one size-fits-all solution. It relies on systematic coordination between formulation and processing. With every detail well controlled, the Dual 85-Degree Aging Test is no longer an obstacle.

Can red phosphorus flame-retardant nylon not pass the Dual 85-Degree Aging Test?

Blooming issues often lie in the mismatch between formulation and processing.

This article explains in depth — from mechanism to practical operation — how to match suitable red phosphorus flame retardants with processing conditions,

so that anti-blooming performance no longer depends on luck.
