"Phosphorus-Phosphorus Flame Retardant System": Multiple Phosphorus-Based Flame Retardants Used Together. Internal Competition Or Synergy?

"Phosphorus-Phosphorus Flame Retardant System": Multiple Phosphorus-Based Flame Retardants Used Together. Internal Competition or Synergy?

In the field of organophosphorus flame retardancy, many people still have a superficial understanding limited to keywords like "phosphorylation," "esterification cross-linking," and "char formation." In reality, the flame retardancy process is not simply physical covering or filling. It is a "chemical reaction chain" involving multiple steps. This chain includes:

1. Whether the flame retardant can effectively react with the polymer.

2. Whether the reaction initiates within a suitable temperature range.

3. Whether the formed char layer is dense, stable, and possesses smoke suppression properties.

4. Whether synergistic components interfere with or enhance the flame retardant pathway.

Only by deeply understanding these microscopic reaction mechanisms can we base material design on evidence, rather than relying solely on experiential "formula adjustment."

I. The Upgrade Direction of Phosphorus-Based Flame Retardants
Phosphorus-based flame retardants, with their advantages of being environmentally friendly, promoting char formation, and having low toxicity, have become the "main force" in flame retardant systems for various polymers. So, what happens when two or more phosphorus-based flame retardants are used simultaneously in the same formulation. Is it synergistic enhancement or mutual weakening. This is precisely the theme we are exploring today – "Phosphorus-Phosphorus Synergism" (P–P Synergism).

II. Understanding Phosphorus-Phosphorus Synergism
Phosphorus-Phosphorus Synergism refers to the significant improvement in flame retardant efficiency achieved by combining two or more phosphorus-based flame retardants with different action mechanisms or pyrolysis behaviors within a single system. The effect is superior to the simple additive effect of a single phosphorus source.
Common combinations include:

1. Organic phosphates + Inorganic polyphosphates (e.g., RDP + APP)

2. Aluminum hypophosphite + Phosphates (e.g., ADP + MPP/MCA)

3. Low molecular weight phosphates + Polymeric phosphate esters (e.g., TPP + BDP)

III. Synergistic Mechanism. Multi-Stage, Multi-Path Synergistic Flame Retardancy

1. Staggered Pyrolysis Temperatures Enable Staged Flame Retardancy
For example, APP (Ammonium Polyphosphate) begins decomposing at 250–300°C, releasing phosphoric acid and participating in char formation. Meanwhile, low molecular weight phosphate esters like TPP (Triphenyl Phosphate) volatilize at 350–400°C, further exerting gas-phase free radical inhibition. The combination creates a dual-stage flame retardant system characterized by "first char formation, followed by flame suppression."

2. Condensed Phase Synergistic Char Enhancement
The phosphoric acid generated from APP decomposition acts as a dehydrating agent. The residual parts of TPP can promote the rearrangement of aromatic structures. The dual phosphorus sources work together to build a denser, more continuous intumescent char layer.

3. Interactions between phosphates and phosphoxanes

At high temperatures, the residual P=O structures in phosphate esters/phosphorus-containing compounds can polymerize with phosphate structures. This increases the cross-linking density and thermal stability of the char layer.

IV. Typical Case Study of Synergistic Effect
When TPP and APP are used together in polypropylene (PP) or polystyrene (PS), a synergistic enhancement of gas-phase and condensed-phase flame retardancy is achieved, significantly improving the flame retardant rating.

1. TPP alone. LOI = 18.2%, UL94 = NR

2. APP alone. LOI = 21.5%, UL94 = V-2

3. TPP + APP (50% each). LOI = 26.3%, UL94 = V-0
Thus, P-P Synergism increases the LOI by over 5% and elevates the UL94 rating by two levels.

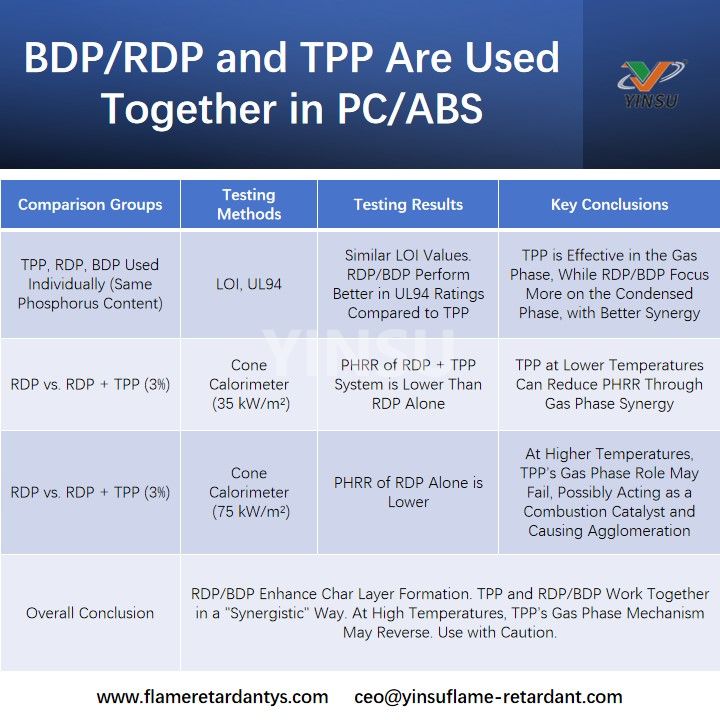

When BDP/RDP and TPP are used together in PC/ABS.

P-P synergy is a temperature-dependent synergistic mechanism. Its essence depends on the structure, volatility, and action phase differences of the phosphorus compounds.

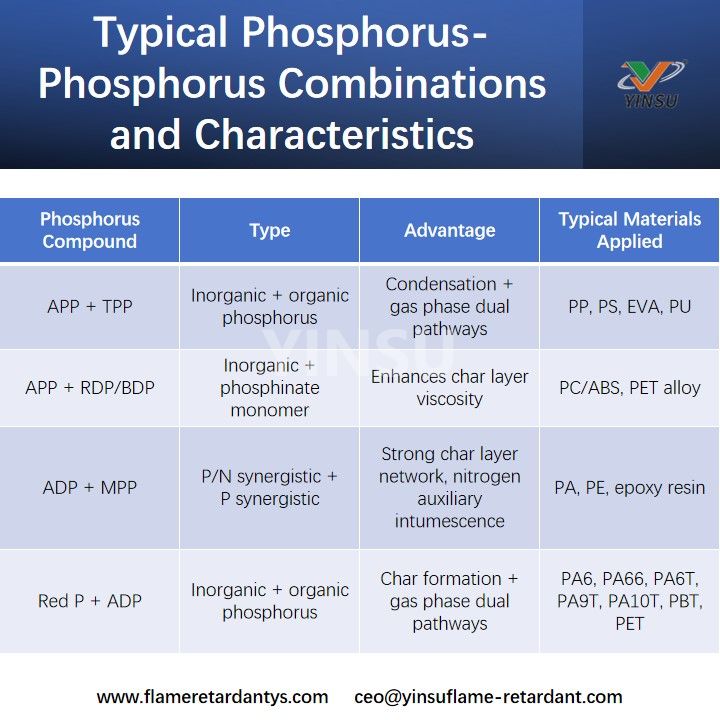

V. Typical Phosphorus-Phosphorus Combinations and Their Characteristics

VI. Engineering Application. When to Consider "Multi-Phosphorus Synergy"?
Scenarios where using a Phosphorus-Phosphorus synergistic system is recommended include:
1. Polymers requiring high-quality char layers, such as polyesters, cellulose, and PC.
2. Material systems with mismatched pyrolysis windows, such as PC/ABS alloys.
3. Systems where flame retardant migration or smoke emission is problematic.
4. Areas with stringent environmental requirements for low smoke and low toxicity.

VII. Conclusion: Dual-Phosphorus Drive, Building a Multi-Stage Fire Barrier
Phosphorus-Phosphorus synergism is not simply an "addition of phosphorus content." It involves constructing a more intelligent and stable multi-stage flame retardant defense through differences in pyrolysis windows and complementarity of flame retardant mechanisms. If halogen-phosphorus synergy is like a defense chain combining external and internal protection, and phosphorus-nitrogen synergy is an internal reinforcement of structure, then phosphorus-phosphorus synergy is a "dual-core drive," simultaneously strengthening both the condensed and gas phases to jointly build a strong fire barrier.

In the practical development of Phosphorus-Phosphorus synergistic systems, Yinsu Flame Retardant leverages its deep accumulation in the field of flame retardant materials to provide customers with professional and customized flame retardant solutions. Beyond the widely used ADP compound systems in engineering plastics, Yinsu has also developed various P-P synergistic schemes suitable for special scenarios like adhesives and coatings. For example, the combination of encapsulated phosphorus-based powders and liquid phosphate esters not only improves the dispersibility and compatibility of the flame retardants in the substrate but also enhances char quality and flame retardant durability. This is particularly suitable for the flame retardant requirements of thin-layer coatings and high-performance adhesives. Yinsu is committed to creating efficient, environmentally friendly, and cost-effective phosphorus-phosphorus synergistic flame retardant systems based on the customer's substrate characteristics, process conditions, and end applications, helping products achieve breakthroughs in both safety and performance.
