Piperazine Pyrophosphate Flame Retardant Application: Four Major Technical Challenges Behind The Advantages

Piperazine Pyrophosphate Flame Retardant Application: Four Major Technical Challenges Behind the Advantages

In the field of halogen-free flame retardant materials, piperazine pyrophosphate has gradually become a popular choice to replace traditional halogen-based flame retardants, thanks to its eco-friendly characteristics of being halogen-free, low-smoke, and low-toxicity, as well as its compatibility with substrates like polyolefins and engineering plastics. Its presence can be seen in fields ranging from appliance housings and automotive interior parts to wires and cables.
However, there is always a gap between ideal and reality. In actual production and application, the performance of piperazine pyrophosphate is often constrained by various factors, and many enterprises have encountered pitfalls during addition, processing, and usage. Today, we will delve into the 4 core challenges it faces in application, helping you avoid potential risks.

I. Limitations in Substrate Compatibility
Poor compatibility with non-polar substrates. Mold release during injection molding can be directly solved using modified piperazine pyrophosphate.
The molecular structure of piperazine pyrophosphate contains polar groups (such as pyrophosphate bonds and piperazine rings). This characteristic gives it acceptable compatibility with polar substrates (like PA6, PC), but it easily becomes "incompatible" when facing non-polar or low-polarity polyolefin substrates like PE (polyethylene) and PP (polypropylene).

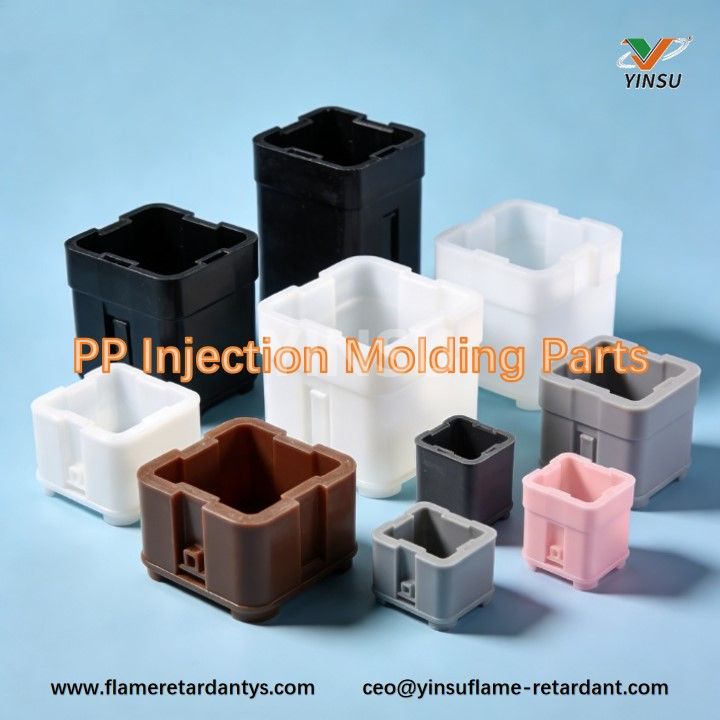

The issue of mold release due to insufficient compatibility is particularly prominent during the injection molding of PP. When ordinary piperazine pyrophosphate is added directly, the weak intermolecular forces between them can lead to the appearance of release agents on the surface of injection-molded parts and the mold, even if the addition amount is controlled. This problem is not caused by the addition amount itself. Without adjusting complex injection molding processes, directly selecting modified piperazine pyrophosphate can effectively solve this issue, preventing problems like agglomeration and mold release that affect product appearance from the root cause.
Furthermore, poor compatibility also reduces mechanical properties. For example, after adding ordinary piperazine pyrophosphate to PP pipes, tensile strength may decrease by 5%-10%, with a more noticeable decline in impact toughness, making them prone to brittle fracture in low-temperature environments. The tear resistance of PE films can also decrease, affecting their durability.

II. High Demands on Processing Technology
Narrow temperature window, easily leading to yellowing and foaming if not careful.
The marked thermal decomposition temperature of piperazine pyrophosphate is ≥280°C. This value alone seems to meet the processing needs of most plastics (e.g., PP extrusion temperature 180-220°C, PE processing temperature 160-200°C). However, in actual production, the processing window is narrower than imagined.
The problem lies in "localized overheating." In twin-screw extruders, screw shear generates additional heat. If the screw speed is too high (exceeding 400 rpm) or the barrel temperature deviates by 5-10°C, the local temperature may exceed the actual tolerance limit of piperazine pyrophosphate, causing it to decompose prematurely. Decomposition releases small molecule gases (such as CO₂, ammonia), leading to material "foaming." For instance, PP extruded sheets may develop internal pores, and injection-molded parts may have surface dents. Simultaneously, decomposition products can cause material yellowing, which is difficult to mask even with subsequent color adjustment, directly leading to product scrap.
What's more challenging is that piperazine pyrophosphate from different manufacturers varies in purity (impurity content 0.5%-2%). Impurities further reduce thermal stability, doubling the difficulty of temperature control. Without precise temperature control equipment, the scrap rate for small and medium-sized manufacturers could exceed 15%.

III. Uneven Dispersion in Substrates like PP
Frequent white spots and pitting, leading to "localized failure" of flame retardancy.
In polyolefin substrates like PP, the dispersion issue of piperazine pyrophosphate is more difficult to solve than compatibility. Even with pre-mixing, surface white spots and pitting may still appear after extrusion or injection molding, which is constrained by both "material properties and processing."
From a material property perspective, the density of piperazine pyrophosphate is about 1.5 g/cm³, while PP density is only 0.9 g/cm³. The significant density difference makes "stratification" likely during mixing. If the particle size distribution of piperazine pyrophosphate is uneven (e.g., containing large particles above 5μm), the cohesive force between particles increases, making them difficult for the screw to disperse.
From a processing perspective, the mixing step is crucial. Without employing a combined process of "high-speed pre-mixing + twin-screw dispersion" and relying solely on single-screw extrusion, piperazine pyrophosphate will exist in the substrate as "small aggregates." The feeding sequence also matters. Adding the base resin and toughening agent first, followed by piperazine pyrophosphate, results in over 30% better dispersion than direct mixing.
The consequences of poor dispersion go beyond appearance. White spots and pitting on the part surface can affect subsequent coating and printing processes. Internal uneven dispersion leads to "flame retardant dead zones." For example, if the concentration of piperazine pyrophosphate is too low in a certain area of a PP appliance housing, burning may start from that area, failing to meet the V-0 flame retardant standard.

IV. Average Water Resistance and Durability
Prone to leaching in high-temperature and high-humidity environments, reducing flame retardant effectiveness.
Piperazine pyrophosphate molecules contain a small number of hydrophilic groups (such as hydroxyl groups), resulting in relatively high water solubility. This characteristic challenges its stability in high-temperature and high-humidity environments.
For instance, for outdoor PP sunshades, ABS components in bathrooms, or automotive interiors (where summer car temperatures can exceed 60°C and humidity often surpasses 70%), long-term exposure to such environments causes piperazine pyrophosphate to slowly migrate and leach to the part surface. This not only causes surface whitening and loss of gloss but may also lead to a decrease in flame retardant content.
The industry commonly uses "modification + surface coating" to address this. Coating with silane coupling agents, epoxy resins, etc. (coating thickness 50-100 nm) can reduce water solubility by 30%-50%. Alternatively, grafting non-polar groups (like long-chain alkyl groups) can enhance interfacial adhesion with polyolefin substrates and reduce leaching. However, these methods increase costs by 10%-15%, and issues may still arise if the coating is uneven.

V. Conclusion
Only by solving the challenges can the true potential of piperazine pyrophosphate be unleashed.
The environmental advantages of piperazine pyrophosphate are undeniable. However, the aforementioned 4 major problems—substrate compatibility (including PP injection molding release), processing sensitivity, dispersion, and water resistance—remain "roadblocks" restricting its large-scale application. For enterprises, it is necessary to choose suitable modification solutions (like coated piperazine pyrophosphate) and processing techniques (like precise temperature control, stepwise mixing) based on their specific product scenarios (e.g., outdoor use, precision of processing technology). Notably, for the release problem in PP injection molding, directly selecting modified piperazine pyrophosphate can efficiently solve the issue without adjusting the flame retardant addition amount or production process.

Final Reminder
The core advantage of modified piperazine pyrophosphate is "no process adjustment required." Enterprises don't need to invest in equipment modification. Simply selecting the appropriate model based on their product's scenario (e.g., high temperature/humidity, high appearance requirements) can perfectly solve the application pain points of ordinary piperazine pyrophosphate.
If your product has special requirements (e.g., ultra-low temperature environments, extremely thin walls) or you wish to obtain specific supplier model comparisons and small-scale trial sample recommendations, please leave a comment saying "Selection + Scenario." We will provide you with customized solutions!
