PA6 Modification Formulations and Processes for Lithium Battery Packs

PA6 Modification Formulations and Processes for Lithium Battery Packs

For lithium battery pack applications, PA6 (Nylon 6) requires specific modifications to meet its stringent demands, which primarily include high flame retardancy, excellent mechanical strength, good dimensional stability, resistance to electrolyte, high-temperature resistance, and electrical insulation.

I. Core Modification Directions and Formulation Concepts

1. Flame Retardant Modification (FR-PA6):
Goal: Achieve UL 94 V-0 rating (typically required at 0.8mm or 1.6mm thickness), the safety baseline for structural components like battery pack housings and brackets.
Common Flame Retardant Systems:

• Bromine-Antimony Synergistic System: e.g., Decabromodiphenyl ether/Decabromodiphenyl ethane + Antimony trioxide. High efficiency, relatively low cost, but faces significant environmental pressure, risks of blooming, and requires attention to thermal stability.

• Halogen-free Phosphorus-Nitrogen Flame Retardant System: e.g., Phosphinates (aluminum salt, calcium salt, etc.), Phosphorus-Nitrogen intumescent flame retardants, Ammonium polyphosphate. Good environmental profile, low smoke toxicity, representing the mainstream development direction. However, addition levels are typically high (15-30%), which can significantly impact mechanical properties and flow, and costs are higher. Careful selection of varieties with good compatibility and resistance to blooming with PA6 is necessary.

• Metal Hydroxides: e.g., Aluminum hydroxide, Magnesium hydroxide. Environmentally friendly and non-toxic, but require extremely high addition levels (>50%) to achieve V-0, severely compromising mechanical properties and flow, thus less used in PA6.

Formulation Key Points:

The compatibility of the flame retardant with the matrix and other additives is crucial to prevent migration and blooming, which affects performance and appearance.

• Addition of flame retardant synergists (e.g., antimony-based for brominated systems) or anti-dripping agents (e.g., PTFE) is needed to enhance flame retardant efficiency and prevent molten drips.

• Balancing the relationship between flame retardant efficiency and mechanical properties, flow, and cost is essential.

2. Reinforcement Modification (Reinforced PA6):
Goal: Increase strength, stiffness, dimensional stability, heat resistance (HDT), and reduce housing deformation.
Common Reinforcing Materials:

• Glass Fiber: Most commonly used. Addition levels typically range from 15% to 50% (commonly 20%-35%). Significantly improves strength, stiffness, HDT, and dimensional stability.

• Mineral Fillers: e.g., Talc, Mica, Calcium carbonate. Primarily improve stiffness, dimensional stability, and reduce cost, the improvement in strength is less pronounced compared to glass fiber. Sometimes used in combination with glass fiber.

Formulation Key Points:

• Glass fiber length and surface treatment (silane coupling agent) greatly influence final properties. Good interfacial bonding is key.

• High glass fiber content reduces toughness and increases warpage tendency. Optimization of glass fiber content and distribution is needed.

• Fillers must be dry, with appropriate particle size and surface treatment to avoid agglomeration.

3. Electrolyte Resistance Modification:
Goal: Resist swelling, corrosion, and performance degradation caused by lithium battery electrolyte (typically a carbonate mixture containing LiPF6, e.g., EC/DMC/EMC).
Modification Methods:

• Base Resin Selection: PA6 itself has some chemical resistance but is insufficient. Consider copolymer modification or using semi-aromatic nylons (e.g., PA6T, PA9T) as the matrix or blend component, as their electrolyte resistance is far superior to pure PA6.

• Add Compatibilizers/Stabilizers: Incorporate specific compatibilizers or chemical corrosion resistance agents to improve the interface between PA6 and flame retardants/fillers, reducing electrolyte penetration paths.

• High Crystallinity/Cross-linking: Increasing crystallinity (via nucleating agents, process optimization) or introducing light cross-linking can enhance chemical resistance.

• Surface Treatment/Coating: Applying an electrolyte-resistant coating on the part surface is another approach (not material modification per se).

Formulation Key Points: This is one of the biggest challenges for PA6 used in battery packs. Strict electrolyte immersion testing (e.g., soaking at 85°C for 7 days or longer) is essential, evaluating weight change, retention of mechanical properties (tensile/impact), appearance changes, etc.

4. Toughening Modification:
Goal: Maintain toughness at low temperatures or under impact, preventing brittle fracture, especially for parts with snap-fits or prone to impact.
Common Toughening Agents:

• POE-g-MAH, EPDM-g-MAH: Maleic anhydride grafted polyolefin elastomers, with good compatibility with PA6, offering significant toughening effect.

• SEBS-g-MAH: Grafted hydrogenated styrenic block copolymer, offering better aging resistance.

Formulation Key Points:
Toughening agents reduce strength, stiffness, and HDT, and may affect flame retardancy. Careful selection of type and addition level (typically 5%-15%) is needed to find the optimal balance.
Good dispersion and interfacial bonding are key to toughening effectiveness.

5. High-Temperature/Thermal Aging Resistance Modification:
Goal: Improve property retention in long-term high-temperature environments (e.g., internal battery pack temperatures can reach 80-100°C).
Modification Methods:

• Reinforcement Modification: Glass fiber/mineral filling itself significantly increases HDT and high-temperature strength.

• Adding Heat Stabilizers: e.g., Copper salts (copper iodide/potassium iodide mixture), hindered phenol/phosphate antioxidant combinations. Effectively delay high-temperature oxidative degradation, maintaining mechanical properties and color stability.

Formulation Key Points: The heat stabilizer system must be compatible with the flame retardant system to avoid mutual interference and failure.

6. Electrical Performance Modification:
Goal: Maintain or improve insulation (high volume/surface resistivity), reduce leakage current risk, improve CTI (Comparative Tracking Index) to meet high-voltage battery pack requirements (typically requiring CTI ≥ 400V, preferably ≥ 600V).
Modification Methods:

• Avoid Conductive Fillers: e.g., Carbon black, metal powders.

• Select High CTI Flame Retardant Systems: Halogen-free flame retardants (especially certain phosphinates) generally have higher CTI values than bromine-antimony systems.

• Control Impurity Ions: Impurity ions in raw materials can reduce resistivity and CTI, high-purity raw materials are necessary.

• Add CTI Enhancers: Certain special additives (e.g., specific structured silicon compounds, borates) may help improve CTI.

Formulation Key Points: CTI testing is mandatory and must be considered in formulation design.

II. Typical Modified PA6 Formulation Examples (Examples only, for reference, adjustments needed based on specific requirements)

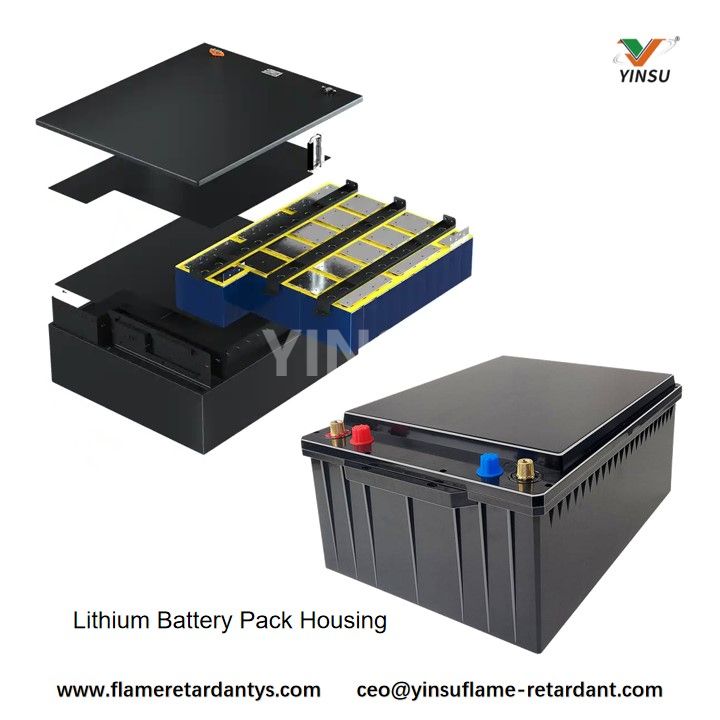

1. High Stiffness, High Flame Retardancy, Basic Electrolyte Resistance Type (e.g., Battery Pack Lower Housing):

• PA6 Base Resin: 45-60%

• Halogen-free Flame Retardant (Phosphorus-Nitrogen type/Phosphinate): 15-25%

• Glass Fiber: 25-35%

• Flame Retardant Synergist/Anti-drip Agent (PTFE): 0.2-0.5%

• Heat Stabilizer (Copper salt + Antioxidant): 0.5-1.5%

• Lubricant/Processing Aid: 0.5-1%

• (Optional) Electrolyte Resistance Additive/Compatibilizer: 1-3%

2. High Toughness, High Flame Retardancy Type (e.g., Battery Pack Upper Cover, Bracket Snap-fits):

• PA6 Base Resin: 50-65%

• Halogen-free Flame Retardant: 15-25%

• Toughening Agent (POE-g-MAH): 8-12%

• Glass Fiber: 15-25%

• Flame Retardant Synergist/Anti-drip Agent (PTFE): 0.2-0.5%

• Heat Stabilizer: 0.5-1.5%

• Lubricant: 0.5-1%

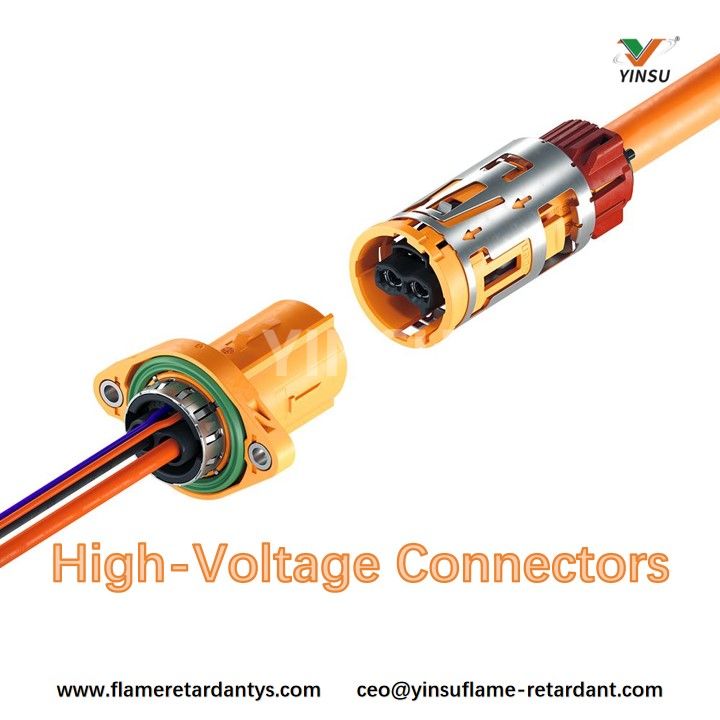

3. High CTI, High Electrolyte Resistance Type (High-voltage Connectors, Busbar Insulators):

• PA6 or PA6/Semi-aromatic Blend Base: 50-70%

• High CTI Halogen-free Flame Retardant: 15-25%

• Glass Fiber/Mineral: 20-30%

• CTI Enhancer: 1-3%

• Specialized Electrolyte Resistance Additive: 2-5%

• Heat Stabilizer: 0.5-1.5%

• Lubricant: 0.5-1%

III. Key Process Points

1. Drying:

• Crucial! PA6 is highly hygroscopic. Moisture content must be controlled below 0.15% (preferably <0.1%). Otherwise, severe hydrolysis degradation during high-temperature processing will occur, leading to molecular weight decrease, performance deterioration (especially impact toughness), bubbles, silver streaks, and other defects.

• Drying Conditions: Dehumidifying dryers are recommended. Temperature: 80-90°C, dew point ≤ -40°C, time: 4-6 hours. Material bed thickness should not be excessive. Dried material should be used promptly or temporarily stored in a sealed, heated hopper.

2. Melt Compounding (Pelletizing):
Equipment: Twin-screw extruder is the best choice, offering excellent mixing and dispersion, with flexible configuration of process zones (feeding, melting, mixing, venting, pressure building).
Process Parameters:

• Temperature: Set based on PA6 melting point (~220°C) and formulation. Generally, feed zone is lower (~200°C), melting/mixing zones are higher (230-260°C), die head is slightly lower (~240°C). Avoid excessive temperatures (>280°C) and long residence time to prevent thermal degradation, especially sensitive for flame retardants and toughening agents.

• Screw Speed: Avoid excessively high speed and the resulting high shear and temperature rise while ensuring complete melting and mixing. Balance output and dispersion effectiveness.

• Vacuum Venting: Highly recommended! Set up effective vacuum vents after the melting/mixing zones to remove moisture, low-molecular volatiles (possibly from flame retardants, additives, or degradation products), improving material purity and performance.

• Glass Fiber/Filler Addition: Typically added via a side feeder in the middle zone after complete polymer melting to reduce fiber breakage. Ensure good sealing at the side feeder port.

• Melt Pressure: Monitor and maintain stability to ensure stable extrusion and uniform filling.

3. Molding Process (Mainly Injection Molding):
Equipment: Screw-type injection molding machine. Select appropriate tonnage (based on part size and projected area). Screw compression ratio is recommended between 2.0-2.8.
Process Parameters:

• Barrel Temperature: Slightly lower or similar to pelletizing temperature. Typically in the range of 230-260°C. Front zone temperature can be slightly higher to ensure plastication, rear zone (nozzle) temperature should be closer to melting point to prevent drooling. Specific settings depend on material grade, part thickness, and mold structure adjustments.

• Mold Temperature: Very important! Affects crystallinity, shrinkage, appearance, and internal stress. Typically requires a high mold temperature (70-100°C). High mold temperature helps:

• Increase crystallinity → Better mechanical strength, heat resistance, chemical resistance, dimensional stability.

• Reduce internal stress → Reduce risk of warpage and post-molding cracking (especially crucial for electrolyte resistance).

• Improve appearance (gloss, reduce weld lines).

• Promote glass fiber covering on the surface layer, reducing fiber prominence.

• Injection Speed/Pressure: Generally use medium-high speed to fill complex cavities, but avoid excessive shear causing material degradation or excessive glass fiber orientation. Hold pressure and time must be sufficient to compensate for shrinkage but avoid excessive levels causing high internal stress and flash. The hold pressure switch-over point (V/P switch) needs precise setting.

• Back Pressure: Appropriate back pressure (3-10 bar) aids in melt homogenization, plastication, and venting.

• Screw Rotation Speed: Medium speed, avoid overheating.

• Cooling Time: Ensure part is fully cooled and set to reduce demolding deformation. Time depends on wall thickness and mold temperature.

Post-processing (Annealing):

• Recommended! Especially for thick-walled, complex structures, or parts requiring high dimensional stability and low internal stress.

• Purpose: Eliminate internal stress, promote post-crystallization, further improve dimensional stability and resistance to environmental stress cracking (beneficial for electrolyte resistance).

• Method: Place parts in a hot air oven or oil bath at a temperature slightly below the material's HDT (typically 100-140°C) for a duration based on thickness (1-4 hours or longer), then slowly cool to room temperature.

IV. Key Quality Control and Testing

1. Raw Material Inspection: Specifications and purity of resin, flame retardants, glass fiber, additives, etc.

2. Pellet Inspection: Appearance, Melt Flow Index, moisture content, flame retardancy rating (UL 94), CTI, basic mechanical properties.

3. Part Inspection:

• Dimensions & Appearance: Dimensional tolerances, warpage/deformation, surface defects (sink marks, silver streaks, prominent fibers, weld lines, etc.).

• Mechanical Properties: Tensile strength, Flexural strength/modulus, Notched Izod Impact strength (room temp & low temp), HDT.

• Flame Retardancy: UL 94 (specified thickness, e.g., 0.8mm, 1.6mm, 3.0mm), GWIT, GWFI (if required).

• Electrical Properties: Volume resistivity, Surface resistivity, CTI.

• Electrolyte Resistance: Core test! Immerse specimens/parts in specified electrolyte (e.g., 1M LiPF6 in EC:DMC:EMC=1:1:1) at elevated temperature (e.g., 85°C) for a specified duration (e.g., 7, 14, 28 days). Test weight change rate, retention of mechanical properties (tensile/impact), appearance changes (swelling, discoloration, cracking), insulation resistance change, etc., before and after immersion. Standards can reference internal specifications from automakers or battery manufacturers.

• Thermal Aging Resistance: Long-term (e.g., 1000 hours) hot air aging at high temperature (e.g., 130°C), testing property retention.

• Thermal Shock Resistance: Simulating battery pack usage temperature cycling.

• (Optional) Outgassing: Evaluate the composition and amount of gases released by the material under high temperature or vacuum, preventing adverse effects on battery performance.

V. Summary

Developing modified PA6 for lithium battery packs is a systems engineering task requiring comprehensive consideration of:

1. Defining the application scenario and core requirements: Is it housing, bracket, cover, or insulator? What is the top-priority performance (flame retardancy, strength, toughness, electrolyte resistance, CTI)?

2. Careful formulation design: Selecting appropriate flame retardant systems (halogen-free is the trend), reinforcement systems, toughening agents, stabilizers, and other functional additives, and rigorously evaluating electrolyte resistance.

3. Strict process control: Thorough drying is a prerequisite, optimized compounding/pelletizing (twin-screw + vacuum venting) and injection molding (especially high mold temperature and possible annealing) are key to ensuring final part performance.

4. Implementing strict testing standards: Especially fully validating against special requirements for lithium battery applications (UL 94 V-0, CTI, electrolyte resistance aging).

It is recommended to collaborate with professional compounders. They typically possess mature formulation platforms, stringent testing capabilities, and extensive application experience, enabling them to provide modified PA6 material solutions tailored to specific battery pack design needs.
