How to Reduce Bubble Defects in the Injection Molding Process of Flame-Retardant PA66 Products

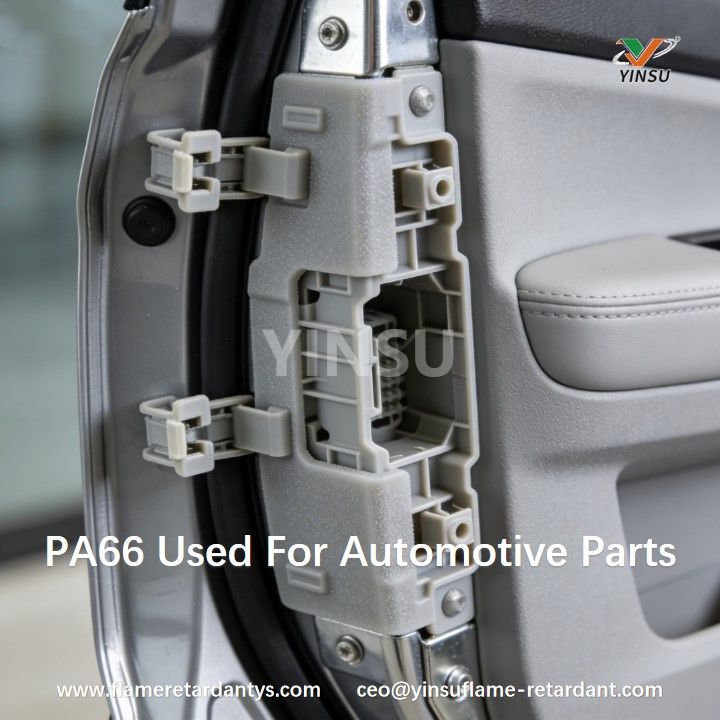

Flame-retardant PA66 is a commonly used flame-retardant nylon material, widely applied in fields such as electronic appliances and automotive components due to its excellent mechanical properties and flame-retardant characteristics. Bubble defects frequently occur during the injection molding process, affecting the appearance and performance of the parts. To comprehensively reduce bubble formation, optimization is required from multiple aspects including material preparation, process parameters, mold design, and post-processing, based on actual production conditions.

I. Understanding the Nature and Causes of Bubble Formation

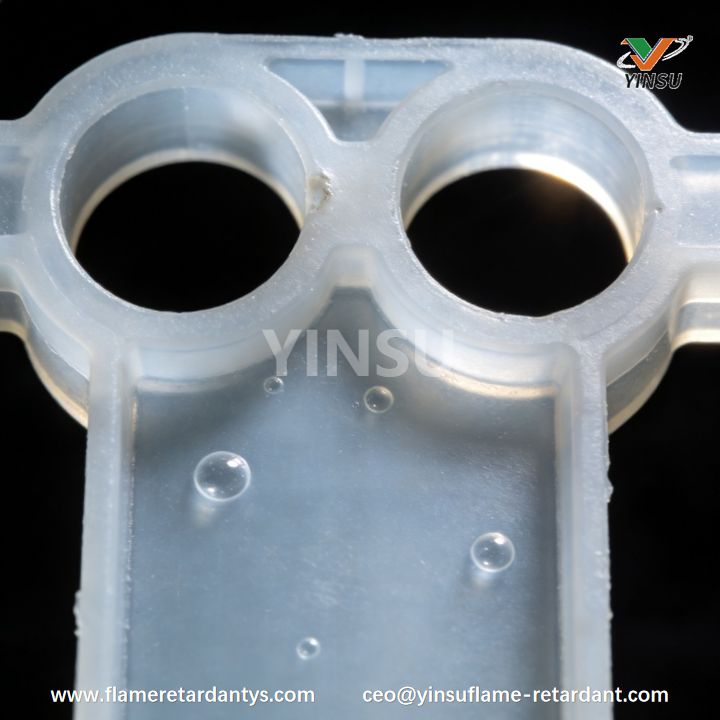

Bubble defects are primarily caused by gases trapped inside the material or within the mold cavity not being vented in time. The formation of bubbles in flame-retardant PA66 parts generally involves the following situations:

• Release of water vapor or gases from moisture or volatiles inherent in the material.

• Air being trapped and unable to be fully vented during the injection process.

• Gas release from material decomposition under high temperature.

• Incompatibility between the material and additives, causing internal separation or bubbles.

Different causes require different countermeasures, necessitating accurate identification of the specific reason for bubble occurrence.

II. Preparation and Treatment of the Material Itself
Flame-retardant PA66 parts are highly hygroscopic and must be thoroughly dried before molding. The typical recommended drying condition is 80°C–85°C for 4–6 hours, ensuring moisture content is below 0.1%. Injection molding with damp material is a common cause of bubbles, as moisture generates large amounts of steam during melting, forming bubbles. The raw material storage environment must be kept dry, and mixing with strongly hygroscopic materials should be avoided. Some manufacturers recommend using sealed packaging or vacuum dryers to control material moisture content. When necessary, screening incoming materials to remove severely damp batches can significantly reduce bubble risk. On the other hand, the type and amount of flame retardant in PA66 parts also affect bubble morphology. For example, inorganic flame retardants like silica or aluminum hydroxide may lead to localized gas concentration and micron-level bubbles if dispersed unevenly. Rational selection of flame retardants, along with their particle size and dispersion methods, is particularly crucial.

III. Optimization of Injection Molding Process Parameters
Properly adjusting injection parameters is a key aspect of reducing bubbles, mainly including the following:

• Injection Temperature: The melting temperature for flame-retardant PA66 is generally between 265°C and 280°C. Excessively high temperatures can easily cause material thermal degradation, producing decomposition gases and forming bubbles. Excessively low temperatures increase melt viscosity, making it difficult for gases to escape. The temperature range must be strictly controlled to avoid hot spots.

• Uniform Barrel and Nozzle Temperature: Uneven temperature distribution can cause insufficient heating in some melt areas, increasing bubble risk.

• Injection Speed and Pressure: Higher injection speed and pressure help push the melt to fill the mold quickly, reducing gas accumulation at the front. However, excessively high values may induce shear heat, leading to gas release. A balance needs to be found based on mold and part structure.

• Holding Time and Pressure: Appropriately extending holding time and increasing holding pressure help expel existing gases, promote melt compaction, and reduce bubble defects.

• Cooling Time and Cooling Water Temperature: A properly designed cooling system ensures uniform part cooling, avoiding voids or bubbles caused by uneven shrinkage.

Different process parameters interact with each other. Systematic experimentation and testing should be conducted to gradually optimize and find the best process window.

IV. Mold Design and Venting System Design
Mold structure design plays a key role in bubble formation and venting. Bubbles often appear at mold ends or areas with poor flow, which are phenomena of air entrapment or gas accumulation. Properly designed venting grooves and vents allow air to escape smoothly, reducing gas buildup. Venting grooves are typically located at the mold flow front and the part parting line, with depth generally controlled at 10–20 microns. Excessive depth can affect part quality. Runner design should ensure uniform fluid distribution, avoid flow slowdown and dead corners, and reduce gas entrapment. Balanced design in multi-cavity molds is especially important to prevent local pressure differences causing bubbles. Mold surface finish should not be overlooked. Rough or defective surfaces can easily form bubble nuclei, exacerbating the problem. Mold polishing and repair are important means to ensure quality.

V. Melt Flow Behavior and Gas Venting Patterns
The melt of flame-retardant PA66 parts has a certain viscosity. During flow, gases tend to be trapped in local low-pressure areas or sharp contraction points. Understanding melt flow characteristics is extremely important. Pressure drop changes from the nozzle to the runner and from the runner to the cavity affect gas venting efficiency. Using Computer-Aided Engineering (CAE) simulation can predict melt flow paths and potential bubble locations, allowing for optimization adjustments in advance. Measures like optimizing gate location or changing runner cross-section shape can effectively reduce residual gas.

VI. Auxiliary Measures and Detection Techniques
In actual production, the following auxiliary measures are recommended:

• Adding defoamers or gas scavengers to assist in releasing and adsorbing free gases.

• Improving drying equipment and continuously monitoring material moisture content.

• Using vacuum injection molding to reduce gas content and pressure in the melt, promoting bubble expulsion.

• Employing infrared or thermal imaging equipment to detect mold temperature distribution and promptly identify abnormalities.

• Utilizing non-destructive testing techniques like ultrasonic testing or X-ray scanning to inspect internal bubbles in parts.

Under the trend of Industry 4.0, these technologies form a digital closed loop, helping to improve the control level of injection molding bubble defects.

VII. Often Overlooked Details and Suggestions

1. Preheat the Mold: An unheated or excessively cold mold causes the melt to cool rapidly, producing cold flow lines and bubbles. The mold should be properly preheated to a temperature of 80–100°C.

2. Material Changeover Cleaning: Incomplete cleaning during material changeover can lead to gas or particle generation from mixing old and new materials, causing bubble defects.

3. Filter Screen Cleaning: Clogged or mismatched filter screens cause poor melt flow, locally increasing gas and forming bubbles.

4. Ambient Humidity Control: Excessive humidity in the production workshop or poor material storage environments make materials prone to moisture absorption.

5. Adjusting Product Design: Avoid areas prone to forming dead corners or poor flow to reduce bubble generation.

Perspective
Reducing bubble defects in the injection molding process of flame-retardant PA66 parts is a systematic project requiring comprehensive optimization of material preparation, process parameters, mold design, and subsequent inspection. Improvement in a single link can hardly solve the problem fundamentally. It is recommended that production enterprises establish data tracking and feedback mechanisms to achieve stable product quality through continuous improvement. Paying particular attention to material drying treatment and rational process parameters not only improves product appearance quality but also enhances mechanical performance and service life. In the long run, introducing advanced simulation technology and non-destructive testing equipment can enable defect prevention and early detection, fundamentally controlling bubble risk, aligning with the trend of high-quality manufacturing. Details in injection molding determine quality, and mastering bubble control inevitably requires effort in the subtleties. Understanding bubble formation mechanisms, combining practical experience with scientific methods, and effectively reducing bubble defects are unavoidable challenges for flame-retardant PA66 part manufacturers, and also a key step towards excellence.
