I. Preamble: What Are the Respective Strengths of Phosphorus-Based and Halogen-Based Systems?

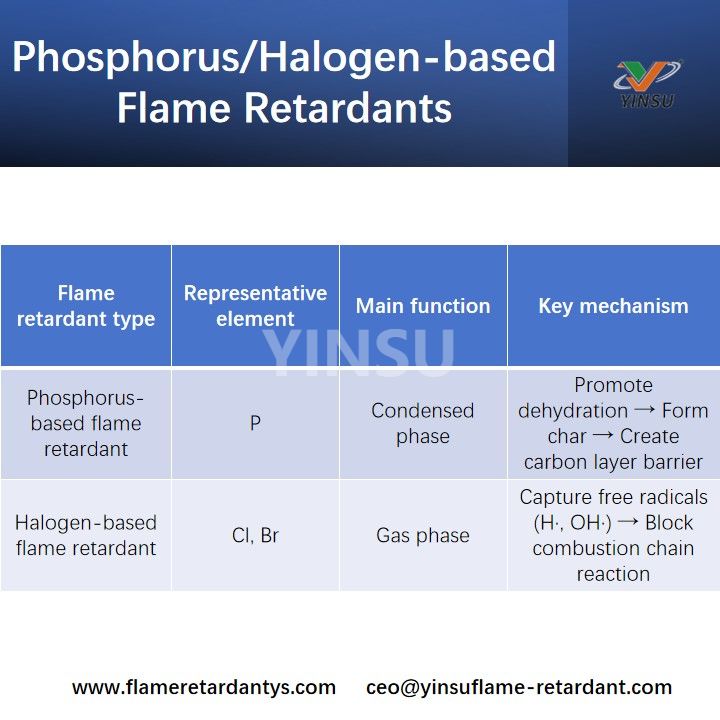

In the flame retardant system, phosphorus-based and halogen-based systems demonstrate their capabilities through different mechanisms:

So, can integrating these two mechanisms achieve a synergistic flame retardant effect where "1+1>2"? Or will interference between them instead weaken the flame retardant performance?
This brings us to the focus of today's discussion—the Phosphorus-Halogen (P/X) Synergistic Flame Retardant System.

II. Is Synergy Possible? Understanding the Mechanisms

1. Halogen-Based: The "Fire Extinguisher" in the Gas Phase

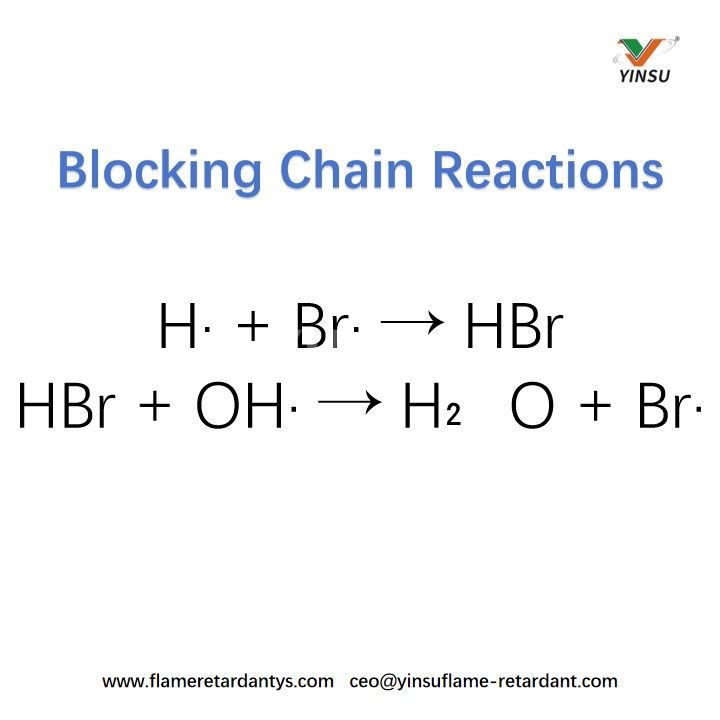

Halogen-based flame retardants release halogen radicals at high temperatures, which react with highly reactive radicals (e.g., H·, OH·), interrupting the chain combustion reaction and forming a virtuous cycle to rapidly suppress the flame.

2. Phosphorus-Based: The "Wall Builder" in the Solid Phase
Phosphorus-based flame retardants generate phosphorus-containing acidic species during pyrolysis, catalyzing char formation in the polymer and creating a stable carbon layer that effectively blocks heat and mass transfer.

3. The Ideal Mode of P/X Synergy
In theory, phosphorus forms char in the solid phase, establishing a foundational flame retardant barrier, while halogen captures radicals in the gas phase to quickly suppress the flame. Some studies also suggest that halogen may promote the polymerization of phosphoric acid, further enhancing char quality. Additionally, if phosphorus-halogen oxides such as POCl₃ are formed during the reaction, they may introduce new flame retardant pathways.

III. Practical Challenges: Synergy Is Not Inevitable
However, in practical applications, the P/X system is not always a "match made in heaven":

Challenge 1: Do Phosphorus-Halogen Oxides Truly Exist?
There is currently a lack of conclusive evidence demonstrating the stable formation of intermediates like POCl₃ or PBr₃ during combustion. Thermodynamic analysis indicates that their formation conditions are stringent, and relevant volatile products are difficult to detect experimentally.

Challenge 2: Competition in Reaction Pathways Leads to Antagonism
For example, the halogen-antimony (Sb) system itself exhibits excellent synergistic flame retardancy in the gas phase. However, the presence of phosphorus may preferentially react with antimony to form non-volatile antimony phosphate, deactivating the antimony and thereby reducing the overall flame retardant performance. This indicates that phosphorus can, in some cases, "steal" key reactive components, leading to synergistic failure.

IV. Evidence from Data: Performance Variations in P/X Systems

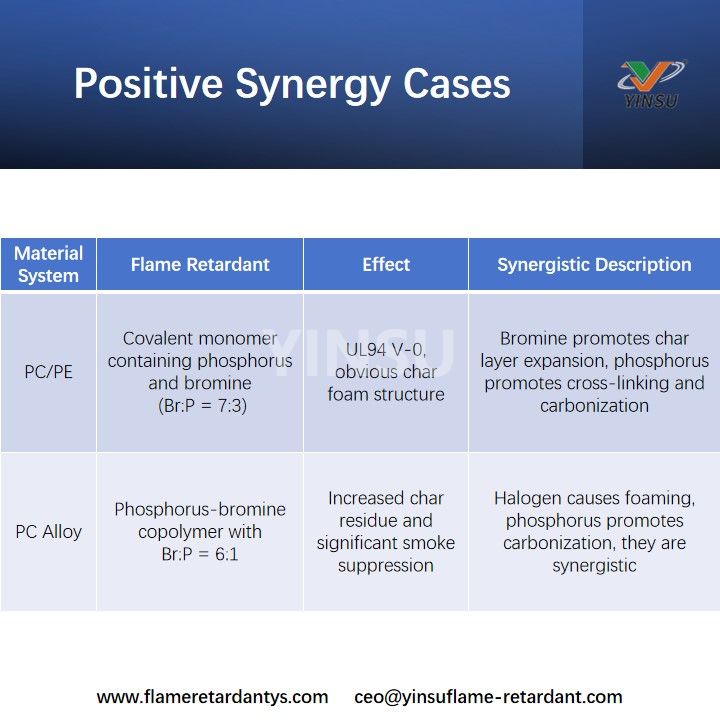

Positive Synergy Cases:

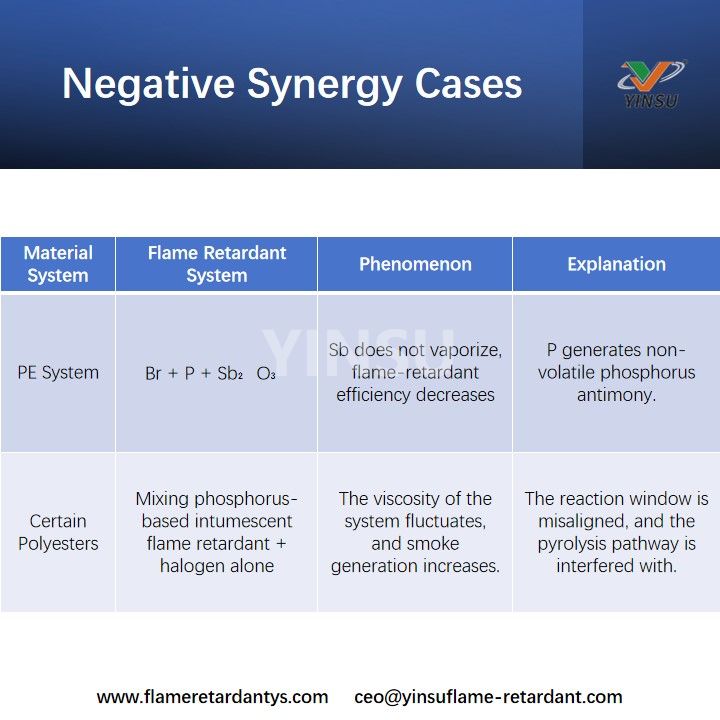

Negative Synergy Cases:

Actual data show that the synergistic effect of P/X is highly dependent on the specific components and reaction conditions, and not every combination can achieve enhanced effectiveness.

V. Chemical Prerequisites for Successful P/X Synergy
To achieve effective synergy, the following conditions must be met:

1. Halogen must stably perform its radical trapping function in the gas phase without interference from phosphorus.

2. Phosphorus must effectively form char in the solid phase without its cross-linking catalysis being affected by halogen.

3. The thermal decomposition temperatures of the two must be matched, and their reaction pathways must not conflict.

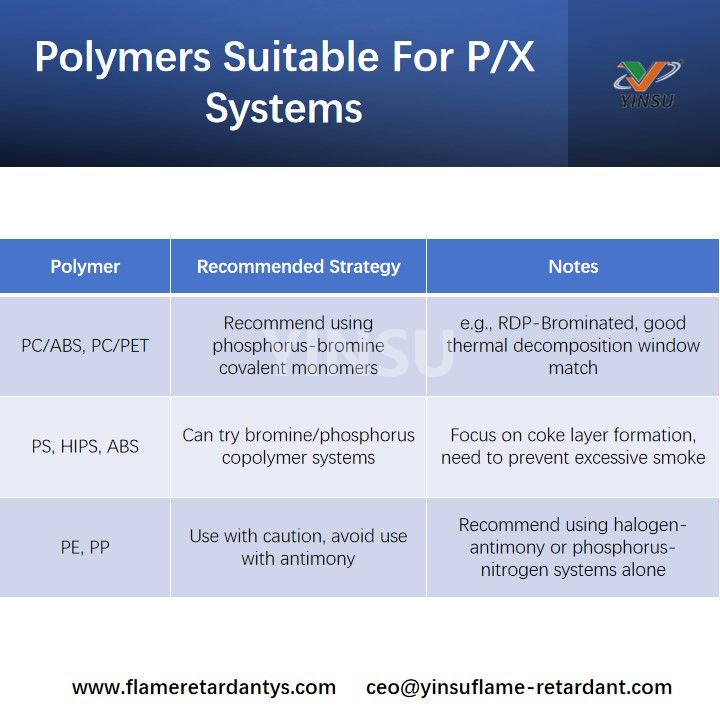

VI. Engineering Application Recommendations: Which Systems Are Suitable?

VII. The Path to Synergy: Precision Design
Phosphorus builds the wall externally, halogen extinguishes the fire internally—seemingly a match made in heaven. However, if the interactions between material structure, thermal behavior, and additives are overlooked, this "union" could end in failure.
Therefore, the successful application of a P/X synergistic system must rely on:

1. Precise formulation design (structural matching and pyrolysis window control)

2. Rational selection of agent types (covalent > polymeric > physical blending)

3. Systematic experimental validation (multi-dimensional evaluation including smoke suppression, char residue, heat release rate, etc.)

Phosphorus-halogen synergy is not a universal key, but an advanced option for high-end flame retardant needs that requires precise control.

VIII. Conclusion

PVC itself contains the halogen element chlorine, which led many to initially place their hopes on organophosphorus as a potential antimony-free flame retardant. However, practical experience has shown that the combination of organophosphorus and halogens is not ideal and may even be counterproductive. Against this backdrop, Yinsu Company, leveraging its professional R&D team and profound technical expertise, has successfully developed ZSM—an antimony-free flame retardant. This flame retardant not only perfectly aligns with the characteristics of PVC leather and other materials but also provides robust protection for the safe application of PVC materials through its exceptional flame-retardant performance, paving new paths for the development of related industries.
