Flame Retardants in PVC Plastics: Types, Standards, Mechanisms, Applications, And Case Studies

Flame Retardants in PVC Plastics: Types, Standards, Mechanisms, Applications, and Case Studies

I. Flammability Characteristics and Challenges of PVC Plastics
Polyvinyl chloride (PVC) itself has a high chlorine content (approximately 56%), and releases hydrogen chloride (HCl) gas upon combustion, granting it a degree of self-extinguishing properties (Limiting Oxygen Index LOI ≈ 45%). However, practical applications present the following challenges:

1. Flexible PVC: The addition of plasticizers (e.g., DOP, DINP) significantly reduces the LOI (can drop below 20%), necessitating the addition of flame retardants.

2. Smoke and Toxicity: Combustion releases HCl, dioxins, and dense smoke.

3. Thermal Stability: Prone to decomposition during high-temperature processing, requiring synergistic use of heat stabilizers and flame retardants.

II. Types of Flame Retardants Used in PVC Plastics

1. Halogenated Flame Retardants

• Chlorinated Flame Retardants: e.g., Chlorinated paraffins. Those with 50% chlorine content are primarily used as secondary plasticizers for PVC, while those with 70% chlorine content are mainly used as flame retardants.

• Brominated Flame Retardants: e.g., Tetrabromobisphenol A (TBBPA), which can be used as additive or reactive flame retardants in various plastics, including PVC.

2. Phosphorus-based Flame Retardants

• Inorganic Phosphorus Flame Retardants: e.g., Red phosphorus, Ammonium polyphosphate (APP). Red phosphorus has high flame retardant efficiency but poor compatibility with resins, often requiring microencapsulation.

• Organic Phosphorus Flame Retardants: e.g., Phosphates, Phosphaphenanthrene derivatives. Phosphates often serve dual functions as flame retardants and plasticizers, commonly used in flexible PVC.

• Nitrogen-based Flame Retardants: e.g., Melamine, Melamine cyanurate (MCA), often used synergistically with phosphorus-based flame retardants.

• Inorganic Flame Retardants: e.g., Aluminium trihydroxide (ATH), Nanosilica.

III. Common Synergistic Flame Retardants

1. Antimony Trioxide: Typically acts in conjunction with halogenated flame retardants. During the initial stages of combustion, Sb₂O₃ first melts, forming a protective film on the PVC surface that isolates it from air. It undergoes endothermic reactions, reducing the combustion temperature. At high temperatures, Sb₂O₃ volatilizes, diluting the oxygen concentration in the air. When combined with chlorides generated from PVC combustion, it forms antimony chlorides in the gas phase which can scavenge free radicals, contributing to flame retardancy. For example, adding Sb₂O₃ to PVC cable compounds increases the oxygen index, providing better flame retardancy. Specially treated Sb₂O₃ not only provides flame retardancy but also acts as a smoke suppressant, making it particularly suitable for PVC cable compounds.

2. Aluminium Hydroxide (ATH): Reduces smoke emission from PVC and improves flame retardancy. Upon thermal decomposition, it absorbs significant heat, and the generated alumina forms a protective layer on the material surface, isolating oxygen and heat. Simultaneously, the released water vapor dilutes combustible gases and oxygen concentration.

3. Magnesium Hydroxide (MDH): Decomposes to produce magnesium oxide and water, offering good smoke suppression. As its particle size decreases, the LOI of PVC increases, while the maximum smoke release rate and smoke density rating decrease, with minimal impact on the mechanical properties of PVC, meeting certain usage requirements.

4. Red Phosphorus: Typically, microencapsulated red phosphorus is used, offering advantages like low loading, high efficiency, low smoke, and low toxicity. Upon combustion, it forms metaphosphoric acid, which polymerizes into a stable polyphosphoric state, creating a protective carbonaceous layer that isolates oxygen. Red phosphorus can also be compounded with other inorganic flame retardants to reduce overall flame retardant loading and improve the processing and mechanical properties of PVC.

5. Silicon-based Flame Retardants: Utilize organosilicon and organoboron compounds as carriers, chelated with various functional groups. When used with other flame retardant systems, they can form small molecule gases during combustion that isolate oxygen, dilute combustible gases, and absorb heat. They promote char formation on the polymer matrix upon burning, enhancing flame retardancy and inhibiting melt dripping. They also improve compatibility between components in composites and the polymer matrix, enhancing mechanical properties.

6. Nitrogen-based Flame Retardants: e.g., Triazine derivatives, Melamine. Their effectiveness alone is often limited, but they exhibit a synergistic effect when used with phosphorus-based flame retardants. Composite flame retardants, such as those composed of melamine and polyphosphates, can improve the flame retardancy of PVC.

IV. Flame Retardancy Rating Standards for PVC Plastics

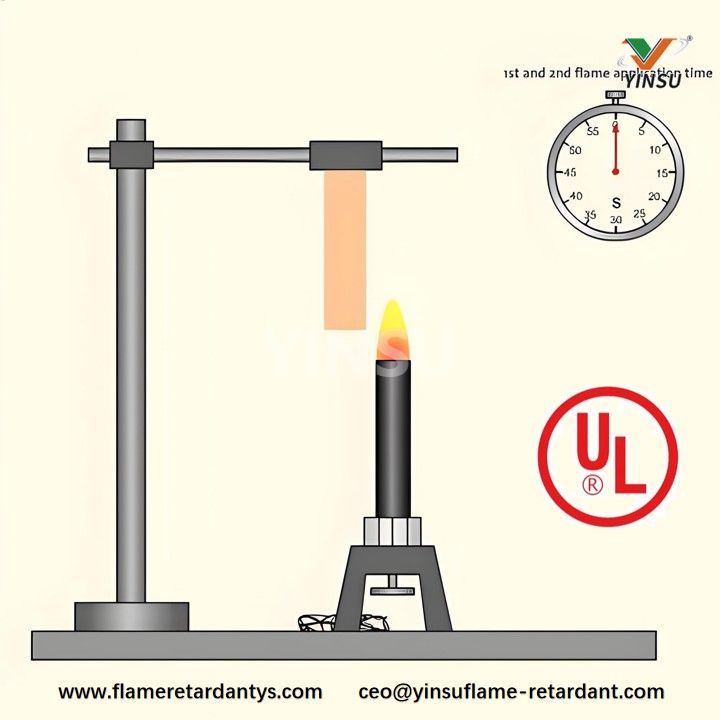

Common standards include the UL94 standard, which classifies materials into V-0, V-1, V-2, and HB ratings. The V-0 rating is the most stringent, requiring specimens to self-extinguish within 10 seconds without dripping particles that ignite cotton. The HB rating is the least stringent, based on a horizontal burn test evaluated by the burning rate.

V. Mechanisms of Flame Retardant Action

1. Endothermic Cooling: Flame retardants undergo endothermic reactions at high temperatures, lowering the surface temperature of the combustible material and reducing the generation of flammable gases, thereby suppressing combustion.

2. Protective Layer Formation: Flame retardants generate a solid or liquid protective layer during combustion, isolating oxygen and halting the burning process.

3. Radical Scavenging: Halogenated compounds decompose to generate halogen radicals, which react with free radicals in the flame, reducing radical concentration and slowing the combustion rate.

4. Gas Dilution: e.g., Nitrogen-based flame retardants decompose to produce non-flammable gases, which dilute the concentration of combustible gases and oxygen, reducing the burning rate.

5. Char Formation: Phosphorus-based flame retardants generate phosphoric acid or polyphosphoric acid during combustion, promoting surface charring of the plastic. This char layer acts as a barrier to heat and oxygen.

VI. Applications of Flame Retardants

1. PVC-U Profiles: Adding chlorinated alkyl phosphate esters can significantly improve the flame retardancy of PVC-U profiles. Inorganic flame retardants like nanosilica and ATH can also be used to enhance thermal insulation and stability.

2. PVC Cable Compounds: Typically utilize flame retardants such as chlorinated paraffins and phosphates to improve the flame retardancy and heat resistance of cables.

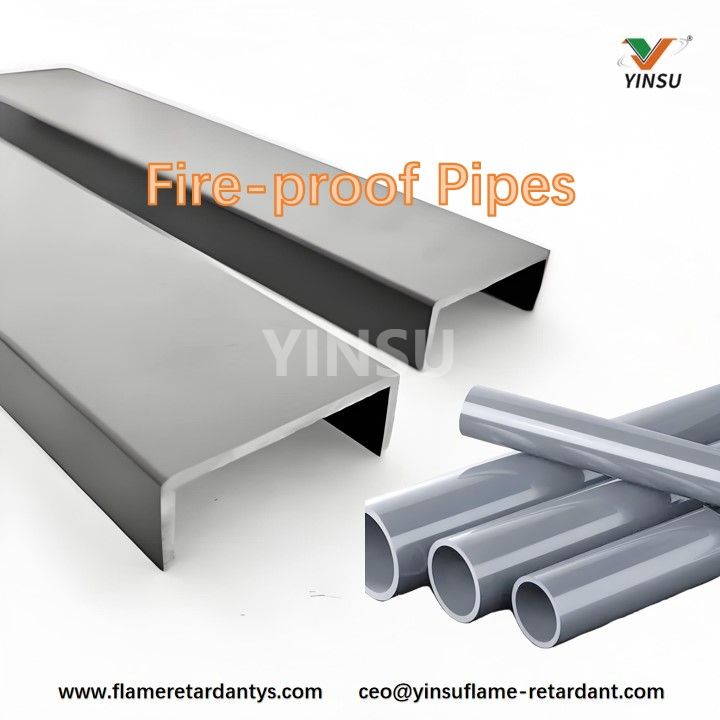

3. PVC Pipes: In construction PVC pipes, using inorganic flame retardants like nanosilica can effectively inhibit flame spread during combustion.

VII. Classic Case Studies

1. Flame Retardant Modification of PVC Cable Compounds: The addition of appropriate amounts of chlorinated paraffins and triphenyl phosphate (TPP) to PVC cable compounds significantly enhanced the flame retardancy, achieving a UL94 V-0 rating. This modification substantially reduced heat release and smoke production during combustion while maintaining good mechanical properties.

2. Flame Retardant Application in PVC-U Profiles: For building PVC-U profiles, a combination of a chlorinated phosphate ester and nanosilica was used. The phosphate ester releases nitrogen and chlorine gases during combustion, forming a protective char layer that prevents flame spread. Nanosilica, through its fine particle characteristics, inhibits flame propagation and heat transfer. This composite flame retardant system significantly improved the flame retardancy of the PVC-U profiles, making them safer for construction applications.

Through the above analysis, it is evident that flame retardancy in PVC requires consideration of its inherent properties (high chlorine content, processing sensitivity) and the use of compounded flame retardant systems (e.g., phosphorus - metal hydroxide - smoke suppressant synergies) to achieve high efficiency, low toxicity, and low cost. The application of flame retardants in PVC plastics is of great significance, not only improving the fire safety of the material but also maintaining its good physical and mechanical properties.
