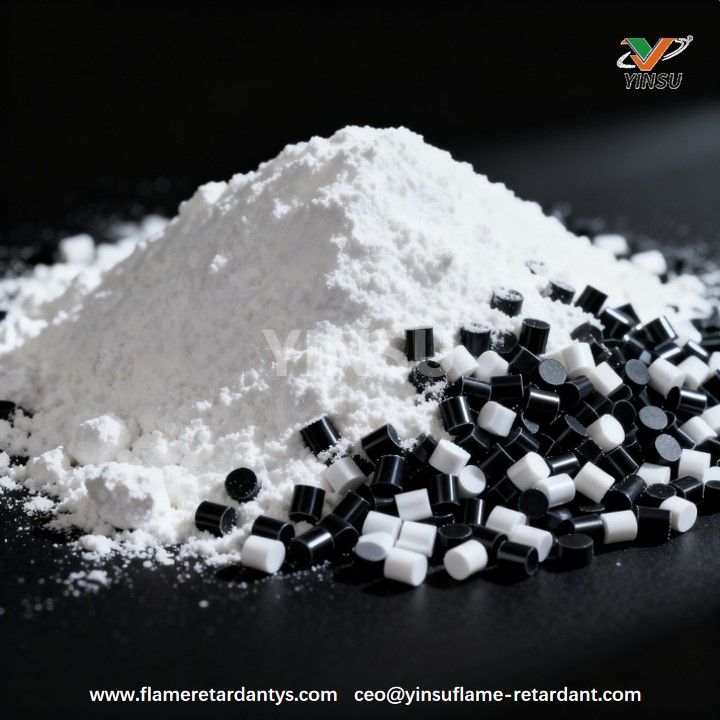

Innovative Applications of MCA in Nylon Materials

Innovative Applications of MCA in Nylon Materials

The application of Melamine Cyanurate (MCA) in nylon materials has long transcended its traditional role as a "flame retardant." In recent years, numerous innovative research directions and applications have indeed emerged.
The following will systematically elaborate on the innovative applications of MCA in nylon materials, covering its fundamental principles, traditional limitations, and the latest technological breakthroughs.

I. Basic Review: Why is MCA Suitable for Nylon?
Before exploring innovations, we need to understand the inherent advantages of combining MCA with nylon:

• Synergistic Gas-Phase and Condensed-Phase Flame Retardant Mechanism:

Gas-Phase Action: When MCA decomposes under heat (approximately 300-400°C), it generates melamine and cyanuric acid. Melamine further decomposes to produce non-flammable gases such as nitrogen and ammonia, which dilute the concentration of oxygen and combustible gases, and carry away heat.

Condensed-Phase Action: The residues after decomposition (such as melem, melam) promote the formation of an intumescent, dense char layer on the nylon surface. This char layer effectively insulates heat, blocks oxygen, and prevents melt dripping.

• Excellent Compatibility:

Polarity Match: The MCA molecule contains a large amount of nitrogen, which forms strong hydrogen bonds with the amide groups (-CO-NH-) of nylon (especially PA6, PA66). This improves the dispersion and compatibility of MCA within the nylon matrix, reducing the decline in mechanical properties often caused by adding flame retardants.

Decomposition Temperature Match: The decomposition temperature of MCA aligns with the processing temperature (typically 240-280°C) and thermal decomposition temperature of nylon, allowing it to activate at the appropriate moment when nylon burns.

II. Limitations and Challenges of Traditional Applications
Although MCA is an excellent halogen-free flame retardant for nylon, traditional applications have some inherent limitations, which are precisely the problems that innovation needs to solve:

• High Loading Levels: Typically, 15% to 25% addition is required to achieve ideal flame retardant effects (e.g., UL94 V-0). This significantly affects the mechanical properties of the material, especially impact strength and toughness.

• Impact on Electrical Properties: The introduction of MCA can somewhat reduce the volume resistivity of nylon, limiting its use in certain electronic and electrical components that require extremely high electrical insulation.

• Moisture Resistance Challenges: MCA itself has a certain hygroscopicity, which may exacerbate the moisture absorption issues of nylon materials, affecting dimensional stability and the long-term stability of electrical properties.

• Room for Improvement in Flame Retardant Efficiency: Compared to some highly efficient halogen-based or phosphorus-based flame retardants, its flame retardant efficiency per unit mass still has room for improvement.

III. Innovative Application Directions and Cutting-Edge Research
In response to the above limitations, recent innovative applications of MCA in nylon primarily focus on three main directions: "Synergistic Effects," "Functional Compounding," and "Process Optimization."

1. Development of Synergistic Flame Retardant Systems (Core Innovation Direction)
This is currently the most active research area, aiming to significantly reduce the total additive amount and enhance comprehensive performance by compounding MCA with other flame retardants.

• MCA and Phosphinate Synergy:

→ Mechanism: Phosphinates (e.g., aluminum phosphinate, diethyl aluminum phosphinate) act in both gas and condensed phases, creating an excellent synergistic effect with MCA. MCA primarily promotes char formation and gas-phase dilution, while phosphinates catalyze the degradation and cross-linking of nylon, forming a more stable and denser char layer.

→ Effect: The total additive amount can be reduced to below 15% while still achieving UL94 V-0, and better retention of mechanical properties and heat deflection temperature (HDT) is possible. This is currently the mainstream technical route for high-end halogen-free flame-retardant reinforced nylon engineering plastics.

• MCA and Metal Hydroxide Synergy:

→ Mechanism: Compounding MCA with magnesium hydroxide (MDH) or aluminum hydroxide (ATH). The latter decomposes with immense endothermic effect and generates a high-temperature-resistant metal oxide barrier layer. MCA compensates for the low decomposition temperature and low flame retardant efficiency of metal hydroxides.

→ Effect: While reducing overall cost, this improves the flame retardant rating and suppresses smoke. It is commonly used in fields like wires and cables.

• MCA and Nanomaterial Synergy:

→ Mechanism: Introducing two-dimensional nanomaterials, such as montmorillonite (MMT), graphene, or MXene. These nanosheets can migrate to the material surface during combustion, forming a physical barrier that delays the release of pyrolysis products. They interpenetrate with the char layer formed by MCA, significantly enhancing the strength and density of the char layer.

→ Effect: Very low nanomaterial loadings (typically <5%) can significantly enhance the flame retardant efficiency of MCA and may simultaneously improve the mechanical properties and gas barrier properties of the material.

• MCA and Silicon-based Flame Retardant Synergy:

→ Mechanism: Silicon-based flame retardants (e.g., silicones, silicone resins) can form a hard, ceramic-like char layer with Si-O-C structure during combustion. Combined with the nitrogen-containing char from MCA, this forms a stronger protective layer.

→ Effect: Effectively suppresses melt dripping, increases the LOI value, and improves the processing flow and surface gloss of the material.

2. Morphology and Structural Modification of MCA
Enhancing its performance by altering the physical form of MCA.

Microencapsulated MCA:
Coating MCA particles with polymer resins (e.g., melamine-formaldehyde resin, silicone resin). This shell can:

• Improve the interfacial compatibility between MCA and the nylon matrix.

• Reduce the hygroscopicity of MCA.

• Control the decomposition temperature of MCA, making it more synchronized with the decomposition of nylon, thereby improving flame retardant efficiency.

Ultra-fine and Nano-sized MCA:
Preparing MCA powders with smaller particle sizes and narrower distributions. The larger specific surface area allows for more uniform dispersion in nylon and more sufficient contact with the matrix, enabling better flame retardancy at lower loading levels and having a lesser impact on mechanical properties.

3. Functional Compounding: Beyond Flame Retardancy
Innovative applications not only make nylon "flame-resistant" but also endow it with additional value

• Antistatic/Conductive Nylon:

Using MCA compounded with conductive fillers (e.g., carbon nanotubes, conductive carbon black). MCA acts as the flame retardant component, while the conductive fillers build a conductive network. This composite material can be used in applications requiring both flame retardancy and static electricity prevention, such as mining equipment, integrated circuit trays.

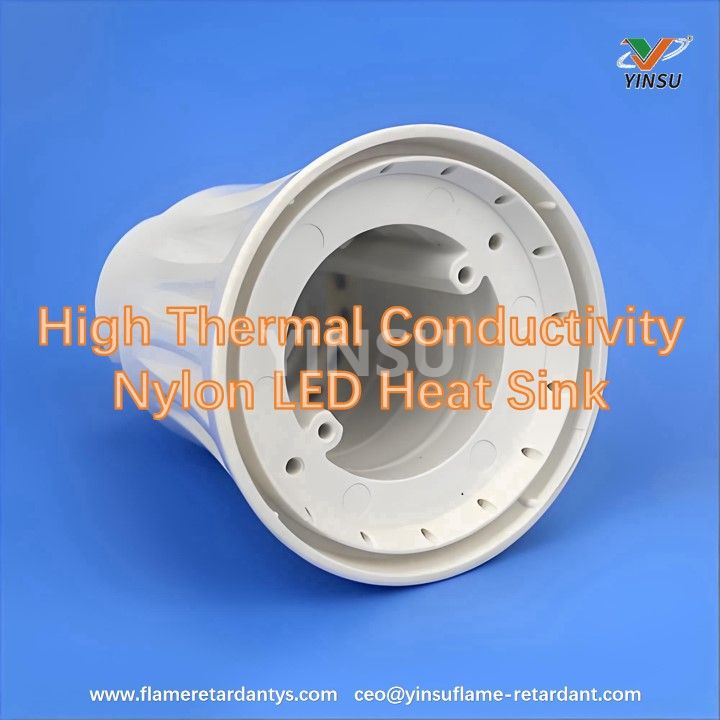

• High Thermal Conductivity Nylon:

Similarly, combining MCA with high thermal conductivity fillers (e.g., boron nitride, aluminum nitride) to develop new nylon composite materials that are both flame retardant and thermally conductive. This is suitable for LED heat dissipation components, power device housings, addressing both heat dissipation and fire safety challenges.

• Flame Retardant Nylon Powder for 3D Printing (e.g., SLS):

Developing nylon 12 or nylon 11 powders containing MCA synergistic flame retardant systems for Selective Laser Sintering technology. This allows for the one-time printing of complex terminal parts with high flame retardancy ratings, widely used in functional prototype manufacturing and small-batch production in aerospace, transportation, and other fields. This is a model combining "Design Freedom" and "Material Functionality."

4. Application in Bio-based/Renewable Nylons

With the deepening of sustainable development concepts, MCA is also being applied in new bio-based nylons (e.g., PA11, PA1010, PA410) to develop high-performance materials that are bio-based, recyclable, and halogen-free flame retardant, meeting the strict environmental regulations in industries such as automotive and electrical appliances.

Conclusion

The innovative application of melamine cyanurate (MCA) in nylon materials is transitioning from a singular role as a "flame retardant additive" to a "key component in multifunctional synergistic systems." Future development trends will include:

• Refinement: Developing a new generation of highly efficient MCA derivatives through molecular design and structural modulation.

• Systematization: Conducting in-depth research on the synergistic mechanisms between MCA and other components (phosphorus, nitrogen, silicon, nanomaterials) to design customized flame-retardant formulations with "1+1>2" effects.

• Functional Integration: Combining flame retardancy with thermal conductivity, electrical conductivity, reinforcement, anti-static properties

• Greening: Integrating with bio-based and recyclable nylons to create environmentally friendly material solutions with a full life cycle.

MCA serves as a highly efficient, "versatile" flame retardant synergist, compatible with virtually all phosphorus-nitrogen and bromine-based systems. Adding a microencapsulation coating not only ensures more uniform dispersion and eliminates whitening and bloom in the final product but also elevates flame retardant efficiency to the next level. Leveraging modified MCA for cost reduction and performance enhancement is the strategy for now!
