Selection Guide: PVC Vs. PE Materials for Wires And Cables

Selection Guide: PVC vs. PE Materials for Wires and Cables

When selecting wire insulation and sheathing materials, Polyethylene (PE) and Polyvinyl Chloride (PVC) are the two most common options. Their performance characteristics differ significantly, directly impacting the suitability for various applications. The following outlines the key performance comparisons:

I. Electrical Performance

1. PE (especially HDPE):

• Low dielectric constant: Indicates lower capacitance, resulting in reduced signal transmission distortion.

• Low dissipation factor (tan δ): Minimizes energy loss and heat generation during transmission.

• High insulation resistance.

• Advantage: Significantly superior to PVC, particularly suitable for high-frequency signal transmission (e.g., coaxial cables, communication cables, data cables) and high-voltage power cables.

2. PVC:

• Relatively higher dielectric constant and dissipation factor.

• Adequate insulation resistance for general low-voltage power transmission requirements.

• Advantage: Sufficient electrical performance for standard power-frequency low-voltage transmission (e.g., domestic 220V/380V).

II. Thermal Resistance

1. PE:

• Standard PE: Relatively poor thermal resistance, typical long-term allowable operating temperature is around 70°C.

• Cross-linked Polyethylene (XLPE): Thermal resistance significantly improved via chemical or physical cross-linking, long-term allowable operating temperature up to 90°C, short-circuit withstand up to 250°C.

2. PVC:

• Standard PVC: Long-term allowable operating temperature typically 70°C or 90°C (heat-resistant type).

• Heat-resistant PVC: Up to 105°C.

• Short-circuit withstand temperature approximately 160°C.

• Advantage: Standard PVC thermal resistance is comparable to standard PE, but heat-resistant PVC and XLPE offer superior thermal resistance.

III. Mechanical Properties

1. PE:

• Good toughness, impact resistance, and flex fatigue resistance.

• Lower surface hardness, abrasion resistance generally slightly inferior to PVC.

• Excellent low-temperature performance: Maintains good flexibility and impact resistance down to very low temperatures (-70°C or lower), resisting brittleness and cracking.

2. PVC:

• Good rigidity, high compressive strength, better abrasion resistance.

• Lower toughness than PE, becomes hard and brittle at low temperatures (typically below -15°C to -20°C), prone to cracking.

• Advantage: Superior rigidity and abrasion resistance at ambient temperatures compared to PE, making it more suitable for applications requiring mechanical protection or frequent flexing/dragging (e.g., power cord sheathing for portable equipment). However, low-temperature toughness is far inferior to PE.

IV. Chemical and Environmental Resistance

1. PE:

• Excellent resistance to acids, alkalis, and solvents.

• Extremely low water absorption (<0.01%), excellent waterproofing and moisture resistance.

• Moderate oil resistance (especially non-cross-linked PE).

• Poor UV resistance (particularly PE without carbon black), prone to degradation and cracking under prolonged sunlight exposure.

2. PVC:

• Good resistance to acids, alkalis, and water (also very low water absorption).

• Better oil and solvent resistance than standard PE.

• Good weatherability (UV, ozone resistance), easily improved with stabilizer additives.

• Advantage: Generally superior oil resistance, solvent resistance, and weatherability (especially UV resistance) compared to standard PE. Both exhibit good resistance to acids, alkalis, and water.

V. Flame Retardancy and Burning Characteristics

1. PE:

• Standard PE is highly flammable and non-flame retardant.

• Burns without halogens, primarily producing CO₂ and H₂O, relatively low smoke toxicity.

• Can achieve certain flame retardancy ratings (e.g., Low Smoke Zero Halogen - LSZH) by adding significant amounts of flame retardants (e.g., Al(OH)₃, Mg(OH)₂), potentially compromising mechanical and electrical properties.

2. PVC:

• Inherently flame retardant due to chlorine content, self-extinguishing upon flame removal.

• Burns with release of large amounts of toxic chlorine gas (HCl) and dense black smoke, a major hazard in fires.

• Advantage: Intrinsic flame retardancy without needing high additive loads. However, combustion toxicity and smoke density are significant drawbacks.

VI. Environmental Impact

1. PE:

• Primarily composed of carbon and hydrogen, free of halogens (chlorine), heavy metals (e.g., lead stabilizers), or phthalate plasticizers.

• Generates minimal toxic substances during combustion or disposal.

• Easily recyclable.

• Advantage: Excellent environmental profile, mainstream choice for "halogen-free" materials.

2. PVC:

• Contains chlorine.

• Traditional formulations may contain heavy metal stabilizers (lead, cadmium) and phthalate plasticizers (e.g., DOP), posing environmental and health risks (recent regulations promote eco-alternatives, increasing cost).

• Releases toxic gases when burned, difficult to dispose of (poor landfill biodegradability, dioxin risk during incineration).

• Disadvantage: Environmental impact is a major weakness, particularly concerning disposal and fire scenarios.

VII. Processability and Cost

1. PE:

• Relatively higher processing temperatures required.

• Material cost (resin) often lower than PVC, but halogen-free flame retardant PE compounds cost more.

2. PVC:

• Lower processing temperatures, good flow properties, easy extrusion and coloring.

• Overall material cost (resin + additives) typically lower than high-performance PE (e.g., XLPE, halogen-free FR compounds), especially for standard formulations.

• Advantage: Better processability, overall material cost (especially standard compounds) is often advantageous.

Application Selection Guidelines

1. High-Frequency Signal Transmission (Networking, TV, RF): Prefer PE (low dielectric loss).

2. Medium/High Voltage Power Transmission: Prefer XLPE (superior thermal & electrical properties).

3. Flame Retardancy Required with Fire Safety Focus (Subways, Hospitals, Malls, Data Centers): Prefer Halogen-Free Flame Retardant PE (LSZH) (low smoke, zero halogen, low toxicity).

4. Low-Temperature Environments: Prefer PE (excellent low-temperature performance).

5. General Household/Industrial Low-Voltage Power, Indoor Fixed Wiring, Cost Sensitivity: PVC remains mainstream (low cost, good rigidity, easy processing, inherent FR).

6. Requiring Oil/Solvent Resistance, Abrasion Resistance, or Frequent Flexing/Dragging: PVC sheathing is often preferable (especially plasticized PVC).

7. High Environmental Requirements (Production, Use, Disposal): Prioritize PE (especially halogen-free compounds).

Core Conclusion:

There is no single "best" material， the optimal choice depends on the specific application requirements. PE offers distinct advantages in electrical performance, environmental impact, fire safety (smoke/toxicity), and low-temperature flexibility, driving its increasing adoption in demanding sectors (communications, high voltage, eco-friendly FR). PVC retains advantages in cost, processability, ambient-temperature mechanical properties (rigidity/abrasion), and inherent flame retardancy, ensuring its widespread use in general low-voltage power and universal cabling applications. Selection must carefully balance the operational environment, performance needs, and budget constraints.

Introducing Guangzhou Yinsu Flame Retardant FRP-950X:

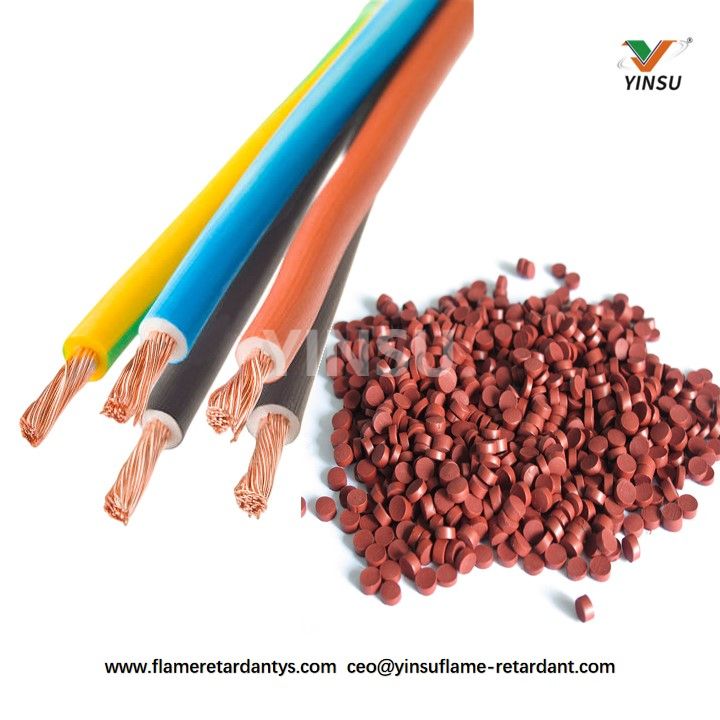

For applications demanding high-performance halogen-free flame retardancy in PE-based wire and cable compounds (particularly LSZH types), Guangzhou Yinsu Flame Retardant Co. offers an advanced solution: Micro-encapsulated Red Phosphorus Flame Retardant FRP-950X. This specialized additive effectively addresses key challenges associated with red phosphorus:

• Superior Stability & Safety: The micro-encapsulation technology significantly reduces moisture sensitivity and minimizes the risk of phosphine (PH₃) gas generation.

• Enhanced Compatibility: Improves dispersion within the polymer matrix and compatibility with other additives.

• High Efficiency: Provides excellent flame retardant performance at lower loading levels compared to many mineral fillers (e.g., Al(OH)₃/Mg(OH)₂), helping to better preserve the critical mechanical and electrical properties of the base PE resin.

• Halogen-Free & Eco-Friendly: Contributes to achieving Low Smoke Zero Halogen (LSZH) compliance, meeting stringent environmental and safety regulations (e.g., EU RoHS, REACH).

FRP-950X is particularly suitable for applications where the superior electrical properties and environmental benefits of PE are essential, but high levels of flame retardancy are mandated, such as in public buildings, transportation systems, and data centers.
