The Dilemma of PVC Tarpaulins & Architectural Membranes: How To Achieve High Flame Retardancy Without Sacrificing Coating Adhesion?

The Dilemma of PVC Tarpaulins & Architectural Membranes: How to Achieve High Flame Retardancy Without Sacrificing Coating Adhesion?

In the production of PVC tarpaulins, architectural membranes, and airtight fabrics, R&D and process engineers frequently face a cross-disciplinary technical dilemma: how to meet stringent flame retardant standards (such as Class B1 or V-0) on the surface coating while maintaining exceptionally high peel strength between the coating and the polyester or fiberglass base fabric.

In actual production, many manufacturers frequently encounter two typical failure modes: first, poor coat-to-fabric adhesion, where the flame-retardant coating easily bubbles or peels off; second, even if the surface coating passes the vertical burn test, heat quickly penetrates the coating during ignition, causing the internal base fabric to be "burned through." While this appears to be an issue with process parameters like knife coaters or oven temperatures, the root cause is actually the chemical incompatibility between the flame retardant system and the adhesion system at a microscopic level.

1. Why Do Flame Retardant and Adhesion Systems "Fight" Each Other?

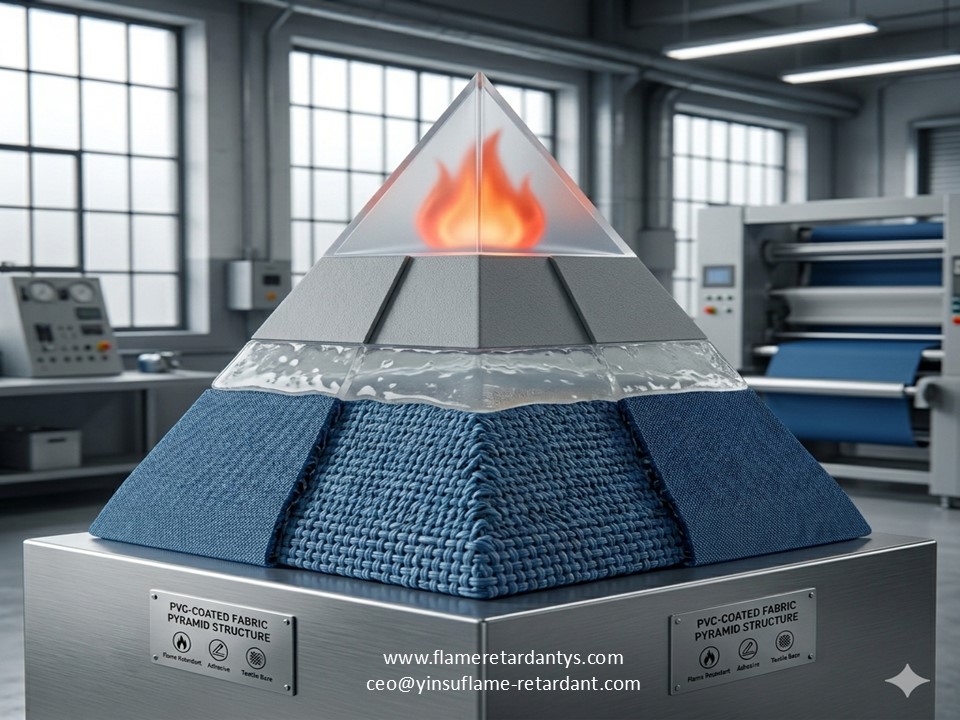

To solve this pain point, we must first anatomize the "three-layer pyramid" structure of PVC-coated fabrics (top flame-retardant coating + tie/adhesion layer + base fabric substrate). The conflict between flame retardancy and adhesion is driven by three microscopic mechanisms:

    I. Interference and Destruction of the Adhesion Layer by Flame Retardants

Traditional inorganic flame retardants or certain halogen/phosphorus-based additives often exhibit weak acidity or alkalinity. During high-temperature fluxing/plasticization, these free acidic or basic components catalyze premature cross-linking or thermal degradation of the tie-layer resin (such as polyurethane or modified PVC resin), causing the peel strength to drop off a cliff. Furthermore, highly filled inorganic flame retardants, such as aluminum trihydroxide (ATH), drastically dilute the effective resin content in the adhesion layer, preventing the paste from fully penetrating and "locking onto" the base fabric fibers.

    II. Lack of Thermal Insulation Leading to Base Fabric "Burn-Through"

Many formulations show that the surface coating itself is non-flammable during testing. However, because the flame retardant system fails to form a continuous and dense char layer when heated, or because the tie-layer resin itself is highly flammable, heat from the flame conducts directly through the coating. As a result, the base fabric is "burned through" instantly due to the lack of effective condensed-phase protection.

    III. Inherent Flaws of the Traditional Antimony Trioxide System

As a conventional backbone of PVC flame retardants, Antimony Trioxide (ATO) has suffered from skyrocketing prices and high smoke density under fire in recent years. More critically, high-mesh ATO solid particles tend to migrate toward the interface during plasticization, forming a "powder isolation band" between the adhesion layer and the top coat. This severely hinders the chemical bonding between the cross-linking agents in the tie layer and the base fabric. Consequently, introducing highly efficient antimony trioxide substitutes to improve system compatibility and cost structure has become an inevitable trend for the industry.

2. The Breakthrough: Designing an Integrated "Flame Retardant-Adhesion" System

The core to resolving this dilemma lies in shifting from a "siloed approach" to "system integration," establishing a unified formulation and processing framework:

• Select a Highly Compatible Synergistic Flame Retardant Solution: Move away from single,      highly filled additive systems. It is recommended to utilize eco-friendly antimony      trioxide substitutes (such as YINSU Flame Retardant FR-03)      compounded with liquid phosphate ester plasticizers. This solution      effectively reduces the acidity of the system, minimizing chemical      corrosion to the adhesion resin. Concurrently, introducing nano-scale      char-forming agents (such as magnesium-aluminum layered flame      retardant FR-ML-01) rapidly forms a dense, continuous inorganic-carbon      composite barrier in the condensed phase during heating. This perfectly      blocks heat transfer to the base fabric, preventing "burn-through."

• Optimize the Tie/Adhesion Layer Formulation: Incorporate targeted silane      coupling agents (such as KH-550) or active isocyanate cross-linking agents      into the tie layer to build a chemical covalent bond "bridge"      between the PVC matrix and the ester bonds of the polyester base fabric.      Meanwhile, strictly control the tie-layer thickness between 0.05–0.1 mm to      prevent the migration of flame retardants caused by an excessively thick      coating.

• Precise Adjustment of Process Parameters: During production, the top coat plasticization      temperature should be strictly controlled within 180–200°C to prevent the      adhesion layer from decomposing due to localized overheating. For      high-density, weakly polar polyester base fabrics, it is highly      recommended to perform plasma treatment or pre-coat with a primer before      coating to boost its surface energy.

• 3. Performance Verification and Commercial Value

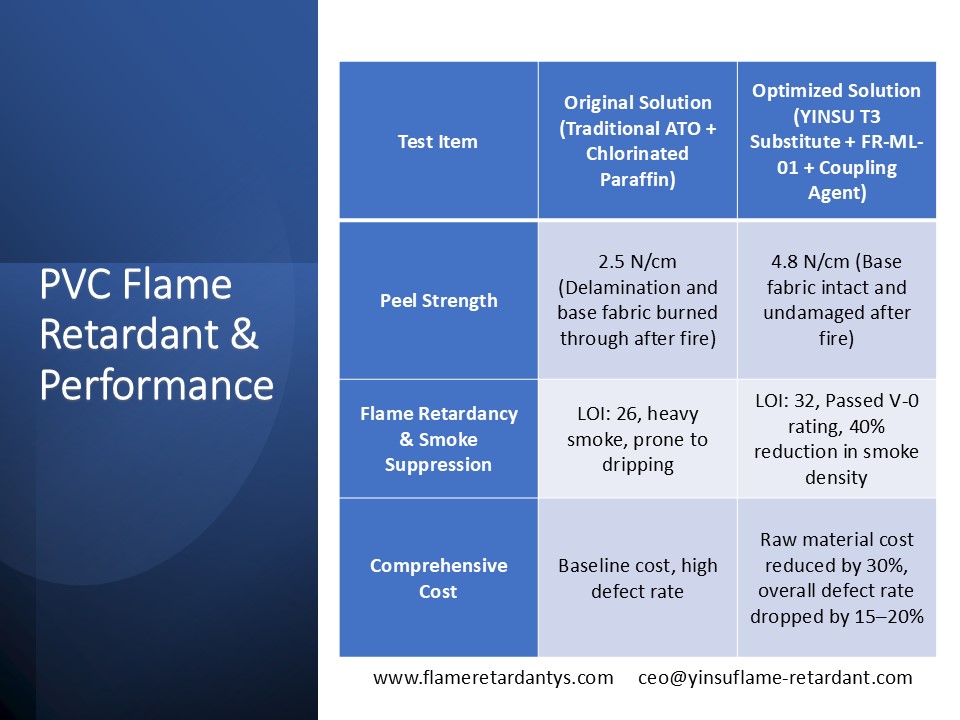

By adjusting to the aforementioned "integrated" solution, the material has achieved a qualitative leap in both physical properties and economic efficiency. Below is the comparative data from laboratory and mass production trials:

Under a scientifically designed formulation, cost optimization and performance enhancement can completely go hand in hand. This not only directly slashes raw material procurement spending, but also eliminates hidden scrap costs by significantly boosting the first-pass yield rate of the product.

4. Real-World Case Study: A Tarpaulin Factory’s Turnaround from "Unbondable" to "Passed on the First Try"

A major domestic manufacturer of PVC architectural membranes had long been plagued by edge delamination when cutting finished membranes. Furthermore, their products repeatedly failed European standard burn tests due to "base fabric burn-through."

After our technical team stepped in, we systematically overhauled their formulation. First, the antimony trioxide in the original recipe was completely replaced with YINSU Flame Retardant FR-03 substitute, and the dosage was precisely reduced from 5 parts to 3.5 parts. Second, 8 parts of FR-ML-01 and 2 parts of liquid phosphate ester were compounded into the top flame-retardant coating. Finally, a trace amount of 0.5% silane coupling agent was modified into the tie layer, and the coating temperatures of zones 1 and 2 of the oven were finely adjusted to 195°C.

The improvements were remarkable: The peel strength of the membrane skyrocketed from a fragile 2.1 N/cm to an impressive 5.2 N/cm, smoothly securing the UL94 V-0 certification. Moreover, no signs of delamination were observed even after 2,000 hours of artificial accelerated weathering testing. What satisfied the procurement decision-makers most was that the comprehensive raw material cost per ton of membrane was directly slashed by 1,200 RMB.

5. Conclusion and Actionable Recommendations

The conflict between flame retardancy and adhesion in PVC-coated fabrics is by no means an unresolvable deadlock. While the industry debates whether it is a "process issue or a formulation system issue," the cutting-edge answer is always to redefine the system with holistic thinking. By leveraging the synergy between eco-friendly antimony trioxide substitutes and high-efficiency nano-charring agents, combined with interfacial cross-linking modification, manufacturers can seamlessly unlock high-tier flame retardancy while maintaining superior peel strength.

Contact Our Technical Expert Team Today:

If you are currently facing challenges with coating delamination, burn-through failures, or exorbitant formulation costs, please get in touch with us. We can provide free testing samples of YINSU Flame Retardant FR-03, FR-ML-01, and specialized coupling agents, and our application engineers will conduct a one-on-one audit of your current formulation to tailor a Formulation Design Guide for Flame Retardant and Adhesion in Coated Fabrics for your business.
