What Are The Challenges of Making TPU Film Flame-Retardant? — From 0.15 Mm Thin Film To The Physical Limits of V-0

Many people assume that since 1.0 mm TPU sheets can pass the V-0 test, simply cast them into film using the same formulation will suffice. However, anyone with experience in film manufacturing knows that reducing the thickness from 1.0 mm to 0.15 mm is not merely a matter of doubling the difficulty—it involves overcoming a physical limit.

I. Thinning: Why Does Flame Retardancy Fail as Thickness Decreases?

TPU is a thermoplastic elastomer that first softens and melts upon contact with fire before burning. When the thickness is 1.0 mm or greater, the material itself has a certain heat storage capacity and forms a self-char layer, making melt droplets relatively controllable. However, when the thickness drops to 0.15 mm or even 0.08–0.10 mm, the situation is completely different:

The specific surface area skyrockets, while the heat capacity is extremely low. When the film is extremely thin, the ratio of surface area to volume increases exponentially. Upon contact with a flame, it completely softens and melts in less than 0.5 seconds, forming high-temperature molten droplets that are ablaze. In the UL 94 vertical burning test, if the molten droplets ignite the cotton wool at the base, the sample is immediately deemed non-compliant.

The migration path for pyrolysis products is short, leaving no time for the flame-retardant mechanism to take effect. Thin films have poor heat storage capacity, and the migration path for pyrolysis products is short; therefore, flame retardants must take effect within an extremely short time, requiring extremely high instantaneous reaction efficiency.

The melt-droplet effect is the biggest obstacle. Melting and dripping are inherent characteristics of TPU during combustion, and this phenomenon is even more severe in ultra-thin films. Resisting melt droplets and promoting char formation are often contradictory—adding anti-drip agents (such as PTFE) may intensify combustion, while adding char-forming agents may result in poor adhesion between the char layer and the matrix, causing the char layer to rupture as the melt flows.

II. The "Zero-Sum Game" Between Flame Retardancy and Core Performance

In addition to the inherent challenges of thin-film fabrication, achieving flame retardancy in TPU films involves a multi-objective optimization dilemma:

The conflict between transparency and flame retardancy. One of the major advantages of TPU films is their high transparency. However, most flame retardants—inorganic hydroxides and certain phosphorus-based compounds—form scattering centers or chromophores within the matrix. Adding 10% aluminum hydroxide can cause transparency to drop from over 85% to below 40%; phosphorus-based flame retardants are also prone to yellowing at high temperatures.

The conflict between mechanical properties and flame retardancy. Traditional inorganic flame retardants require high loading levels of 40%–60% to achieve flame retardancy, but such high filler content makes a 0.15 mm film as brittle as paper, making it impossible to wind or undergo secondary processing. Low loading levels, on the other hand, make it difficult to achieve V-0 rating.

Conflict between appearance and flame retardancy. Small-molecule flame retardants tend to migrate to and precipitate on the film surface (blooming), causing fogging and slipperiness, which affects the adhesion strength in subsequent processes.

III. The Conflict Between Processing Windows and Flame Retardant Stability

Film processing (casting, blown film) involves strict temperature windows. Some flame retardants (such as phosphorus-based ones) have poor thermal stability and are prone to premature decomposition at processing temperatures, leading to performance degradation or the formation of pores. At the same time, flame retardants are difficult to disperse uniformly within the film matrix and tend to agglomerate, affecting mechanical properties and appearance; high loading levels can also dramatically increase melt viscosity, impairing processing fluidity.

From an environmental perspective, traditional brominated flame retardants are highly effective but produce toxic gases when burned, subjecting them to regulatory restrictions such as RoHS. Halogen-free systems (phosphorus-nitrogen-based and inorganic hydroxides) often require high loading levels or significantly affect transparency, making it difficult to strike a balance between cost-effectiveness and performance.

IV. Areas for Breakthroughs: From "Physical Addition"to "Chemical Modification"

Faced with the challenges described above, the industry is exploring solutions from multiple angles:

Reactive flame retardants. By embedding flame-retardant elements into the TPU molecular chain, these solutions address migration, leaching, and transparency issues. Through chemical grafting modification, flame-retardant functional groups form strong compatibility—or even molecular-level bonds—with the TPU main chain, achieving V-0 rating while maintaining the film’s elasticity and transparency.

Nano-synergistic systems. Utilizing nano-scale phosphorus-nitrogen synergistic char-forming flame retardants, these systems catalyze dehydration and carbonization on the TPU surface the moment it contacts a flame, forming a dense, micro-cellular honeycomb-like carbon insulation layer. This layer blocks the exchange of oxygen with internal combustible gases and physically prevents molten droplets from falling, achieving self-extinguishing upon removal from the flame and zero ignition from dripping. Phosphorus-silicon synergy not only promotes char formation but also enhances the thermal stability of the char layer.

Precision Low-Temperature Shear Casting Process. Through the use of customized screws and high-precision T-die heads, this process achieves efficient and uniform low-temperature plasticization, preventing premature decomposition of flame retardants that could cause porosity. It also ensures stable thickness tolerances across the entire film width, resulting in a transparent, impurity-free surface.

V. Test Standards: The Difference Between UL94 V-0 and VTM-0

When comparing technical specifications, purchasers need to distinguish between these two test standards:

UL94 V-0: Applicable to sheets or films ≥0.8 mm thick. Vertical burning test; the specimen is in strip form; ignited twice with a Bunsen burner, 10 seconds each time. The residual flame time for a single ignition must be ≤10 seconds, and the total residual flame time must be ≤50 seconds; molten droplets must not ignite the cotton wadding at the base under any circumstances.

UL94 VTM-0: Specifically designed for ultra-thin, flexible films <0.25 mm thick. The film is rolled into a conical cylinder and suspended vertically; ignition is performed using a small 20 mm flame. The afterflame duration must be ≤10 s; molten droplets must not ignite the cotton, and the fire must not spread to the test fixture.

For 0.15 mm TPU film, testing is typically required according to the VTM-0 standard; however, passing the V-0 test indicates an extremely high level of flame-retardant redundancy.

Conclusion

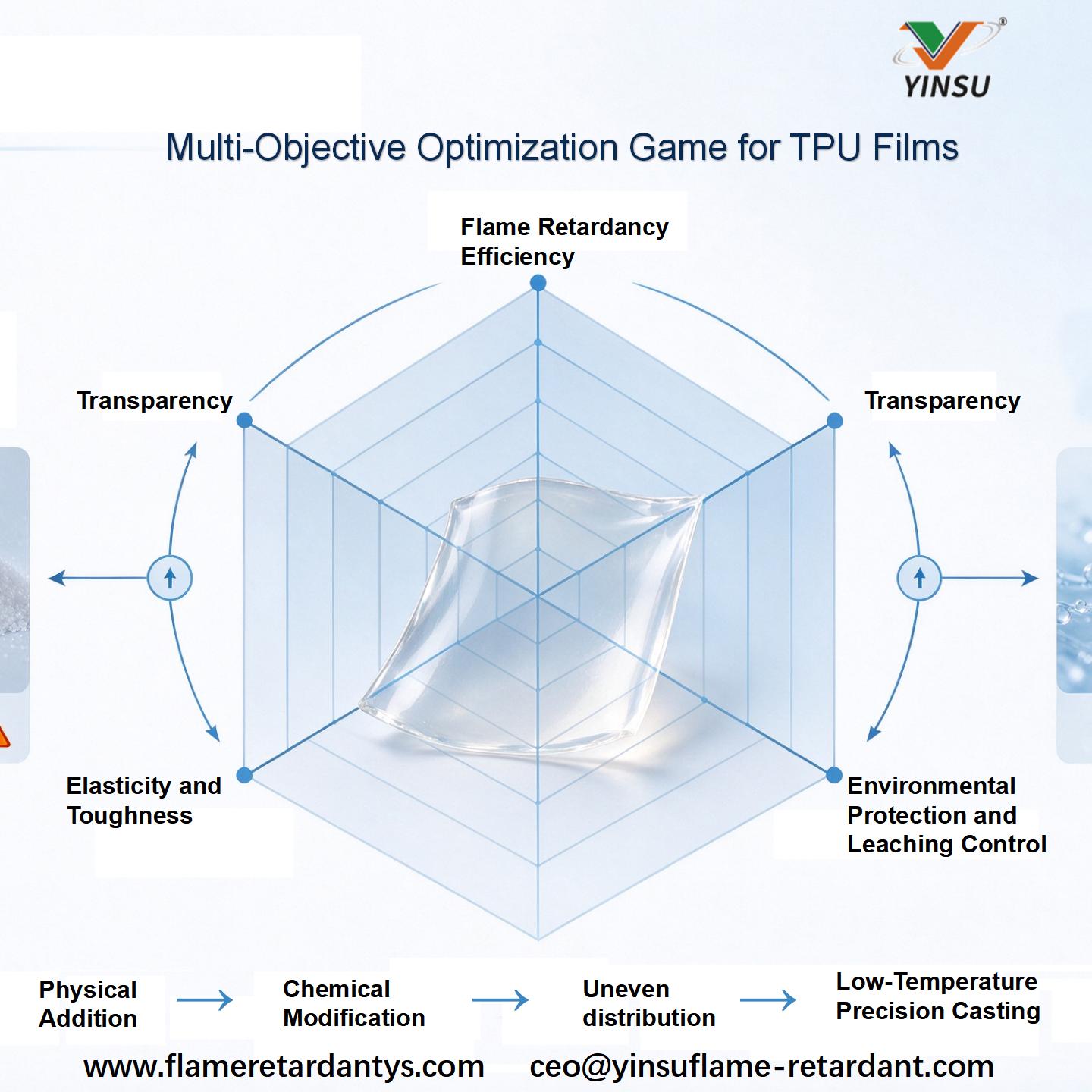

The challenge of flame retardancy in TPU films is, at its core, a multi-objective optimization dilemma: it must suppress combustion while maintaining transparency; prevent melt dripping while preserving mechanical properties; and provide highly effective flame retardancy while remaining environmentally friendly and non-toxic. The trend toward thinner films pushes this dilemma to its physical limits.

With advancements in reactive flame retardants, nano-synergistic systems, and precision cast-filming processes, V-0-rated TPU films as thin as 0.15 mm—or even thinner—are moving from the laboratory to mass production. For downstream applications, selecting the right flame-retardant system and processing technology is essential to striking a balance between “ultra-thin, ultra-tough, and ultra-transparent.”
