Beyond Shrinking: Solving Common Challenges in Flame Retardant Heat Shrink Tubing Formulation

“Achieving perfect flame retardancy without compromising on other properties is the holy grail for heat shrink manufacturers”—but for engineers designing tubing for 800V NEV high-voltage harnesses or data center server racks, this “grail” isn' t just a goal—it' s a non-negotiable requirement. A formulation that passes UL VW-1 but loses 30% of its tensile strength, or meets RoHS but clogs extrusion dies, fails in real-world use.

Formulating flame retardant (FR) heat shrink tubing is less about “balancing” properties and more about eliminating trade-offs—a feat that demands deep expertise in polymer chemistry, additive dispersion, and application-specific stressors. At YINSU FLAME RETARDANT, we' ve solved these pain points for 100+ heat shrink manufacturers worldwide, leveraging high-efficiency FR chemistries and custom engineering to turn formulation headaches into competitive advantages. Below, we break down the 5 most critical formulation challenges (with hard data on their impact) and the field-proven solutions that deliver both compliance and performance.

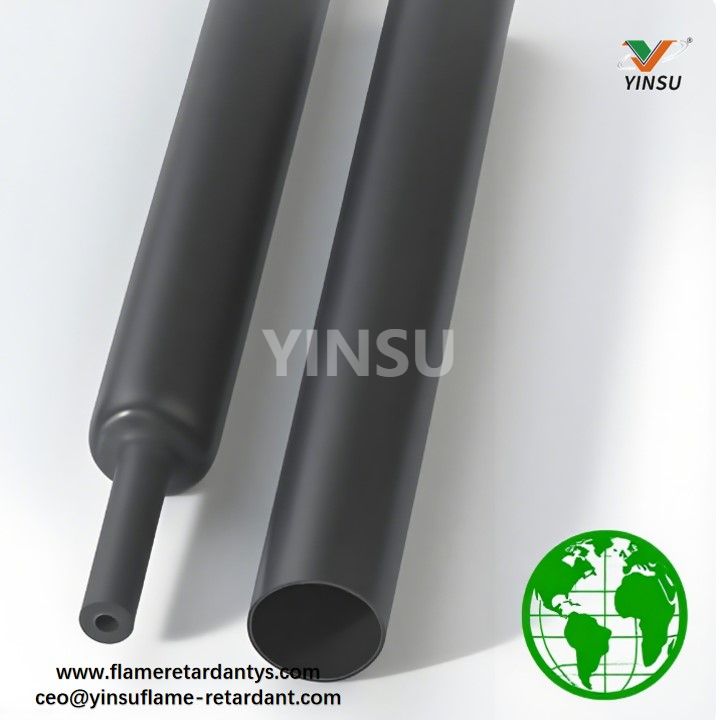

Beyond Shrinking Solving Common Challenges in Flame Retardant Heat Shrink Tubing Formulation

I. The Common Challenges in Heat Shrink Tubing Formulation (With Industry-Specific Impact)

For material scientists and production engineers, “compromise” isn' t abstract—it translates to scrapped batches, failed customer audits, or even field failures. Here' s how each challenge plays out in real-world manufacturing:

1. Balancing Mechanical Properties vs. Flame Retardancy: The “Brittleness Trap”

Traditional FRs (e.g., unmodified aluminum hydroxide/ATH) require 30–60 wt% loading to meet UL VW-1—this crushes the polymer matrix' s flexibility and durability. For example:

A standard polyolefin (PO) heat shrink tube loses 40–50% of its tensile strength (from 13 MPa to <8 MPa, ASTM D638) when loaded with 45% ATH.
Elongation at break plummets from 300% (neat PO) to <100%, making the tubing prone to cracking during installation (e.g., bending around NEV battery terminals).
Impact resistance drops by 60% (IZOD notched impact: 2.5 kJ/m² vs. 6.2 kJ/m² for neat PO), failing to meet automotive “vibration durability” requirements (ISO 16750-3).

This isn' t just a quality issue—it' s a cost one: brittle tubing increases production scrap rates by 15–20% due to post-extrusion cracking.

2. Processing vs. Flame Retardancy: The “Flow & Dispersion Nightmare”

Poorly dispersed or incompatible FR additives derail two critical steps: extrusion and crosslinking.

Extrusion issues: Agglomerated FR particles (e.g., unmodified magnesium hydroxide/MDH) create surface defects (scratches, pits) and increase die pressure by 25–30%, slowing line speeds from 20 m/min to <15 m/min.
Crosslinking inefficiencies: Halogenated FRs (e.g., decabromodiphenyl ether) can react with peroxide crosslinking agents, reducing crosslink density by 15–20%. This leads to inconsistent shrink ratios (e.g., 2:1 tubing shrinking to 1.8:1) and failed dimensional audits.
Dust & safety risks: Dry-blended FR powders (e.g., red phosphorus) generate dust, increasing worker exposure risks and requiring expensive ventilation upgrades.

3. Electrical Properties vs. Flame Retardancy: The “Insulation Failure Risk”

Heat shrink tubing' s primary job is electrical insulation—and many FRs undermine this. For high-voltage applications (e.g., EV 800V harnesses):

High-loading ATH reduces dielectric strength by 20–25% (from 22 kV/mm to <17 kV/mm, ASTM D149), risking arcing.
Halogenated FRs (bromine-antimony) increase dielectric loss tangent (tanδ) at 1 kHz from 0.001 (neat PO) to 0.005, leading to heat buildup in high-current circuits.
Poorly dispersed FRs create “micro-voids” in the polymer matrix, lowering volume resistivity by 3–4 orders of magnitude (from 10¹⁴ Ω·cm to 10¹⁰ Ω·cm), failing IEC 60093 standards.

4. Environmental & Regulatory Pressure: Beyond “Check-the-Box” Compliance

Today' s regulations aren' t just about “halogen-free”—they demand low smoke, low toxicity, and full traceability.

EU REACH: 10+ FRs (e.g., certain brominated compounds) are on the SVHC list, requiring costly substitution.
China GB 30288-2013: Mandates smoke density (Ds,4min) <200 (ASTM E662) and toxic gas (HCl) <50 ppm (ISO 5659-2)—traditional PVC-based tubing (with chlorine) can' t comply.
NEV OEM requirements: Brands like Tesla and BYD now require “cradle-to-gate” sustainability data, ruling out FRs with high carbon footprints (e.g., imported antimony trioxide).

5. Cost Efficiency: The “Raw Material Squeeze”

Rising prices of critical FR raw materials (e.g., antimony trioxide up 40% YoY, 2023–2024) and waste from poor formulations are eroding margins.

Traditional ATH/MDH formulations require 2–3x more additive volume, increasing shipping and storage costs.
Imported bromine-antimony blends add 15–20% to raw material costs (vs. locally sourced alternatives) and carry supply chain risks (e.g., trade tariffs).
Scrap from processing issues (e.g., surface defects) adds $0.05–$0.10 per meter to production costs—for a 100k-meter run, that' s $5k–$10k in lost revenue.

II. Innovative Solutions to Break the Trade-Offs (With YINSU' s Technical Differentiators)

The key to solving these challenges isn' t “compromise”—it' s engineered FR systems that work with the polymer, not against it. Below are the solutions we' ve validated in 100+ customer trials:

1. High-Efficiency FRs: More Protection, Less Loading

By switching to ultra-efficient FR chemistries, manufacturers cut loading levels by 50–70%—preserving polymer properties while meeting standards.

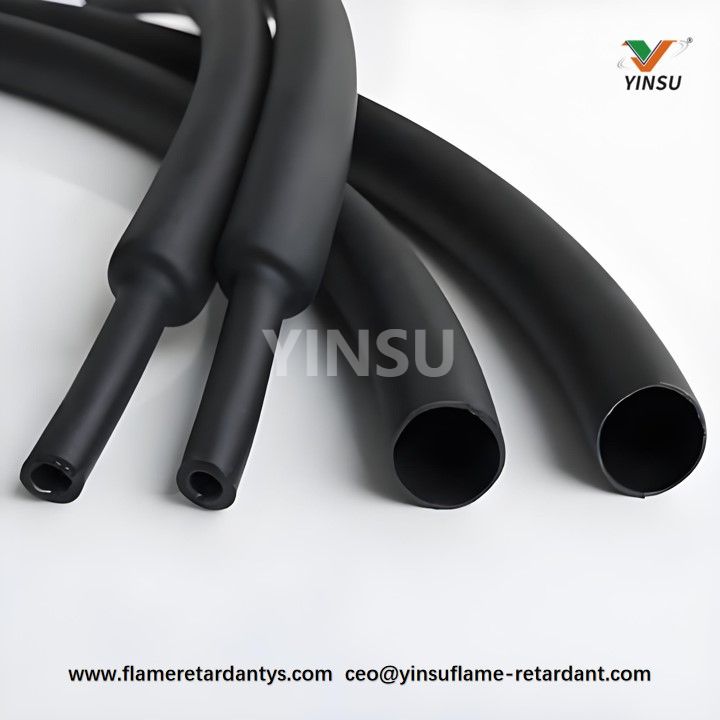

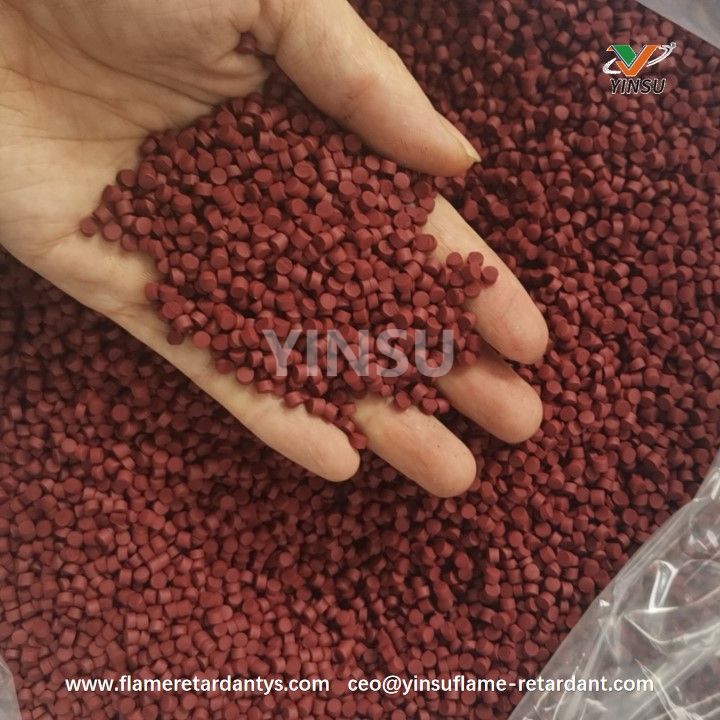

YINSU FRP-950X Encapsulated Red Phosphorus: Achieves UL VW-1 compliance at just 5–10 wt% loading (vs. 30–45% for ATH). In PO tubing, this means:

Tensile strength retained at >90% (12+ MPa, vs. <8 MPa with ATH).
Elongation at break >250% (vs. <100% with ATH), passing automotive bend tests.
Dielectric strength >21 kV/mm, meeting 800V EV harness requirements.

Why it works: Micro-encapsulation (epoxy-modified resin shell) prevents phosphorus agglomeration and ensures uniform dispersion—so less additive delivers more FR performance.

2. Surface Modification Technology: Smoother Processing, Consistent Quality

YINSU' s surface-modified FR fillers eliminate dispersion issues and streamline production:

Silane-Treated MDH: A silane coupling agent bonds MDH particles to polyolefins, reducing agglomeration by 90% (particle size <5 μm, vs. 20+ μm for unmodified MDH). This:

Lowers die pressure by 20%, boosting extrusion line speed back to 20+ m/min.
Eliminates surface defects, cutting scrap rates to <5%.
Improves crosslinking efficiency (peroxide consumption reduced by 10%), ensuring consistent shrink ratios (±0.05).

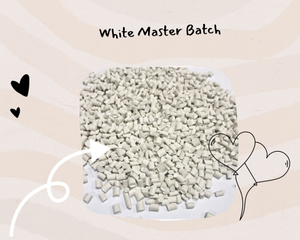

Dust-Free Masterbatches: All YINSU FRs are supplied as pelletized masterbatches (e.g., bromine-antimony Sb-01), eliminating dust exposure and simplifying material handling.

3. Synergistic Systems: 1+1 > 2 Performance

YINSU' s synergistic FR blends combine two or more chemistries to enhance safety and lower costs. For example:

Phosphorus-Nitrogen (P-N) Synergy: Pairing FRP-950X (phosphorus) with a nitrogen-based intumescent (PPAP) delivers:

Smoke density (Ds,4min) <150 (ASTM E662)—30% lower than FRP-950X alone.
Toxic gas (CO) <400 ppm (ISO 5659-2), meeting data center low-toxicity requirements.
Cost savings of 10–15% (vs. using phosphorus alone), as nitrogen additives are more economical.

Halogen-Free Synergy for FKM: For high-temperature FKM tubing (e.g., automotive under-hood), blending FRP-950X with nano-sized silica (YINSU' s K100) maintains FR performance (UL VW-1 pass) at 120°C continuous use—without compromising oil resistance (ASTM D471 oil swell <8%).

4. Customized Formulations: Tailored to Your Polymer & Application

No two polymers (EVA, PE, FKM, PTFE) behave the same—“one-size-fits-all” FRs fail. YINSU' s custom process includes:

1. Polymer Audit: We test your base polymer' s MFI (melt flow index), Tg (glass transition temperature), and crosslinking kinetics to identify compatibility risks.

2. Application Mapping: We align FR performance with your end-use (e.g., 800V EV harnesses need high dielectric strength, rail transit needs low smoke).

3. Prototyping & Testing: We supply 5–10kg prototypes for your extrusion trials, with full data on FR performance, mechanical properties, and processability.

Example: For a customer making EVA-based heat shrink for solar panels, we developed a custom blend of Bromine antimony masterbatch that:

Passes UL VW-1 and IEC 60695 GWIT >850°C.
Retains 90% elongation after 2000h UV exposure (ISO 4892-3).
Costs 12% less than their previous ATH-based formulation.

III. Case Study: EVA Heat Shrink Tubing—From Cost Crisis to 20% Margin Gain

A leading Asian heat shrink manufacturer faced a critical dilemma: their EVA-based tubing (for consumer electronics) used a traditional bromine-antimony FR system that:

Relied on imported antimony trioxide (costly, supply chain risks).
Required 20~30 wt% loading to pass UL VW-1, reducing MFI by 30% (slow extrusion).
Had a scrap rate of 18% due to surface defects.

By partnering with YINSU, we developed a custom bromine-antimony masterbatch (Sb-01):

Formulation upgrade: We optimized antimony particle size to 500nm (vs. 2μm in their old blend) and added a dispersant, cutting loading to 8 wt% while retaining UL VW-1 compliance.
Cost savings: Local sourcing of antimony (vs. imported) + lower loading reduced raw material costs by 25%.
Process improvements: MFI increased from 5 g/10min to 7 g/10min, boosting extrusion speed by 15%, scrap rate dropped to 6%.

Result: The customer' s margin on EVA tubing increased by 20%, and they eliminated supply chain reliance on imported antimony.

IV. Conclusion: Stop Compromising—Engineer the Perfect Formulation

Flame retardant heat shrink tubing formulation doesn' t have to be a choice between FR performance, mechanical strength, or cost. With the right FR partner—one that combines chemistry expertise, application knowledge, and custom engineering—you can create tubing that exceeds standards and your customers' expectations.
