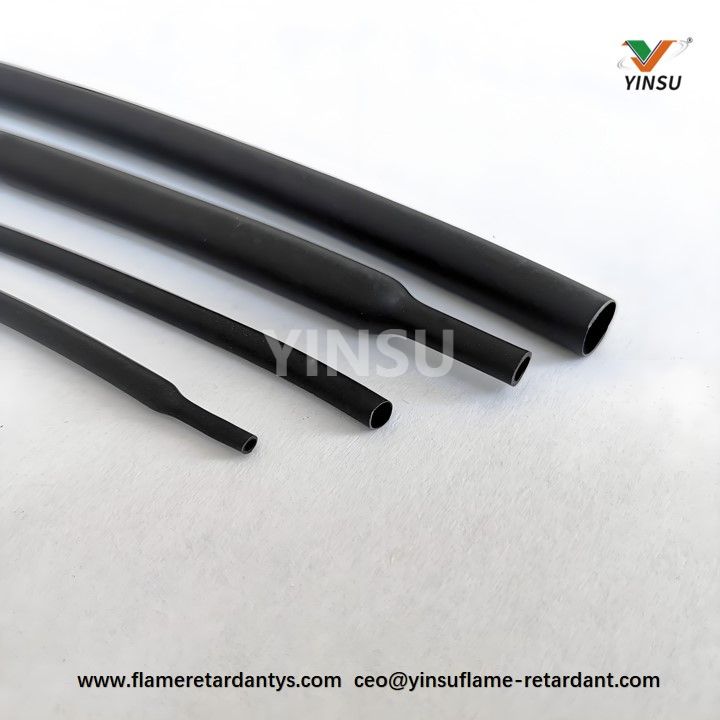

In aerospace circuits, data center racks, or electric vehicle wiring, even a small spark or surge of heat can threaten to turn into a catastrophic fire. Flame retardant heat shrink tubing serves as a critical first line of defense. This specialized polymer sleeve is engineered to shrink tightly around wires and components when heated, containing faults and preventing failures from spreading.

This ultimate guide explores the science behind flame retardant heat shrink tubing. We will demystify how it works and why the choice of flame retardant additives is key to its life-saving performance.

I. The Science of Flame Retardancy in Heat Shrink Tubing

1.Core Mechanisms of Flame Inhibition

The fundamental principle of flame retardancy lies in disrupting the combustion cycle, which is sustained by the "fire triangle" of heat, fuel, and oxygen. Flame retardant additives are specifically designed to interfere with one or more of these elements, thereby slowing or completely stopping the burning process. These mechanisms can be broadly categorized into two primary types: gas-phase and condensed-phase. The choice of flame retardant chemistry dictates which mechanism dominates and, consequently, the overall flame resistance performance of the heat shrink tubing. Understanding these core mechanisms is essential for engineers and designers to select the most appropriate material for their specific application, balancing fire safety with other critical performance requirements such as mechanical strength, flexibility, and environmental compliance.

• Gas-Phase Mechanism: Interrupting the Combustion Cycle

The gas-phase mechanism operates within the flame itself, targeting the high-energy chemical reactions that sustain combustion. When a polymer burns, it decomposes into flammable volatile gases. These gases react with oxygen in a complex chain reaction involving highly reactive free radicals, such as hydrogen (H•) and hydroxyl (OH•). These radicals are key propagators of the flame. Flame retardants that function via the gas-phase mechanism work by releasing species that can interrupt this chain reaction. For example, certain additives, particularly those based on halogens like bromine, decompose at elevated temperatures to release halogen radicals (e.g., Br•). These radicals are highly effective at scavenging the flame-propagating H• and OH• radicals, converting them into less reactive, more stable molecules like hydrogen bromide (HBr). By effectively removing these high-energy radicals from the flame front, the combustion process is starved of its primary drivers, leading to a significant slowdown or complete extinguishment of the fire once the external heat source is removed. This mechanism is highly efficient and often requires relatively low concentrations of the flame retardant additive to be effective.

• Condensed-Phase Mechanism: Formation of a Protective Char Layer

In contrast to the gas-phase approach, the condensed-phase mechanism functions within the solid polymer material itself. The primary goal of this mechanism is to alter the thermal decomposition pathway of the polymer. Instead of breaking down into flammable volatile gases, the polymer is induced to form a stable, carbonaceous char layer on its surface when exposed to heat. This char layer acts as a physical barrier, providing multiple layers of protection. First, it insulates the underlying, unburned polymer from the heat source, slowing down the rate of thermal decomposition and preventing the release of new flammable gases. Second, it acts as a shield, limiting the access of oxygen to the polymer surface, which is necessary for combustion to continue. Third, the char layer can trap any flammable gases that are produced, preventing them from reaching the flame front. Additives that promote this mechanism, such as phosphorus-based compounds, typically act as catalysts, facilitating the dehydration and cross-linking reactions within the polymer that lead to char formation. This results in a self-extinguishing material that not only resists flame spread but also significantly reduces smoke production, as the carbon is retained in the solid char rather than being released as soot.

2. Traditional Flame Retardant Systems

For decades, the flame retardancy of polymers, including those used in heat shrink tubing, has been dominated by a few key chemical systems. These traditional systems, primarily based on halogenated compounds and red phosphorus, have been widely adopted due to their proven effectiveness and cost-efficiency. They have provided reliable fire protection in countless applications, from consumer electronics to industrial wiring. However, their long-standing use has also brought their limitations to the forefront, particularly concerning environmental and health impacts. As regulatory landscapes evolve and the demand for safer, more sustainable materials grows, the industry is increasingly looking towards advanced alternatives. Nonetheless, a thorough understanding of these traditional systems remains crucial, as they form the baseline against which new technologies are measured and are still prevalent in many existing products.

• Bromine-Antimony Synergists: A Gas-Phase Approach

The bromine-antimony synergistic system is one of the most effective and widely used gas-phase flame retardant technologies. This system relies on a combination of a brominated organic compound, such as decabromodiphenyl ether, and antimony trioxide (Sb₂O₃). The mechanism is a multi-step process that begins when the material is exposed to heat. The brominated compound decomposes, releasing bromine radicals (Br•) into the flame front. These radicals are highly efficient at scavenging the high-energy H• and OH• radicals that propagate the combustion chain reaction, converting them into stable hydrogen bromide (HBr). The antimony trioxide acts as a synergist, reacting with the HBr to form volatile antimony tribromide (SbBr₃) and antimony oxybromide (SbOBr). These antimony compounds are themselves flame retardants, they decompose in the flame, releasing more bromine radicals and thus amplifying the overall flame-suppressing effect. This synergistic action allows for very efficient flame suppression at relatively low additive loadings, which is a significant advantage in terms of cost and impact on the polymer's mechanical properties. However, the major drawback of this system is the generation of dense, corrosive smoke containing hydrogen bromide and other toxic gases during combustion. Furthermore, growing environmental and health concerns regarding the persistence and bioaccumulation of halogenated compounds have led to increasing regulatory restrictions, driving a significant industry shift towards halogen-free alternatives.

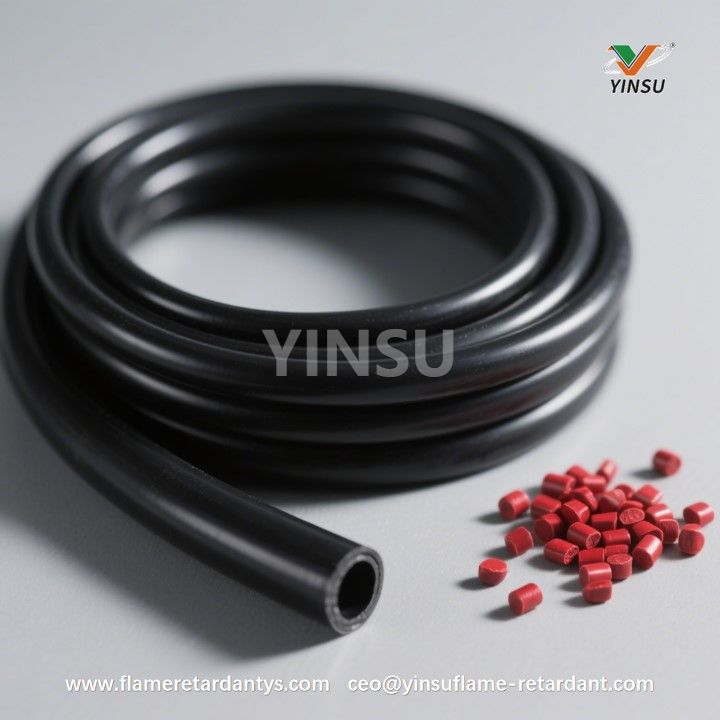

• Red Phosphorus: A Condensed-Phase, Char-Forming Approach

Red phosphorus is a highly effective, non-halogenated flame retardant that operates primarily through a condensed-phase mechanism. When incorporated into a polymer matrix, it remains stable under normal conditions. Upon exposure to fire, the heat causes the red phosphorus to transform into more reactive species, which then oxidize to form phosphoric acid. This acid acts as a powerful catalyst, promoting the dehydration and cross-linking of the polymer chains. Instead of breaking down into flammable volatile gases, the polymer is converted into a stable, carbon-rich char layer. This char acts as an insulating barrier, shielding the underlying material from heat and oxygen, thereby preventing the release of additional flammable gases and inhibiting the spread of the flame. The primary advantages of red phosphorus are its high efficiency at low loadings, its halogen-free nature, and its ability to significantly reduce smoke production compared to halogenated systems. However, there are significant challenges associated with its use. Fine red phosphorus powder can be pyrophoric (spontaneously flammable in air), requiring careful handling and stabilization. It can also impart a reddish or dark discoloration to the final product. Most critically, if not properly stabilized, red phosphorus can react with moisture to produce highly toxic phosphine (PH₃) gas, posing a serious safety risk. These handling and safety concerns, along with the push for even more environmentally benign solutions, have spurred the development of advanced alternatives.

II. Advanced and Emerging Flame Retardant Technologies

The evolution of flame retardant (FR) technologies is driven by the relentless demand for higher safety standards, stricter environmental regulations, and superior performance in increasingly demanding applications. While traditional halogenated and phosphorus-based systems have long been the workhorses of the industry, the future lies in advanced, multi-component, and synergistic systems that offer enhanced efficacy without compromising material properties or environmental integrity. These emerging technologies, particularly intumescent systems, nanomaterial-enhanced formulations, and sophisticated halogen-free solutions, represent the cutting edge of materials science. They are engineered to provide robust fire protection through complex, multi-stage mechanisms that go far beyond simple flame suppression. This section delves into the intricate chemistry and physics of these advanced systems, exploring how they function, how they are formulated, and why they are becoming the preferred choice for critical applications in sectors like aerospace, automotive, and electronics. Understanding these technologies is paramount for engineers and designers seeking to develop next-generation products that are not only safe and compliant but also innovative and sustainable.

1. Intumescent Flame Retardants (IFR)

Intumescent flame retardants (IFRs) represent a sophisticated and highly effective class of non-halogenated fire protection technology. Unlike traditional flame retardants that primarily function in either the gas or condensed phase, IFRs operate through a unique, multi-stage process that transforms the polymer surface into a thick, carbonaceous, and insulating char layer upon exposure to heat. This "intumescence," or swelling, creates a physical barrier that effectively shields the underlying material from the heat of the fire, cuts off the supply of oxygen, and prevents the release of flammable gases that fuel combustion. This mechanism makes them particularly valuable for applications requiring low smoke and toxicity, as the char layer traps potentially harmful volatiles. The development of IFR systems is a complex exercise in chemical engineering, requiring a delicate balance between three key functional components that must work in perfect concert to achieve the desired fire protection. The synergy between these components is critical, the timing of their reactions, the viscosity of the melt, and the stability of the resulting char all determine the ultimate effectiveness of the system.

• The Three-Component System: Acid Source, Carbon Source, and Gas Source

The efficacy of an intumescent flame retardant system hinges on the synergistic interaction of three essential components: an acid source, a carbon source, and a gas source. Each component plays a distinct and critical role in the intumescence process, and their careful selection and ratio are fundamental to the formulation's success. The acid source, typically a phosphorus-based compound like ammonium polyphosphate (APP), is the catalyst that initiates the process. When heated, it decomposes to release a strong acid, such as phosphoric or polyphosphoric acid. This acid then acts upon the carbon source, which is usually a polyhydric compound rich in hydroxyl groups, such as pentaerythritol (PER) or its derivatives. The acid catalyzes the dehydration of the carbon source, promoting its cross-linking and carbonization to form a stable, carbon-rich char. The third component, the gas source, is often a nitrogen-containing compound like melamine (MEL) or melamine cyanurate (MC). Upon thermal decomposition, this component releases large volumes of non-flammable gases, such as ammonia and nitrogen. These gases cause the viscous, carbonaceous mass to expand and swell, forming a thick, multicellular, and insulating char layer. The timing of these reactions is crucial, the acid must be released before the carbon source decomposes, and the gas must be generated at the right moment to expand the char without blowing it apart. A study on a PA6 system demonstrated the power of this synergy, where a combination of expandable graphite (EG), aluminum diethylphosphinate (AlPi), and melamine polyphosphate (MPP) achieved a remarkable Limiting Oxygen Index (LOI) of 46%, a value far exceeding what any single component could achieve alone .

• Mechanism of Action: Creating an Expanded, Insulating Char

The mechanism of intumescent flame retardancy is a dynamic, multi-step process that transforms a flammable polymer into a self-protecting material. The process begins when the material is exposed to a heat source, such as a flame. The first step is the thermal decomposition of the acid source, which releases a strong inorganic acid. This acid then acts as a catalyst, initiating the dehydration and esterification of the carbon source. This chemical reaction drives the formation of a carbonaceous char, a process that would otherwise lead to the production of flammable volatile gases. Simultaneously, the gas source begins to decompose, releasing a large volume of inert gases. These gases become trapped within the viscous, semi-liquid char, causing it to foam and expand dramatically, often to many times its original thickness. This creates a thick, multicellular, and highly insulating barrier. This char layer serves multiple protective functions: it insulates the underlying polymer from the heat of the fire, preventing further decomposition, it acts as a physical barrier, cutting off the supply of oxygen to the polymer, and it suppresses the release of flammable gases that would otherwise fuel the fire. The effectiveness of this mechanism is highly dependent on the quality of the char. A good intumescent char is stable, adherent, and has a high expansion ratio. Research has shown that the solid decomposition products of certain synergists, like AlPi/MPP mixtures, can act as a "glue" between expanded graphite layers, significantly increasing the mechanical stability and integrity of the char residue, which is crucial for maintaining the protective barrier throughout the fire event .

• Application in High-Performance Polymers like PEEK

The application of intumescent flame retardants in high-performance engineering polymers such as polyetheretherketone (PEEK) presents a unique set of challenges and opportunities. PEEK is renowned for its exceptional thermal stability, mechanical strength, and chemical resistance, making it a prime candidate for demanding applications in aerospace, automotive, and electronics. However, its high processing temperatures (often exceeding 350°C) and inherent resistance to char formation necessitate the use of highly thermally stable and efficient FR systems. Traditional IFR components may not be suitable due to their lower decomposition temperatures. Therefore, advanced IFR systems for PEEK often involve synergistic combinations of novel phosphorus-based compounds, high-temperature-stable char formers, and specialized blowing agents. For instance, a system might combine a high-temperature phosphinate like aluminum diethylphosphinate (AlPi) with a synergist like melamine polyphosphate (MPP) and a carbon source that can withstand the processing conditions. The goal is to create an IFR system that remains stable during melt processing but activates at a temperature just below the decomposition point of PEEK to form a robust and effective char. The development of such systems is an active area of research, focusing on optimizing the synergy between components to achieve the highest possible level of fire protection without compromising the intrinsic properties of the high-performance polymer matrix. The successful integration of IFRs into PEEK can unlock its use in applications with stringent fire safety requirements, such as aircraft interiors and high-voltage electrical components.

2. Nanomaterial-Enhanced Flame Retardancy

The incorporation of nanomaterials into polymer formulations has opened a new frontier in flame retardancy, offering a paradigm shift from traditional additive approaches. Nanoparticles, due to their extremely high surface-area-to-volume ratio, can impart significant fire protection at very low loadings (typically less than 5 wt%), which is a major advantage over conventional flame retardants that often require high loadings (20-60 wt%) to be effective. This low loading minimizes the negative impact on the mechanical properties and processability of the host polymer. Nanomaterials enhance flame retardancy through a variety of mechanisms, including the formation of a more robust and continuous char layer, the creation of a "tortuous path" that hinders the diffusion of flammable gases and oxygen, and the catalytic promotion of char formation. When used in synergy with other flame retardant systems, particularly intumescent systems, nanoparticles can dramatically improve the efficiency and performance of the overall formulation, leading to materials with unprecedented levels of fire safety.

• Role of Nanoparticles (e.g., ZnO, Nano-Silica) in Reinforcing the Char Layer

Nanoparticles such as zinc oxide (ZnO) and nano-silica (SiO₂) play a crucial role in enhancing the performance of flame retardant systems, primarily by reinforcing the char layer that forms during combustion. When a polymer containing these nanoparticles is exposed to fire, the nanoparticles migrate to the surface and become incorporated into the developing char. Their high surface area and reactivity allow them to act as physical cross-linking points, strengthening the char and making it more cohesive and resistant to mechanical erosion by flames. This reinforcement prevents the char from cracking or breaking apart, which would otherwise expose the underlying virgin polymer to the heat and allow the fire to continue. For example, nano-silica can form a glassy, ceramic-like layer at high temperatures, which provides an excellent thermal barrier. Similarly, ZnO nanoparticles can catalyze the formation of a more stable and graphitic char structure. This reinforcement effect is particularly important in intumescent systems, where the integrity of the expanded char is paramount to its insulating function. The presence of these nanoparticles can significantly increase the char yield, reduce the rate of heat release, and improve the overall fire performance of the material, all while being used at very low concentrations that have minimal impact on the polymer's other properties.

• Synergistic Effects of Nanomaterials with IFR Systems

The combination of nanomaterials with intumescent flame retardant (IFR) systems creates a powerful synergistic effect that far exceeds the sum of the individual components' performance. In an IFR-nanomaterial system, the nanoparticles act as a "char reinforcer" or "char stabilizer." While the IFR components (acid, carbon, and gas sources) are responsible for creating the expanded, multicellular char, the nanoparticles work to improve the quality and durability of that char. They can increase the viscosity of the polymer melt during the intumescence process, which helps to trap the gases more effectively and leads to a more uniform and stable expansion. Furthermore, the nanoparticles can act as a physical barrier, creating a tortuous path that slows down the escape of flammable volatiles and the ingress of oxygen. They can also catalyze the charring reaction, increasing the amount of carbonaceous residue formed. This synergy results in a significant improvement in key fire safety parameters, such as a higher Limiting Oxygen Index (LOI), a lower peak heat release rate (pHRR) in cone calorimetry tests, and a more robust and effective insulating barrier. This allows for a reduction in the overall loading of the IFR system, which can help to mitigate any negative effects on the polymer's mechanical properties and processing characteristics.

• Case Study: Nano-Calcium Carbonate and Octaphenylsilsesquioxane in PEEK

A compelling case study demonstrating the power of nanomaterial synergy in high-performance polymers involves the use of nano-calcium carbonate (nCC) and octaphenylsilsesquioxane (OPS) in polyetheretherketone (PEEK). PEEK's high thermal stability and processing temperature make it a challenging matrix for flame retardancy. In this study, the combination of nCC and OPS was shown to significantly enhance the fire performance of PEEK. The nCC particles, upon thermal decomposition, release carbon dioxide, which acts as a blowing agent, and leave behind calcium oxide, which can react with other components to form a stable ceramic phase in the char. The OPS, a type of polyhedral oligomeric silsesquioxane (POSS), acts as a precursor to a silica-based ceramic char, which provides excellent thermal insulation and structural integrity. When used together, these two nanomaterials create a synergistic effect. The nCC helps to create a more porous and expanded char structure, while the OPS reinforces this structure with a ceramic network. This results in a highly effective insulating barrier that significantly reduces the heat release rate and mass loss rate of the PEEK during combustion. This case study highlights how the rational design of multi-component nanomaterial systems can overcome the challenges of flame retarding high-performance polymers, paving the way for their use in the most demanding fire-critical applications.

3. Halogen-Free and Red Phosphorus-Free Solutions

The global trend towards more sustainable and environmentally friendly materials has fueled a significant shift away from traditional halogenated and red phosphorus-based flame retardants. Halogenated flame retardants, while effective, are associated with the generation of corrosive and toxic smoke during combustion, and many have been restricted or banned under regulations like RoHS and REACH due to their persistence in the environment and potential health risks. Similarly, red phosphorus, though highly efficient, presents handling challenges and can lead to discoloration and the potential release of toxic phosphine gas. In response to these concerns, the industry has focused on developing advanced halogen-free and red phosphorus-free solutions. These new systems rely on a variety of chemistries, including metal hydroxides, phosphorus-nitrogen synergists, and siloxane-based additives, to achieve effective flame retardancy with a more favorable environmental and safety profile.

• Metal Hydroxides (Aluminum and Magnesium Hydroxide)

Metal hydroxides, primarily aluminum hydroxide (ATH) and magnesium hydroxide (MDH), are among the most widely used halogen-free flame retardants. Their mode of action is based on a combination of endothermic decomposition and the release of water vapor. When exposed to heat, these compounds decompose at specific temperatures (ATH around 200-300°C, MDH around 300-400°C), absorbing a significant amount of heat in the process. This endothermic reaction helps to cool the polymer and delay ignition. Simultaneously, the decomposition releases a large volume of water vapor, which dilutes the flammable gases in the flame front and further suppresses combustion. The resulting metal oxide residue (alumina or magnesia) forms a protective layer on the polymer surface, providing a physical barrier to heat and oxygen. While ATH and MDH are environmentally benign and cost-effective, their main drawback is the high loading levels (often 50-60 wt%) required to achieve adequate flame retardancy. Such high loadings can have a detrimental effect on the mechanical properties and processability of the polymer. However, for applications where these property trade-offs are acceptable, metal hydroxides remain a popular and effective choice for achieving halogen-free flame retardancy. A quantitative assessment of their efficiency showed that while they act primarily in the condensed phase through dilution, their effectiveness in tests like LOI is only significant at very high loadings (≥60 wt%) .

• Phosphorus-Nitrogen Synergistic Systems (e.g., Aluminum Diethylphosphinate)

Phosphorus-nitrogen (P-N) synergistic systems represent a highly effective and versatile class of halogen-free flame retardants. These systems combine a phosphorus-based compound, which promotes char formation in the condensed phase, with a nitrogen-based compound, which enhances the process and can also act in the gas phase. A prime example of this technology is aluminum diethylphosphinate (AlPi), often used in combination with synergists like melamine polyphosphate (MPP). AlPi decomposes to release phosphinic acid, which catalyzes the charring of the polymer, while the aluminum phosphate residue remains in the condensed phase, reinforcing the char. The nitrogen component, such as MPP, can release non-flammable gases that help to expand the char and can also form thermally stable structures that further enhance the barrier properties. The synergy between the phosphorus and nitrogen components allows for high levels of flame retardancy at relatively low loadings, minimizing the impact on the polymer's mechanical properties. This makes P-N systems particularly suitable for high-performance engineering polymers. A study on a PA6 system demonstrated that a combination of AlPi and MPP (in a 3:2 ratio) acted as a powerful synergist with expandable graphite, leading to a very high LOI of 46% and a V-0 rating in the UL-94 test . This highlights the exceptional performance that can be achieved with well-designed P-N synergistic systems.

• Siloxane-Based Flame Retardants

Siloxane-based flame retardants, including silicone fluids, resins, and more advanced structures like polyhedral oligomeric silsesquioxanes (POSS), offer a unique and effective approach to halogen-free fire protection. Their mechanism of action is primarily based on the formation of a silica-based ceramic layer on the polymer surface during combustion. This layer acts as an excellent thermal insulator and physical barrier, protecting the underlying material from heat and oxygen. The formation of this char is often accompanied by a low rate of heat release and smoke production. Siloxane-based FRs can be used alone or, more commonly, in synergy with other flame retardants. For example, when combined with phosphorus-based systems, they can create a highly effective hybrid char that combines the benefits of both technologies. The silicone component can improve the thermal stability and integrity of the phosphorus-based char, while the phosphorus component can enhance the charring of the polymer. This synergy allows for a reduction in the total additive loading, leading to better retention of the polymer's original properties. The use of POSS, in particular, has gained attention due to its well-defined nanostructure, which allows for precise control over the properties of the resulting ceramic char. This makes siloxane-based flame retardants a promising technology for the development of high-performance, low-smoke, and environmentally friendly fire-safe materials.

In summary, this paper analyzes the core mechanisms of flame-retardant heat-shrink tubing (gas/condensed-phase flame retardancy), traditional systems (brominated antimony/red phosphorus), and advanced technologies (IFR, nanomaterials, halogen-free and red phosphorus-free solutions). It provides practical guidance for engineers and manufacturers in aviation, EV, and other fields, helping them balance fire safety, performance, and environmental compliance to accurately select the most suitable materials.
