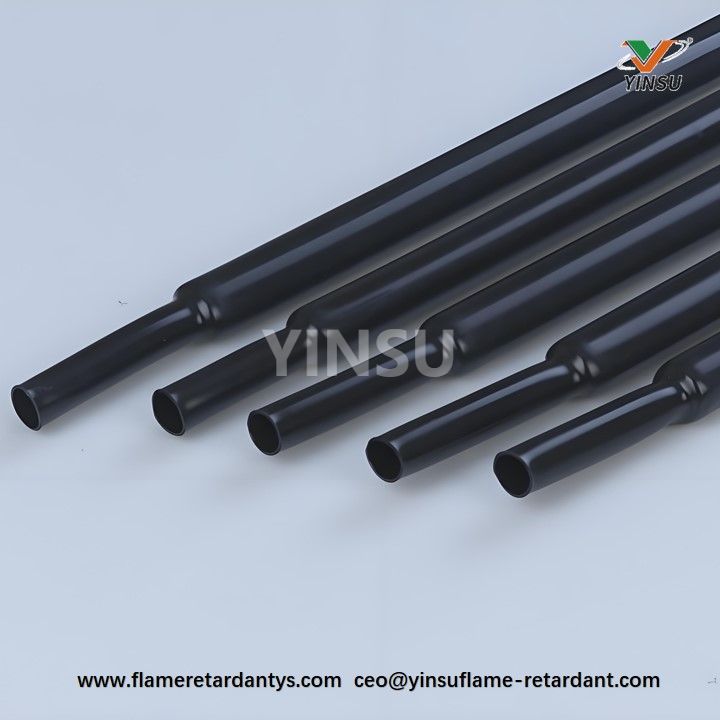

​Formulation Design And Performance Considerations for Heat Shrink Tubing

Formulation Design and Performance Considerations for Heat Shrink Tubing

The development of a flame-retardant heat shrink tubing formulation is a complex balancing act that extends far beyond simply adding a flame retardant to a polymer. It is a meticulous process of engineering a multi-component system where each ingredient must be carefully selected and optimized to achieve a delicate equilibrium between fire performance, mechanical integrity, processing characteristics, and regulatory compliance. The final product must not only self-extinguish and prevent fire propagation but also maintain the essential properties of a heat shrink tube: it must be flexible, have sufficient tensile strength and elongation to withstand installation stresses, and exhibit precise and reliable shrinkage behavior when heated. Furthermore, the formulation must be stable during high-temperature melt processing and meet the increasingly stringent environmental and safety standards of global markets. This section explores the critical considerations and trade-offs involved in the design of these advanced polymer formulations, providing insight into the science and art of creating high-performance, fire-safe materials.

I. Balancing Flame Retardancy with Mechanical Properties

One of the most significant challenges in formulating flame-retardant polymers is the inherent conflict between achieving high fire safety and maintaining excellent mechanical properties. Many highly effective flame retardants, particularly inorganic fillers like metal hydroxides or intumescent systems, are required at high loadings (often 30-60% by weight) to be effective. At these concentrations, the additives can act as stress concentrators within the polymer matrix, leading to a significant degradation of key mechanical properties. This can manifest as a reduction in tensile strength, which is the material's resistance to being pulled apart, a decrease in elongation at break, which measures its flexibility and ability to deform without fracturing, and a loss of impact resistance. For a heat shrink tube, which must be stretched and shrunk without tearing, maintaining adequate flexibility and toughness is non-negotiable. Therefore, the formulation engineer must carefully navigate this trade-off, seeking to maximize flame retardancy while minimizing the negative impact on the mechanical performance of the final product. This often involves a multi-faceted approach that includes the use of synergistic additive packages to reduce total loading, the selection of additives with favorable particle size and morphology, and the incorporation of compatibilizers to improve the interaction between the polymer and the additives.

1. The Challenge of High Additive Loadings on Tensile Strength and Elongation

The incorporation of high loadings of flame retardant additives into a polymer matrix invariably leads to a compromise in its mechanical performance. The primary reason for this is that the additives, which are often rigid particles or have limited compatibility with the polymer, disrupt the continuity and uniformity of the polymer chains. This disruption creates stress concentration points within the material. When an external force is applied, these points act as the initiation sites for micro-cracks, which then propagate through the matrix, leading to premature failure at a lower stress level than the pure polymer would withstand. This results in a measurable decrease in tensile strength. Furthermore, the rigid particles restrict the mobility of the polymer chains, making the material stiffer and less able to deform. This is reflected in a reduction in the elongation at break, a critical parameter for materials like heat shrink tubing that must undergo significant deformation during installation. For example, a study on EVA/PE compounds showed that while high loadings (60 wt%) of ATH or MDH were necessary to achieve a significant flame retardant effect in LOI tests, such high concentrations would undoubtedly have a severe impact on the material's flexibility and strength . The challenge for the formulator is to find the "sweet spot" where the flame retardancy is sufficient to meet safety standards, but the mechanical properties are still within the acceptable range for the intended application.

2. The Role of Compatibilizers (e.g., EBM Terpolymer) in Enhancing Performance

To mitigate the negative effects of high additive loadings on mechanical properties, formulation chemists often employ compatibilizers. These are specialized polymers or additives that are designed to improve the interfacial adhesion between the polymer matrix and the flame retardant particles. By creating a stronger bond at the interface, compatibilizers help to more effectively transfer stress from the polymer to the additive, reducing the concentration of stress at the particle surface and preventing the premature formation of cracks. This leads to a significant improvement in both tensile strength and elongation at break compared to a non-compatibilized system. For example, in a system using a polyolefin base polymer, a compatibilizer might be a grafted polymer, such as maleic anhydride-grafted polyethylene, which has polar groups that can interact with the surface of inorganic flame retardant particles, while the non-polar backbone remains compatible with the polyolefin matrix. In the context of a patent for a low-smoke, halogen-free flame retardant composition for heat shrinkable materials, a compatibilizer is explicitly listed as a key component, alongside the base polymers (EVA, EPDM) and the flame retardant package (APP, melamine cyanurate, metal hydroxides) . The inclusion of a compatibilizer is a critical strategy for enabling the use of high-performance, high-loading flame retardant systems without sacrificing the essential mechanical properties required for a functional heat shrink tube.

II. Impact on Processing and Final Product Quality

The formulation of flame-retardant heat shrink tubing not only affects the final product's performance but also has a profound impact on the manufacturing process itself. The introduction of various additives, especially at high concentrations, can alter the rheological properties of the polymer melt, affect the stability of the extrusion process, and influence the final dimensions and appearance of the tubing. Achieving a uniform and stable product requires careful consideration of how the additives will behave during melt compounding and extrusion. Issues such as poor dispersion, thermal degradation of additives, and inconsistent shrinkage can lead to product defects, reduced yield, and performance failures. Therefore, a successful formulation must be designed not only for its end-use properties but also for its processability, ensuring a smooth and efficient manufacturing operation that consistently produces high-quality tubing.

1. Ensuring Uniform Dispersion of Additives

The uniform dispersion of flame retardant additives within the polymer matrix is a critical factor that directly influences both the fire performance and the mechanical properties of the final heat shrink tube. Poor dispersion, where additives exist as large agglomerates or are unevenly distributed, can lead to several problems. Firstly, it creates inconsistencies in the flame retardancy, with some areas of the tube being well-protected and others being vulnerable to fire. This can lead to unpredictable and unreliable performance. Secondly, these agglomerates act as large stress concentrators, severely compromising the mechanical strength and flexibility of the tubing. Achieving a fine, uniform dispersion is particularly challenging with high-loading systems and with nanoparticles, which have a strong tendency to agglomerate due to their high surface energy. To overcome this, manufacturers employ high-shear mixing techniques during the compounding stage, often using twin-screw extruders that provide intense mixing and kneading action. Additionally, surface treatments or coatings can be applied to the additive particles to improve their compatibility with the polymer and reduce their tendency to clump together. The goal is to break down any agglomerates and distribute the individual particles or small clusters as evenly as possible throughout the polymer melt, ensuring that every part of the final product has the intended level of fire protection and consistent mechanical properties.

2. Maintaining Dimensional Stability and Shrinkage Characteristics

A fundamental requirement for any heat shrink tube is its ability to shrink predictably and uniformly to a specified diameter when heated. The incorporation of flame retardant additives can significantly impact this critical characteristic. High loadings of fillers can interfere with the polymer's ability to "remember" its pre-expanded state, which is the basis of the heat shrink effect. The additives can restrict the elastic recovery of the polymer chains, leading to incomplete or non-uniform shrinkage. This can result in a loose fit over the substrate, compromising the protective seal. Furthermore, the additives can affect the crystallization behavior of the polymer, which is crucial for the crosslinking and expansion processes that impart the heat shrink memory. To maintain the desired shrinkage characteristics, the formulation must be carefully balanced. The type and amount of flame retardant must be selected to provide the necessary fire protection without excessively disrupting the polymer's elastic properties. The crosslinking process, whether achieved through radiation or chemical means, must also be optimized to ensure that the polymer network is robust enough to hold the expanded shape but still capable of recovering when heated. A patent for a halogen-free flame retardant heat shrink material highlights the importance of the entire process, from compounding and extrusion to crosslinking and expansion, in achieving a final product with the correct dimensions and shrinkage ratio.

III. Environmental and Regulatory Factors

In today's global marketplace, the design of flame-retardant materials is inextricably linked to a complex web of environmental regulations and safety standards. The choice of flame retardant is no longer based solely on technical performance and cost, it must also comply with a growing list of national and international directives aimed at protecting human health and the environment. Regulations such as the Restriction of Hazardous Substances (RoHS) in Europe and similar laws worldwide have banned or restricted the use of specific halogenated flame retardants due to their potential toxicity and persistence. This has created a powerful market driver for the development and adoption of halogen-free alternatives. Furthermore, in many public and confined-space applications, such as transportation and building construction, there is a strong emphasis on materials that produce low smoke and zero halogen (LSZH) when burned, to ensure visibility for escape and to prevent the release of corrosive and toxic gases. These regulatory and safety considerations are now a primary driver of innovation in the flame retardant industry, shaping the future of materials like heat shrink tubing.

1. Compliance with RoHS and REACH Standards

Compliance with environmental regulations, particularly the European Union's Restriction of Hazardous Substances (RoHS) and Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) directives, is a non-negotiable requirement for any product sold in the European market and many other regions that have adopted similar standards. RoHS specifically restricts the use of certain hazardous materials in electrical and electronic equipment, including specific brominated flame retardants like PBB and PBDE. REACH is a broader regulation that requires the registration and evaluation of chemical substances, with the potential to restrict or ban those deemed to pose a significant risk to human health or the environment. For manufacturers of flame-retardant heat shrink tubing, this means that the choice of flame retardant additives must be carefully vetted to ensure they do not contain any substances listed under these regulations. This has led to a significant shift away from traditional halogenated systems towards halogen-free alternatives, such as phosphorus-nitrogen synergists, metal hydroxides, and intumescent systems. Companies like Americhem explicitly state that their formulation process considers RoHS and REACH compliance factors as a critical criterion, alongside performance standards like UL94 . This regulatory landscape ensures that the development of new flame retardant technologies is aligned with the principles of sustainability and environmental responsibility.

2. The Shift Towards Low-Smoke, Zero-Halogen (LSZH) Materials

The demand for materials with low-smoke, zero-halogen (LSZH) properties is a major trend in the wire and cable industry, driven by safety concerns in enclosed environments like buildings, ships, aircraft, and rail vehicles. In a fire, traditional halogenated materials can release dense, black smoke and corrosive, toxic gases like hydrogen chloride (HCl) and hydrogen bromide (HBr). This smoke can obscure escape routes and hinder rescue efforts, while the corrosive gases can damage sensitive electronic equipment and pose a serious health risk to occupants. LSZH materials are formulated to address these issues by producing significantly less smoke and no halogen acids when burned. This is achieved by using halogen-free flame retardant systems, such as metal hydroxides, phosphorus-nitrogen compounds, or intumescent systems. A patent for a low-smoke, halogen-free flame retardant heat shrink material explicitly lists this as a key feature, using a combination of APP, melamine cyanurate, and metal hydroxides to achieve the desired fire performance without halogens . The development of LSZH heat shrink tubing is critical for applications where fire safety is paramount, ensuring that the protective sleeving does not contribute to the hazards of a fire event. This trend is reinforced by industry standards, such as the IEEE 1202 test for cable fire propagation, which is often required for products used in critical infrastructure.
