In the high-stakes landscapes of new energy vehicle (NEV) high-voltage wiring harnesses, data center server racks, and rail transit electrical enclosures, specifying the wrong flame retardant (FR) heat shrink tubing isn' t just an oversight—it' s a liability. A single failure can trigger cascading risks: short circuits in EV batteries, smoke inhalation hazards in enclosed data centers, or service outages in rail systems. With a maze of polymer chemistries, evolving global standards, and FR formulations optimized for niche use cases, how do you select a solution that delivers reliable protection, not just compliance?

This guide is tailored for engineers, material scientists, and procurement specialists who need to move beyond “check-the-box” selections. We dive deep into the material science of FR systems, decode critical performance standards, and highlight how advanced halogen-free flame retardants (HFFR) solve unmet industry challenges—with a focus on YINSU' s proprietary technologies that redefine HFFR efficiency.

Beyond the Polymer: A Dual Classification System (With Performance Data)

FR heat shrink tubing' s performance is determined by two interdependent components: its base polymer (mechanical/thermal backbone) and its FR system (fire safety core). Understanding their synergies is non-negotiable for targeted selection.

1. Classification by Base Material (With Application-Specific Metrics)

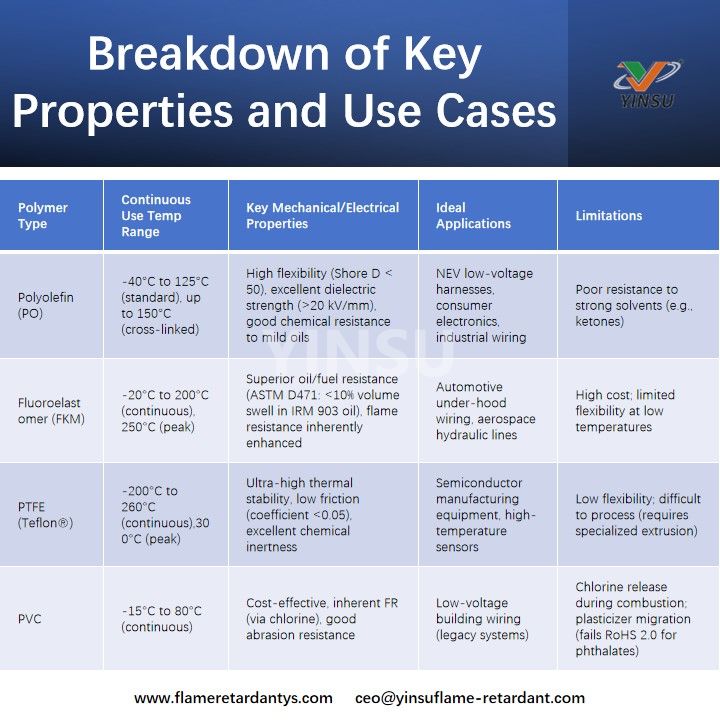

Each polymer is engineered for distinct environmental and mechanical demands. Below is a breakdown of key properties and use cases that matter to industry professionals:

2. Classification by Flame Retardant System (Mechanisms & Tradeoffs)

The FR system dictates not just flammability ratings, but also smoke density (ASTM E662), toxic gas emission (ISO 5659-2), and retention of polymer properties post-processing. Below is a technical comparison of industry-standard systems:

Halogenated FR Systems (Bromine/Antimony)

• Mechanism: Gas-phase inhibition—bromine radicals (Br•) interrupt the combustion chain reaction, antimony trioxide (Sb₂O₃) acts as a synergist to amplify bromine’s efficiency.

• Pros: High flame suppression efficiency at low loadings (5–12%), minimal impact on polymer processability.

• Cons: Generates corrosive hydrogen bromide (HBr) gas (pH < 3 when condensed) that damages electrical components, smoke density (Ds,4min) > 400 (ASTM E662), toxic byproducts (e.g., dioxins) in high-temperature fires.

• Regulatory Risks: Restricted in EU (REACH SVHC list for decabromodiphenyl ether) and China (GB/T 2408-2021 limits on halogen content).

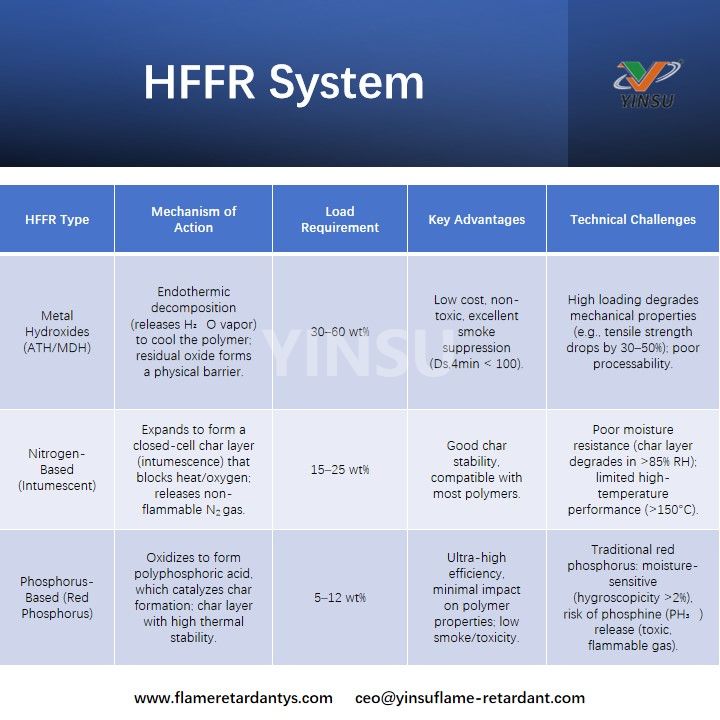

Halogen-Free FR (HFFR) Systems (The Modern Standard)

Driven by regulations (RoHS 2.0, REACH, China' s GB 30288-2013) and market demand for “safer-by-design” solutions, HFFR systems rely on condensed-phase action (cooling, charring) to suppress flames.

YINSU' s Technical Breakthrough: FRP-950X Encapsulated Red Phosphorus

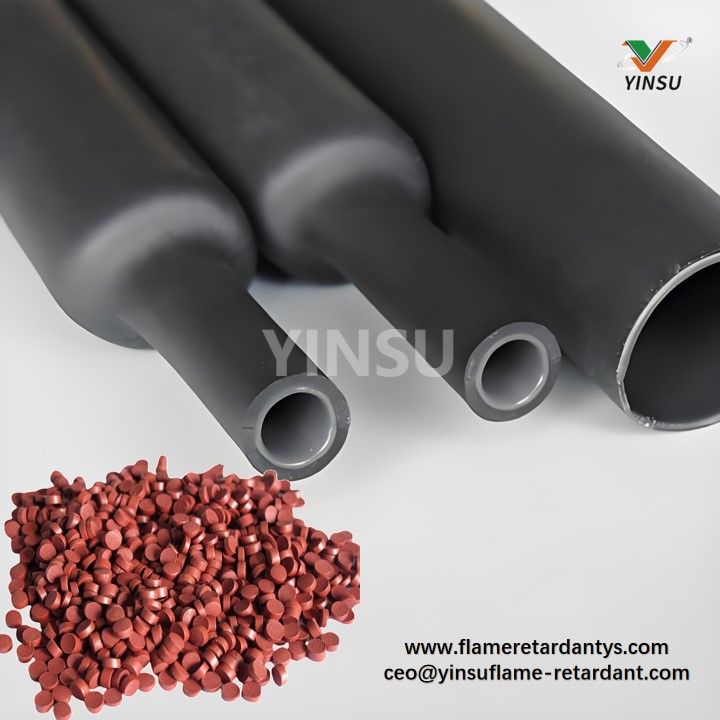

For polyolefin-based FR heat shrink tubing—the most widely used type in NEVs, data centers, and industrial applications—YINSU' s FRP-950X encapsulated red phosphorus solves the critical limitations of traditional HFFR systems. It' s not just a FR additive, it' s a precision-engineered solution for high-performance applications.

What Makes FRP-950X Unique?

Traditional red phosphorus requires surface treatment to mitigate moisture absorption and PH₃ release—but these treatments often degrade dispersion or thermal stability. FRP-950X uses in-situ polymerization micro-encapsulation: a thin, uniform shell of epoxy-modified resin that bonds to phosphorus particles, creating a barrier that:

• Reduces moisture absorption to <0.3% (vs. >2% for untreated red phosphorus, per ASTM D570).

• Eliminates PH₃ release (<0.1 ppm during extrusion, per GC-MS testing).

• Ensures 95%+ dispersion uniformity in polyolefin (vs. 70–80% for conventional coated red phosphorus, via optical microscopy).

Mechanism of Action in Heat Shrink Tubing

When exposed to flame, FRP-950X undergoes a three-step protective reaction:

1. Oxidation: Phosphorus oxidizes to polyphosphoric acid (PPA) at 250–300°C.

2. Char Catalysis: PPA dehydrates the polyolefin matrix, promoting formation of a dense, closed-cell char layer (thickness ~500 μm for 10 wt% loading).

3. Barrier Formation: The char layer blocks heat transfer to the underlying polymer (>80% heat reflection) and prevents release of flammable volatiles—effectively extinguishing the flame.

Application-Specific Performance Data

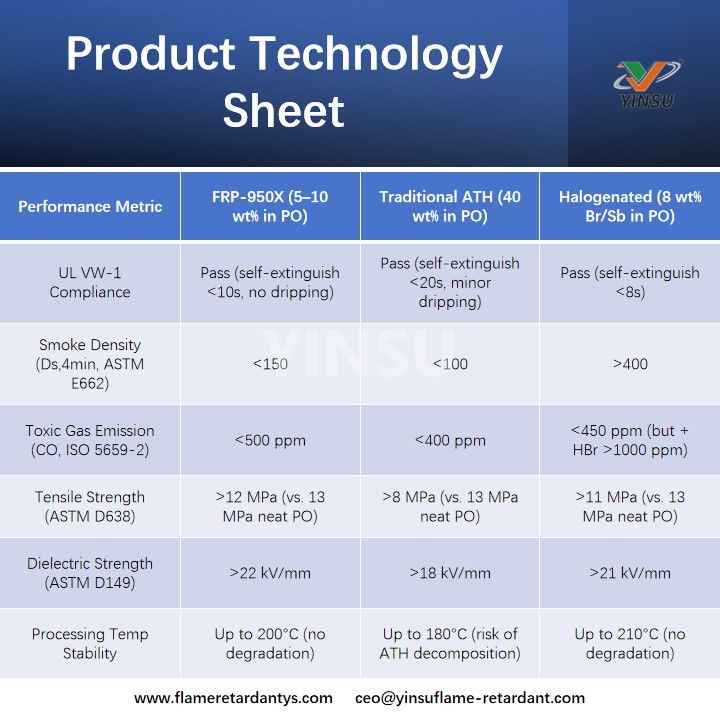

For industry professionals, “efficiency” means measurable results. Below is how FRP-950X performs in key heat shrink use cases:

For Halogenated Requirements: YINSU' s Bromine-Antimony Masterbatches

While HFFR is the future, YINSU still supports legacy applications with bromine-antimony masterbatches. Formulated with high-purity decabromodiphenyl ethane (DBDPE, REACH-compliant) and nano-sized Sb₂O₃, these masterbatches offer:

• Uniform dispersion (particle size <1 μm) to avoid dielectric breakdown.

• UL VW-1 compliance at 6–8 wt% loading.

• Low migration (<0.1% after 1000h at 85°C/85% RH) to ensure long-term performance.

Decoding Critical Standards: What Industry Pros Need to Know

Compliance isn' t just about passing a test—it' s about matching the standard to your application' s risk profile. Below is a technical breakdown of the most relevant standards for FR heat shrink tubing:

1. UL 224 (Insulating Tubing)

• Scope: Defines requirements for extruded heat shrink tubing, including flame resistance, dielectric strength, and thermal endurance.

• Key Test for FR: Flame test (Clause 11)—samples are exposed to a 125mm flame for 10 seconds, they must self-extinguish within 30 seconds, with no flame propagation to the tubing ends.

• Why It Matters: UL 224 is the baseline for North American markets—without it, tubing cannot be used in UL-listed electrical equipment.

2. UL VW-1 (Vertical Wire Test)

• Scope: The gold standard for flame retardancy in wiring applications—simulates a single wire/tubing burning in a vertical orientation (mimicking real-world harnesses).

• Stringent Criteria:

o 10-second ignition, 30-second maximum self-extinguish time.

o No flaming drips that ignite a cotton indicator (placed 305mm below the sample).

o No charring extending >25mm from the flame path.

• YINSU' s Advantage: FRP-950X consistently achieves self-extinguish times <10 seconds—well below the 30-second limit—due to its rapid char formation.

3. IEC 60695 (Glow-Wire Tests)

• Scope: Critical for enclosed environments (e.g., data centers, EV battery packs) where “hot surface ignition” is a risk (e.g., from a faulty resistor).

• Key Tests:

o GWIT (Glow-Wire Ignition Temperature): The lowest temperature at which the sample ignites and burns for >30 seconds. FRP-950X-formulated PO tubing achieves GWIT >850°C (vs. 775°C for ATH-formulated PO).

o GWFI (Glow-Wire Flammability Index): The highest temperature at which the sample does not ignite or burn for >10 seconds. FRP-950X-formulated tubing meets GWFI 960°C.

• Application Link: EV battery standards (e.g., ISO 6469-3) require GWIT >800°C—FRP-950X ensures compliance with room to spare.

4. Emerging Standards for HFFR

• China GB/T 2408-2021: Limits halogen content to <0.1% (Cl) and <0.09% (Br) for “halogen-free” certification.

• EU EN 60695-11-10: Requires smoke toxicity testing (NOx, SOx, HCl) for tubing used in public transport (trains, buses).

The Engineering Selection Framework: From Spec to Solution

Selecting FR heat shrink tubing requires aligning material properties with your application’s unique stressors. Below is a step-by-step framework to avoid over-specifying (costly) or under-specifying (risky):

1. Define Operating Temperature Bounds

• Continuous Use: Match the polymer' s Tg (glass transition temperature) to your environment. For example:

o NEV battery compartments (60–80°C): Standard PO (T g ~-20°C) with FRP-950X.

o Under-hood EV applications (120–150°C): Cross-linked PO (T g ~-30°C) or FKM with FRP-950X.

• Peak Temperature: Account for transient events (e.g., battery charging spikes, short circuits). FRP-950X' s char layer remains stable up to 600°C—buying critical time for safety systems to activate.

2. Map Environmental Exposure

• Chemicals/Oils: For fuel contact (e.g., automotive fuel lines), FKM + FRP-950X is ideal (ASTM D471 oil swell <8%). For mild chemicals (e.g., coolants), PO + FRP-950X works.

• Moisture/Humidity: FRP-950X’s encapsulation resists hydrolysis—tubing maintains dielectric strength (>20 kV/mm) after 1000h in 85°C/85% RH (vs. ATH-formulated tubing, which drops to <15 kV/mm).

• UV Exposure: For outdoor applications (e.g., solar panel wiring), add a UV stabilizer (e.g., hindered amine light stabilizers, HALS) to PO + FRP-950X—maintains flexibility (elongation >150%) after 2000h UV exposure (ISO 4892-3).

3. Prioritize Mechanical & Electrical Performance

• Abrasion Resistance: For wiring in high-vibration environments (e.g., rail), use cross-linked PO + FRP-950X.

• Dielectric Strength: For high-voltage applications (e.g., EV 400V harnesses), FRP-950X-formulated PO delivers >22 kV/mm—exceeding the 18 kV/mm requirement for UL 224.

4. Align with Global Compliance

• North America: Focus on UL 224 and VW-1—FRP-950X ensures compliance with minimal loading.

• EU: Prioritize REACH (no SVHCs) and EN 60695 (GWIT >800°C)—FRP-950X is fully compliant.

• China: Meet GB/T 2408-2021 (halogen-free) and GB 30288-2013 (smoke toxicity)—FRP-950X exceeds both.

Conclusion: Partner for Technical Excellence

Choosing FR heat shrink tubing is a safety-critical decision that demands more than a catalog lookup—it requires a deep understanding of material science, FR mechanisms, and application-specific risks. YINSU doesn' t just supply FR additives, we act as your technical partner:

• Custom Formulation: Tailor FRP-950X' s encapsulation or loading to your polymer (PO, FKM) and performance goals.

• Testing Support: Assist with UL/VW-1/IEC certification testing (we provide pre-tested samples to accelerate your validation).

• Supply Chain Stability: With a 10,000-ton annual capacity for FRP-950X, we ensure consistent delivery—critical for high-volume NEV or data center projects.

Ready to elevate your FR heat shrink tubing' s performance? Contact our technical team today to discuss your application, request a custom sample, or access our full library of test data.
