Does MCA “Turn on You” When Temperatures Rise? Yellowing, Mold Deposits, And Failure—Three Ways To Work Around It

Does MCA “Turn on You” When Temperatures Rise? Yellowing, Mold Deposits, and Failure—Three Ways to Work Around It

A friend who works with glass-fiber-reinforced PA66 recently complained to us: their products have always used MCA for flame retardancy, and the formulation had been running stably for several years. Recently, they upgraded their equipment, and the extruder’s temperature control became more precise. Logically, this should have made the process even more stable, but instead, problems arose—the finished products turned yellow, a layer of hard scale built up on the mold requiring a shutdown every two hours for cleaning, and worst of all, the flame retardancy rating dropped from V0 to V2.

He couldn’t figure it out: “The temperature didn’t go over the limit. It’s set to 280°C, and isn’t MCA’s decomposition temperature 350°C?”

This is actually a very common misconception. While MCA’s thermal decomposition temperature measured via TGA is indeed around 350°C, that figure is based on ideal conditions—a nitrogen atmosphere, linear heating, and no shear stress. In a real extruder, localized overheating zones can exceed the set temperature by 20–30°C. Shear heat, residence time, moisture, acidic substances… every single factor can cause MCA to “break down” prematurely.

Today, let’s skip the theory and talk about how to achieve big results on a small budget by getting around MCA’s “thermal weakness.”

I. MCA is heat-sensitive—what kind of trouble does that actually cause?

First, let’s take a look at the specific ways MCA “turns on you” at high temperatures, and see if you’ve ever fallen victim to them:

Yellowing. When MCA decomposes, it produces compounds like melamine and melamine-formaldehyde, causing the color to change from white to yellow and then to brown. If you’re making light-colored or white parts, that batch is basically a write-off.

Mold fouling. The decomposition by-products condense on the mold surface, forming a hard deposit—sometimes white, sometimes yellow. At best, this affects the appearance; at worst, it clogs the vent channels. Some customers have reported that when using standard MCA to make PBT, they have to disassemble the mold for cleaning every two hours—a nightmare for night shift workers.

Failure of flame retardancy. Since the MCA decomposes prematurely, less of it remains in the material to be effective. Even though the correct amount was added, the flame retardancy rating drops—sometimes directly from V0 to V2.

Odor/smoke. Decomposition also releases an ammonia-like odor, making the workshop smell pungent. Not only do workers complain, but some high-end applications (such as automotive interiors) have strict odor limits that cannot be met.

Deterioration of electrical properties. Decomposition byproducts remain on the surface, causing a drop in CTI (Cold Tracing Index) and poorer insulation performance. For connectors and relays, this is a critical issue.

These problems don’t occur in every batch, but when they do, they’re a major headache—and they’re often only discovered after a batch has already been produced.

II. Why does MCA still “break down” even when the processing temperature is within limits?

Many people can’t figure it out: the set temperature is 280°C, the decomposition temperature is 350°C—there’s a 70°C difference, so how could it decompose?

There are three factors here that are easily overlooked:

First, localized overheating. At locations such as the extruder screw’s shear zone, the mixing head, and the die exit, the actual temperature may be 20–30°C higher than the set value. You’re measuring the average melt temperature, but the MCA in those specific areas has already been under severe stress.

Second, residence time. Some equipment has dead zones or a high length-to-diameter ratio, causing the material to linger inside for extended periods. The amount of decomposition in MCA is vastly different whether it remains at high temperatures for one minute versus ten minutes. In TGA testing, the heating rate is 10°C/min, so the process is over in a few seconds—but actual production isn’t that fast.

Third, moisture and acidic environments. MCA’s thermal stability drops significantly when it absorbs moisture—it might start decomposing at 300°C after absorbing moisture, compared to 350°C under normal conditions. If the formulation also includes acidic flame retardants or certain fillers, these act as catalysts, further lowering the decomposition temperature.

So, it’s not that the MCA data is misleading; it’s that actual operating conditions are far more “harsh” than lab conditions.

III. How to get around this? Three low-cost, high-return approaches

Now that we know where the problem lies, the solution is clear. You don’t necessarily have to replace the MCA; with a small investment in product modification or process adjustments, you can avoid this pitfall.

Approach 1: Give MCA a “heat-resistant coat” — surface coating modification

This approach is the most straightforward: coat the surface of MCA pellets with a high-temperature-resistant material, such as silane, fatty acids, or resin. This “coat” slows heat transfer into the pellet interior, delaying decomposition.

How effective is it? Test data shows that the thermal decomposition temperature of modified MCA can be raised by 20–30°C, allowing it to withstand 320–330°C for short periods without issue. Moreover, the coating improves dispersion and reduces agglomeration—killing two birds with one stone.

How much does this increase costs? Just a few cents per kilogram. In return, the processing window is significantly expanded, eliminating concerns about localized overheating and failure. Yinsu’s MCA-B follows this approach; many customers in the automotive connector industry have reported that after switching to this material, mold residue has been significantly reduced and yellowing has virtually disappeared.

Approach 2: Bring in a heat-resistant ally—phosphorus-nitrogen synergistic blending

If you don’t want to replace MCA, you can add a small amount of phosphorus-based flame retardants to the formulation. Phosphorus-based flame retardants (such as ADP and organophosphorus compounds) have higher thermal decomposition temperatures (>350°C) and inherently better heat resistance.

Even better, MCA and phosphorus-based compounds exhibit a synergistic effect—MCA drips to dissipate heat, while the phosphorus-based compound carbonizes to provide thermal insulation. When combined, the total additive load may remain unchanged or even decrease, yet the overall thermal stability of the system improves significantly.

Recommended ratio: MCA : Phosphorus-based = 3:1 to 5:1. The exact amount depends on the material and the required flame retardancy rating, but the approach is sound: use a small amount of a synergist with higher heat resistance to boost the system’s overall thermal stability.

Approach 3: Keep the same additives, but change the application method—optimize the processing window

This is a zero-cost solution, but many people are unaware of it or do not pay attention to it:

Reduce screw speed to minimize shear heat. Sometimes, lowering the speed by just 10% can significantly reduce temperature fluctuations.

Use multi-stage vacuum extraction to promptly remove small molecules generated by decomposition, reducing the accumulation of mold deposits.

Control residence time by optimizing feed rate and screw design to ensure rapid material flow.

Enhance drying to keep moisture content below 0.1%. MCA’s thermal stability drops significantly when it absorbs moisture—this is the most commonly overlooked factor.

Select high-flow nylon to reduce friction-induced heat.

Here’s a handy tip: Adding 0.1–0.2% calcium stearate or hydrotalcite to the material can neutralize acidity and slow down MCA decomposition. The cost is low, and the effect is noticeable.

IV. Real-world comparison: How significant is the difference between modified and unmodified materials?

We conducted a comparative test using the same production line:

Standard MCA, PA66 matrix, processing temperature 290°C, continuous extrusion. After 1 hour, the product began to yellow slightly, and a thin layer of mold residue appeared on the mold. After 3 hours, yellowing was pronounced, requiring a shutdown to clean the mold. After 5 hours, the flame retardancy rating dropped from V0 to V2.

Yinsu MCA-B (surface-coated modification): Under the same conditions, after 8 hours of continuous production, the product color remained normal, with only a minimal amount of mold residue on the mold, and the flame retardancy remained stable at V0 throughout. With the same loading level, the cost per kilogram increased by only a few cents, but frequent shutdowns for mold cleaning were eliminated, and the yield rate improved.

Another customer manufactures PBT connectors. Previously, they used imported MCA, which required stopping production every two hours to clean the mold. After switching to MCA-B, mold cleaning was needed only once per shift (8 hours), significantly boosting production efficiency. The customer calculated that although the unit price of MCA-B is slightly higher, the savings in downtime and labor costs far outweigh the price difference.

V. Corresponding Flame-Retardant Products and Recommendations

To address the issue of insufficient heat resistance in MCA, we offer two flagship products:

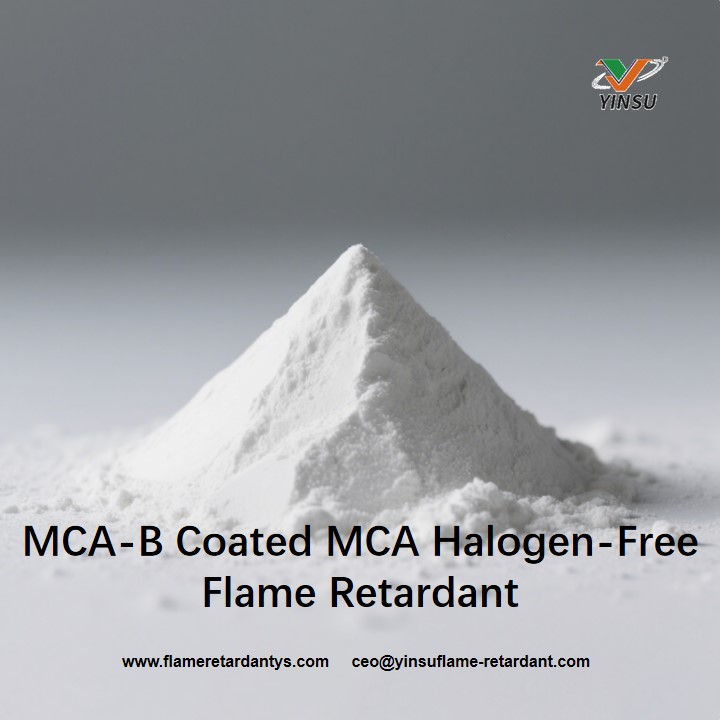

MCA-B: A surface-coated type that enhances thermal stability and significantly reduces yellowing and mold fouling. Suitable for standard nylon and PBT processing; no adjustment to the original additive ratio is needed—it can be used directly.

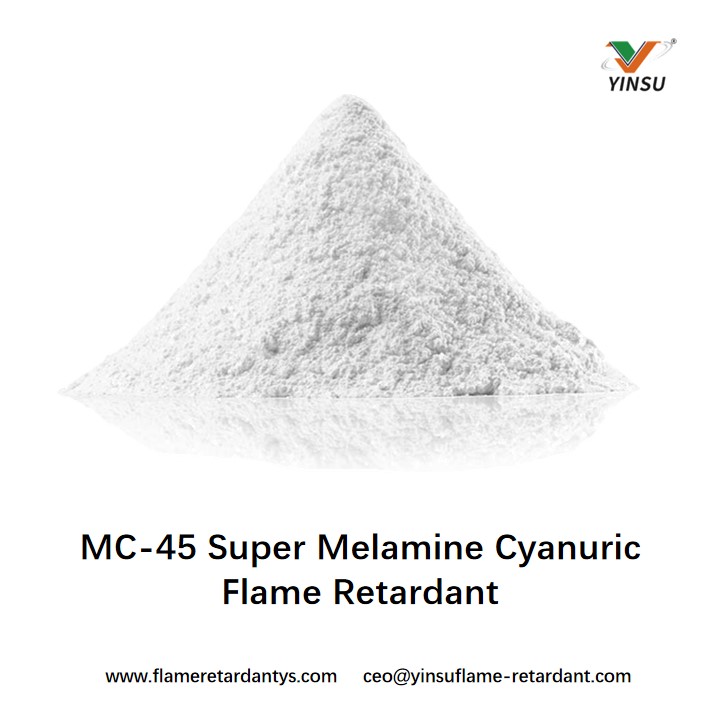

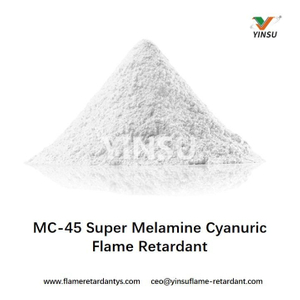

MC-45: An ultra-fine modified MCA with a low loading rate (4–5% achieves 1.6 mm V0), excellent dispersion, and good heat resistance. Suitable for thin-walled parts and complex molds with long runners.

Additionally, if you are working with glass-fiber-reinforced materials or in high-temperature, long-duration processing scenarios, we recommend a blend of MCA and ADP—reducing the MCA ratio results in higher overall thermal stability for the system and actually provides more consistent flame retardancy.

VI. Finally, here are three practical tips:

Test the processing window first: Don’t switch materials right away. Try reducing screw speed, increasing drying time, or adding a small amount of acid scavenger—this may resolve the issue.

Measure actual temperatures: Don’t just rely on set temperatures; use a temperature probe to measure the actual temperature in the screw shear zone—you’ll often be pleasantly surprised.

Conduct small-batch validation: Before switching to modified MCA or a new blend, produce a few hundred kilograms of test material over a single shift to assess improvements in mold fouling, yellowing, and flame retardant stability.

MCA’s heat sensitivity isn’t a fatal flaw—it can be overcome. The key is not to be misled by the numbers in the Technical Data Sheet (TDS); instead, focus on actual operating conditions. Spending a small amount to modify the product or adjusting the process for free can save you a lot of “mold-scraping headaches.”
