MCA Flame-Retardant Nylon: Why Does It Sometimes “Fail”?

MCA Flame-Retardant Nylon: Why Does It Sometimes “Fail”?

Last year, a client who manufactures automotive connectors sent us a message in the middle of the night: “We’re using the exact same formulation. The previous batch was consistently V0, so why did this batch drop straight to V2? We didn’t change the resin, the injection molding process remained the same, and even the drying time was identical.” After investigating for two days, he finally pinpointed MCA as the culprit.

This is actually not an isolated case. As a long-standing solution for nylon flame retardancy, MCA is inexpensive, halogen-free, and offers decent flame-retardant performance. However, many engineers have encountered similar “mysterious moments”: despite a consistent addition rate, the flame-retardant performance fluctuates wildly. It might be V0 today, V2 tomorrow, and back to normal the day after.

Where exactly does the problem lie?

I. The “Dual Nature” of MCA: A Flame-Retardant Powerhouse That Naturally Clumps

The flame-retardant mechanism of MCA is straightforward—it dissipates heat through melting and dripping while diluting oxygen. For a material like nylon, which has inherent charring potential, MCA is indeed a highly cost-effective choice.

However, the molecular structure of MCA contains a large number of amino and cyanoacrylate groups, which are particularly prone to forming hydrogen bonds. Simply put, MCA particles act as if they have a magnetic force, naturally clumping together and piling up. This is the root cause of its “difficult temperament.”

What happens when they clump together? The particles form agglomerates ranging from a few micrometers to tens or even hundreds of micrometers in size. Within the nylon matrix, these large agglomerates cannot disperse uniformly—resulting in areas where MCA is over-concentrated and others where it is almost absent. In areas of over-concentration, the flame retardant is wasted; in areas of under-concentration, flame retardancy is insufficient, leading to inconsistent overall performance.

What’s even more troublesome is that during injection molding, these agglomerates become stress concentration points, causing impact strength to drop and making the product surface prone to pitting and poor gloss. Many customers complain that “nylon becomes brittle after adding MCA,” but in reality, it’s not entirely MCA’s fault—it’s the agglomeration causing the trouble.

II. Why are there such significant differences between batches of the same formulation?

Some ask: “Why did the last batch of MCA work well, but this one failed?”

Because the manufacturing process of standard MCA inherently results in fluctuations in particle size and agglomeration levels. Differences in initial particle size distribution, moisture content, and even storage duration between batches all affect how well it disperses in nylon. If your mixing process (mixing time, feeding sequence, and additive combinations) happens to “hit a snag,” the agglomerates won’t break down, and the remaining large particles end up directly in the final product.

The result: the same formulation passes flame retardancy testing one day but fails the next. This unpredictability is the biggest headache for engineers—it’s not your fault, but you’re the one who takes the blame.

III. How to “tame” MCA? Three approaches have been proven effective

Instead of gambling on batch consistency, it’s better to improve MCA’s dispersibility at the source. Over the past few years, the industry has identified three main approaches:

① Surface Modification—Giving MCA a “Anti-Agglomeration Coat”

Coating the surface of MCA particles with coupling agents or fatty acids disrupts the hydrogen bonds between particles. After modification, MCA particles no longer clump together and can disperse uniformly within the nylon matrix. Once dispersion is stabilized, flame retardant stability naturally improves.

② Ultrafine/Nanoparticle Processing—Making Particles Invisible

Standard MCA particle sizes typically range from 20–30 μm or even larger, and agglomeration makes them even bulkier. By reducing MCA to below 5 μm—or even the submicron range—the specific surface area of the particles increases significantly, making them easier to disperse in the nylon melt. At the same time, ultrafine particles have a much smaller impact on impact strength. Some customers have reported that switching to ultrafine MCA improved impact strength by 20–30% at the same loading level.

③ Phosphorus-Nitrogen Synergistic Blending — Bringing in a Partner to Work Together

MCA is a nitrogen-based flame retardant that works by inhibiting droplet formation, while phosphorus-based compounds (such as ADP) work by forming a char layer. When combined, the MCA loading can be reduced while flame retardancy efficiency actually increases. Furthermore, the phosphorus-based compound further suppresses melt droplets, resulting in a denser char layer. This phosphorus-nitrogen synergistic system is particularly effective in glass-fiber-reinforced nylon—MCA alone simply cannot overcome the “wicking effect” of glass fibers.

IV. Practical Application of Modified MCA: Reducing the Dosage by Two-Thirds Yields Greater Stability

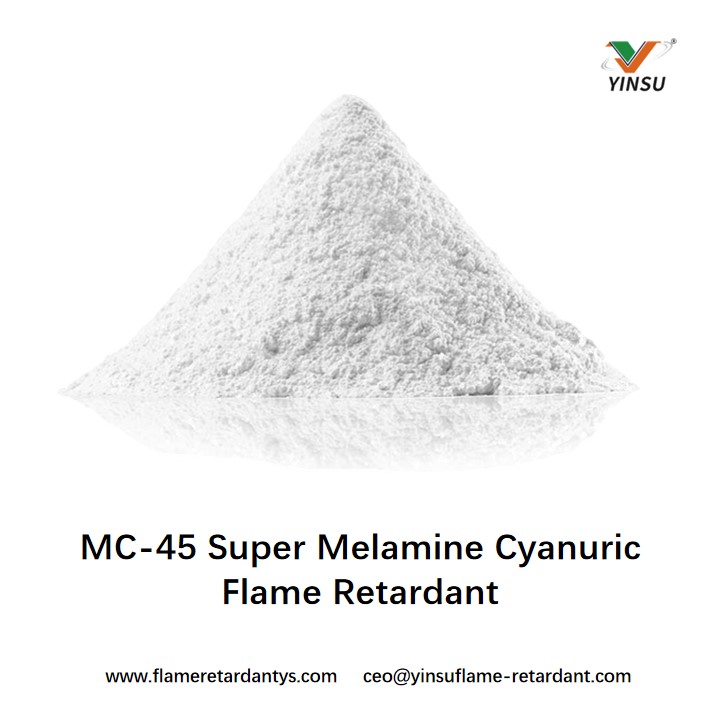

We conducted a comparison using Yinsu Flame Retardant’s new product (MC-45): Standard MCA requires a dosage of over 12% in PA6 to pass the V0 test for 1.6mm samples, and there is significant batch-to-batch variation. With the modified MCA (MC-45), only 4–5% is required, and 1.6mm thin-walled test specimens passed the V0 test 100% of the time across five consecutive batches. Not only is the flame retardancy more consistent, but the product surface is smoother, and the retention rate of impact strength is significantly higher than that of standard MCA.

A client in the electronic components industry used to rely on imported MCA at a 10% loading level, but when manufacturing thin-walled connectors, they consistently encountered issues with localized flame retardancy failing to meet standards. After switching to modified MCA, the loading level was reduced to 6%, yet the flame retardancy became more consistent. He joked, “It’s not that a lower loading level is ineffective; it’s that a lot of the material we were using before was actually wasted due to agglomeration.”

V. Yinsu Flame Retardant’s Solution: Making MCA Truly “Obedient”

As a long-established manufacturer specializing in halogen-free flame retardant, Yinsu Flame Retardant has accumulated extensive experience in MCA modification. To address the pain points of poor dispersion and batch-to-batch inconsistency, we have launched our modified MCA series—utilizing surface coating and particle size control technologies to ensure MCA spreads evenly throughout the nylon matrix, eliminating agglomeration.

Flagship products such as MC-45 (low-dosage, high-flame-retardancy type; achieves V0 at 1.6mm with just 4–5% addition) and MCA-B (improved dispersibility, suitable for smooth cable finishes) are already in mass production across sectors including connectors, automotive thin-walled parts, and low-smoke, halogen-free cables. We don’t just sell raw materials; we help you optimize your formulations for greater stability and cost efficiency—so night shift workers no longer have to worry about “V0 turning into V2.”

When choosing MCA, don’t just look at price and purity. Ask one more question: “How is the dispersion and batch consistency?” This factor often has a greater impact on your yield and reputation than the flame retardant rating itself.
