Flame-Retardant Thermal Materials in Electronic Packaging: Uses & Future Trajectory

Flame-Retardant Thermal Materials in Electronic Packaging: Uses & Future Trajectory

In the context of increasingly sophisticated and high-performance modern electronic devices, the selection of packaging materials has become particularly critical. Flame-retardant thermally conductive packaging materials, as a type of special functional material, can simultaneously meet the dual requirements of thermal management and safety performance for electronic devices.
Such materials not only need to effectively conduct the heat generated by electronic components to prevent performance degradation caused by overheating but must also possess flame-retardant properties to reduce fire risks.
This article will systematically introduce the basic characteristics, working principles, main types, and application scenarios of flame-retardant thermally conductive packaging materials across various fields, helping readers gain a comprehensive understanding of the technical features and development trends of this critical material.

I. Basic Concepts of Flame-Retardant Thermally Conductive Packaging Materials
Flame-retardant thermally conductive packaging materials are a type of special functional material that combines thermal conductivity and flame-retardant properties, primarily used for the encapsulation and protection of electronic components and devices.
These materials must meet two seemingly contradictory yet equally important performance requirements: on one hand, they must be able to quickly conduct heat, and on the other hand, they must be able to prevent or delay the spread of flames.
From a materials science perspective, the realization of flame-retardant thermal conductivity depends on the microscopic structural design of the material. Thermal conductivity is typically determined by the efficiency of phonons (in non-metallic materials) or free electrons (in metallic materials) transport within the material, while flame-retardant properties are closely related to the material's thermal stability, decomposition temperature, and the gaseous and condensed phase products generated during combustion. Excellent flame-retardant thermal conductive packaging materials require meticulous design at both the molecular structural and macroscopic morphological levels to balance these two properties.
Under extreme conditions, such as short circuits or overloads, the material's surface temperature may rise sharply, making flame-retardant properties particularly important to prevent fire accidents.

II. Mechanism of Action of Flame-Retardant and Thermal Conductive Properties
The performance of flame-retardant thermal conductive packaging materials is achieved through complex physical and chemical mechanisms.

1. Thermal Conductive Properties
In terms of thermal conductivity, materials primarily achieve heat transfer through two pathways:

• Through lattice vibration (phonon) conduction: This is dominant in ceramic and polymer-based composite materials.

• Through free electron conduction: This is more pronounced in metal-based composite materials. The material's thermal conductivity is closely related to the integrity of its internal microstructure. Any structural defects or interfaces can act as phonon scattering centers, reducing thermal conductivity efficiency.

2. Flame Retardant Performance
The realization of flame retardancy is more complex and typically involves the following mechanisms:

• Gas-phase flame retardancy mechanism: This involves the release of substances during material decomposition that can dilute flammable gases or capture free radicals.

• Condensed-phase flame retardancy mechanism: This refers to the formation of a char layer on the material surface to isolate heat and oxygen.

• Cooling mechanism: This involves lowering the surface temperature of the material through endothermic decomposition, and covering mechanism, which forms a molten covering layer to prevent the volatilization of flammable substances.
  In practical applications, a single flame retardant or thermal conductivity mechanism often fails to meet requirements. Therefore, modern flame-retardant thermal conductive packaging materials typically adopt a design approach that combines multiple mechanisms.
  For example, while adding thermal conductive fillers (such as boron nitride, aluminum oxide) to the polymer matrix to enhance thermal conductivity, multiple flame retardants (such as phosphorus-based, nitrogen-based, or inorganic types) are also added to form a synergistic flame retardant system, enabling the material to achieve higher flame retardant ratings while maintaining excellent thermal conductivity.

III. Main Types and Characteristics
Flame-retardant and thermally conductive packaging materials can be categorized into several major types based on the differences in their matrix materials, each with unique performance characteristics and application scenarios.

1. Polymer-based Flame-Retardant and Thermally Conductive Materials
Polymer-based flame-retardant and thermally conductive materials are the most widely used category, primarily including epoxy resins, silicone rubbers, and polyurethanes as matrix materials.
These materials typically enhance thermal conductivity by adding thermal conductive fillers such as boron nitride or aluminum oxide, while incorporating phosphorus-based, nitrogen-based, or inorganic flame retardants to achieve flame-retardant properties. The advantages of polymer-based materials include good processability, lower cost, and excellent insulation properties; however, their thermal conductivity is relatively limited, generally not exceeding 5 W/(m·K).

2. Ceramic-based Flame-Retardant Thermally Conductive Materials
Ceramic-based flame-retardant thermally conductive materials use ceramics such as aluminum oxide, aluminum nitride, and silicon carbide as the matrix, offering excellent thermal stability and inherently non-combustible properties, with thermal conductivity ranging from 30 to 200 W/(m·K).
The drawbacks of these materials include high brittleness, processing difficulties, and higher costs, making them primarily suited for electronic packaging in demanding environments such as high temperatures and high frequencies.

3. Metal-based Composite Materials
Metal-based composite materials combine the high thermal conductivity of metals with the flame-retardant properties of added phases, with common examples including aluminum-based and copper-based composites.
These materials have high thermal conductivity and good mechanical properties but poor insulation performance, typically requiring special structural designs to ensure electrical safety.

In recent years, new flame-retardant thermal conductive materials have been developed, such as graphene-reinforced composites and carbon nanotube composites. These materials demonstrate excellent comprehensive performance under laboratory conditions, but large-scale application still faces challenges related to cost and technological maturity.

IV. Key Performance Parameters and Testing Methods

1. Key Performance Parameters
Evaluating the performance of flame-retardant thermal conductive packaging materials requires consideration of multiple key parameters, which directly impact the material's actual application effectiveness.
Thermal conductivity is one of the most critical parameters, indicating the material's ability to conduct heat, with units of W/(m·K). Measurement methods primarily include steady-state methods (such as the hot plate method) and transient methods (such as the hot wire method). For anisotropic materials, thermal conductivity must be measured separately in different directions.
Flame-retardant performance is typically evaluated using vertical burning tests (UL94 standard) and limiting oxygen index (LOI) methods. In UL94 testing, a V-0 rating indicates that the material self-extinguishes within 10 seconds after the flame is removed and does not ignite the cotton below; LOI represents the minimum oxygen concentration required to sustain combustion, with an LOI greater than 28% generally considered flame-retardant.
Other important parameters include: dielectric constant and dielectric loss (affecting high-frequency performance), thermal expansion coefficient (must match the packaging components), mechanical strength, long-term thermal stability, etc. In practical applications, processing performance, environmental friendliness, and cost factors must also be considered.

2. Testing Methods
Performance testing should be conducted under conditions simulating actual usage environments, including different temperatures, humidity levels, and long-term aging tests, to comprehensively evaluate the material's reliability. Interpretation of test data should also be tailored to specific application scenarios, as different applications may prioritize different performance characteristics.

V. Typical Application Areas

1. Consumer Electronics
In consumer electronics such as smartphones and tablets, as devices become thinner and more high-performance, heat dissipation issues have become increasingly prominent.
Flame-retardant thermally conductive materials are used in chip packaging, battery protection, and other applications, effectively dissipating heat while preventing fire risks caused by short circuits or other faults. Especially in wearable devices, which come into direct contact with the human body, stricter requirements are placed on material safety and heat dissipation performance.

2. New Energy Vehicles
The new energy vehicle sector is another key application area for flame-retardant thermally conductive materials. Critical components like battery packs and motor controllers generate significant heat during operation and pose high-voltage safety risks.
High-performance flame-retardant thermally conductive materials are used for insulation and heat dissipation between battery modules, significantly enhancing overall vehicle safety. Some high-end electric vehicles employ ceramic-based composite materials in their battery packs, combining high thermal conductivity with inherently non-combustible properties.

3. Aerospace Electronic Equipment
Aerospace electronic equipment faces extreme temperature fluctuations and stringent safety requirements, making flame-retardant thermally conductive packaging materials indispensable in this field.
Critical electronic components such as satellite communication equipment and flight control systems are typically encapsulated using specialty composite materials to ensure reliable operation in harsh environments.
Such applications also impose strict weight requirements on materials, driving the development of lightweight composite materials.

4. 5G Infrastructure (Base Stations & Servers)
ICT infrastructure such as 5G communication base stations and servers also rely on flame-retardant thermally conductive materials. High-frequency signal processing generates significant heat, and since the equipment often operates unattended, fire safety is critical.
Components such as base station power amplifiers use high-thermal-conductivity metal-based composite materials, which ensure heat dissipation while meeting the UL94 V-0 flame-retardant standard.

VI. Technical Challenges and Development Trends
Despite significant progress in flame-retardant thermally conductive packaging materials, several technical challenges remain to be overcome.

1. Technical Challenges

• Balancing thermal conductivity and flame-retardant performance: Many high-thermal-conductivity fillers, such as metal powders, can impair flame-retardant performance, while the addition of traditional flame retardants often reduces the material's thermal conductivity. Researchers are developing surface-functionalized modified thermal conductive fillers and efficient synergistic flame-retardant systems to address this contradiction.

• Interface thermal resistance issues: The interface between fillers and the matrix significantly reduces overall thermal conductivity. Optimizing interface bonding and reducing phonon scattering are key to material design. New methods such as molecular-level interface engineering and in-situ generation technology are being explored.

• Environmental friendliness: Some highly efficient flame retardants, such as halogenated compounds, are restricted due to environmental concerns, making the development of halogen-free flame retardant systems a growing trend. The combination of bio-based polymers and natural mineral fillers is also gaining attention, as it can reduce the environmental footprint throughout their lifecycle.

2. Future Development Trends

• Multifunctional integrated design: Enabling materials to have additional functions such as electromagnetic shielding and sensing in addition to flame retardancy and thermal conductivity.

• Smart responsive materials: Materials that can automatically regulate heat flow or activate flame retardant mechanisms in response to temperature changes.

• Nanocomposite technology: Constructing efficient thermal conductivity networks by precisely controlling the distribution of nanofillers.

• AI-based material design methods: Accelerating the development and optimization of new materials.

VII. Selection and Application Recommendations

1. Selection Recommendations

For cost-sensitive applications such as consumer electronics, epoxy resin or silicone rubber-based composite materials can be considered to balance performance and cost. When selecting materials, ensure their thermal conductivity meets heat dissipation requirements and that they have passed relevant safety certifications such as UL certification.

For high-power electronic devices like electric vehicle charging modules, ceramic-based or metal-based composite materials with higher thermal conductivity are recommended, though they are more expensive, to ensure long-term reliability. Additionally, verify the material's performance stability under high-low temperature cycling.

For applications requiring flexibility, such as wearable devices, silicone rubber-based composite materials are a good choice, offering excellent flexibility and fatigue resistance. However, note that certain fillers may separate from the matrix after repeated bending, affecting long-term performance.

2. Installation Process
The installation process is equally important. Some materials require high-temperature curing, which may cause thermal damage to sensitive components; while room-temperature curing materials may have lower mechanical strength. The appropriate process should be selected based on production conditions.

3. Performance Maintenance
In terms of maintenance, attention should be paid to the aging characteristics of the materials. Some polymer-based materials may experience performance degradation after long-term use and require regular inspection. Establishing an appropriate thermal monitoring system can help identify potential issues in a timely manner.

VIII. Conclusion
Flame-retardant thermally conductive packaging materials, as an important safeguard for the safety and performance of electronic devices, will continue to attract attention regarding their technological development and application innovation. As electronic devices evolve toward higher power density and more compact form factors, the requirements for packaging materials will also continue to increase.
Future advancements in materials science, nanotechnology, and computational design are expected to yield new types of flame-retardant thermally conductive materials with superior performance, environmental friendliness, and intelligence, providing a solid foundation for the development of the electronics industry.

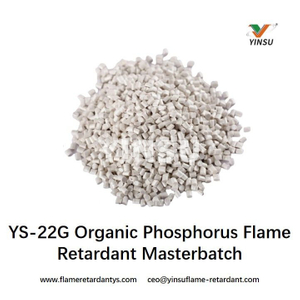

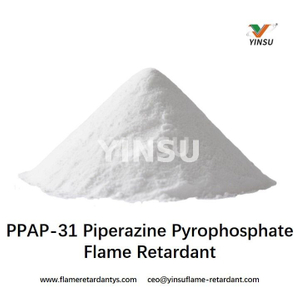

Complementing these advancements, companies like Guangzhou Yinsu are actively developing specialized flame retardants to meet evolving industry demands. Key products such as microencapsulated red phosphorus flame retardant FRP-950X, PP flame retardant powder PPAP-31, halogen-free phosphorous based flame retardant WADP-10, and YS-F22B provide practical solutions for enhancing fire safety in electronic encapsulation materials. These innovative additives demonstrate promising application potential in creating next-generation polymer composites that effectively balance flame retardancy with essential thermal management properties.
