From "General Purpose" To "Specialized": How Modified Coating Helps Flame Retardants Tackle Those "Difficult" Applications

From "General Purpose" to "Specialized":

How Modified Coating Helps Flame Retardants Tackle Those "Difficult" Applications

Why Do Flame Retardants Need Coating?

The core function of a flame retardant is to act when the material burns. But before that, it must go through a series of high‑temperature, high‑shear processes such as mixing, extrusion and injection molding. During these steps, the "personality mismatch" between the flame retardant and the polymer matrix often becomes apparent. It may absorb moisture and agglomerate, decompose thermally, migrate to the surface, or leave pockmarks on the finished part. These problems do not mean the flame retardant itself is "inadequate". Rather, the "interface" between the flame retardant and the substrate or the process has not been optimized.

The essence of coating technology is to put a functional shell on the surface of the flame retardant particles. This shell not only protects the flame retardant from external interference, but also adjusts its compatibility, dispersibility and thermal stability with the substrate. In other words, coating does not change the "core" of the flame retardant; it optimizes its "outer clothing" so that it can better fit different application scenarios. From "general purpose" to "specialized", coating is the essential path.

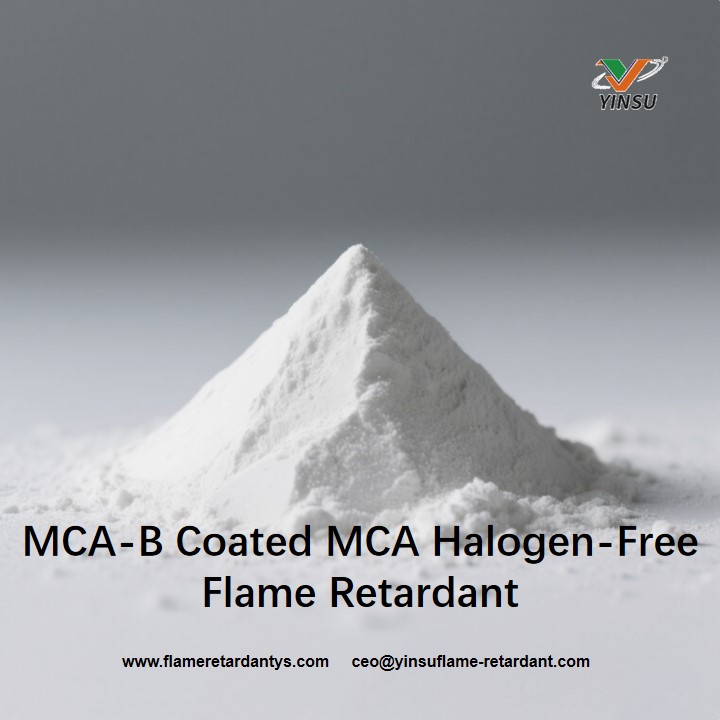

MCA: From a "Severe Agglomerator" to a Well‑Dispersed Player in Cables

Melamine cyanurate (MCA) is a veteran in flame retarding nylon. Its flame retardant efficiency is decent, but it has a troublesome drawback: agglomeration. The particles tend to stick together, resulting in poor dispersibility. When used in low-smoke halogen-free cable compounds, it easily forms speckles, gives a rough surface, and impairs mechanical properties.

Modified MCA is different. By adjusting the surface polarity and refining the particle size, it can spread evenly in the matrix instead of "clumping". As a result, modified MCA can be used not only alone but also in combination with phosphorus‑nitrogen flame retardants for low‑smoke halogen‑free cable sheathing. It maintains flame retardant efficiency while improving surface smoothness and extrusion stability. Originally only suitable for nylon parts, modified MCA has carved out a new niche in the cable industry.

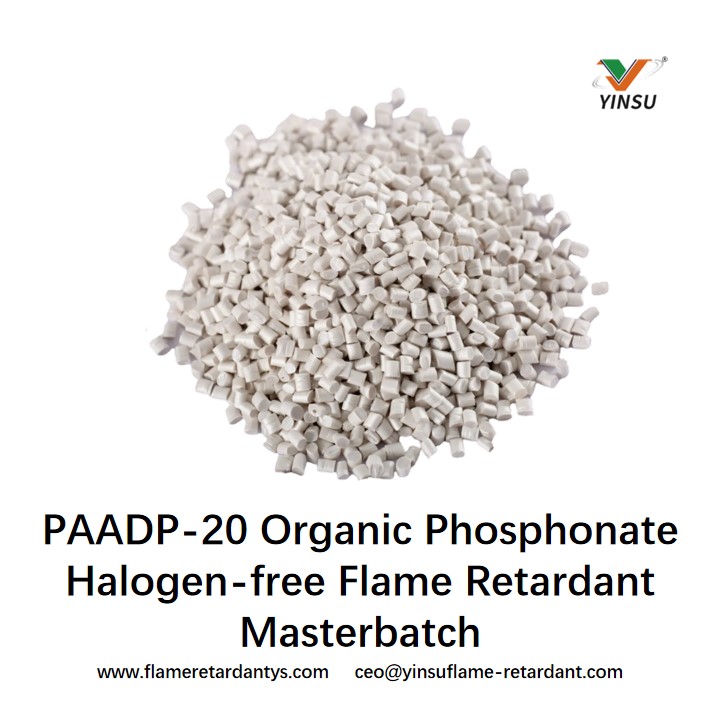

ADP: From "Heat‑Sensitive and Yellowing‑Prone" to a Stable Performer in High‑Temperature Nylon

Aluminium diethylphosphinate (ADP) has become a star in halogen‑free flame retardancy in recent years, especially for engineering plastics such as nylon and PBT. However, users know that ADP has a shortcoming: insufficient heat resistance, easy decomposition, and a tendency to yellow during high‑temperature processing. For light‑coloured parts, yellowing is almost unacceptable.

The approach to modifying ADP is not to replace the phosphorus‑aluminium structure, but to work on coating and compounding. Through special surface treatment and particle size optimisation, the thermal decomposition temperature of modified ADP is significantly increased. It becomes more stable during high‑temperature processing, less prone to decomposition and colour change. When used in high‑temperature nylon, it not only easily passes V0, but also maintains stable colour after long‑term service, without getting progressively yellower. This turns ADP from "usable" into "pleasant to use". Even products with light colours, high temperature requirements and high appearance demands that were previously avoided can now be handled by modified ADP.

Red Phosphorus Flame Retardant: From "Rough, Only for Internal Parts" to a Good‑Looking Choice for High‑Gloss Components

The pain points of red phosphorus flame retardant are well known in the industry: coarse particle size, rough surface and pockmarks on the finished parts, relegating it to internal components only. Yet its flame retardant efficiency is so high that it is hard to give up.

Modified coating technology has given red phosphorus a second life. Through high‑content coating and ultra‑fine grinding, the particle size of coated red phosphorus can reach the 2500‑mesh level, far below the threshold visible to the human eye. At the same time, the coating is dense, compatible with the matrix, and disperses uniformly. Consequently, red phosphorus, which could only be used in black, rough parts, can now be applied to appliance housings, automotive interiors and high‑gloss electronic brackets. The surface is smooth and free of pockmarks, the flame retardancy rating is V0, and the addition level is low. Red phosphorus has transformed from a "rough fellow" into a "good‑looking player".

From "General Purpose" to "Specialized": Modification Is the Only Way

These three examples are only the tip of the iceberg of modified coating technology. In fact, almost every flame retardant has its inherent shortcomings: moisture absorption, migration, yellowing, poor dispersion, narrow processing window, and so on. General‑purpose products can only cover the most conventional applications. The "difficult" scenarios – thin‑wall designs, light-colored parts, high CTI, recycled material systems, high‑temperature processing – all require modified coating to break through.

Modification is not showing off technology; it is prescribing the right remedy for the symptom. If the customer says "severe migration", you optimize the coating layer to improve compatibility. If the customer says "pockmarks on the surface", you control the particle size and achieve ultra‑fine dispersion. If the customer says "cannot withstand the high processing temperature", you enhance the thermal stability. Every change is made to solve a specific, real pain point.

On the road of modified coating, Yinsu Flame Retardant Company has walked for 22 years. We do not make "jack‑of‑all‑trades" general‑purpose products. Instead, we focus on high‑performance, customized coated flame retardants. From red phosphorus to ADP, from MCA to phosphorus‑nitrogen systems, we design specifically for the "personality" of each material, helping customers reduce costs, improve efficiency and enhance physical properties. If you are also facing a "difficult" application, feel free to come and talk. Perhaps we already have a ready‑made solution, or we are willing to work with you to develop one.
