Oxygen Index: A Key Indicator of Material Flame Retardancy

In every corner of our lives, fire hazards lurk like hidden beasts, posing a constant threat to life and property. Whether it's the building materials in high-rise structures, the casings of everyday electronic devices, the interiors of vehicles, or children's toys, the flame retardancy of materials is crucial. Today, let's take a closer look at a key indicator of material flame retardancy—the oxygen index.

I. What is Oxygen Index?

The oxygen index (Oxygen Index, or OI) is essentially the minimum concentration of oxygen required for a material to sustain flaming combustion in an oxygen-nitrogen gas mixture under specified test conditions. This is typically expressed as the volume percentage of oxygen. Given that the volume fraction of oxygen in air is about 21%, materials with an oxygen index below 21% tend to burn easily in normal air. In contrast, materials with an oxygen index higher than 21% require an oxygen-enriched environment to sustain combustion.

For example, ordinary polyethylene has an oxygen index of about 17%, which means it can be easily ignited and will continue to burn in air, making it a highly flammable material. However, polyethylene that has been modified for flame retardancy can have an oxygen index of over 30%. This makes it much less likely to burn in air, significantly enhancing its flame retardant properties.

II. The Close Relationship Between Oxygen Index and Flame Retardancy

There is a direct positive correlation between a material's oxygen index and its flame retardancy. The higher the oxygen index, the stronger the flame retardant properties of the material. This is because a high oxygen index means that the material requires a higher concentration of oxygen to sustain combustion. In normal air conditions, it will be more difficult to ignite, less likely to burn continuously once ignited, and less prone to fire spread.

Based on the oxygen index values, materials can be broadly classified as follows:

1. Flammable Materials

Oxygen index less than 21%. These materials burn very easily in air. Once ignited, the fire can spread rapidly. Examples include common paper and some plastics that have not been treated for flame retardancy.

2. Combustible Materials (Slow-Burning Materials)

Oxygen index between 21% and 27%. These materials can burn in air, but at a slower rate compared to flammable materials. Examples include certain natural fiber fabrics.

3. Flame Retardant Materials

Oxygen index greater than 27%. These materials have good flame retardant properties. They can resist flame invasion and help prevent the spread of fire. Examples include engineering plastics and flame retardant rubbers that have been treated with flame retardants.

4. Fire-Resistant Materials

Oxygen index greater than 32%. These materials have excellent flame retardant properties and show strong resistance to combustion in fires. They are often used in applications with extremely high fire safety requirements, such as in the aerospace and nuclear power industries.

III. Oxygen Index Testing Method

How is the oxygen index determined? The commonly used method is to conduct an oxygen index test in accordance with relevant standards. For example, for plastic materials, the test procedure based on the national standard GB/T 2406.2 - 2009 is as follows:

1. Sample Preparation

The plastic is fabricated into standard-sized specimens, typically 120 mm in length, 6.5 ± 0.5 mm in width, and 3.0 ± 0.5 mm in thickness, in a bar shape. A total of 10 standard specimens are prepared for each group.

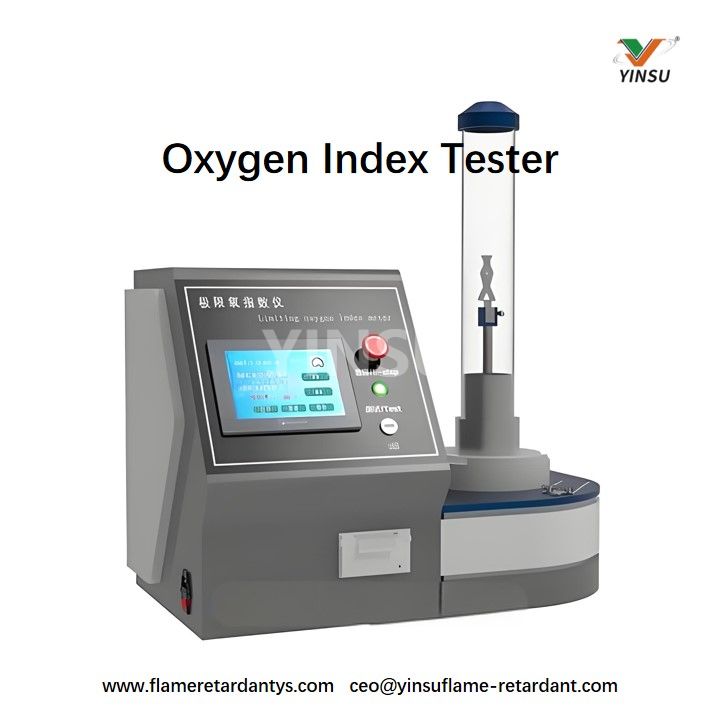

2. Testing Equipment

The main equipment includes a combustion cylinder, a sample holder, gas sources (oxygen and nitrogen), a gas flow control system, an igniter, a timing device, and an exhaust system.

3. Testing Process

The specimen is vertically mounted on the sample holder inside the transparent combustion cylinder, with oxygen-nitrogen mixed gas flowing through the cylinder. The upper end of the specimen is ignited, and the combustion behavior is observed. By continuously adjusting the oxygen concentration in the oxygen-nitrogen mixture, the lowest oxygen concentration at which the specimen can sustain combustion is recorded. This concentration is defined as the material's oxygen index. For example, if the specimen can sustain combustion at an oxygen concentration of 28%, but not at 27%, then the material's oxygen index is 28%.

IV. Factors Affecting Oxygen Index

The oxygen index of a material is not fixed and can be influenced by various factors:

1. Chemical Composition of the Material

Materials containing elements such as halogens (e.g., chlorine, bromine), phosphorus, nitrogen, and silicon typically have a higher oxygen index. For instance, plastics with added brominated flame retardants can enhance their oxygen index because the bromine element can capture free radicals and inhibit combustion reactions during burning.

2. Physical Structure of the Material

The density, porosity, and crystallinity of a material can affect its oxygen index. Generally, materials with higher density and lower porosity have a relatively higher oxygen index. The tight internal structure of such materials makes it difficult for oxygen to penetrate, thereby reducing the likelihood of combustion.

3. Addition of Flame Retardants

Incorporating flame retardants into materials is a common method to increase the oxygen index. The type and amount of flame retardant added can significantly impact the oxygen index. Different flame retardants work through various mechanisms: some lower the material's temperature by absorbing heat during decomposition, some form a barrier to prevent oxygen contact with the material, and some interrupt the combustion chain reaction by inhibiting free radicals. For example, aluminum hydroxide, a commonly used inorganic flame retardant, absorbs a significant amount of heat and releases water vapor when decomposing upon heating. This process helps cool the material and dilute the oxygen, thereby enhancing the material's oxygen index.

4. Processing Technology

The material's processing conditions, such as forming temperature, pressure, and time, can also affect the oxygen index. Proper processing techniques can lead to a more uniform internal structure of the material and stronger bonding between the material and flame retardants, thus improving the oxygen index.

V. Applications of Oxygen Index in Real Life

As a significant indicator of material flame retardancy, the oxygen index has extensive applications across various fields:

1. Construction Field

The flame retardancy of building materials is directly related to a building's fire safety. When selecting materials such as exterior insulation and interior decoration materials, the oxygen index is an important reference. Fire-resistant materials with a high oxygen index can effectively reduce the occurrence and spread of fires, buying time for personnel evacuation and firefighting efforts. For example, in high-rise buildings, using extruded polystyrene boards that have been treated for flame retardancy to increase their oxygen index can better protect residents' lives during fires.

2. Electronic and Electrical Field

Electronic devices can overheat or catch fire due to overload or short circuits during use. Therefore, the casings and internal insulation materials of electronic and electrical products must possess certain flame retardant properties. By measuring the oxygen index and selecting appropriate materials, fire accidents caused by electronic devices can be prevented. For example, the casings of mobile phones, computers, and other electronic products are often made of engineering plastics with a high oxygen index to enhance product safety.

3. Transportation Field

Interior materials, seat fabrics, and wires in vehicles, aircraft, and ships are subject to strict flame retardancy requirements. In the event of a fire in a means of transportation, materials with a high oxygen index can slow down fire spread, creating more opportunities for passenger evacuation. For example, aircraft interior materials not only require a high oxygen index but also must meet other stringent safety standards to ensure flight safety.

4. Textile Field

Curtains, carpets, bedding, and other textiles in public places need to have certain flame retardant properties to prevent rapid fire spread. By measuring the oxygen index, the flame retardant effectiveness of textiles can be assessed, ensuring fire safety in public areas. For example, hotels and shopping malls typically use curtains made of flame retardant fabrics with a high oxygen index.

VI. Conclusion

The oxygen index, as a key indicator of material flame retardancy, provides a crucial basis for evaluating a material's safety in a fire. Understanding the concept of oxygen index, its relationship with flame retardancy, testing methods, and influencing factors help us better select and utilize materials with good flame retardant properties in daily life and work. This, in turn, builds a solid defense against fires and safeguards lives and property. It is hoped that this introduction will deepen everyone's understanding of the oxygen index and encourage greater attention to material flame retardancy in the future, working together to create a safer environment.
