The "Wicking Effect" in Glass-Fiber Reinforced PA: Why Adding Glass Fiber Actually Makes Flame Retardancy Harder?

The "Wicking Effect" in Glass-Fiber Reinforced PA: Why Adding Glass Fiber Actually Makes Flame Retardancy Harder?

Glass fiber itself does not burn, but adding 30% glass fiber often causes the flame-retardant rating to drop. This is not because the flame retardant is insufficient, but because the "Wicking Effect" of glass fiber continuously feeds the melt into the flame zone while puncturing the char layer—altering both the physical and chemical combustion processes.

The Phenomenon: Formula Unchanged, Rating Dropped

A few days ago, a customer manufacturing automotive engine-bay components sent us a screenshot of a burn test. He sounded quite frustrated: "I added the exact same flame retardant. When we were running pure resin, V-0 passed perfectly. But as soon as we added 30% glass fiber, it dripped when burned, and the fire even propagated upward."

When many engineers encounter this, their first reaction is to "increase the dosage." Bumping the flame retardant from 10% to 20% might barely bring the rating back, but impact strength immediately drops by half. No matter how you calculate it, that's a bad deal.

In the materials industry, this phenomenon has a specific name: the "Wicking Effect." If you don't understand its underlying logic, tweaking the formula a hundred times will be useless.

Mechanism 1: Glass Fiber Acts as a Giant "Candle Wick" During Combustion

We need to zoom in to a high-powered microscope. Think about how a candle burns: the wax itself is solid and cannot burn on its own. It relies entirely on the cotton wick in the middle to draw the melted liquid wax up and continuously feed it to the flame.

When glass-fiber reinforced PA burns, it does exactly the same thing. It acts like thousands of microscopic highways inside the material, rapidly transporting the heated, melted PA melt toward the fire source. Meanwhile, the micro-gaps inside the glass fiber bundles act like sponges through capillary action, drawing up the flammable melt as fuel. The more glass fiber there is, and the more pronounced the orientation, the smoother this "feeding channel" becomes.

Mechanism 2: The Char Layer is Directly "Punctured," Losing Heat and Oxygen Insulation

Halogen-free flame retardancy relies heavily on "intumescent charring"—a thick, foamed char layer that insulates against oxygen and heat.

However, glass fibers are rigid. They lie across the material like steel needles. Once the char layer expands, the glass fibers directly puncture and shatter it. The char layer is ruptured and split open, and the gaps become channels for melt and gas. Charring is happening on top, while fuel is being fed from below; heat and oxygen rush in, the entire flame-retardant defense collapses instantly, and the rating naturally becomes unstable.

Mechanism 3: The "Chemical Hidden Wound" of Incompatible Three-Phase Interfaces

Beyond physical destruction, glass-fiber reinforced PA is a typical three-phase system: glass fiber is a hydrophilic inorganic material, PA is a polar polymer, and red phosphorus or ADP has yet another surface property.

Mixing the three together is essentially a three-phase compatibility issue. Poor compatibility leads to uneven dispersion. "Flame-retardant-poor zones" with insufficient flame retardant concentration appear inside the product; these zones are the first to burn through. At the same time, weak interfacial bonding causes debonding between the glass fiber and matrix during combustion, and the gaps become melt channels again. Interfaces often become the weak points for dispersion and the starting points for blooming.

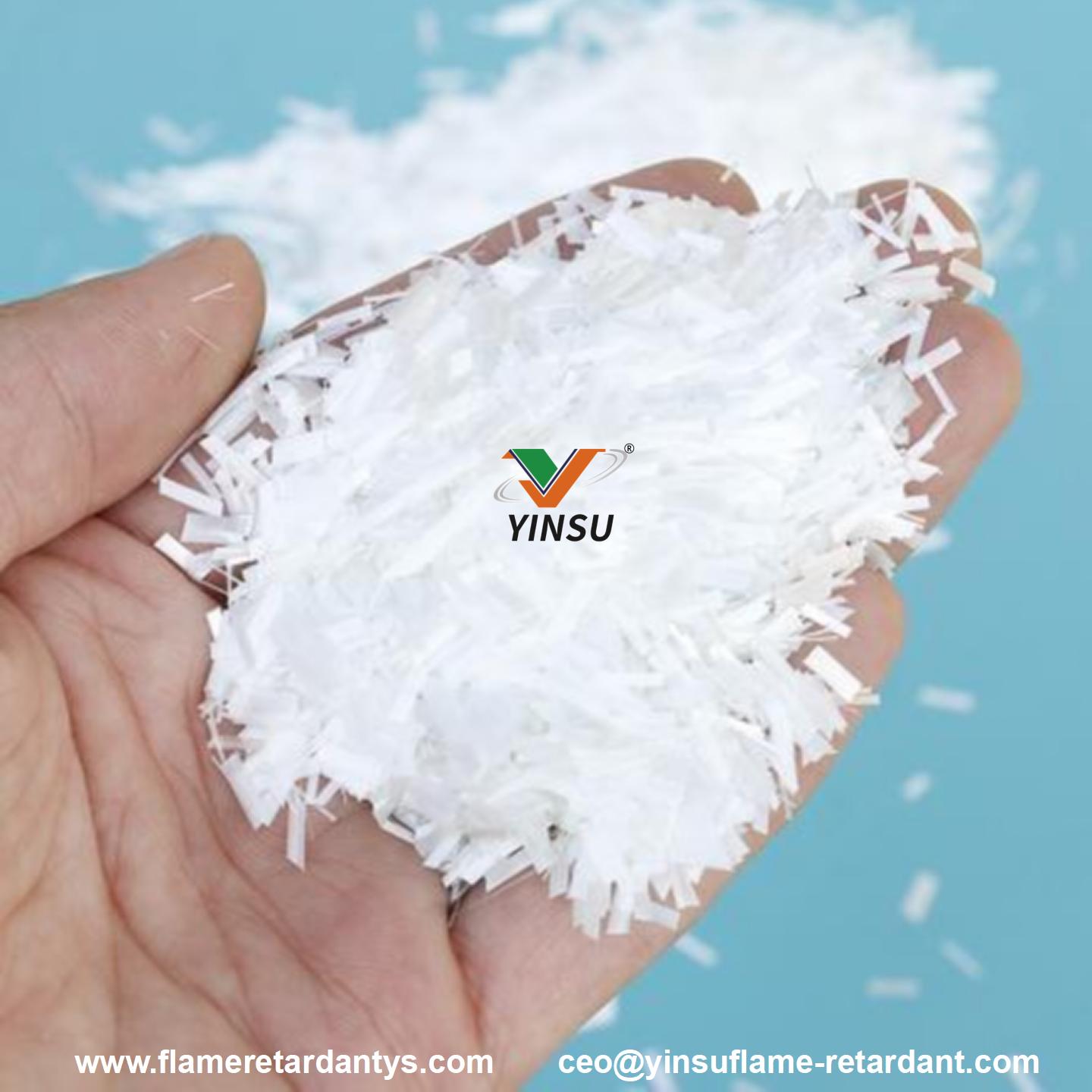

An Easily Overlooked Variable: Glass Fiber Length and Orientation

Short fibers and long fibers behave completely differently during combustion. Long glass fibers have stronger orientation, and the wicking channels are more continuous, making flame retardancy generally harder than short fibers. However, long-fiber systems also have higher melt strength, which gives them an advantage in anti-dripping. Therefore, the statement "adding glass fiber makes flame retardancy difficult" depends on which type of glass fiber you add and how it is arranged in the product.

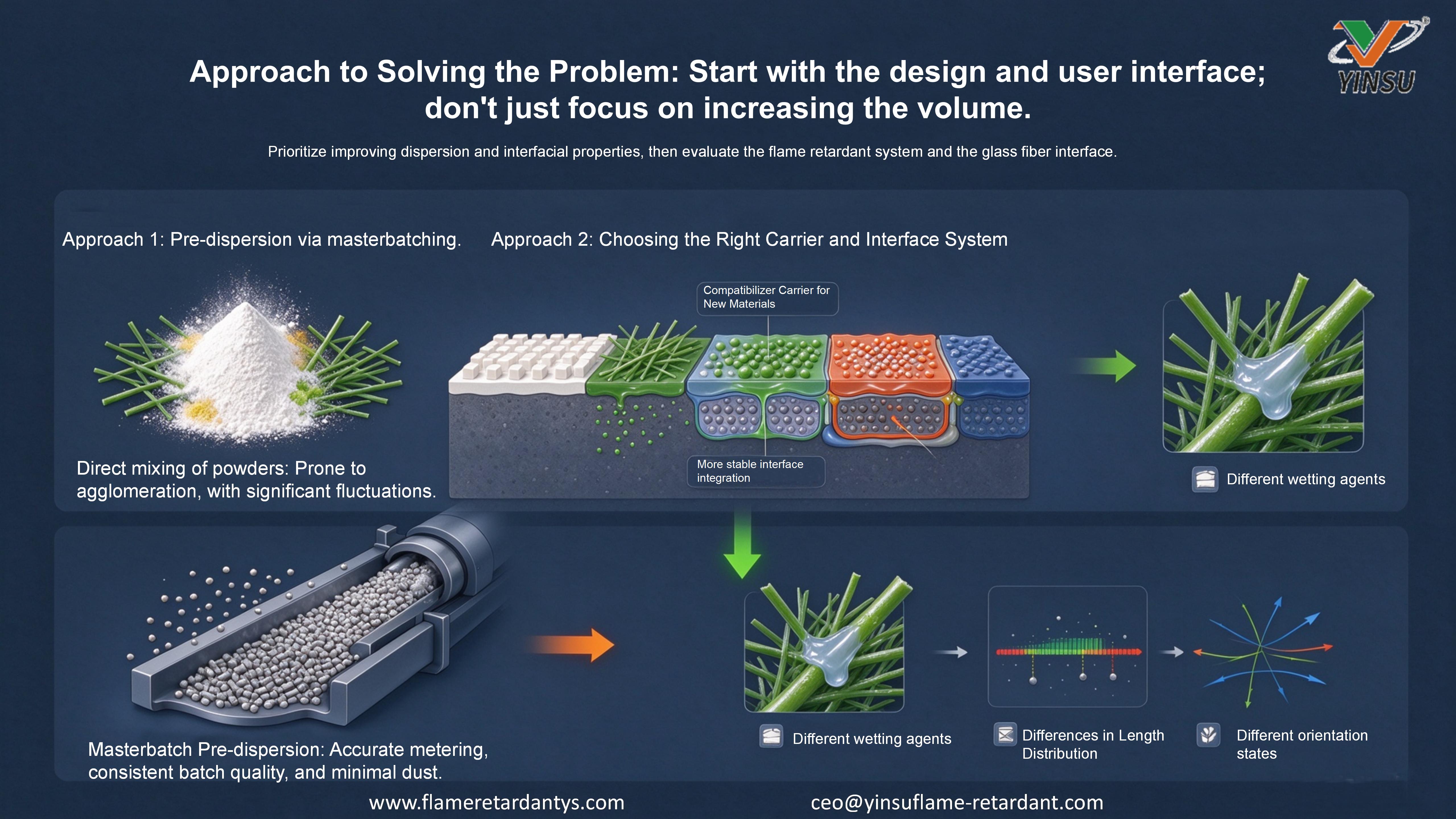

Solution Approach: Start with Morphology and Interfaces, Don't Just Stare at the Dosage

The first direction: Masterbatch pre-dispersion.

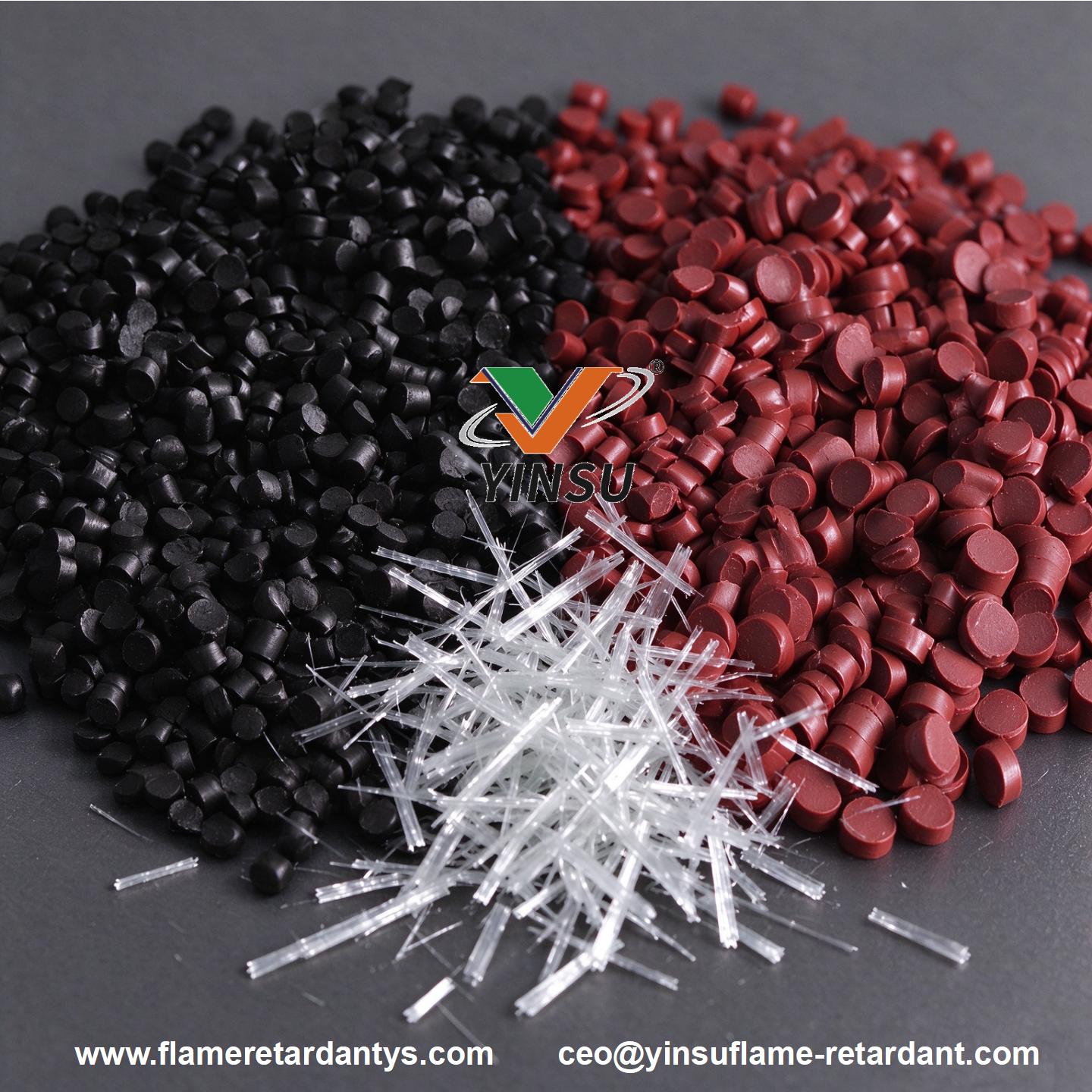

Use a compatibilizer as the carrier to pelletize the flame retardant. Direct dry-blending of powders tends to agglomerate near the glass fibers, causing uneven local concentration. Masterbatches are pre-dispersed, offering accurate metering, stable batches, and less workshop dust. Interfacial compatibility is significantly better than products using recycled nylon as a carrier.

The second direction: Choose the right carrier.

Masterbatches using virgin compatibilizers as carriers have better interfacial compatibility, more controllable blooming, and better batch stability
