Flame-retardant PP Is Replacing HIPS And ABS

Polypropylene (PP) is one of the three major general-purpose plastics. With its excellent overall performance, low cost, and ease of processing, it is gradually replacing HIPS and ABS resins in the home appliance and electronics industries. However, PP’s high crystallinity and flammability (with a limiting oxygen index of only 17–18%) make it difficult to achieve the high flame-retardancy levels required by the electrical industry. Therefore, flame-retardant modification has become one of the key research areas in PP functionalization.

Currently, the most common target rating for flame-retardant PP is UL 94 V-0—among flame-retardant PP materials, 63% are required to meet the UL 94 V-0 rating, while 23% must meet the V-2 rating. Thin-walled parts (1.5 mm) can meet the “self-extinguishing upon removal from the flame” standard and consistently pass the glowing wire test at temperatures ranging from 850°C to 960°C.

Applications of Flame-Retardant PP

Appliance housings: TV housings, microwave oven housings, air conditioner control boxes, etc. Flame-retardant PP is gradually replacing HIPS and ABS in these applications.

Electronic and electrical components: terminal blocks, switches, power strips, junction boxes, coil forms, relay housings, etc. Flame-retardant PP used in appliance switches can meet the V0 rating for 1.5mm thin-walled parts and self-extinguish upon removal from the flame.

Automotive and Construction: Lightweight components such as battery housings and seat brackets; construction materials such as fire-resistant panels.

Key performance indicators for flame-retardant PP include: UL94 V-0 rating, glow-wire tests (GWIT 775/3.0, GWFI 850/3.0), high rigidity, and high heat resistance (RTI up to 120°C).

The Two Main Approaches to PP Flame Retardancy Today

Approach 1: Bromine-Antimony Halogen System

The bromine-antimony system is the mainstay of traditional PP flame retardancy—centered on brominated flame retardants (such as decabromodiphenyl ethane) and often blended with antimony trioxide. Its flame-retardant mechanism involves a dual action in both the gas phase and the condensed phase: during combustion, hydrogen bromide is released to capture free radicals and interrupt chain reactions, while carbon bromide is simultaneously generated to form a char layer.

Advantages: Extremely high flame-retardant efficiency; UL94 V-0 rating can be achieved with just a 3–6% addition; low cost and mature processing technology; minimal impact on color pigments and fillers.

Limitations: High smoke generation during combustion, producing large amounts of corrosive and toxic gases (halogenated hydrogen compounds); the EU and other regions have imposed restrictions on certain brominated flame retardants; some countries believe that combustion may produce toxic and carcinogenic substances such as polybrominated dibenzofurans (PBDF).

Approach 2: Phosphorus-Nitrogen-Based Halogen-Free Solutions

Phosphorus-nitrogen-based halogen-free flame retardants are centered on intumescent flame retardants (IFRs), which primarily consist of phosphorus and nitrogen. Their flame-retardant mechanism involves condensation-phase charring: during combustion, acid sources (such as ammonium polyphosphate, APP) decompose to produce acidic substances, which promote the dehydration and charring of the charring agent. Simultaneously, gas sources decompose to release large amounts of non-flammable gases, forming an expanded, porous foam char layer that insulates against heat and oxygen and suppresses melt droplets.

Advantages: Halogen-free and environmentally friendly; low smoke and low toxicity; dense char layer providing excellent thermal insulation and oxygen barrier; compliant with environmental regulations such as RoHS; represents the current mainstream trend.

Limitations: Requires a relatively high loading level (typically 20–30%) to achieve V-0 rating; has some impact on the mechanical properties of PP; costs are significantly affected by fluctuations in phosphorus resource prices.

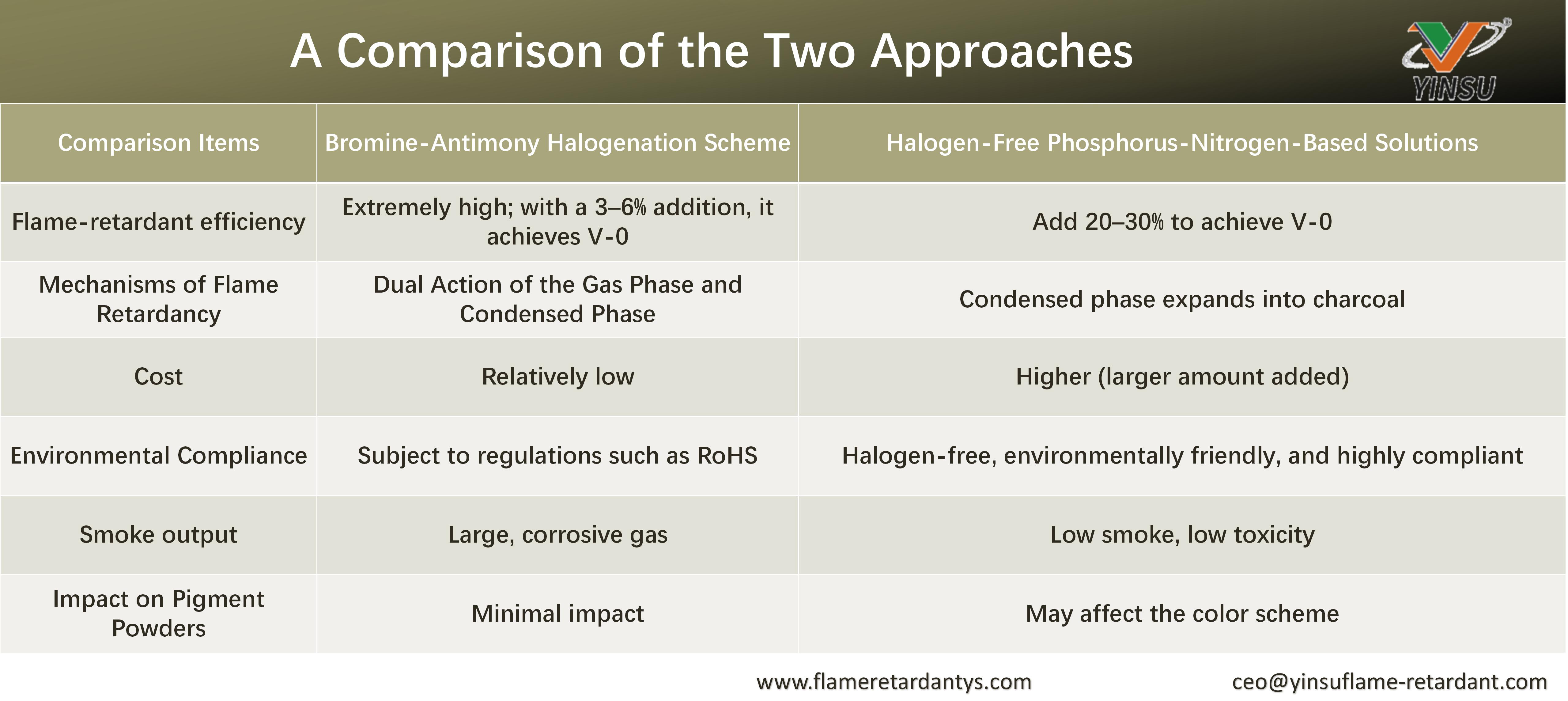

A Comparison of the Two Approaches

A Trend Worth Watching: Synergistic Blending

Research shows that blending phosphorus-nitrogen intumescent flame retardants with bromine-antimony flame retardants can reduce the total loading—a total loading of just 19% is sufficient to achieve a UL 94 V-0 rating for a 1.6 mm test specimen, and the two exhibit significant synergistic flame-retardant effects. This approach offers a third path for PP flame-retardant formulation design: striking a balance between compliance and cost.

Recommendations for Selection

Products exported to the EU, subject to environmental requirements, or light-colored products → Prioritize phosphorus-nitrogen-based halogen-free solutions; although the loading level is higher, they offer better compliance.

Cost-sensitive applications, dark-colored products, or those with less stringent environmental requirements → Bromine-antimony halogen-based solutions remain a highly effective and proven choice.

Need to balance cost and environmental considerations → Consider a synergistic blend of bromine-antimony and phosphorus-nitrogen systems to reduce halogen content while controlling the total additive load.

Ultimately, selecting a PP flame retardant involves striking a balance among three factors: flame retardancy efficiency, cost, and environmental compliance. There is no absolute “good” or “bad”—only what is suitable for your specific application.
