Bromine-Antimony Passes at 5%, But Halogen-Free Needs 30%? Let's Talk About the "Efficiency for Eco-friendliness" Logic in Flame-Retardant PP

One-Sentence Conclusion:

When compounding flame-retardant PP, what beginners find hardest to understand is this: Why does a bromine-antimony system achieve V-0 with just 3-6% loading, but when switched to a phosphorus-nitrogen halogen-free system, you must add 25% or even 30%? This is absolutely not because halogen-free flame retardants are "inefficient," but because the physical and chemical fire-extinguishing mechanisms are completely different. If you don't grasp this underlying logic, you will forever flip-flop between "secretly mixing in halogens to save cost" and "physical properties collapsing due to high loading."

Introduction: A Formulation Review That Crushed a Rookie

During last week's project review meeting, Xiao Wang, the formulator, came to me aggrieved, holding a set of data: "Boss, the client requires halogen-free flame-retardant PP. Following my experience with bromine-antimony, I added 8% halogen-free flame retardant, but it dripped as soon as the flame was removed. I had to push it to 30% to barely get V-0, but the material is as brittle as a cracker, and the injection molding plant can't use it at all. Is this halogen-free powder no good?"

I smiled and asked: "Do you think to put out a fire, it's more effective to throw a bucket of sand or sprinkle a handful of chemical powder?"

This is the biggest cognitive threshold in halogen-free flame-retardant PP: Different mechanisms dictate the fundamental difference in "quantity."

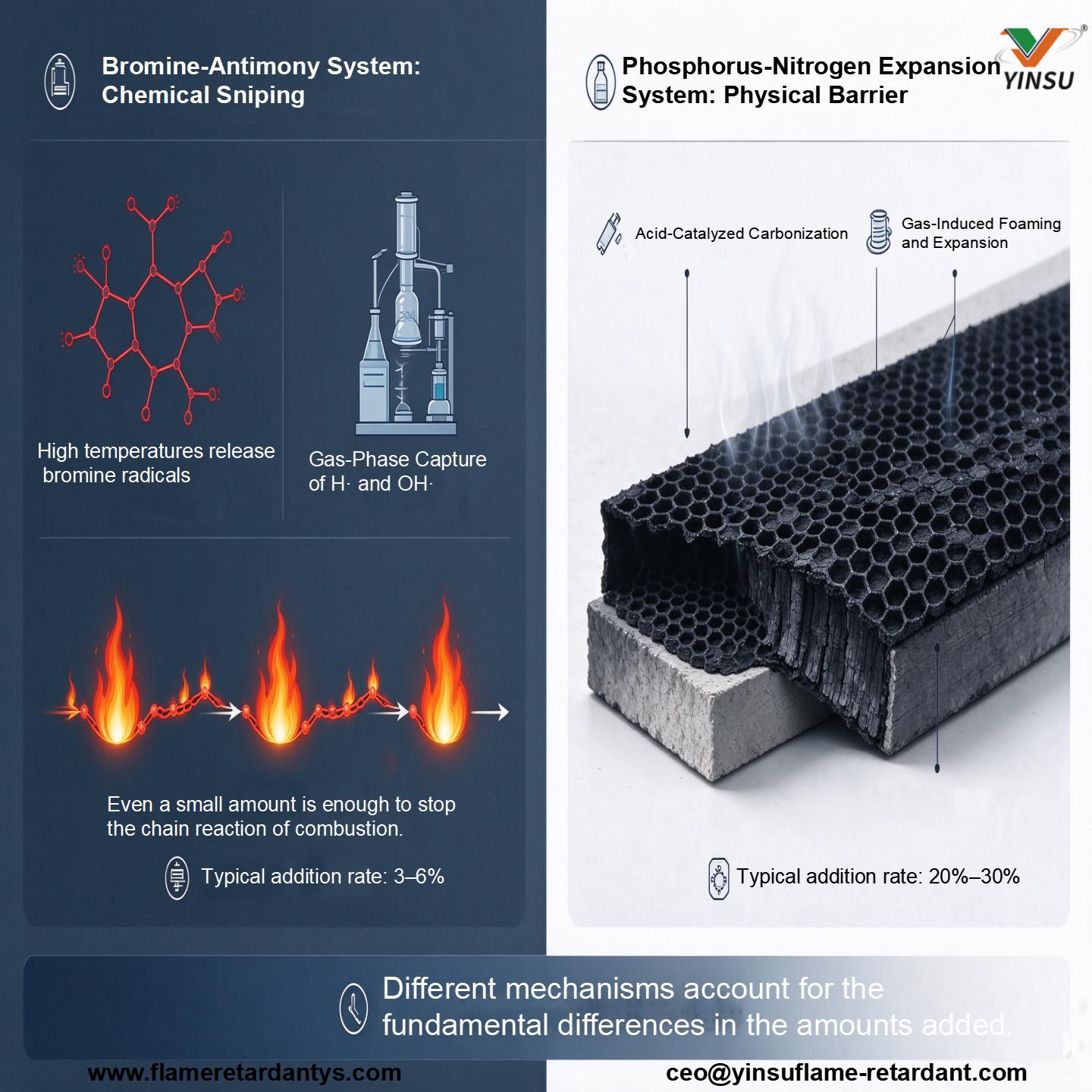

Mechanism Traceability: Why is the Halogen-Free System Born a "Big Eater"?

Let's look at the microscopic physical field of combustion.

1. The "Chemical Sniper" of the Bromine-Antimony System

Brominated flame retardants release bromine radicals at high temperatures. These bromine radicals act like snipers, directly capturing and terminating the combustion chain reaction in the gas phase (consuming the hydrogen and hydroxyl radicals that sustain the flame). Because it's a molecular-level chemical reaction, a very small amount (3-6%) achieves a massive effect.

2. The "Physical Wall" of the Phosphorus-Nitrogen System

The phosphorus-nitrogen intumescent (IFR) system is completely different. It's not good at chemical sniping; it relies on "physical defense." When heated, the acid source catalyzes charring, and the gas source releases gas, literally blowing a thick, honeycomb-like foam char layer on the material surface to physically insulate against oxygen and heat.

To erect this solid "foam wall," you must supply enough material—acid source, gas source, and carbon source are all indispensable. This is why conventional halogen-free systems often need 20-30% loading to be effective.

The "Three Disasters" Brought by High Loading

Since high loading is necessary, engineering backlash follows:

1. Mechanical Disaster: 30% powder mixed into PP is like mixing sand into dough; impact strength and elongation at break drop off a cliff.

2. Processing Disaster: When passing through water, conventional halogen-free powders easily absorb moisture and bloom, leading to sticky strands, breakage, and mold deposits.

3. Cost Disaster: Although the unit price may be cheaper than bromine-antimony, the loading is over 5 times higher, skyrocketing the comprehensive cost.

Breakthrough Paths: How to Make the "Big Eater" Usable?

Since the "quantity" cannot be saved, we must work on "form" and "system."

Breakthrough 1: Use "High-Concentration Masterbatches" to Free Up Formulation Space

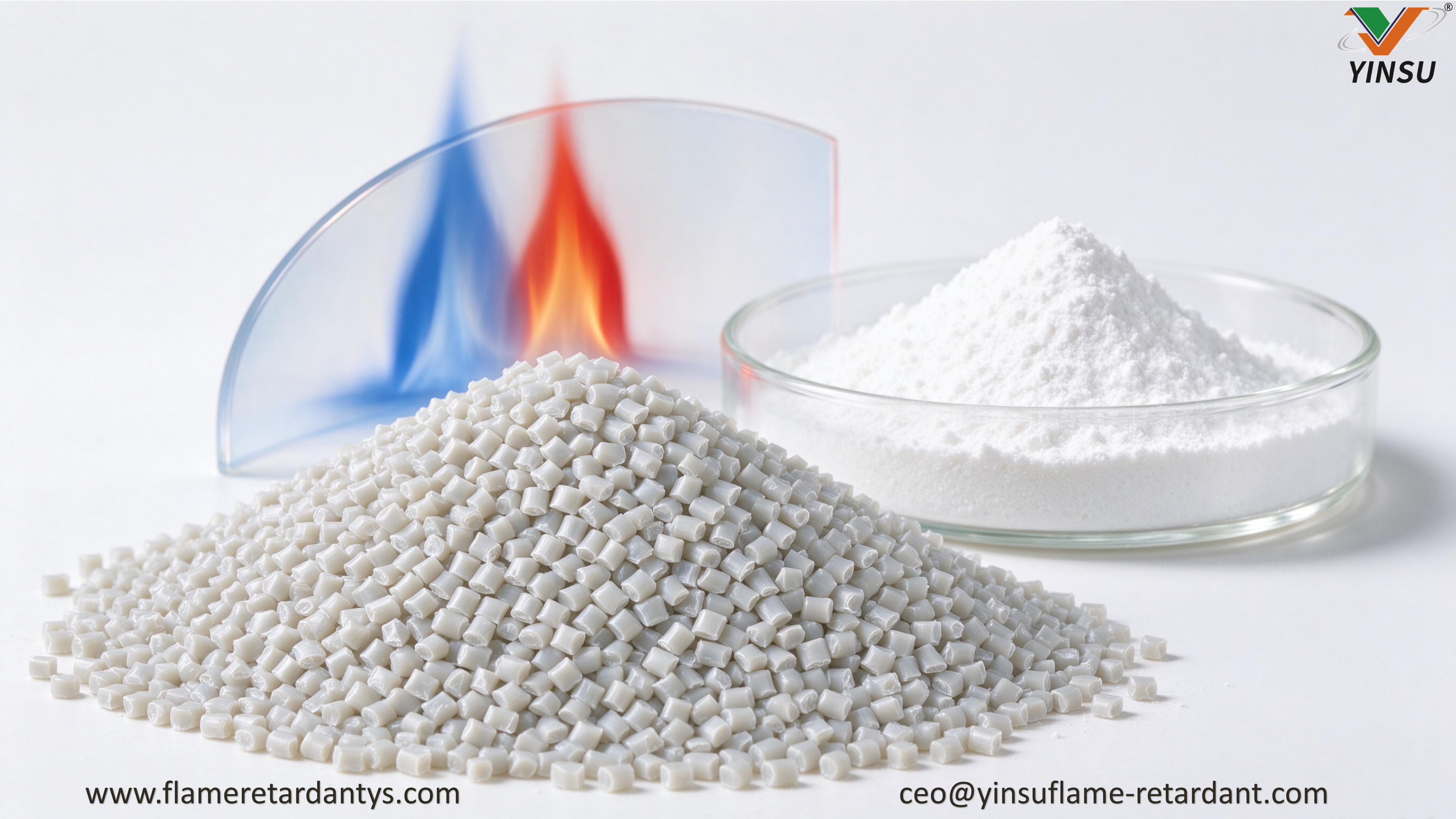

For the same 30% total loading, if you use low-concentration powders, the mass contains ineffective carriers (low-end resin, talc, etc.), and physical properties will inevitably collapse. You must use high-concentration masterbatches. For example, YINSU PQ-75M has an active phosphorus-nitrogen flame retardant content of up to 75%. Adding 30 parts of masterbatch means 22.5 parts are the actual flame retardant doing the work, leaving much more space for glass fiber and toughening agents. A counterintuitive rule is: The higher the glass fiber content, the lower the halogen-free loading can be. For instance, pure PP needs 34%, but in long-glass-fiber reinforced systems (LGF 40-60%), because glass fiber itself is non-combustible (diluting the fuel), adding about 23% achieves V-0 (1.5mm).

Breakthrough 2: Eliminate APP to Save the Production Line

Halogen-free flame retardants causing sticky strands and blooming are usually due to ammonium polyphosphate (APP). APP is highly water-soluble! When the hot strand enters the water bath, the surface dissolves and falls off.

PQ-75M removes APP entirely from the formulation—no water slippage, no blooming. It has genuinely passed the UL 746C 70°C×168h water immersion test. Even after soaking, the flame retardant performance remains rock solid, and the production line runs clean.

Breakthrough 3: Extreme Ratings Rely on "Compounding"

When wall thickness drops below 1.5mm, simply piling on material doesn't work. PQ-75M's extreme approach is compounding with gas-generating and acid-source flame retardants. After compounding, it can withstand 0.75mm V-0, and even handle the dreaded GWIT 750°C and GWFI 960°C glow-wire tests for appliance housings.

If Not Insisting on Halogen-Free, Are There Cost-Saving Alternatives?

If the customer doesn't export to Europe or doesn't need high flame retardancy, there's no need to fight with 30+ parts of halogen-free systems. You can offer them another calculation:

• Downgrade to V-2 (Internal Parts): Recommend PPV2-8H (bromine-phosphorus compounded). Adding just 3-10% achieves T2.0mm V-2. It has extremely high tolerance for regrind and POE toughened materials, crushing costs to the minimum.

• V-0 with Water Resistance: Recommend PPV2-6. Although it's a low-halogen system, its thermal stability is excellent. Adding 6-10% achieves low-dripping V-0 (2.0mm); if only V-2 is needed, add 2-8%. It is water-resistant, non-blooming, and perfectly balances electrical properties—the cost-performance king for outdoor electronic parts.

FAQ: High-Frequency Torture Questions About Halogen-Free PP

Q1: The customer insists on halogen-free but also wants it cheap. Can I add less PQ-75M?

Absolutely not. The halogen-free intumescent system has a "critical threshold." Below about 25%, the char layer simply cannot form, and the test will fail instantly. To save cost, you can only switch systems (e.g., to PPV2-6).

Q2: Why can I add less halogen-free flame retardant after adding glass fiber?

Because glass fiber is "stone"; it doesn't burn. Adding 30% glass fiber is like diluting the combustible PP resin by half. With less fuel, the flame retardant needed to maintain the same char layer thickness is naturally reduced.

Q3: Halogen-free PP parts always look grayish or yellowish. How to solve this?

First, check if the processing temperature is too high (causing decomposition); second, choose a masterbatch with good thermal stability (like PQ-75M); third, if pure white parts are required, skip the phosphorus-nitrogen system and go directly to white ADP (Aluminum Diethylphosphinate).

The above mechanisms and data summaries are for reference only. When calculating flame retardant costs, don't just look at the unit price—calculate the "total cost of achieving V-0" plus the "cost of downtime for cleaning." If you have a headache from the physical property decline caused by high halogen-free loading, bring your base material to YINSU Flame Retardant, and we'll give you a clear account.
