From V-0 To V-2 Rollercoaster: How To Overcome Flame Retardancy And Cost Bottlenecks in Eco-Friendly Recycled PVC Boards?

From V-0 to V-2 Rollercoaster: How to Overcome Flame Retardancy and Cost Bottlenecks in Eco-Friendly Recycled PVC Boards?

Driven by the global momentum of carbon neutrality and the circular economy, recycling sectors such as PVC pelletizing, eco-friendly recycled boards, and recycled construction products are experiencing explosive growth. However, many R&D engineers and procurement decision-makers deep in the modification of recycled materials have long been plagued by a bizarre "flame retardancy rollercoaster" phenomenon: with the exact same formulation and dosage, the flame retardant performs excellently in virgin resin but fails to hit the target grade in recycled regrind. Even within the same production batch, samples pass UL94 V-0 today but plummet to V-2 tomorrow. This variance is often accompanied by a chain of issues including compound discoloration/scorching, dark smoke generation, pungent odors, and severe embrittlement of the finished boards.

Why do flame retardants in recycled PVC regrind become increasingly "ineffective" as they are reprocessed? Since recycling is fundamentally driven by cost reduction, how can we secure stable, high-standard flame retardancy while achieving genuine cost optimization within an unstable, degradation-prone recycled framework?

1. Uncovering the Root Cause: Microscopic Degradation and the "Thermal History" of Regrind

To resolve the performance fluctuations in recycled PVC, one cannot simply rely on blindly increasing the dosage of flame-retardant fillers. Instead, we must dive into the microscopic degradation mechanisms of the polymers to find the answers.

Molecular Internal Injuries Left by "Thermal History"

Throughout its lifespan, waste PVC has already endured multiple rounds of severe "macromolecular shearing and thermal history," including initial synthesis, extrusion, injection molding, long-term service, physical shredding, and secondary extrusion. Under sustained high temperatures and shear forces, the PVC matrix resin is highly susceptible to dehydrochlorination, creating unstable conjugated double bonds along the molecular chains. These damaged chains are extremely heat-sensitive, triggering a cascade of radical degradation during re-processing. This causes the matrix to decompose instantly upon ignition, rendering it incapable of sustaining the original gas-phase radical trapping mechanism.

"Secondary Pollution" from Residual Additives

The sources of recycled plastic scrap are usually highly complex. The raw scrap frequently contains residual, low-end halogenated or degraded phosphorus-based flame retardants from its previous life cycle. These residues undergo thermal decomposition at lower temperatures during secondary processing, converting into acidic intermediates. Instead of providing effective flame-retardant protection, they act as impurities that accelerate the premature destruction of newly added PVC flame retardants, causing the compound to become severely yellow and brittle.

Complete Loss of Dispersion Phase Uniformity

Residual heavy metal impurities and gel components in the regrind severely disrupt the melt flowability. Consequently, newly incorporated flame-retardant powders cannot achieve nano-scale, homogeneous dispersion within the melt. This microscopic non-uniformity manifests macroscopically as severe batch-to-batch fluctuations in flame retardant performance.

2. Systemic Conflict: The "Growing Pains" of Traditional Antimony Trioxide in Recycled Systems

As the long-standing backbone PVC flame retardant in the industry, traditional Antimony Trioxide (ATO/antimony white) is facing unprecedented challenges in recycled modification systems.

On one hand, the consistently high price of ATO directly swallows the low-cost edge that recycled materials are supposed to possess, running counter to a company's objective for cost optimization. On the other hand—and more fatally—Antimony Trioxide acts as a weak Lewis acid catalyst during high-temperature processing. For a recycled PVC resin that is already scarred and prone to dehydrochlorination, ATO turns into an accomplice that accelerates its thermal degradation and discoloration under high-temperature reprocessing, severely deteriorating the mechanical properties of the finished boards. Therefore, introducing a processing-heat-stable antimony trioxide substitute has become an inevitable technical path to break through the bottlenecks of recycled board production.

3. Performance Verification: Data Comparison and Economic Auditing

To meet the urgent demand for processing heat stability and high thermal stability in recycled PVC and eco-friendly boards, our technical team upgraded the existing system by introducing multiple grades of composite antimony flame retardants from YINSU Flame Retardant Company (serving as highly efficient antimony trioxide substitute solutions). These composite antimony flame retardants feature built-in multi-valent synergistic elements and free-acid scavengers, which effectively passivate impurities in the regrind and suppress secondary dehydrochlorination degradation during extrusion.

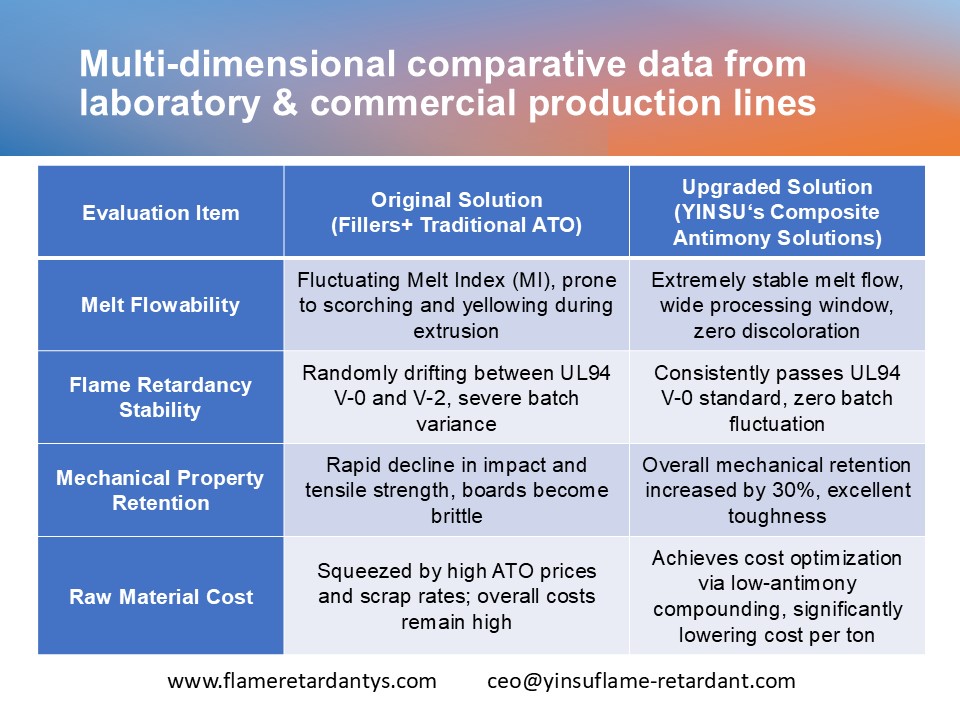

Below is the multi-dimensional comparative data from laboratory and commercial production lines:

Experiments demonstrate that YINSU Flame Retardant Company’s composite antimony flame retardants, with their superior processing heat stability, successfully catalyze the rapid formation of a continuous, dense, cross-linked char layer in the condensed phase—even when dealing with the shorter macromolecular chains typical of regrind. This locks in the heat, shielding the matrix and locking the flame retardancy rating firmly at V-0.

IV. Outlook: From Physical Recycling to Chemical Upcycling

The approach described above is “physical recycling”—re-pelletizing waste material. However, the long-term direction lies in “chemical recycling”: using solvent dissolution, hydrolysis, or enzymatic hydrolysis to break down waste PVC into vinyl chloride monomers or dechlorinated hydrocarbon oil, which are then re-polymerized. The material produced in this way is identical to virgin material, free of any impurities, and naturally free from the issue of flame retardant degradation.

Currently, the cost of this technology remains relatively high, but it is already being piloted in some high-end applications. In the future, reversible-bonded flame retardants specifically designed for chemical recycling will also emerge, allowing for easy separation during the recycling process without contaminating the recycled product.

V. Conclusion and Action Recommendations

Flame retardant failure in recycled materials is not a mystery; it is the result of the combined effects of thermal history, impurities, and the thermal stability of the flame retardant. By selecting high-thermal-stability antimony trioxide substitutes, combined with acid scavengers and process optimization, it is entirely possible to consistently achieve V-0 in recycled material systems while reducing overall costs.

If you are struggling with batch-to-batch fluctuations in recycled material flame retardancy, please share your current formulation with us. Yinsu Flame Retardants offers free formulation analysis and will send you matching samples. Send us a private message or leave a comment with “Recycled Material + Current Flame Retardant Solution,” and we will arrange for an engineer to create a cost-effective, customized “Recycled PVC Flame Retardant Modification Solution” for you.
