So Much Calcium Carbonate Added To PVC Sheet, Yet Flame Retardancy still Fails? The Problem Is Not “adding Or Not”, But “how To Add”

So Much Calcium Carbonate Added To PVC Sheet, Yet Flame Retardancy still Fails? The Problem Is Not "adding Or Not", But "how To Add"

Formula engineers working with PVC sheet have probably heard something like this: "Calcium carbonate isn't expensive. Just add a little more, and the cost comes down, right?"

So you go from 20 phr to 40 phr, and then from 40 phr to 60 phr. Costs do look better, but flame retardancy drops from V-0 to V-2. You didn't cut back on flame retardants – you even added more in some cases, yet the rating still falls. Three consecutive batches sent for testing come back as V-2. The boss slams the table and asks: "We increased the flame retardant, so why isn't it working?"

To make things worse, the test report says "dripping ignites cotton", and a stubborn layer of build‑up starts accumulating on the die, forcing you to stop and clean it every 4 hours.

How exactly does this "cheap helper" – calcium carbonate – fight against flame retardants?

1. Too much calcium carbonate makes flame retardants virtually useless

Let's do a simple calculation: for every 10 phr increase in calcium carbonate, the actual volume fraction of flame retardant in the formulation drops by 8–12%. That means you add 8 phr of flame retardant thinking it's the same as before, but after being "diluted" by calcium carbonate, only about 6 phr is actually effective.

Real test data confirm this: with PVC fixed at 100 phr and PVC flame retardant at 8 phr, increasing calcium carbonate from 20 phr to 40 phr drops the Limiting Oxygen Index (LOI) from 28 to 25, and the vertical burn rating falls straight from V-0 to V-2.

This is not because the flame retardant is weak – it's because the calcium carbonate crowds it out.

A more hidden problem is "interfacial competition". The surface of calcium carbonate is slightly alkaline and tends to adsorb acidic flame retardants. Take antimony trioxide (ATO) for example. Once wrapped around calcium carbonate particles, it can no longer disperse evenly in the PVC matrix. It's like coating sugar inside a lump of flour – no matter how much sugar you add, the water cannot draw out the sweetness. Trapped inside the filler, the flame retardant simply cannot function.

2. The chain reaction of high filler loading: more than just losing flame retardancy

When calcium carbonate is heavily loaded, a series of problems occur during combustion:

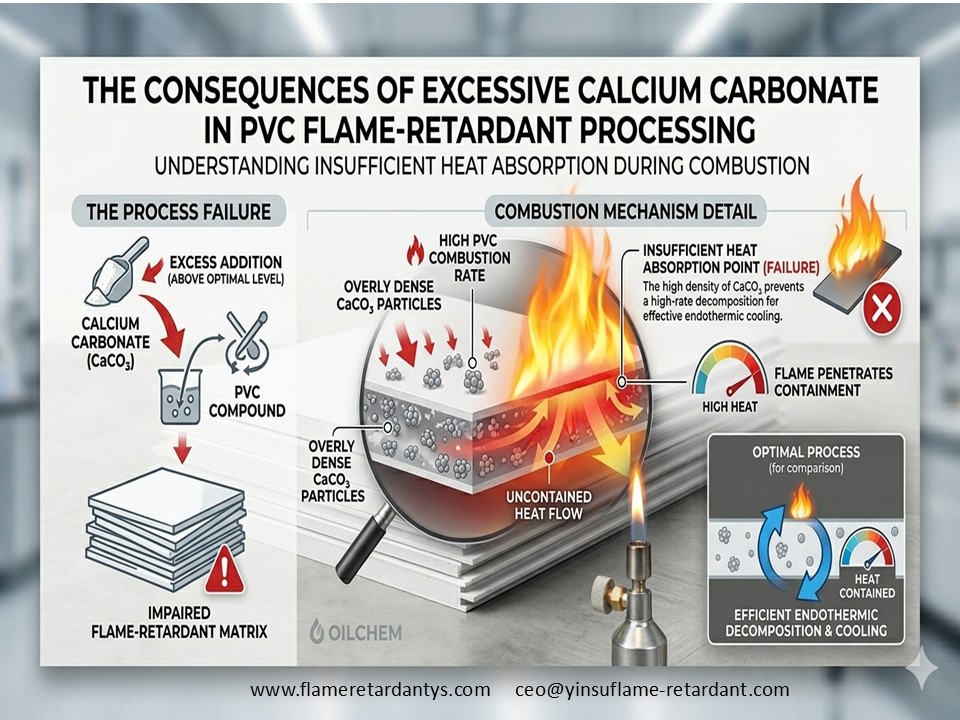

Insufficient endothermic effect to stop fire. Calcium carbonate decomposes with an endothermic absorption of only about 450 J/g – one‑third that of aluminium hydroxide (ATH). It cannot help retard fire by absorbing heat as ATH does.

More severe dripping. A large amount of calcium carbonate increases melt fluidity, leading to more severe dripping during combustion – once the cotton is ignited, V‑0 is out of the question.

Weakened gas‑phase flame retardancy. PVC itself produces hydrogen chloride (HCl) upon combustion, and part of this HCl is neutralised by calcium carbonate. However, HCl is actually an important component of gas‑phase flame retardancy; neutralising it ironically weakens the overall effect. The carbon dioxide and water generated from calcium carbonate decomposition further dilute the gas‑phase flame retardant concentration.

Worsened die build‑up and smoke density. Acidic decomposition products corrode the die, and the smoke density rating (SDR) soars.

A typical example is a Jiangsu foam board plant: with 40 phr of calcium carbonate and using the traditional antimony trioxide (ATO) + chlorinated paraffin system, flame retardancy efficiency dropped by 35%, the SDR shot up to 82 – far above the 75 required for B1 rating. The die had to be stopped and cleaned every 4 hours, and the workers were complaining bitterly.

3. How to solve it? Use synergistic formulations that "bypass" calcium carbonate

Since calcium carbonate "quarrels" with some flame retardants, switch to partners that do not fight with it.

3.1 Use a composite antimony‑based substitute instead of ATO

Antimony trioxide (ATO) is expensive and easily adsorbed by calcium carbonate. Replace it with YINSU Composite Antimony T3 (an antimony trioxide substitute). The loading can be reduced from 5 phr to 3–3.5 phr, lowering cost by 20%. At the same time, dispersion is better and the additive is less likely to be "trapped" by the filler.

3.2 Introduce Mg‑Al layered flame retardant

YINSU FR‑ML‑01 is a magnesium‑aluminium layered double hydroxide. Unlike ordinary inorganic flame retardants, it is not sensitive to calcium carbonate. Its layered structure forms a compact char layer during combustion while significantly reducing smoke density.

Test data: combining 30 phr of FR‑ML‑01 with 3 phr of T3 raises the LOI directly to 30, and SDR drops from 82 to 58.

3.3 Add a little tin/zinc rare‑earth stabiliser

Adding 1.5 phr of a tin/zinc composite stabiliser catalyses rapid crosslinking and char formation of PVC during the early stages of combustion, reducing HCl release by more than 30%. This not only lowers smoke toxicity but also slows down die build‑up – extending cleaning intervals from every 4 hours to 24 hours.

Together, these three actions can pull the flame retardancy rating back from V‑2 to V‑0 even with high‑loading calcium carbonate, while achieving cost optimisation of 15–20%.

4. A proven reformulated example (ready for you to copy)

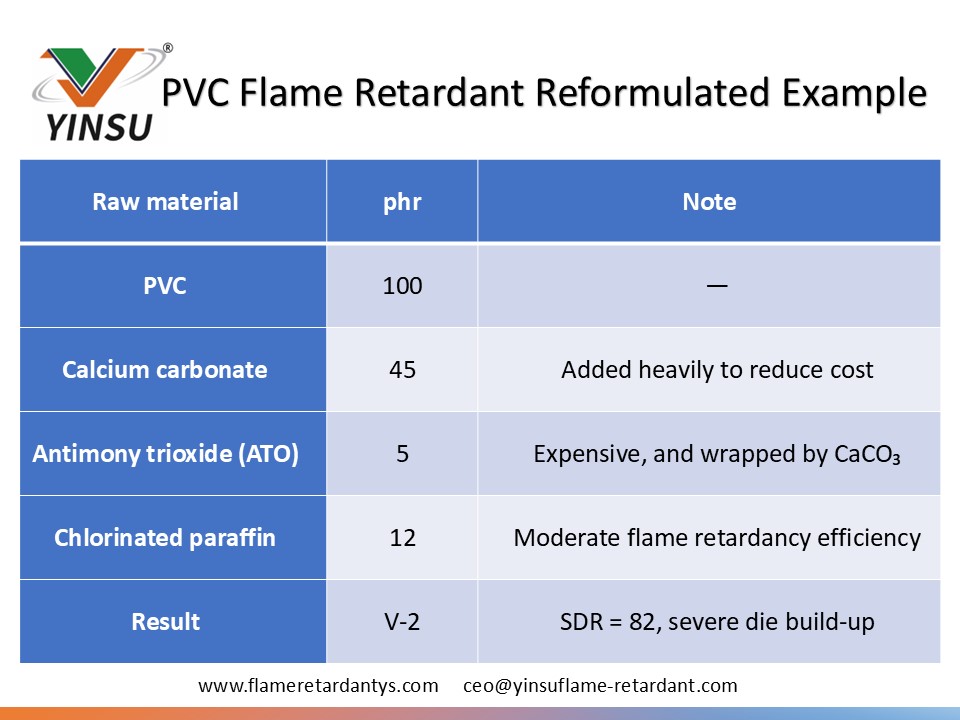

A Jiangsu PVC foam board plant produces 5,000 tonnes of sheet per year. Original formulation and problems:

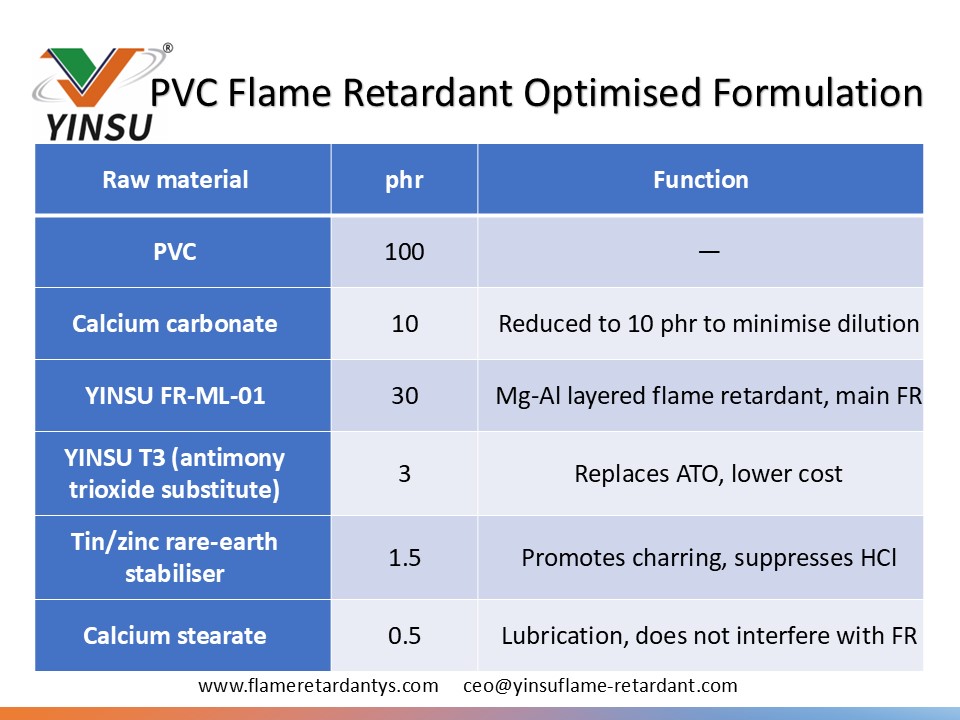

Optimised formulation:

Results:

• Vertical burn: V‑0 (1.6 mm)

• Limiting Oxygen Index (LOI): 30

• Smoke density rating (SDR): 58 (30% reduction      from original)

• Die cleaning interval: 4 hours → 24 hours

• Overall cost: 12% lower than the original      formulation, saving approx. RMB 600,000 per year

The plant's technical manager made a very practical remark: "I used to think that the more flame retardant you add, the safer you are. Now I understand that formulation ratio matters more than sheer quantity."

5. Three production details to watch out for

1. Avoid excessively high temperatures
Calcium carbonate starts decomposing above 200 °C, and flame retardants are also heat‑sensitive. Control the plastication zone at 170–180 °C, and keep the die temperature below 190 °C. Reduce screw speed by 5–10% below normal (e.g., from 40 rpm to 36 rpm) to avoid shear‑induced overheating.

2. The order of mixing matters
First mix PVC resin and the flame retardants (FR‑ML‑01, T3) at high speed for 3 minutes, then add calcium carbonate and stabiliser. If the order is reversed, calcium carbonate will coat the flame retardant first, and no amount of subsequent mixing will separate them. Keep the mixing temperature at 80–100 °C.

3. Choose the right lubricant
EBS‑type lubricants easily react with flame retardants and cause yellowing. Safer alternatives are calcium stearate or PE wax. You may increase the external lubricant slightly by 0.2–0.3 phr to reduce die build‑up.

6. Summary

Calcium carbonate is not forbidden, but the way you use it determines the success or failure of flame retardancy. To retain V‑0 at high filler loadings, you need to replace the flame retardants that are easily "bullied" with alternatives such as the antimony trioxide substitute (YINSU T3) and the Mg‑Al layered flame retardant (YINSU FR‑ML‑01), together with a tin/zinc rare‑earth char‑forming agent.

If you face similar problems – flame retardancy drops when calcium carbonate is increased, or smoke density always exceeds the limit – feel free to discuss your current formulation with us. We can provide a free formulation optimisation analysis. You may not need to change the whole system; often adjusting just two or three components solves the problem.

Request samples or technical consultation: Send a private message or leave a comment saying "PVC formulation optimisation", and we will arrange for a technical engineer to contact you. You can also directly reach the technical department of YINSU Flame Retardant (phone/email).
