Engineers working on modified formulations have mostly encountered this scenario: the same flame retardant passes testing on the supplier's sample plaques, but once it hits your production line, you get erratic flame retardancy, rough surface finish, or white surface bloom after two weeks of storage. You tweak the loading, switch lubricants,change screw configurations run around in circles and the problem persists.

At this point, the issue is usually not in the flame retardant's "core," but in its "skin"—the surface hasn't been properly treated.

I. Why Is the Difference Between Modified and Unmodified So Large?

The surface properties of flame retardant particles directly affect their behavior in resin. Unmodified particles have high surface polarity and are hydrophilic, making them inherently incompatible with non-polar or weakly polar resins like PP and PA. When simply blended, particles tend to agglomerate and clump, leading to locally excessive or insufficient concentrations. The results: batch-to-batch instability in flame retardancy, compromised mechanical properties, and affected part appearance.

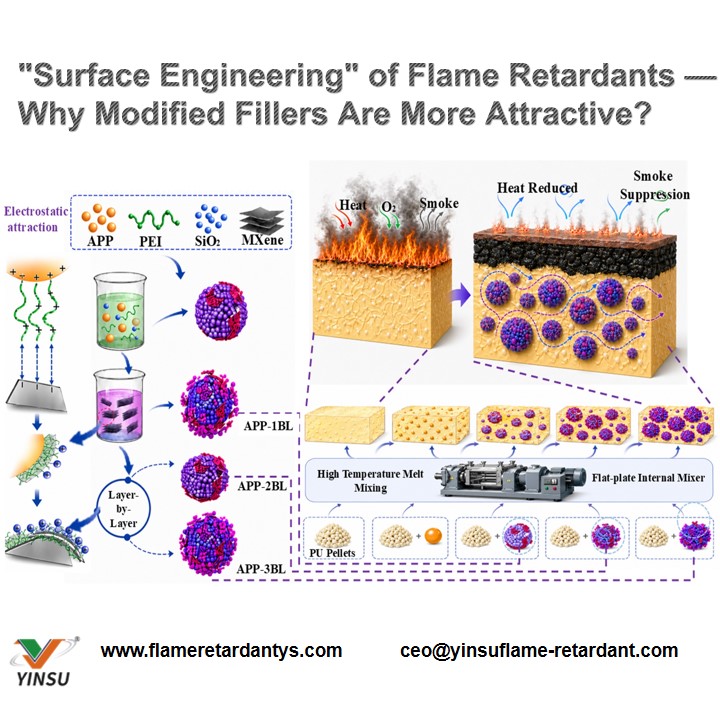

The essence of modification is "putting a coat on" the particle surface. Through coupling agents, surfactants, or resin coatings, the surface is transformed from "resin-repelling" to "resin-friendly." This coat also acts as a lubricant, reducing shear heat during processing and minimizing damage to the resin matrix.

Below, we break down the practical differences between modified and unmodified versions for several mainstream halogen-free flame retardants.

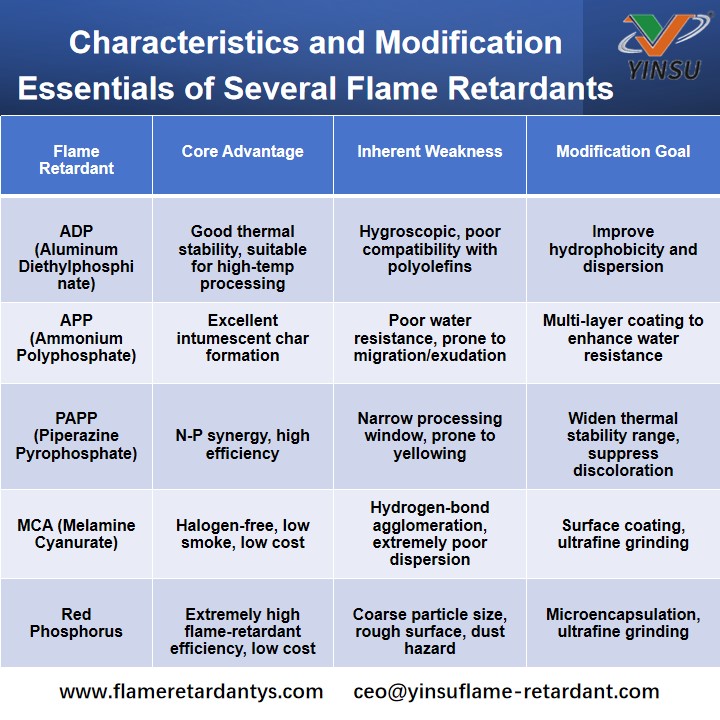

II. Characteristics and Modification Essentials of Several Flame Retardants

III. How to Select Treatment Agents and Processes?

1. Treatment Agents: Targeted Solutions

• Silane coupling agents: Suitable for ADP. Improve interfacial bonding with polymers while increasing hydrophobicity.

• Titanate coupling agents: Suitable for APP. Enhance dispersion and reduce migration.

• Polymeric treatment agents: Suitable for PAPP. Provide thermal protection and widen the processing window.

• Fatty acids/stearates: Suitable for MCA. Disrupt hydrogen-bond agglomeration and reduce particle size.

• Resin coating layers: Suitable for red phosphorus. Microencapsulation eliminates dust and improves compatibility.

2. Processes: Dry vs. Wet Methods Each Have Their Place

• Dry processing: Simple and low-cost. Suitable for surface coating of MCA and hydrophobic treatment of ADP. Yinsu Flame RetardantMCA-B uses dry high-speed mixing + surface coating, achieving D50 ≤ 3 μm.

• Wet processing: More uniform coating. Suitable for water-resistance modification of APP and microencapsulation of red phosphorus. Yinsu Flame Retardant coated red phosphorus masterbatch uses wet processing + vacuum drying, with a dense coating layer and particle size controlled below 2500 mesh.

• Reactive processing: Chemical bonding for lasting effects. Suitable for high-end modification of PAPP and ADP, but at higher cost.

IV. Modification Comparison of Two Typical Products

1. MCA-B: From "Loves to Clump" to "Evenly Dispersed"

Ordinary MCA particles, due to hydrogen bonding, easily agglomerate into chunks of tens or even hundreds of microns. During compounding in nylon, these agglomerates cannot be broken up, leading to:

• Erratic flame retardancy (V-0 today, V-2 tomorrow)

• Rough surface with pitting, poor gloss

• Reduced impact strength

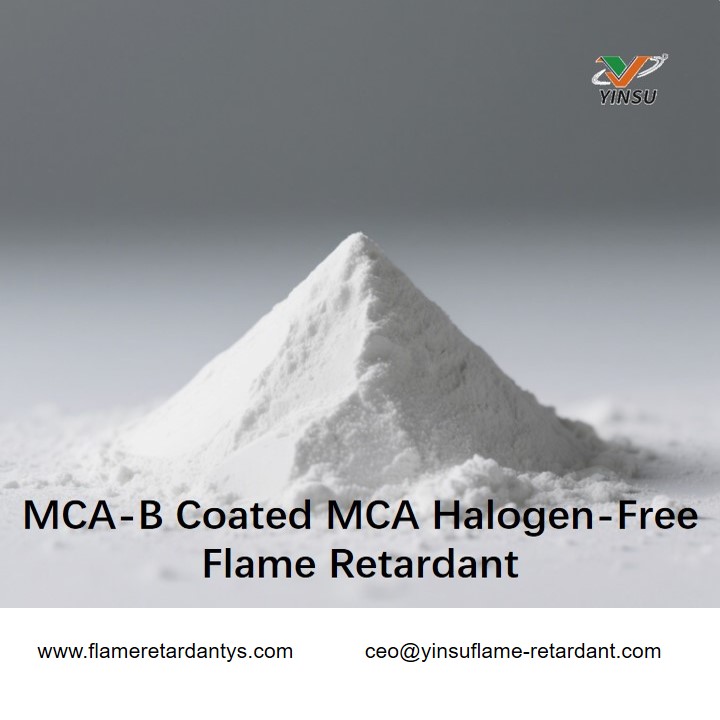

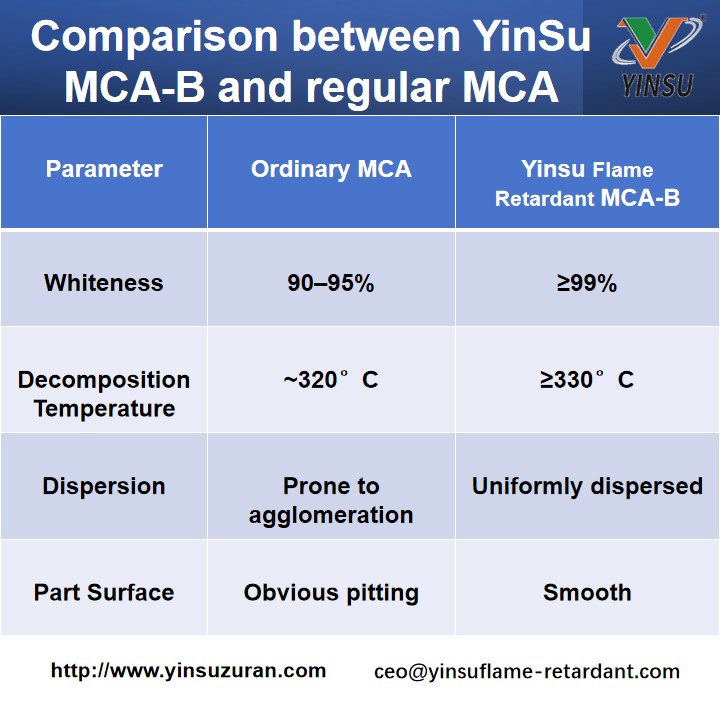

• Yinsu Flame Retardant MCA-B solves the agglomeration problem through surface coating and ultrafine grinding:

Adding 5–10% MCA-B in PA6 stably passes UL94 V-0 with significantly better surface gloss than ordinary MCA. Impact strength retention improves by approximately 25%.

2. Coated Red Phosphorus: From "Rough" to "Pitting-Free Surface"

Ordinary red phosphorus masterbatch has coarse particle size (approx. 300 mesh), resulting in rough part surfaces—only suitable for hidden internal components. Moreover, red phosphorus powder itself is a hazardous material with significant processing dust.

Yinsu Flame Retardant FRP-950X series uses wet-process microencapsulation, with coated red phosphorus active content ≥80% and D50 particle size approx. 2500 mesh. The dense coating layer ensures dust-free processing and smooth, pitting-free surfaces on cables or parts. In PA66 + 30% GF, adding 6–8% achieves UL94 V-0 (1.6 mm) with LOI ≥ 34.

V. Real Cases: Performance Differences After Modification

Case 1: PA6 Connector (MCA)

• Original ordinary MCA: 12% loading, flame retardancy fluctuating V-0/V-2, surface pitting, 40% impact strength drop

• Switched to Yinsu Flame Retardant MCA-B: 5% loading, batch-stable V-0, smooth surface, 25% improvement in impact retention

Case 2: Dark PE Low-Smoke Halogen-Free Cable

• Original ordinary red phosphorus masterbatch: 10% loading, rough surface with pitting, customer rejection

• Switched to Yinsu Flame Retardant FRP-950X: 5% loading, smooth surface, LOI 34, passed V-0 in one go

Case 3: PP Film (PPAP System)

• Original untreated PPAP: White surface bloom after one month of storage, agglomeration, flame retardancy downgrade

• Switched to Yinsu Flame Retardant modified PPAP (water-resistant type): No exudation after 1000h double-85 testing, reduced clumping, stable flame retardancy

VI. Conclusion: Surface Modification Is Not Just "Window Dressing"

For formulation engineers, selecting the right flame retardant is only the first step. The same chemical structure, modified versus unmodified, shows significant differences in dispersion, flame-retardant stability, part appearance, and long-term exudation. When you've been trial and error your formulation and are still stuck on a particular issue, consider whether the flame retardant's "surface work" is up to par—sometimes switching to a well-modified product is more cost-effective than spending another week tweaking parameters.

Yinsu Flame Retardant has specialized in flame retardant surface modification for 22 years, offering MCA-B, coated red phosphorus masterbatch, and customized modification solutions for ADP/APP/PAPP. For samples or technical discussions, please leave a comment.
