Why Flexible PVC Loses Flame Resistance — The Plasticizer Problem

This isn’t a formulation issue; it’s a matter of understanding.

Pure PVC does indeed possess inherent flame retardancy, with the limiting oxygen index (LOI) of suspension-processed PVC resin being approximately 45%. However, cable compound engineers never use pure PVC—instead, they use flexible PVC containing 30 to 50 parts of plasticizer. In this system, the LOI drops to 22–24%, which is comparable to that of PE without added flame retardants. Containing chlorine does not equate to being flame retardant.

How Do Plasticizers “Neutralize” Flame Retardants?

Second, they dilute the flame-retardant effect of chlorine. PVC’s flame retardancy relies on the release of HCl during combustion, which forms a gaseous flame-retardant layer. Plasticizers volatilize extensively at high temperatures, diluting the HCl concentration and significantly reducing its ability to block oxygen.

Third, it destroys the char layer. The conjugated polyene structure formed by pure PVC after HCl is released can cross-link to form a char layer. The decomposition products of plasticizers create “holes” in this char layer, allowing heat and oxygen to penetrate through them, causing the internal substrate to continue pyrolyzing.

As a result of these three factors, the original flame-retardant advantages are completely negated.

What are the limitations of traditional solutions?

Engineers typically have three options to bridge this gap:

First, antimony-halogen synergy. It is highly efficient and delivers excellent results. However, Sb₂O₃ has been flagged as a priority substance under the EU’s REACH regulation. If your product is intended for export to Europe, this route will eventually be blocked.

Second, aluminum hydroxide. It is halogen-free, environmentally friendly, and low-cost. However, to meet UL-94 V-0 requirements, it typically needs to be added at a concentration of 40–60 parts. Such a high concentration puts a strain on the extruder’s torque and causes screw wear; it also reduces the flexibility of the cable compound, and its retention of physical properties at high temperatures is inferior to other solutions.

Third, phosphate ester plasticizers. They possess inherent flame retardancy but exhibit high migration. After a few months of use, surface migration leads to sticking, failure, and customer complaints.

All three options are viable, but each has its pitfalls. How to choose? It depends on which risk you find most unacceptable: compliance risk, loss of physical properties, or long-term reliability.

The Core Logic of the Red Phosphorus Solution

Red phosphorus relies on condensed-phase flame retardancy—at high temperatures, it generates phosphoric acid and polyphosphoric acid, which catalyze the dehydration of PVC into carbon, forming a dense phosphorus-carbon cross-linked layer that blocks heat and oxygen.

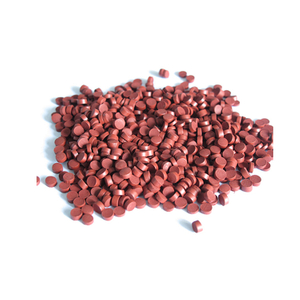

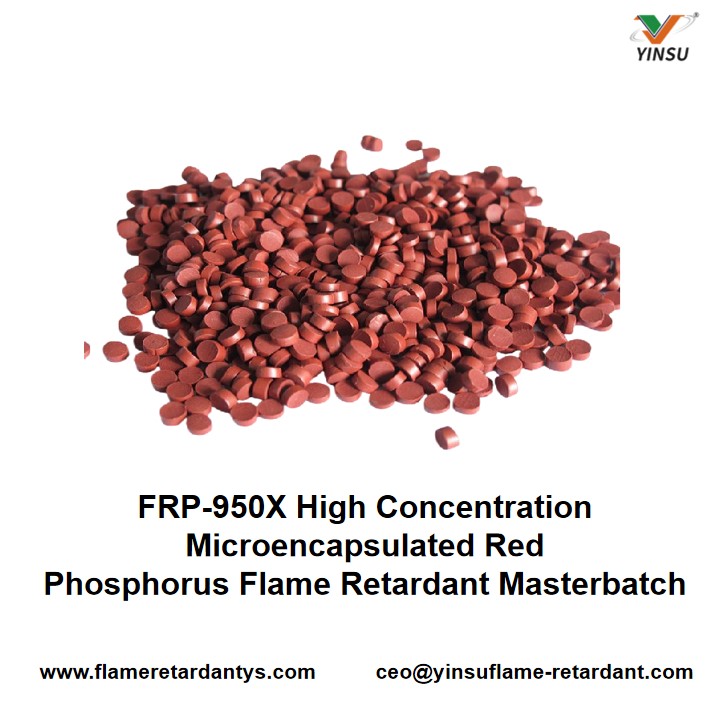

We have conducted extensive validation tests. In a formulation consisting of 100 parts PVC, 45 parts DOTP, and 6 parts Ca/Zn stabilizer, adding 10 parts of coated red phosphorus masterbatch increases the LOI from 23% to 31%, and a 1.6mm test specimen passes the UL-94 V-0 test. Specific values depend on the formulation system and processing conditions; we recommend experimental validation.

• Flexibility is maintained: Loss of elongation at break is kept within a reasonable range

• Electrical properties are maintained: Volume resistivity can be sustained at a high level, making it suitable for medium- and high-voltage cables

• Surface finish is maintained: The extruded surface shows virtually no difference from formulations without flame retardants

In other words, red phosphorus is the only option that allows for “supplemental flame retardancy” without compromising the core performance of the cable compound.

Three Practical Tips for Your First Sample Test

1. Temperature Limits

Coating the surface of red phosphorus at temperatures above 180°C can cause thermal damage. Control the discharge temperature of the internal mixer between 165–175°C, and ensure the roller temperature of the open mill does not exceed 170°C.

2. Pre-dispersion Is Critical

The true density of red phosphorus (approximately 2.3 g/cm³) differs significantly from that of PVC resin. First, use DOTP plasticizer to wet and pre-disperse the red phosphorus into a slurry. The recommended ratio is red phosphorus:DOTP = 1:1.2. Let it stand for 2 hours to ensure no settling occurs before loading it into the internal mixer.

3. Test Sequence

First, test the LOI and UL-94 vertical burning tests to determine the flame retardancy efficiency; then test the LOI retention rate after 100°C × 168 h thermal aging; finally, test the volume resistivity and elongation at break. Do not test physical properties first—if the physical properties pass but the flame retardancy fails, all your efforts will be in vain.

Conclusion

Flame retardancy in flexible PVC is not simply a matter of whether or not chlorine is present, but rather how much of the flame-retardant benefit provided by chlorine is offset by the plasticizers. Only by using the right flame retardant can this balance be restored.

If the plasticizer content in the formulation already exceeds 30 parts, rather than agonizing over the choice between Sb₂O₃ and ATH, it is better to first test the baseline LOI. If it’s already below 25%, red phosphorus may be the only way to make the numbers work.
