Analysis of The Performance Impact of Flame Retardants in Nylon Materials

Analysis of the Performance Impact of Flame Retardants in Nylon Materials

I. Impact of Flame Retardants on Nylon Properties
Adding flame retardants is a double-edged sword. While enhancing flame retardancy, it often negatively impacts other key properties of nylon. The extent of this impact depends on the flame retardant type, loading level, compatibility with the matrix, and processing conditions.

1. Mechanical Properties:

Negative Impact (Common):

• Tensile Strength, Flexural Strength/Modulus: Most flame retardants (especially inorganic fillers like Al(OH)₃, Mg(OH)₂, and some organic flame retardants) act as "fillers" or "foreign substances" within the matrix, disrupting the regularity and continuity of the nylon molecular chains. This typically leads to a decrease in tensile strength, flexural strength, and modulus. The decline becomes more pronounced with higher loadings. Red phosphorus, while efficient, also significantly reduces strength at higher addition levels.

• Impact Strength: This is one of the most significantly affected properties. Rigid flame retardant particles (inorganics, red phosphorus, etc.) can act as stress concentration points, initiating and promoting crack propagation, leading to a notable decrease in notched and (especially) unnotched impact strength. Halogen-based systems (particularly when synergized with Sb₂O₃) typically have a less negative impact on impact strength compared to high-loading inorganic hydroxides.

Neutral or Positive Impact (Less Common):

• Some specially designed flame retardants, or formulations incorporating surface modification or toughening agents, can mitigate the deterioration of impact strength. In rare cases, there might even be a slight improvement (though simultaneously improving both flame retardancy and toughness is very challenging).

• Inorganic filler-type flame retardants (Al(OH)₃, Mg(OH)₂) usually increase the flexural modulus (making the material stiffer).

2. Thermal Properties:

• Heat Deflection Temperature (HDT): The addition of rigid inorganic fillers (Al(OH)₃, Mg(OH)₂) typically increases the HDT because the fillers restrict the movement of the polymer chains. Other types of flame retardants have a smaller effect or may slightly lower the HDT.

• Long-Term Thermal Aging Performance: Some flame retardants (especially organic halogen- and phosphorus-based ones) may decompose or undergo side reactions with the nylon matrix under prolonged high temperatures. This can lead to material discoloration (yellowing), embrittlement, and accelerated decline in mechanical properties. Selecting flame retardants with high thermal stability (e.g., certain high molecular weight brominated systems, halogen-free phosphorus-nitrogen systems) is crucial.

• They must be stable at the processing temperatures of the specific nylon (e.g., PA66 often processes >280°C), otherwise premature decomposition and failure occur. Red phosphorus, brominated systems, and phosphorus-nitrogen systems generally offer higher thermal stability, making them suitable for high-temperature nylons.

3. Electrical Properties:

Negative Impact: Flame retardants, particularly ionic types (inorganic hydroxides, certain metal synergists) and those with strong polarity (e.g., some phosphorus-nitrogen systems), can degrade the inherent excellent electrical insulation properties of nylon. Main manifestations include:

• Decrease in volume resistivity.

• Increase in dielectric constant and dissipation factor.

• Decrease in Comparative Tracking Index (CTI): This is especially critical for high-voltage electrical components. Bromine-antimony systems significantly reduce CTI (typically <200V), whereas halogen-free flame retardant systems (especially phosphorus-nitrogen systems, metal hydroxides) often maintain a higher CTI (>400V or even >600V). This is a key advantage of halogen-free flame-retardant nylons in the electronics and electrical fields.

4. Processing Properties:

• Melt Viscosity: High loadings of inorganic flame retardants significantly increase melt viscosity, leading to processing difficulties (e.g., higher injection pressure, poorer flow). Organic flame retardants (brominated, phosphorus-nitrogen) have a relatively smaller impact on viscosity.

• Mold Corrosion / Screw Wear: Red phosphorus (especially uncoated or poorly coated varieties) and acidic gases produced by the decomposition of halogenated flame retardants (e.g., HBr) can corrode processing equipment (screws, barrels, molds). Inorganic fillers (hydroxides) are abrasive and can accelerate screw and mold wear.

• Blooming / Blooming: Certain flame retardants or additives (e.g., lubricants, synergists) may migrate to the surface of the product, affecting appearance, feel, and subsequent processing (like painting, bonding). Poorly compatible flame retardants are more prone to this.

• Moisture Sensitivity: Nylon itself is hygroscopic. Certain flame retardants (e.g., inorganic hydroxides) can further increase moisture absorption, requiring stricter drying before processing.

5. Appearance and Color:

• Color Limitation: Red phosphorus can only be used for dark-colored products (typically red or black). Brominated flame retardants may cause slight yellowing. Phosphorus-nitrogen flame retardants are usually light in color and can be used for light-colored or natural products. Inorganic hydroxides are white.

• Surface Finish: High loadings of inorganic flame retardants may reduce the surface gloss of molded parts.

6. Density:
Inorganic flame retardants (Al(OH)₃, Mg(OH)₂, Sb₂O₃) have a significantly higher density than the nylon matrix, leading to an increase in the final material density. Organic flame retardants (brominated, phosphorus-nitrogen) have a relatively smaller impact on density.

7. Environmental and Regulatory Aspects:

• Halogenated Flame Retardants: These are subject to strict restrictions under environmental regulations like RoHS, REACH, WEEE (especially PBBs, PBDEs), facing phase-out or substitution pressure. They may produce toxic fumes and corrosive gases (dioxin risk) during combustion.

• Halogen-Free Flame Retardants: Phosphorus-based (red phosphorus, organic phosphorus, phosphorus-nitrogen), nitrogen-based, inorganic hydroxides, and silicone-based systems are the main development directions. They are more environmentally friendly (low toxicity, low smoke, no corrosive gases) but may require higher loadings or face other performance challenges (e.g., balancing thermal stability and electrical properties).

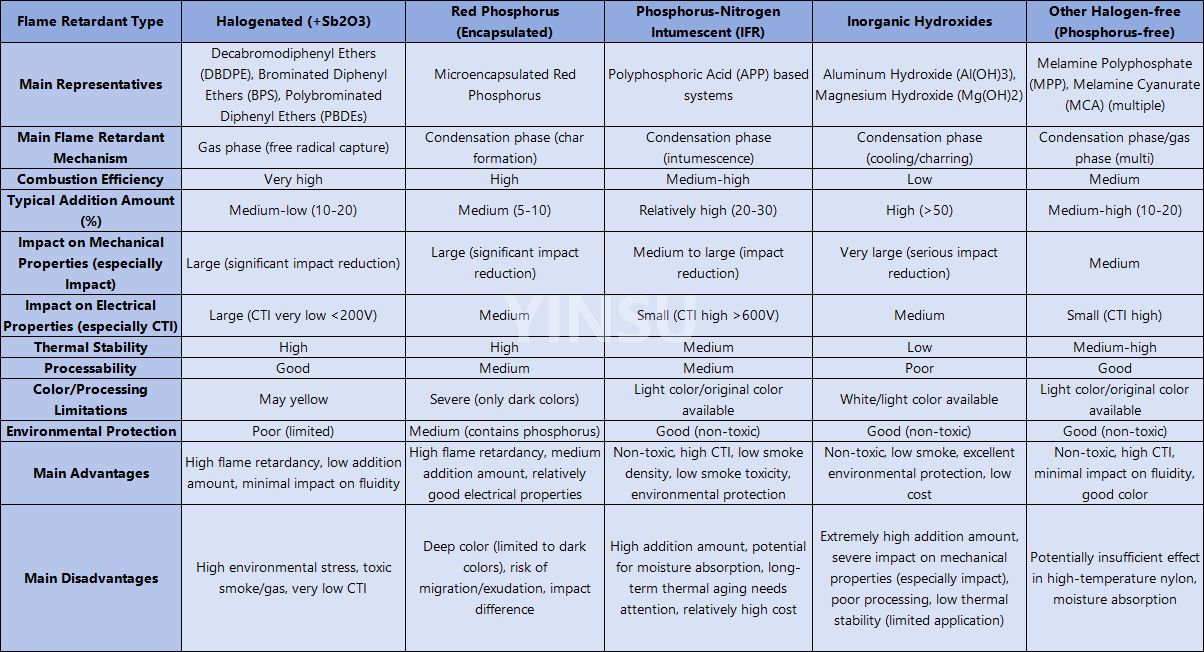

II. Overview of Common Nylon Flame Retardant Types and Their Performance Impact Comparison

III. Summary and Selection Considerations

• Flame retardancy is a mandatory requirement: For many applications, it is a necessary condition for the safe use of nylon materials.

• Performance trade-off is the core: There is no "perfect" flame retardant. The key to selection lies in a comprehensive evaluation and balance based on the specific application scenario, performance requirements (flame retardancy rating, mechanical strength, toughness, electrical properties, thermal properties, appearance, density), and environmental regulations for the final product.

• Halogen-free is the trend: Increasingly strict environmental regulations are driving halogen-free flame retardants (especially intumescent phosphorus-nitrogen IFR systems, specific diazine-based MCA/MPP) to become the mainstream direction for R&D and application, particularly in the electronics and electrical fields (high CTI requirements).

• Synergism and Blending: Combinations of multiple flame retardants or the addition of synergists (e.g., silicone-based, nano-fillers) are often used to enhance flame retardant efficiency, reduce total loading, and improve overall performance (e.g., impact toughness, thermal stability).

• Surface Modification and Compatibilization: Surface treatment of flame retardants (especially inorganic fillers) can improve their dispersion and compatibility within the nylon matrix, mitigating the negative impact on mechanical properties (particularly impact strength) and reducing blooming.

• Processing Optimization: Adjusting processing parameters (temperature, screw design, drying conditions, etc.) for different flame retardant systems is crucial.

In short, flame retardants provide nylon with vital fire safety, but they require careful selection and formulation design to minimize their negative impact on the material's other excellent properties (mechanical strength, toughness, electrical performance, processability, appearance) and to meet increasingly stringent environmental requirements. In practice, a deep understanding of the characteristics of various flame retardants and their interaction mechanisms with nylon is key to successfully developing high-performance flame-retardant nylon materials.
