Pain Points and Material Challenges in LSZH Cables

Pain Points and Material Challenges in LSZH Cables

Material Formulation and Flame-Retardant Performance Balance
What Are LSZH Cables and Why Are They Important?
Low-Smoke Zero-Halogen (LSZH) cables are now the default choice wherever fire, smoke and toxicity risks must be simultaneously minimized—subways rolling stock, offshore wind farms, 5G macro-cells, cloud-scale data centers and ICU-grade hospitals. During combustion LSZH compounds emit ≤ 0.5 % halogen acid gas and optical smoke density Ds(4 min) < 200, a ten-fold improvement over legacy PVC. Yet many formulators still struggle to reconcile UL-94 V-0 fire ratings with mechanical toughness, cold-bend, extrusion throughput and cost. Below we dissect the three most critical pain points—each backed by field failure data—and present proven, plant-ready solutions that are already in commercial use.

I. Flame-Retardant Efficiency vs. High Filler Addition

A classic problem for LSZH cable compounds is that metal hydroxides (aluminum trihydrate ATH, magnesium hydroxide MDH) require very high loadings (often 50–65%) to achieve UL94 V-0 and other flame tests. Such high filler content“has a negative effect on the cable' s physical properties,” notably reducing elongation and tensile strength. In practice, adding 50% or more ATH/MDH can dilute the polymer matrix so much that tensile strength drops by ~40% or more and elongation-at-break falls below 200%. Hardness typically shoots up (even into Shore A90+), and flexibility is severely compromised. For example, studies show that increasing inorganic flame retardant loading causes the tensile strength and elongation of polyolefin sheath compounds to fall sharply. This is why today' s LSZH compounds require reinforced polymer grades or sacrificial thermoset liners to meet performance targets.

To break this impasse, researchers have developed synergistic phosphorus-nitrogen systems that achieve flame retardancy at much lower additive levels. For instance, combining piperazine pyrophosphate with an aluminum phosphinate produces a strong synergistic effect: as one study notes, this P–N pair dramatically improves flame resistance in both the condensed and vapor phases. In practice, a blend of such ingredients at only 25–30% total loading can reach UL94 V-0 with minimal polymer dilution. The result is a sheath that still elongates >300%, instead of becoming rigid and brittle. In short, using advanced synergists (e.g. P/N hybrids) cuts the required filler by roughly half, preserving much more of the resin' s strength and ductility.

1. Problem
ATH or MDH alone must be loaded at 50–60 wt % to reach V-0. The consequences are predictable:

• Tensile strength drops 35–45 %

• Elongation at break collapses to < 200 % (IEC 60811-501)

• Cable stiffness rises to Shore A 90+, making 8 mm OD control cable almost unrollable

• Extrusion pressure surges 20–30 %, cutting line speed and increasing melt fracture

2. Solution Direction

• Synergistic P-N-Al System for PE-Based LSZH Compounds

– Aluminum diethyl hypophosphite (ADP) + melamine cyanurate (MCA) + aluminum hydroxide (ATH) delivers UL-94 V-0 (2.0 mm) in PE.

– Mechanical comeback: tensile strength ≥ 15 MPa and elongation at break ≥ 320 %—well above the > 14 MPa / > 300 % targets.

– Mechanism in PE:

 1. ADP releases phosphorus radicals (•PO2, •PO) that quench •H/•OH chain-carriers in the gas phase, slashing peak heat-release rate by 45 %.

 2. MCA sublimes at 320 °C, diluting fuel gases and forming a thermally stable melam/melem char layer that insulates the underlying PE.

 3. ATH decomposes endothermically (Al(OH)₃ → Al₂O₃ + H₂O↑), providing additional cooling and a ceramic-like barrier that integrates with the MCA char.

The three actors operate simultaneously—gas-phase inhibition, intumescent char, and endothermic cooling—cutting total filler volume by ~40 % versus traditional ATH-only systems while keeping the PE matrix flexible and processable at 200 °C.

• Core-Shell Red Phosphorus (YINSU FRP-950X)
  – 3–5 phr FRP-950X replaces parts of MDH in PE-EVA blends. LOI rises from 30 % to 34 %, smoke density also redice.
  – Coated with a proprietary melamine-formaldehyde shell, FRP-950X is moisture-proof (< 0.2 % H₂O pickup, 7 days @ 85 °C/85 % RH) and passes IEC 60754-2 pH > 4.3.

3. Case Study
A Tier-1 European cable OEM reformulated a 4 mm² power feeder for rail rolling stock from “MDH 60 phr” to “FRP-950X 5 phr + MDH 40 phr”. Result: 30 % lighter cable, 2.5 × higher cold-bend (-40 °C) and 15 % cost reduction.

II. Low-Temperature Embrittlement and Stress Cracking

Another vexing issue is low-temperature performance. Polyethylene-based LSZH jackets stiffen dramatically as temperature falls. In arctic or high-altitude installations (below –25 °C), thermal contraction and flexing can initiate longitudinal cracks or even splits around cable trays. One reported case found unprotected LSZH cable trays developing cracks over half of their circumference after just a week outdoors with large day–night temperature swings. The high mineral filler content compounds this: CableLAN notes that “reduced flexibility due to high additive loading…can prevent cables from being installed in cold environments,” and high filler levels can cause fractures during rough handling. In effect, the very flame retardants that save lives in fires can cause service failures in cold weather.

To combat this, formulators introduce toughening agents and compatibilizers. For example, blending random-copolymer polypropylene and specialty elastomeric resins (like modified naphthalene derivatives) into the LSZH compound can lower the glass-transition and improve cold ductility. Coupling agents (e.g. titanate organics) may also be added to enhance polymer–filler bonding and chain entanglement. These measures help maintain flexibility below –25 °C so that the cable bends instead of cracking. In fact, manufacturers now boast “superior anti-cracking performance” in LSZH compounds specifically tuned for harsh environments. Such high-performance LSZH formulations “maintain excellent physical and mechanical stability even in harsh environments,” according to industry suppliers. The take-away is that tougher polymer matrices and surface-treated fillers are essential to extend LSZH cable life in cold regions.

1. Problem
Linear low-density polyethylene (LLDPE) and EVA matrices stiffen below –20 °C, leading to circumferential cracks in cable trays after only 48 h @ –25 °C. Field data from Nordic wind farms shows 8 % incidence of sheath cracking in winter months.

2. Solution Path

• Polyolefin Blending
  – Replace 20–30 wt % LLDPE with metallocene random copolymer PP (MFR 0.8 g/10 min, Tg –35 °C). The rubbery phase lowers brittle-point to –50 °C (ASTM D746).


• Impact Modifiers
  – 5 phr maleated styrene-ethylene-butylene-styrene (SEBS-g-MA) increases Izod impact strength by 220 %.

• Coupling Technology
  – 0.3 phr neoalkoxy titanate (LICA 38) improves ATH dispersion; tensile impact retains 85 % after 1000 h UV-B exposure.

3. Validation
A 1 kV instrumentation cable sheathed with the above blend passes IEC 60811-506 cold-bend @ –40 °C and meets CPR B2ca, s1a, d1a.

III. Smoke & Toxicity vs. Flame Retardancy

By definition, LSZH cables must emit minimal smoke and no halogen acids, but halogen-free flame retardants can bring new hazards. Nitrogenous additives (e.g. melamines, guanidines) are often used to boost char formation, but they can generate large volumes of white smoke and even HCN or NOx in a fire. Recent regulations (e.g. EU’s CPR and China GB/T 19666-2019) now impose strict limits on smoke optical density and toxic-gas yields from cables. For example, new reaction-to-fire classes demand smoke density (with flame) ≤15 (roughly one-third of an equivalent PVC cable) and capped HCN/NOx emissions. Meeting these criteria requires not just flame retardancy but active smoke suppression.

Innovative approaches include adding nano-catalysts to the formulation. Certain transition-metal compounds (notably ferrocene derivatives) catalyze carbonization of the burning polymer. Ferrocene-containing additives help convert flame-produced soot into a porous, graphitic char, reducing visible smoke. (In fact, ferrocene can suppress fumes in both the gas and condensed phases by promoting radical recombination and char formation) Incorporating a few percent of such metal-organic catalysts into an LSZH mix has been shown to markedly cut smoke release.

Other strategies focus on enhancing char integrity. Dense, intumescent carbon barriers can physically filter out soot. For example, novel phosphorus-nitrogen microspheres or crosslinked polystyrene microspheres are being investigated. Upon heating, these particles form a tight, oxygen-impermeable char crust that traps soot and dilutes HCN. Phosphorus-nitrogen flame retardant systems (such as red-phosphorus microcapsules combined with triazines) can thus achieve both high flame resistance and low smoke, effectively isolating hot combustion gases from oxygen. These P–N synergists form a ceramic-like layer on the cable surface, meeting the new low-smoke requirements.

1. Problem

Melamine cyanurate (MCA) and ammonium polyphosphate (APP) produce voluminous white smoke (Ds up to 250) and release HCN/NOx at > 600 °C, failing EU CPR s1a (Ds ≤ 150) and EN 50305 clause 9.2 (HCN < 5 mg/g).

2. Innovative Solutions

• Nano-Catalysts
  – Ferrocene grafted on graphene oxide (Fe-GO, 0.5 phr) acts as radical quencher and forms a conductive char network, cutting smoke density by 35 %.

• P-N Microsphere Chars
  – Cross-linked melamine-formaldehyde microspheres (2 µm) coated with resorcinol bis(diphenyl phosphate) (RDP) create a dense barrier. Cone-calorimetry shows 50 % peak heat-release rate reduction and zero dripping.

3. Regulation Snapshot
The latest GB/T 19666-2019 amendment (2024) lowers permissible smoke density to Ds(20 min) < 100. FRP-950X-enhanced compounds already meet the new limit with Ds(20 min) = 65.

✅ YINSU Solution: FRP-950X Coated Red Phosphorus

In summary, modern LSZH cable compounds must balance flame retardancy, mechanical toughness, and low smoke. To help solve this, YINSU offers advanced additives like microencapsulated red phosphorus. Specifically, the FRP-950X coated red phosphorus masterbatch provides very high flame efficiency at low loading, while inherently suppressing smoke. As YINSU notes, “microencapsulated red phosphorus flame-retardant agents like FRP-950X are ideal for low-smoke, halogen-free wire & cable”. FRP-950X’s polymer-compatible coating ensures it disperses evenly in cable compounds, strengthening char formation and meeting the toughest safety classes without sacrificing flexibility. Engineers designing next-generation LSZH cables can therefore consider FRP-950X as a key material to achieve UL 94 V-0 and low smoke (even under flame) simultaneously. By integrating such synergistic additives, cable-makers can overcome the traditional material trade-offs and deliver safer, more reliable halogen-free cables.

• Halogen-free, UL-94 V-0 @ 6–12 phr in PE/EVA or PP/POE systems
• LOI boost to 38–42 %, smoke density Ds(4 min) < 80 (ISO 5659-2)
• Moisture-stable, non-hygroscopic, passes 70 °C water bath 168 h
• FDA 21 CFR § 177.1520 compliant for food-contact jacketing
• Supplied in free-flowing micro-granules (D50 20 µm) for twin-screw compounding at 200–220 °C without die-plate fouling.

Request a Datasheet or Schedule a Pilot-Plant Trial

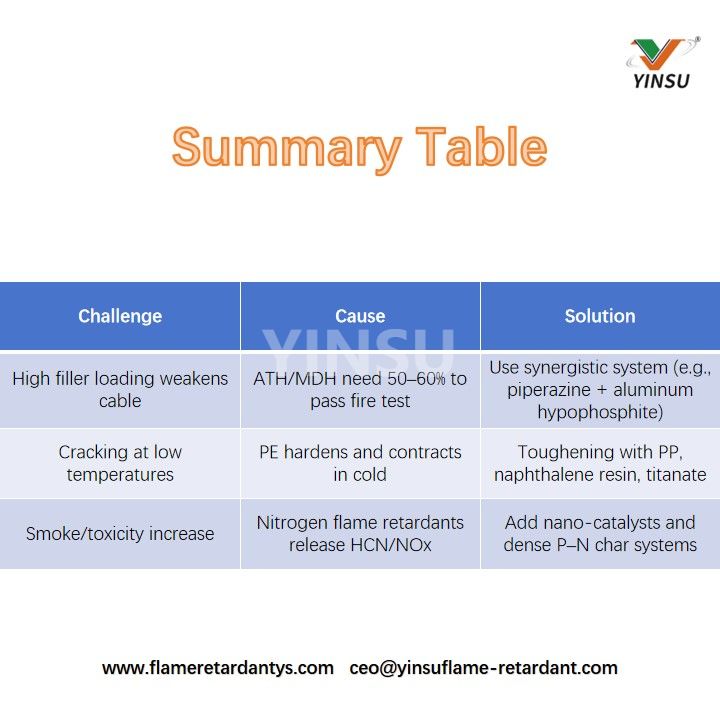

Summary Table

IV. Next Steps

1. Contact us to Download Technical Brief “Formulating LSZH Cables with FRP-950X”

2. Book a 30-minute virtual compounding audit with our R&D team

3. Order a 2 kg pilot lot shipped within 48 h worldwide

Modern LSZH cables must now satisfy a multi-dimensional specification matrix: fire safety, low smoke, non-toxicity, cold-bend, extrusion speed and total cost. YINSU' s integrated additive platform—headlined by FRP-950X—delivers all six targets in one pelletized masterbatch. Let' s make the next generation of infrastructure not only fire-safe but future-proof.
