The Applicability of Red Phosphorus Flame Retardants in Recycled Materials: An Underestimated Solution for the Circular Economy

The Applicability of Red Phosphorus Flame Retardants in Recycled Materials: An Underestimated Solution for the Circular Economy

Under the wave of the plastic circular economy, the proportion of reclaimed materials (recycled plastics) in use is increasing year by year. However, flame retarding reclaimed materials has always been a technical pain point in the industry. The sources are mixed, impurity content is high, and physical properties fluctuate significantly, often rendering conventional flame retardant solutions inadequate. Against this backdrop, the unique advantages of high-content red phosphorus masterbatch, a mature yet often overlooked flame retardant technology, in reclaimed material systems urgently need to be reassessed.

I. The Practical Dilemma of Flame Retarding Reclaimed Materials

The fundamental differences between reclaimed materials and virgin materials dictate that flame retardant strategies must take a different approach. First, material contamination is a particularly prominent issue. Post-consumer recycled plastics often contain various polymer types, different colored pigments, and "non-intentionally added substances" (NIAS) such as inks and adhesives. These impurities may decompose during high-temperature processing, catalyze degradation of the base material, or undergo unpredictable chemical reactions with the flame retardant system, interfering with the flame retardant effect.

Second, molecular chain degradation leads to a significant decrease in the melt strength and physical properties of reclaimed materials. After multiple processing cycles, polymer molecular chains break and intrinsic viscosity decreases, leaving the material itself in a "sub-healthy" state. If traditional flame retardants are added at this point, higher loading levels are often required to meet standards, which further worsens processing performance, creating a vicious cycle.

Even more challenging is that many mainstream halogen-free flame retardants are not well-suited for reclaimed materials. Organic phosphorus flame retardants, represented by aluminum diethylphosphinate (ADP, such as the Exolit OP series), while performing excellently in virgin materials, have clear limitations in recycled systems. The flame retardant efficiency of materials containing ADP can significantly decrease or even fail during secondary processing. This implies that such "single-use" flame retardant solutions fundamentally conflict with the principles of a circular economy. Additionally, ADP and other organic phosphorus compounds have relatively limited thermal stability (decomposition temperature around 300°C). When reclaimed materials require higher processing temperatures to compensate for lost flowability, these compounds are prone to decomposition and migration blooming.

II. Technical Advantages of Red Phosphorus Masterbatch

In contrast to the difficulties mentioned above, high-content red phosphorus masterbatch demonstrates unique suitability.

1.  Superior Flame Retardant Efficiency and Low Addition Rate Advantage

Red phosphorus has a phosphorus content exceeding 80%, giving it a theoretical flame retardant efficiency far surpassing other phosphorus-based flame retardants. In practical applications, a red phosphorus masterbatch addition level of typically 5-10% can achieve UL94 V-0 rating, whereas ADP often requires 15-20% or even more. For reclaimed materials, which already suffer from property degradation, a low addition rate is crucial as it minimizes damage to the mechanical properties of the base material.

2. Excellent Thermal Stability

Red phosphorus has a decomposition temperature around 300°C, which is higher than most organic phosphorus flame retardants, allowing it to withstand the more demanding temperature conditions often encountered during the processing of reclaimed materials. This characteristic enables red phosphorus masterbatch to maintain its flame retardant activity during multiple melt processing cycles of reclaimed materials, unlike some organic phosphorus compounds that fail due to thermal decomposition. Studies have shown that red phosphorus masterbatch does not bloom, migrate, or corrode molds during processing, demonstrating good process stability.

3. High Tolerance to Impurities

The flame retardant mechanism of red phosphorus is primarily based on condensed-phase char formation. Upon heating, it generates strong dehydrating substances like polyphosphoric acid, promoting the formation of a dense char layer on the material surface that insulates against oxygen and heat. This mechanism has relatively low requirements for base material purity. Even if the reclaimed material contains small amounts of other polymers or impurities, red phosphorus can still exert its flame retardant effect by promoting char formation. In contrast, flame retardants operating via a gas-phase mechanism have higher demands for material uniformity and may be less effective in mixed systems.

4. Mature Masterbatch Form Overcomes Application Pain Points

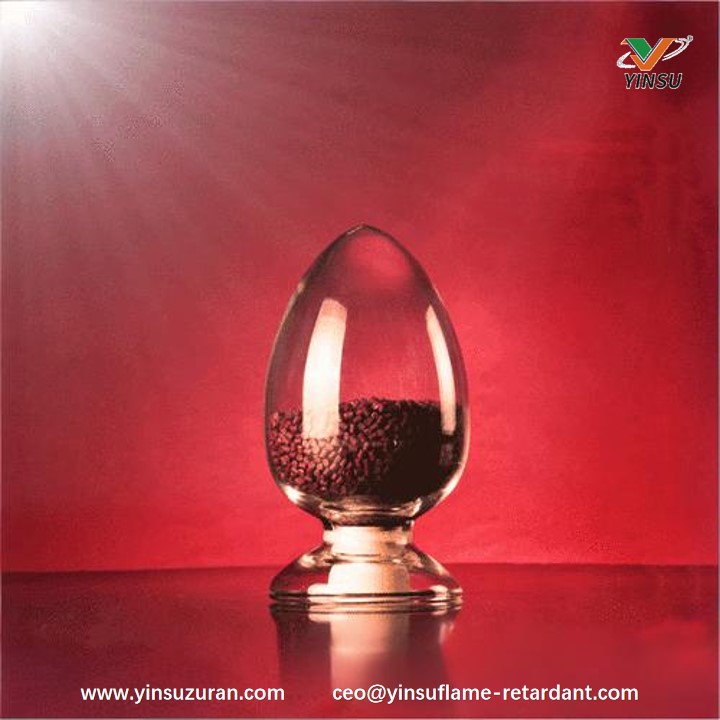

Traditional red phosphorus powder is flammable, hygroscopic, and has poor compatibility. However, modern microencapsulated red phosphorus masterbatch technology has overcome these defects. By using resins like EVA or PA as carriers, red phosphorus masterbatch achieves uniform dispersion, eliminates dust pollution, ensures operational safety, and significantly improves compatibility with reclaimed material systems.

III. Underestimated Application Scenarios

The value of red phosphorus masterbatch in reclaimed materials is particularly prominent in the following scenarios:

• Reclaimed Materials from Electronics and Electrical Appliances represent a traditional stronghold for red phosphorus masterbatch. Applications in this area face stringent flame retardant standards (e.g., UL94 V-0, glow wire GWIT > 750°C) and electrical performance requirements (CTI value). Red phosphorus masterbatch not only meets these specifications but also offers an advantage with its high Comparative Tracking Index (CTI can reach 600V), which is difficult for other flame retardants to match. For engineering plastics like PA and PBT reinforced with glass fiber, red phosphorus masterbatch addition levels can be as low as 10-16% to meet requirements.

• Flame Retarding Polyolefin Reclaimed Materials (PE, PP) also deserves attention. Polyolefins inherently have a low oxygen index and are highly flammable, and reclaimed materials are even more prone to combustion due to molecular chain degradation. Red phosphorus masterbatch can be used in combination with inorganic flame retardants like magnesium hydroxide and aluminum hydroxide, creating a synergistic effect to achieve ideal flame retardancy with a lower total addition level, while avoiding the deterioration of mechanical properties often caused by high loadings of inorganic flame retardants alone.

• In downgauged applications for mixed plastics, the "broad-spectrum" advantage of red phosphorus masterbatch is evident. When sorting costs are prohibitive and a single-material reclaimed stream cannot be obtained, red phosphorus masterbatch can provide a degree of compatibility across various base materials, offering a feasible flame retardant solution for downgauged applications such as non-structural components or packaging liners.

IV. Re-evaluating the Value of Red Phosphorus

The industry's prejudice against red phosphorus largely stems from concerns regarding the safety and coloration of its traditional form (red phosphorus powder). However, modern high-content red phosphorus masterbatch, through technologies like microencapsulation and carrier dispersion, has minimized the risk of ignition and complies with environmental regulations like RoHS and REACH. As for the limitation of its dark red color, this becomes an acceptable compromise given the reality that reclaimed materials often cannot achieve perfect aesthetics anyway.

In today's era where the circular economy is a consensus, the choice of flame retardant should not solely focus on performance in virgin materials but also evaluate its stability over multiple processing cycles, its tolerance to impurities, and its compatibility with recycling systems. Red phosphorus masterbatch's performance in these dimensions makes it a severely underestimated option for flame retarding reclaimed materials.

Of course, red phosphorus masterbatch is not a universal solution. Its compatibility with specific reclaimed material systems, long-term thermal aging performance, and color limitations in certain applications still require case-by-case evaluation. However, it is undeniable that when we shift our perspective from "virgin material thinking" to "reclaimed material reality," the technical advantages of red phosphorus masterbatch become increasingly evident. It is time to give red phosphorus a fairer assessment in the field of flame retarding reclaimed materials.

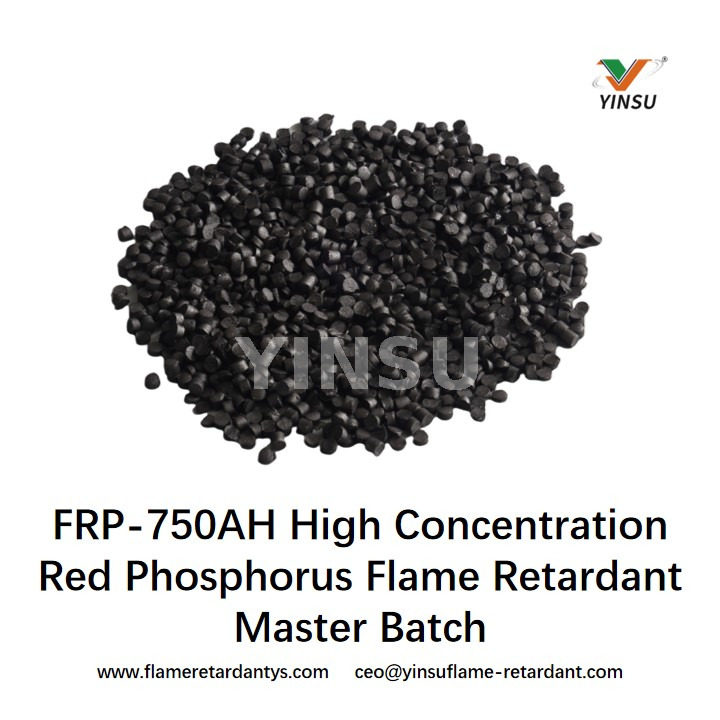

In recent years, Yinsu Flame Retardant Company has conducted systematic research and development targeting the specific needs of flame retarding reclaimed materials. For mainstream reclaimed base materials like PP and PA, they have developed several specialized flame retardant products. Examples include PPV2-8H for PP reclaimed materials (capable of achieving UL94 V-2 rating) and FRP-750AH for PA reclaimed materials (capable of achieving UL94 V-0 rating). These products fully consider the characteristics of reclaimed materials, such as high impurity content and significant property fluctuations, achieving efficient flame retardancy while also realizing lower flame retardant costs. More importantly, such flame retardant solutions designed specifically for reclaimed materials enable downstream enterprises to confidently use lower-cost recycled raw materials, thereby reducing overall material costs and truly achieving a win-win situation for both "green" and "economy." This also confirms from another perspective that flame retarding reclaimed materials is not about making do, but can achieve cost-effective solutions through technological innovation.
