Red phosphorus can only be used for black products? Encapsulation technology begs to differ.

Red phosphorus can only be used for black products? Encapsulation technology begs to differ

In the World of Flame Retardants, Red Phosphorus Is a Typical "Contradiction"

On one hand, its flame retardant efficiency is extremely high. Low addition levels yield excellent results, making it a "top performer" desired by many engineering plastics. On the other hand, its nature is extremely "volatile." It is hygroscopic, prone to spontaneous combustion, and releases highly toxic phosphine gas, leaving engineers both enamored and wary.

How can this "wild horse" be tamed?

Combining research data on vacuum preparation and flame retardant preparation provides a single answer: give it a "bulletproof vest"—microencapsulation using vacuum coating technology.

Today, let's take on the role of a polymer detective and explore exactly how this "bulletproof vest" is put on, as well as the roles that vacuum evaporation coating and vacuum sputter coating play in this process.

I. Why Does Red Phosphorus Need to Be "Clothed"?

Many people may not understand: red phosphorus is perfectly fine, so why must it be encapsulated?

Let's examine this issue from the molecular level.

If you magnify a red phosphorus particle ten million times, you would see its surface covered with "active tentacles." These are chemical bonds that readily react with oxygen and moisture in the air. Upon contact, oxidation reactions occur, releasing heat. When heat accumulates to a certain point, spontaneous combustion occurs. Simultaneously, highly toxic phosphine gas is released.

It’s like a person carrying a “powder keg” while walking on a damp street—ready to explode at any moment.

What is the solution? The only way is: to completely encase this "powder keg" in a dense, inert material, isolating it entirely from the outside world.

This is microencapsulation. And the most ideal method to achieve this is vacuum coating.

II. The First "Bulletproof Vest": Vacuum Evaporation Coating

Let's first look at the first technology: vacuum evaporation coating.

Its principle can be analogized to a common life scenario.

Imagine you've just finished a hot shower in your bathroom. The mirror fogs up with a layer of water droplets. How does this happen? The hot water evaporates into water vapor, which then condenses into small droplets upon encountering the cold mirror surface.

Vacuum evaporation coating is essentially the same "shower fogging" process, except that "water" is replaced by the "coating material."

As described in "Vacuum Engineering Design," the process is as follows:

Red phosphorus particles and the coating material (such as a specific polymer or aluminum hydroxide) are placed together in a vacuum chamber. The air is evacuated, reducing the vacuum level to an extremely high degree. The coating material is then heated until it evaporates into "vapor," much like water turning into steam.

These "coating material vapors" disperse throughout the vacuum chamber. When they encounter the cooler surface of the red phosphorus particles, they condense, layer upon layer, ultimately forming a uniform, dense coating film.

Why must this be done under vacuum?Because in an atmospheric environment, air molecules are everywhere. The atoms or molecules evaporating from the coating material will collide with air molecules before traveling far, either being deflected or reacting directly, never reaching the red phosphorus surface.

Only under vacuum can these atoms or molecules travel "unhindered," flying straight towards the red phosphorus to "settle down" there.

III. The Second "Bulletproof Vest": Vacuum Sputter Coating

Now let's examine the second technology: vacuum sputter coating.

The principle of this technology is slightly more complex but can also be analogized to a life scenario.

Imagine you are holding a slingshot, aiming at a target covered with flour. The pellets strike the target, knocking off some flour particles, which scatter and eventually land on the surrounding ground.

Vacuum sputter coating is essentially this "slingshot hitting target" process, except the "slingshot" is replaced by high-energy particles, and the "flour target" is replaced by the coating material.

As described in "Vacuum Engineering Design," the process is as follows:

Within a vacuum chamber, high-energy particles (such as argon ions) are used to bombard a "target" made of the coating material. These particles act like countless tiny slingshots, "knocking" atoms or molecules off the target's surface. These ejected atoms or molecules travel a certain distance through the chamber before depositing onto the surface of the red phosphorus particles, forming the coating layer.

Where does this technology excel compared to evaporation coating?The answer is: stronger adhesion.

Because the atoms or molecules "knocked off" possess much higher energy than those produced by evaporation. They "embed" themselves into the surface of the red phosphorus particles like bullets, resulting in a coating layer with "chemical-level" adhesion, which is much stronger than the "physical condensation" achieved by evaporation coating. Additionally, the film is much denser, with virtually no micropores.

This means that red phosphorus encapsulated by sputter coating offers better protection and a longer shelf life.

IV. Why Are Both Technologies Indispensable to Vacuum?

At this point, you may notice a commonality: whether evaporation or sputtering, both must be conducted within a vacuum chamber.

There are three fundamental reasons for this:

1. To allow particles to travel "in a straight line."

The essence of vacuum is the removal of "idlers" from the air—nitrogen, oxygen, and water vapor molecules. Without these obstacles, the atoms or molecules of the coating material can travel in a straight line, precisely reaching the red phosphorus surface. Otherwise, they would be like running in a crowded city, constantly colliding with people and never reaching their destination.

2. To allow the film to "grow clean."

If the vacuum level is insufficient, residual air molecules can mix into the coating layer, creating defects. More troublesome is that some coating materials (such as metals) oxidize upon contact with oxygen, "degrading" themselves before forming a protective film. Only under vacuum can the "purity" of the coating layer be guaranteed.

3. To allow bonding to be "stronger."

In sputter coating, high-energy particles need a vacuum environment to accelerate to sufficiently high energies. The higher the energy, the deeper the embedment, and the stronger the bond. Without vacuum, none of this is possible.

V. How Can It Be Further Optimized in the Future?

Looking from today towards the future, vacuum coating technology for red phosphorus has at least three directions for optimization:

1. From "Single Layer" to "Multi-Layer Composite"

Current coatings are mostly single-layer materials, either polymers or inorganic substances. The future direction is multi-layer composite films. For example, sputtering could first be used to deposit an inorganic layer for "atomic-level" firm bonding, followed by evaporation to deposit a polymer layer for flexibility and processing adaptability. The two layers complement each other, multiplying the effectiveness.

2. From "Uniform Coating" to "Selective Coating"

In some application scenarios, not every facet of the red phosphorus particle needs to be coated. For instance, there may be a desire to have certain facets of the red phosphorus "exposed" to exert a flame-retardant effect under specific conditions. Future selective coating technologies could enable such precise "clothing on demand" control.

3. From "Batch" to "Continuous"

Current vacuum coating equipment mostly processes materials in batches, leading to low efficiency and high costs. In the future, continuous vacuum coating production lines are likely to become a trend. Red phosphorus particles would enter and exit like an assembly line, being tumbled and coated simultaneously, significantly improving efficiency and uniformity.

VI. Summary

Returning to our initial question: What roles do vacuum evaporation coating and vacuum sputter coating actually play in the preparation of flame retardants?

They are the "hands" that put the "bulletproof vest" on the red phosphorus "ticking time bomb."

Evaporation coating is responsible for "laying" a uniform protective layer. Sputter coating is responsible for "embedding" a firmly bonded protective film. The two complement each other, transforming the originally "volatile" red phosphorus into a "docile" flame retardant that can be used with confidence.

Without the silent support of vacuum coating equipment behind the scenes, the outstanding performance of those high-performance halogen-free flame retardant engineering plastics might be significantly compromised. That invisible yet crucial technical barrier is the true foundation on which it relies.

Conclusion

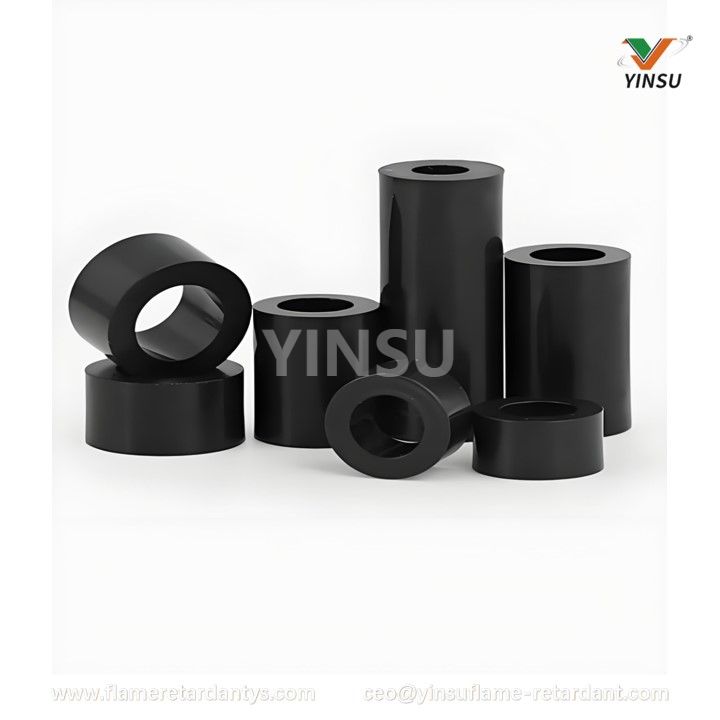

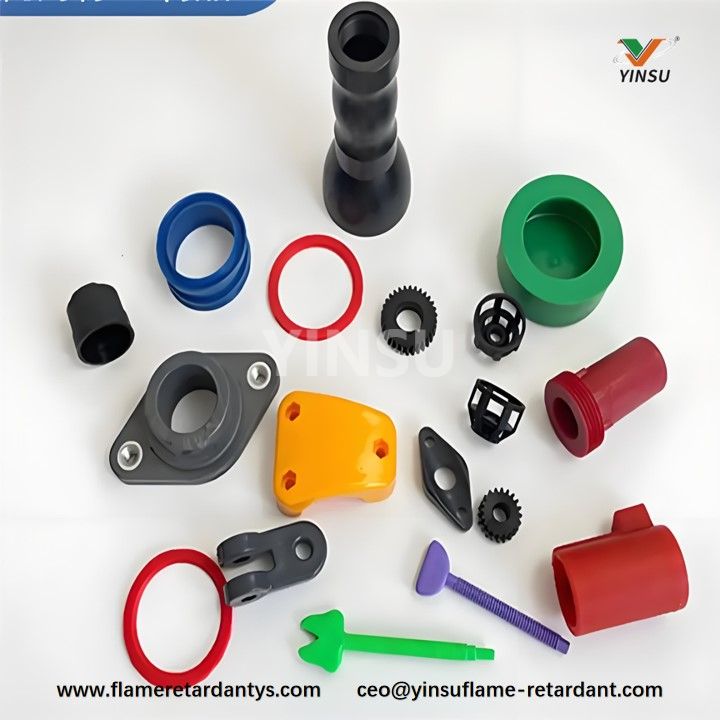

Red phosphorus boasts high flame retardant efficiency, but is often limited to dark-colored products due to its "coloring issues." In fact, through microencapsulation technologies like vacuum coating, not only can its "volatile" chemical activity be tamed, but the coating layer can also be made compatible with the substrate, enabling stable dispersion in light-colored and natural-colored products. Truly good technology allows the flame retardant to learn to "be invisible"—achieving both high efficiency and inconspicuous performance.
