How Can Phosphorus-based Flame Retardants Avoid Decomposition, Leaching, And Yellowing at High Temperatures of 300°C?

How can phosphorus-based flame retardants avoid decomposition, leaching, and yellowing at high temperatures of 300°C?

An engineer specializing in PBT modification once shared a problem with us: They were developing a light-colored connector. The formulation performed perfectly in small-scale trials, but as soon as it was fed into a twin-screw extruder and the temperature reached 280°C, it started smoking, a yellowish-brown residue formed on the mold, and the final product came out yellowed. They tried several different phosphorus-based flame retardants, but the results were much the same—either decomposition, yellowing, or so much mold buildup that they had to shut down the machine every two hours to clean the mold.

Later, he asked us: Phosphorus-based flame retardants are highly effective, but why do they fail the moment they encounter high temperatures?

This issue should be familiar to anyone working with high-temperature nylon, PBT, or PPA.

I. Why are high-temperature engineering plastics so reliant on phosphorus-based flame retardants?

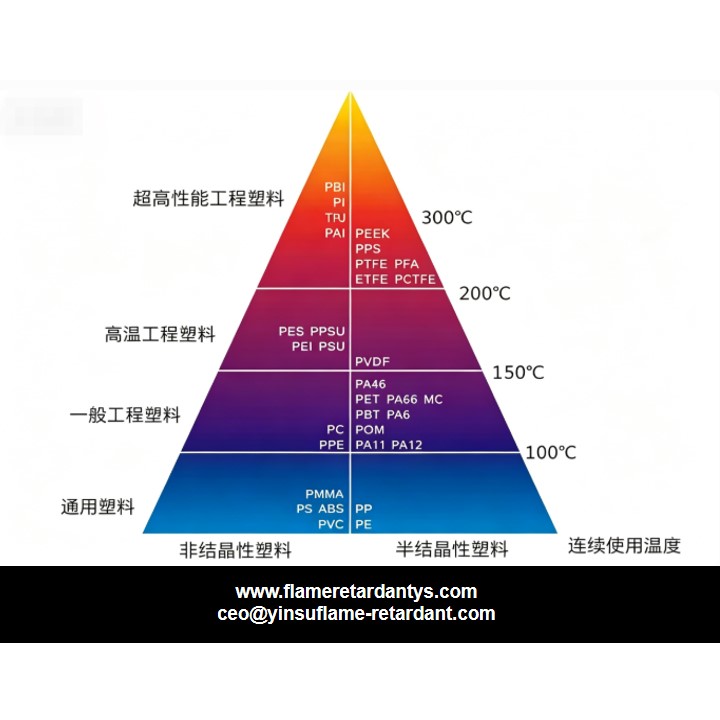

Materials like high-temperature nylon and PBT typically have processing temperatures ranging from 280 to 320°C. Within this temperature range, many traditional flame retardants simply cannot hold up—MCA decomposes, hydroxides have long since dehydrated, and while bromine-based flame retardants offer decent heat resistance, they face significant environmental pressure.

Phosphorus-based flame retardants (such as organophosphorus compounds, hypophosphites, and red phosphorus) have become the mainstream choice due to their high flame-retardant efficiency and low loading levels. However, high efficiency does not equate to high-temperature resistance. In fact, the thermal decomposition temperatures of many common phosphorus-based flame retardants fall precisely within the awkward range of 280–300°C—not quite high enough to withstand the processing temperatures, yet too high to remain stable.

II. The “Three Major Pitfalls” in High-Temperature Processing

① Premature Decomposition

When a flame retardant’s thermal decomposition temperature is lower than the processing temperature, the result is that the flame retardant “breaks down” inside the screw before the material has even been molded. The resulting small molecules not only fail to provide flame retardancy but also corrode the equipment. The most direct consequence is that—even though you’ve added a lot of flame retardant—the flame retardancy rating simply won’t improve.

② Mold Scaling

Decomposition byproducts condense on the mold surface, forming a layer of hard, yellowish-brown or white scale. At best, this affects the appearance of the finished product; at worst, it clogs vent channels and causes incomplete filling. Some customers have reported that when using a certain phosphorus-based flame retardant in PBT, they had to disassemble and clean the mold every two hours, cutting production efficiency in half.

③ Yellowing

This is the most troublesome issue, especially when producing light-colored or white parts. High-temperature oxidation causes the flame retardant to discolor, resulting in the entire part turning yellow and dull. Some customers have tried several different grades and finally said with resignation, “Maybe we should switch to dark-colored parts instead.”

III. Where does the root of the problem lie?

It’s not that phosphorus-based flame retardants are ineffective; rather, the thermal decomposition temperature of standard phosphorus-based flame retardants does not align with the processing window of high-temperature engineering plastics.

Several factors influence thermal decomposition temperature: the inherent stability of the molecular structure, particle size distribution, impurity content, and surface polarity. Simply put, if a standard phosphorus-based flame retardant can’t withstand temperatures above 300°C itself, how can it protect the material?

Another often-overlooked point: many phosphorus-based flame retardants release acidic substances at high temperatures. These acidic substances catalyze polymer degradation, further exacerbating yellowing and mold fouling.

IV. How to address this? Four approaches

① Molecular Structure Modification

This is the most fundamental solution. Introducing heat-resistant groups into the phosphorus-based compounds enhances their intrinsic thermal stability. For example, replacing short-chain alkyl groups with aryl or cyclic structures can raise the thermal decomposition temperature by 30–50°C. Modified organophosphorus flame retardants can see their thermal decomposition temperature increase from 280°C to over 330°C.

② Coating Technology

Coating the surface of flame retardant particles with a layer of high-temperature-resistant material (such as silanes, resins, or inorganic compounds). This “coating” slows heat conduction into the interior, delaying decomposition. At the same time, the coating layer improves compatibility with the substrate and reduces leaching.

③ Purification and Particle Size Control

Impurities often act as the “trigger” for thermal decomposition. Reducing impurity content and optimizing particle size distribution (neither too coarse nor too fine) can significantly improve thermal stability. Some manufacturers neglect this aspect, resulting in significant fluctuations in thermal stability within the same batch.

④ Synergistic Blending

If a single phosphorus-based compound cannot withstand the heat alone, it can be combined with others. For example, pairing an organophosphorus compound with a small amount of nitrogen-based or inorganic compounds not only improves flame retardancy efficiency but may also enhance overall thermal stability. However, care must be taken to ensure that the temperature resistance of the synergists is compatible.

V. High-temperature resistance is only the first step; leaching must also be addressed.

Resisting decomposition during high-temperature processing does not guarantee that leaching will not occur during long-term use. Some phosphorus-based flame retardants migrate to the surface during the “double 85” test (85°C/85% humidity, 1,000 hours), forming white spots or an oily film.

The primary causes of leaching are poor compatibility with the substrate, low molecular weight, and incomplete encapsulation. The solutions are straightforward: increase polymerization degree, perform surface modification, and optimize the encapsulation process. If the modification is done properly, the surface will remain clean even after the double-85 test.

VI. How to choose the right material?

High-temperature nylon (PA6T, PA9T, PPA): Modification with organophosphorus compounds or aluminum diethylphosphonate (ADP) is a relatively stable option. Pay attention to compatibility with glass fiber; some grades are prone to leaching in glass fiber-reinforced systems.

PBT: Modified with ADP or red phosphorus (for dark-colored parts). Red phosphorus is low-cost and highly effective, but color options are limited. Synergistic nitrogen-based flame retardants can further reduce the required dosage.

Light-colored/white products: Avoid red phosphorus; choose modified organophosphorus or high-purity ADP. Temperature resistance and yellowing resistance are critical requirements.

A few general tips to avoid pitfalls:

Be sure to dry the material before processing; the thermal stability of phosphorus-based flame retardants decreases when they absorb moisture.

Avoid direct blending with alkaline fillers such as calcium carbonate, as this may neutralize the flame retardant and render it ineffective.

Do not run at the upper limit of the extrusion temperature; leave a margin of 20–30°C.

VII. High temperatures are not the problem; the real issue is choosing the wrong material.

Flame retardancy for high-temperature engineering plastics is not simply a matter of “adding it in.” Only by selecting modified phosphorus-based flame retardants with matching thermal decomposition temperatures, as well as resistance to migration and yellowing, can you ensure smooth production and stable finished products.

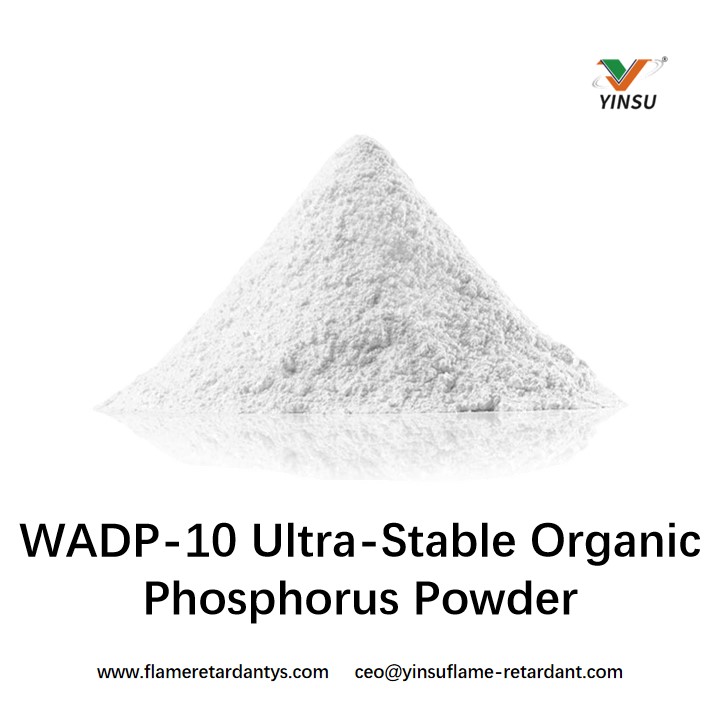

We have put a lot of effort into modifying phosphorus-based flame retardants over the past few years. Our organophosphorus series (such as WADP-10) achieves a thermal decomposition temperature of over 350°C, with virtually no decomposition or yellowing at 300°C processing temperatures; Through purification and modification, the ADP series has significantly reduced mold fouling issues; red phosphorus masterbatches, such as FRP-750A, rely on high content or encapsulation to maintain original properties with low addition levels, offering excellent leaching control and making them suitable for dark-colored high-temperature parts.

If you’re also struggling with yellowing, mold fouling, or decomposition during high-temperature processing, feel free to discuss specific grades with us. You may not need to switch formulations—adjusting the processing window might be all it takes to resolve the issue.
