Are Thinner Flame-Retardant Parts Actually Harder To Work With?

I. Thinner, but harder to handle?

In recent years, clients in the connector and electronics industries have been constantly asking for “thinner parts.” 0.6 mm? Not thin enough. 0.4 mm? They're still pushing for thinner. The term “thin-walled” sounds impressive, but in practice, it means injection molding becomes increasingly difficult and flame retardancy is harder to achieve.

One engineer once vented to us: “We passed the V0 rating, but the product snaps at the slightest bend. The customer returns so many units I'm thinking of changing careers.” This is not an isolated case. Traditional flame-retardant solutions for thin-walled parts often get stuck in a vicious cycle—add too little and the flame-retardant standard isn't met;add too much and flowability drops drastically, dragging impact strength down with it.

So what kind of flame retardant do thin-walled parts really need? After years of testing, many have turned their attention to phosphorus-based flame retardants.

II. If flowability is poor and the mold is't even filling up, how can we even talk about flame retardancy?

Just how difficult is thin-wall injection molding? The mold has long runners and thin walls, so the melt cools before it even reaches the end. If the flame retardant loading is too high at this point, the melt flow index can plummet from 30–40 to single digits. Even with the injection press set to maximum pressure, you still get short shots, shrinkage, and skyrocketing scrap rates.

We once worked with a factory producing 0.4mm connectors. They tried several flame retardant solutions but eventually realized the problem wasn't the formulation—it was that the mold simply couldn't be fully filled. Only after switching to a low-load flame retardant was the issue resolved. Therefore, when selecting a flame retardant for thin-walled parts, the first priority isn't the V0 rating; it's ensuring that flowability is maintained.

III. Phosphorus-based: Highly effective, but not without its drawbacks

The advantage of phosphorus-based flame retardants is their high efficiency. At equivalent loading levels, they are far more effective than “filler-type” flame retardants like hydroxides. Because less is added, the impact on flowability and mechanical properties is minimal. So, fundamentally, phosphorus-based flame retardants are indeed better suited for thin-walled parts.

That said, phosphorus-based flame retardants also have their headaches. The primary concern for many is migration. Especially during the double-85 test—when exposed to high temperature and humidity—some phosphorus-based flame retardants migrate out, causing white spots or oil stains to appear on the product's surface. The flame-retardant effect may remain, but the appearance is ruined.

Another issue is even more direct: red phosphorus is extremely efficient and cost-effective, but it's only suitable for dark-colored parts. If you're making a light-colored connector or a translucent housing, adding red phosphorus will ruin the color immediately. This limitation remains insurmountable to this day, leaving no choice but to switch to other phosphorus-based compounds.

IV. How to solve this? Synergistic blending is the way forward.

It's indeed a challenge for a single phosphorus-based compound to achieve both “low loading” and “high flame retardancy” in thin-walled parts. Synergistic blending is the approach everyone has been exploring in recent years.

Simply put, it's about finding a partner. Phosphorus compounds handle carbonization, while nitrogen-based compounds generate gas (non-flammable gas). When combined, they create a thick, dense carbon layer that significantly improves thermal and oxygen barrier properties. The test data is quite clear: adding a small amount of nitrogen-based synergist to red phosphorus can reduce the total additive content by over 30% while still achieving V0 compliance.

This difference is even more pronounced in thin-walled parts. As the loading rate decreases, flowability naturally improves; injection pressure is reduced, filling becomes smoother, and impact strength is maintained. It's not about piling on materials, but about the right combination—this principle is particularly relevant in thin-wall flame retardancy.

V. The finer the particle size, the fewer the problems

There's another point that many overlook: particle size.

Coarse-particle flame retardants are particularly prone to causing issues in thin-walled parts. During injection molding, the particles protrude from the surface, creating “stress points.” Upon impact, cracking begins at these points. This is why, sometimes, even when the formulation appears flawless, impact strength simply won't improve.

Reducing the particle size significantly improves the situation. Ultra-fine phosphorus-based flame retardants (D50 < 5 μm) disperse uniformly throughout the matrix, making the particles “invisible.” This eliminates stress concentration, naturally restoring impact strength. Additionally, the surface finish looks great—no floating fibers or pitting. Thin-walled cosmetic parts benefit most from this approach.

VI. A few practical tips

The approach to synergistic blending varies by material:

PA, PBT: Red phosphorus + nitrogen-based synergist—a classic combination that's highly effective and cost-efficient. But remember, this is only suitable for dark-colored parts.

PP: The phosphorus-nitrogen expansion system (APP + carbonizing agent + foaming agent) is well-established and can achieve V0 even in thin-walled parts.

TPE, cables: Pairing organic phosphorus with a small amount of metal hydroxide balances both flame retardancy and flexibility.

Processing considerations: Phosphorus-based flame retardants are sensitive to moisture, so be sure to dry them thoroughly before use; avoid mixing them with alkaline fillers like calcium carbonate, as this can neutralize and deactivate them; keep extrusion temperatures from getting too high to prevent premature decomposition of the flame retardant.

VII. Thin-wall molding has actually brought the best products to the forefront

To be honest, thin-wall molding does indeed impose stricter requirements on flame retardant selection. Formulations that were previously acceptable have now been exposed as inadequate. However, looking at it from the other side, this has also given high-efficiency flame retardants (such as phosphorus-based ones) a chance to shine. Rather than relying on sheer volume of additives, it's about precise formulation—this isn't just a slogan; it's a method that can genuinely help you reduce costs and improve yield in the era of thin-wall molding.

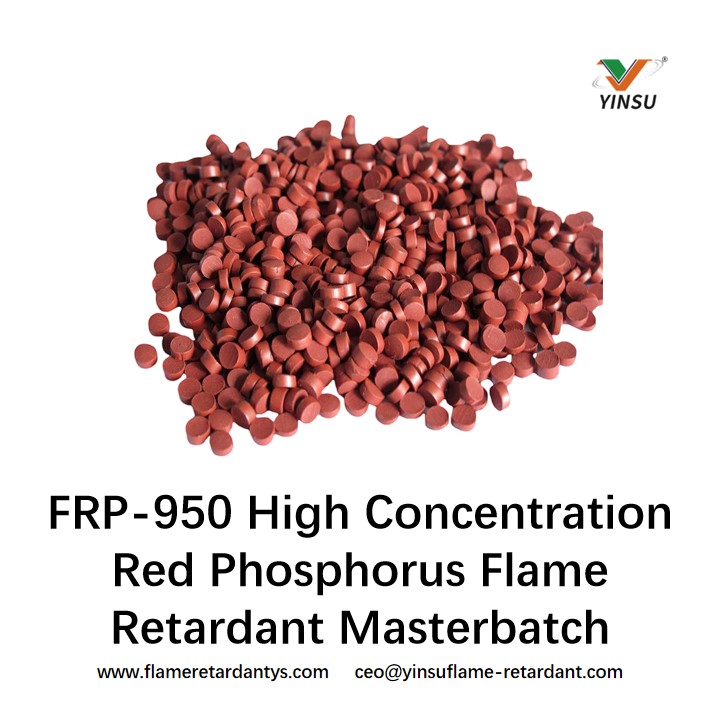

In recent years, YinSu Flame Retardant has focused on the modification of phosphorus-based flame retardants. Our coated masterbatches for red phosphorus achieve a content of over 80% and a particle size as fine as 2500 mesh. When used in dark-colored thin-walled parts, they require very low loading levels, and the issue of migration has been significantly improved through dense coating. Our organic phosphorus series is specifically designed for light-colored, high-temperature nylon and PBT applications, offering excellent heat resistance, yellowing resistance, and flow retention. We also offer modified APP for PP and rubber systems, which demonstrates significantly better dispersion and thermal stability compared to older formulations.

Whether you need to address flow issues, migration, or color limitations in thin-walled parts, we have the right products to discuss. We're not just selling products; we're committed to helping you optimize your formulations for the best possible performance.
