Frequently, friends ask: "How is this flame retardant made?" "Why does the octabromoether I synthesize always turn yellow?" "How can microencapsulation be done evenly?"

These questions may seem basic, but they go straight to the core of flame retardant technology. The preparation method determines the lower limit of a flame retardant's quality, while process control determines the upper limit.

Today, we systematically review flame retardant preparation technologies, drawing on several relevant monographs and the latest practical guides. From traditional synthesis to green manufacturing, from physical mixing to molecular design, we will see how this "craft" has evolved. If there are any inaccuracies, please point them out promptly. I will make further corrections immediately.

I. Overview of Preparation Technology: How Are Flame Retardants "Made"?

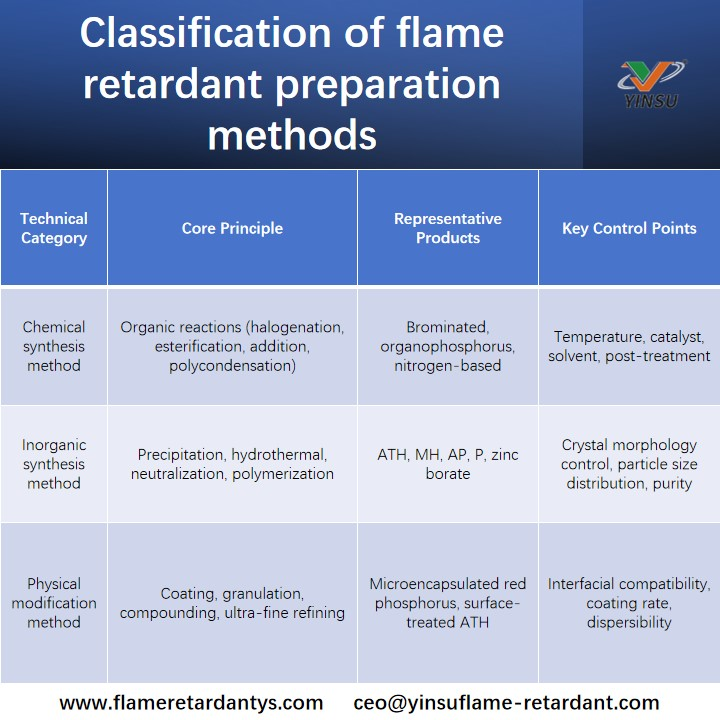

Flame retardant preparation methods can be roughly divided into three categories based on reaction type and process characteristics:

Behind each category lies a complete set of "craftsmanship." Let's break them down one by one.

II. Chemical Synthesis: "Molecular Building Blocks" for Organic Flame Retardants

The preparation of organic flame retardants is essentially the directed assembly of functional groups. The synthesis routes for different varieties vary greatly.

1. Brominated Flame Retardants: The "Temperature Game" of Halogenation Reactions

The core of brominated flame retardant synthesis is bromination. Whether it is aromatic bromination (e.g., decabromodiphenylethane) or aliphatic bromine addition (e.g., octabromoether), temperature control is the critical factor.

The synthesis of decabromodiphenylethane (DBDPE) is a two-step process: first, high-purity 1,2-diphenylethane (purity >99.5%) is prepared via the benzyl chloride method, followed by deep bromination with excess bromine in the presence of a catalyst (e.g., AlCl₃). The reaction temperature must be strictly controlled at 53–58°C. Too high a temperature leads to increased side reactions and yellowing of the product; too low a temperature results in incomplete bromination.

The traditional synthesis of octabromoether (BDDP) is carried out in chlorinated alkane solvents, with complex post-treatment and high pollution. A research team from Nanjing Normal University successfully developed an aqueous phase synthesis process. By using auxiliaries to solve the problem of raw material insolubility in water, they directly obtained white BDDP powder under optimized conditions with a yield of 93.6%. This method avoids toxic organic solvents, and the mother liquor can be recycled, truly achieving "zero emissions."

2. Phosphorus-Based Flame Retardants: The "Art of Choosing" Phosphorus Sources

In the synthesis of phosphorus-based flame retardants, the choice of phosphorus source is crucial. Common phosphorus sources include phosphorus oxychloride, phosphorus trichloride, phosphorus pentoxide, hypophosphite, and the recently popular DOPO and phosphazene.

Synthesis of BDP/RDP: Using phosphorus oxychloride and bisphenol A (or resorcinol) as raw materials, condensation is first carried out under Lewis acid catalysis to form an intermediate, followed by esterification with phenol. The type of catalyst (AlCl₃ is more effective than TiCl₄), reaction temperature, and feed ratio directly affect the yield and molecular weight distribution.

DOPO and its derivatives: The synthesis of DOPO starts from o-phenylphenol and phosphorus trichloride, undergoing four steps: esterification, cyclization, hydrolysis, and dehydration. The cyclization temperature must be controlled at 175–180°C, and the dehydration temperature at 116–125°C. Above 125°C, DOPO sublimation loss occurs.

In recent years, breakthroughs have been made in catalytic synthesis technology. A research team from Guangdong University of Technology used a PdCl₂/RuCl₃ catalytic system to synthesize DOPO derivatives at lower temperatures, achieving a product yield of 90%. Moreover, the proportion of high-temperature isomers is large, and the flame retardant exhibits a single melting point above 295°C, significantly improving thermal stability.

3. Nitrogen-Based Flame Retardants: "Molecular Engineering" via Hydrogen Bonding Self-Assembly

The preparation of melamine cyanurate (MCA) is the most representative. It is a supramolecular complex formed by self-assembly of melamine and cyanuric acid through hydrogen bonding.

The traditional aqueous phase method uses a large amount of water (water: reactant >10:1), resulting in high system viscosity and long reaction time. An improved process uses a complexing agent (e.g., WEX) to disrupt the regularity of the MCA planar structure, reduce the hydrodynamic radius, lower the water-to-material ratio to 2:1, shorten the reaction time to 30 minutes, and eliminate the need for product washing.

Dry synthesis involves ultra-fine grinding of melamine and cyanuric acid, followed by reaction in a heating furnace at 350°C for 1 hour, achieving a purity of 99.2%. However, equipment investment is high, and raw material volatilization loss is about 10%.

III. Inorganic Synthesis: From "Ore" to "Functional Material"

The core of inorganic flame retardant preparation is controlling the crystallization process. Crystal form, particle size, and morphology directly determine application performance.

1. Aluminum Hydroxide (ATH): The "Crystallography" of the Bayer Process

Industrial ATH is mainly obtained from bauxite via the Bayer process. However, for use as a flame retardant, further refining and surface treatment are required. Key indicators are particle size and distribution: particles <5 μm are suitable for polymer filling; for cable compounds, they need to be controlled at 1–2 μm. Currently, ultra-fining and nanonization are the main directions. Liquid-phase co-precipitation and high-gravity reactive precipitation can produce nano-ATH.

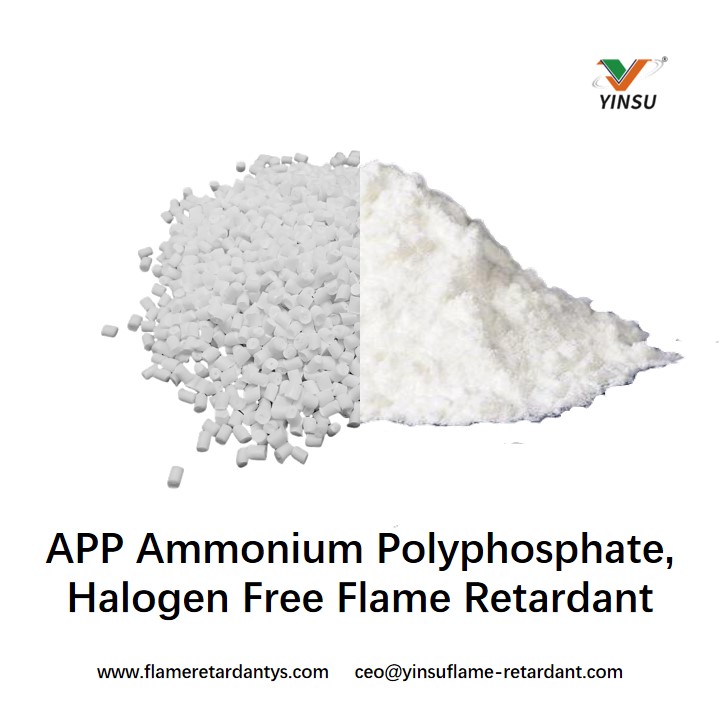

2. Ammonium Polyphosphate (APP): The "Crystal Form Debate" of Polymerization Degree

APP has two main crystal forms: Type I and Type II. Type II APP has a high degree of polymerization (n >1000), good thermal stability (>300°C), and low water solubility, making it the preferred acid source for intumescent flame retardant systems used in engineering plastics.

The synthesis of Type II APP often uses the "ammonium dihydrogen phosphate-urea-phosphorus pentoxide" route, polymerizing at 280–300°C for 1.5–2 hours under an ammonia atmosphere. Reaction conditions significantly affect crystal form transformation, requiring precise temperature control.

3. Nano-Inorganic Flame Retardants: "Controlled Growth" of Morphology

Preparation of nano-zinc hydroxystannate: Add zinc salt and stannate to a graphene oxide dispersion, react at 5–80°C for 2–6 hours, then filter and wash to obtain a nano-filter cake. Surface modification with DOPO derivatives yields a nano-flame retardant with both flame retardant and reinforcing functions.

Nano-attapulgite-based flame retardant: Disperse natural attapulgite, then surface-coat it in the liquid phase with Al₂O₃ hydrate, MgO hydrate, etc. The coating amount can reach 40%–500%. This composite flame retardant not only provides flame retardancy but also acts as a reinforcing agent.

IV. Physical Modification Technology: "Clothing" for Flame Retardants

Physical modification does not change the chemical structure of the flame retardant but can completely change its "character." It turns hydrophilic into hydrophobic, migratory into durable, and dusty into free-flowing.

1. Surface Modification: The "Bridge Role" of Coupling Agents

Inorganic flame retardants (ATH, MH, APP) have poor compatibility with polymers and must be treated with coupling agents.

Silane coupling agents (e.g., KH-550) and titanate coupling agents (e.g., NDZ-101) are the most commonly used. Drying the flame retardant and mixing it with an appropriate amount of coupling agent in a high-speed mixer at 80–110°C for 5–10 minutes achieves surface coating. ATH-filled PE after modification can see its tensile strength increase by more than 20%.

2. Microencapsulation: "Precise Encapsulation" of Core-Shell Structures

Microencapsulation is the most effective method for solving problems such as red phosphorus moisture absorption, APP easy migration, and liquid flame retardant volatilization.

Microencapsulated red phosphorus: Red phosphorus particles are encapsulated with melamine-formaldehyde resin, phenolic resin, or inorganic hydroxides. The coated red phosphorus has a higher ignition point, reduced PH₃ release, and significantly improved compatibility with polymers. A research team from Henan University used DOPO derivatives to modify nano-zinc hydroxystannate, achieving one-step surface modification and flame retardant reinforcement.

APP microcapsules: Using in-situ polymerization to coat APP surfaces with melamine-formaldehyde resin reduces its solubility in 25°C water from 2.5 g/100mL to 0.25 g/100mL, a 90% decrease.

Perfluorohexanone microcapsules: The FluidicLab team used microfluidic technology to prepare core-shell structured perfluorohexanone microcapsules. Using 5% PVA as the outer phase, photosensitive resin as the middle phase, and perfluorohexanone as the inner phase, monodisperse droplets (CV <5%) were generated using a glass microfluidic chip, and microcapsules were obtained after UV curing. The trigger temperature is 126.84°C, and the perfluorohexanone content is as high as 92.74%.

Thermosensitive microcapsules: Using in-situ polymerization with melamine-urea-formaldehyde resin (MUF) as the wall material and a ternary composite of perfluorohexanone/2-BTP/septafluorocyclopentane as the core material, parameters such as emulsifier, stirring speed, and core-to-wall ratio were optimized to produce microcapsules. Their release behavior is temperature-dependent, with cumulative release rates increasing from 4.39% to 98.93% in the range of 30–120°C.

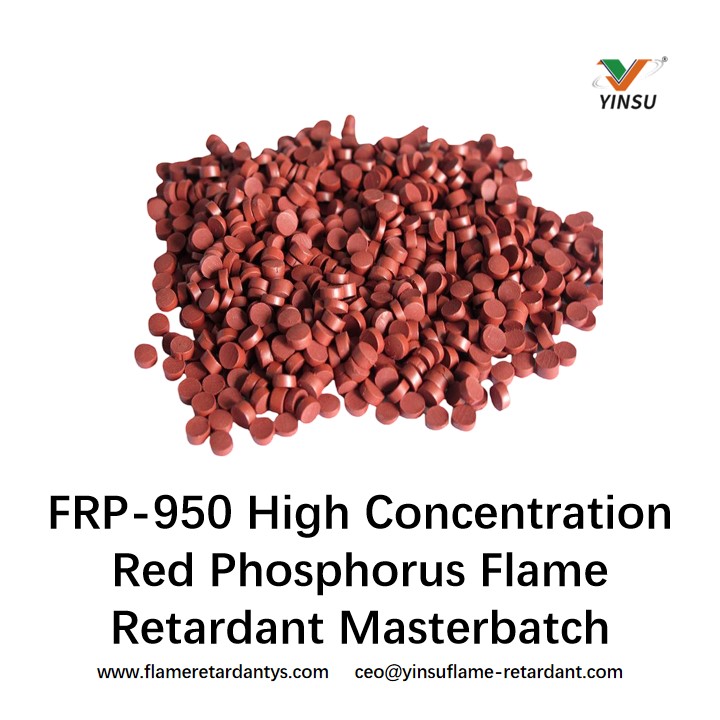

3. Granulation and Masterbatching: From "Flour" to "Pellets"

Powdered flame retardants cause dusting and feeding difficulties. Extrusion granulation into flame retardant masterbatches significantly improves the operating environment and dispersion efficiency.

Typical process: Flame retardant (50%–60%) + carrier resin (35%–45%) + dispersant (2%–3%) + stabilization system, mixed at high speed, then melt-compounded in a twin-screw extruder and pelletized. Masterbatched flame retardants show significantly improved dispersion in PP, leading to higher flame retardant efficiency.

V. Green Synthesis: Evolution from "Pollution Control" to "Zero Discharge"

The flame retardant industry is undergoing an upgrade from "traditional methods" to "green synthesis."

1. Aqueous Phase Reactions

Traditional octabromoether synthesis uses toxic solvents like dichloroethane. The aqueous phase synthesis process developed by Nanjing Normal University not only avoids organic solvents but also enables mother liquor recycling. When the mother liquor was reused for the fourth time, the product yield still exceeded 98%, and the crystal form and particle size distribution were better than commercially available products.

2. Solid-Liquid Two-Phase Solvent-Free Reaction

The traditional synthesis of triethyl phosphate (TEP) requires large amounts of solvent and results in a high acid value. The new process uses a solid-liquid two-phase reaction between phosphorus oxychloride and sodium ethoxide at low temperature, significantly shortening the reaction time, achieving a yield >90% and an acid value <0.05 mgKOH/g, completely solving the high acid value problem.

3. Waste Residue Recycling

Using flue gas desulfurization waste residue to prepare macromolecular flame retardants turns waste into treasure. Magnesium oxide desulfurization residue is mixed with deionized water, the pH is adjusted, and the mixture is reacted under boiling to obtain hydrotalcite-like compounds. Melamine and phosphoric acid are then added to react, followed by crosslinking with paraformaldehyde to obtain a macromolecular flame retardant containing hydrotalcite-like compounds. It has low cost, good compatibility, and low moisture absorption.

4. Bio-Based Raw Materials

Phytic acid, as a naturally occurring phosphorus-containing compound, has gained significant attention in recent years. Synthesizing bio-based phosphorus flame retardants from phytic acid avoids the use of petroleum-based raw materials and aligns with sustainable development trends.

VI. The "Three Realms" of Preparation Technology

Looking back at the development of flame retardant preparation technology, we can divide it into three levels:

First Realm: Being able to make the product. Master the basic synthesis route and achieve stable production, but with large batch-to-batch variation, many impurities, and low yield. This can only be considered "workshop craftsmanship."

Second Realm: Being able to control quality. Precisely control reaction conditions (temperature, time, catalyst, pH) to achieve high yield, high purity, and narrow distribution. This is "engineering technology."

Third Realm: Being able to design performance. Starting from the molecular structure, use crystal form control, particle size regulation, surface modification, microencapsulation, and other means to give flame retardants "customized" properties: high temperature resistance, easy dispersion, non-migration, and compatibility with the substrate. This is the "art of molecular engineering."

Some flame retardant companies are still struggling in the first realm, while a few leading players have entered the second realm. The ones that truly hold industry leadership are always those that have built core capabilities in the third realm. They sell not just flame retardants, but performance predictability and the end of uncertainty management.
