The "Trilemma" of Flame-Retardant Polyurethane Coatings:

 Water-Based vs. Solvent-Based, Adhesion, and PH

Anyone who works on flame-retardant polyurethane coatings knows that while it looks simple, the devil is in the details. Water-based systems have their own pitfalls, solvent-based systems have their own headaches, and parameters like adhesion and pH—if even one gets out of control, the entire batch is scrapped.

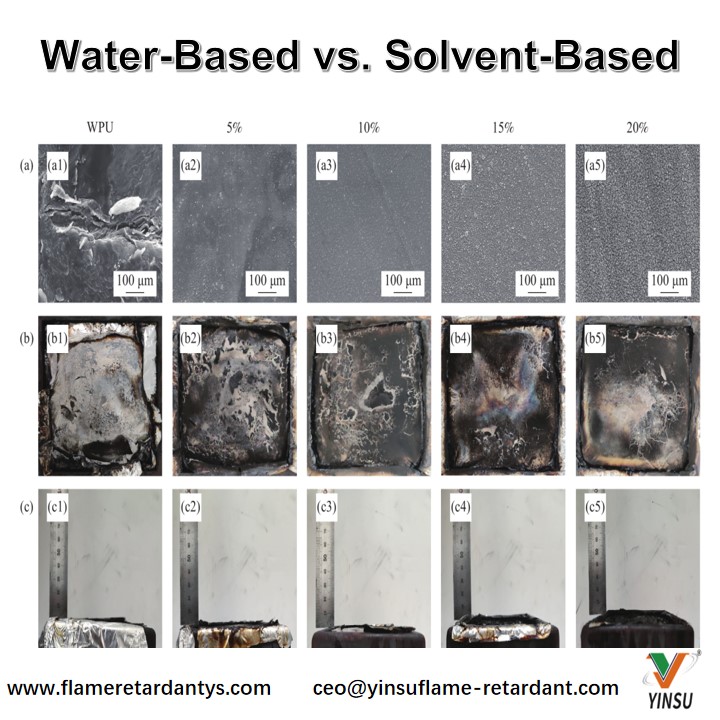

Water-Based vs. Solvent-Based: Both Look Like Coatings, But Fundamentally Different

The biggest problem with water-based polyurethane is: you can't get the flame retardant in.

WPU uses water as the dispersion medium, while most flame retardants on the market are hydrophobic. Forcing them together results in, at best, uneven dispersion and emulsion stratification; at worst, direct demulsification—the entire batch of coating is ruined. Even if you somehow get a film formed, the flame retardant will slowly migrate to the surface—blooming, performance degradation, and after a few months it's as if nothing was added.

There are two paths to solve this problem. The first is additive-type. There are already flame-retardant products specifically developed for water-based systems on the market. For example, Deflamer® LFR-2260 flame-retardant emulsion is specially designed for water-based polyurethane and water-based polyacrylic systems, offering good dispersion, compatibility, and storage stability, with a recommended addition of 15–25 parts. Hubei Youfeng's YF7030J is a halogen-free flame retardant based on nitrogen-phosphorus, with high fineness and good dispersion, also suitable for water-based or solvent-based polyurethane emulsions. The second path is reactive-type, where monomers containing phosphorus, nitrogen, and other flame-retardant elements are copolymerized and bonded to the polyurethane molecular chain, so the flame retardant "grows" on the molecular chain—no migration, no exudation. For example, dimethylolimidazole DOPO, containing dicarboxyl and dihydroxyl groups, can be used as a water-based chain extender to polymerize with polyester polyols and diisocyanates, forming a nitrogen-phosphorus synergistic flame-retardant system that remains stable without stratification over long periods.

Halogen-free solutions cost more, so do the math upfront. Halogen-free flame retardants (phosphorus-nitrogen systems, etc.) meet environmental requirements, but prices are typically 1.5–2 times those of halogenated types, and addition levels need to increase by 10%–20% to achieve equivalent flame-retardant performance. Taking polyurethane-grade TCPP as an example, prices rose from 10,000–11,000 CNY/ton in 2020 to 15,000–16,000 CNY/ton; engineering-plastic-grade BDP flame retardants exceeded 32,000 CNY/ton in 2025. Halogen-free is not a "free lunch"—performance and cost must be evaluated together.

Impact of Flame Retardants on Peel Strength (Adhesion): Not "How Much It Drops," But "Will It Fall Off?"

• Add coupling agents: Adding silane coupling agents (such as KH-550, KH-570) to the formulation can create a "molecular bridge" between flame-retardant particles and the resin, significantly improving interfacial bonding. Adding 3% SiO₂@KH-570 (30 nm particle size) can increase coating hardness to 2H. Coupling agents are generally recommended at 5–8 parts.

• Epoxy resin modification: Modifying water-based polyurethane with epoxy resin can achieve coating adhesion of Grade 1, water resistance of 240 h, and flame-retardant time of over 10 minutes.

• Adjust curing agent ratio: For two-component systems, the curing agent ratio directly affects crosslink density and adhesion. In water-based two-component polyurethane coatings, the type and amount of curing agent have a significant impact on adhesion. The curing agent ratio needs to be adjusted accordingly based on the amount of flame retardant added.

• Primer pretreatment: Apply a primer to the substrate to increase surface polarity and improve bonding with the flame-retardant coating.

• Control coating thickness: Overly thick coatings have high internal stress and are prone to delamination. A single-pass coating thickness is generally recommended to be controlled at 20–50 μm.

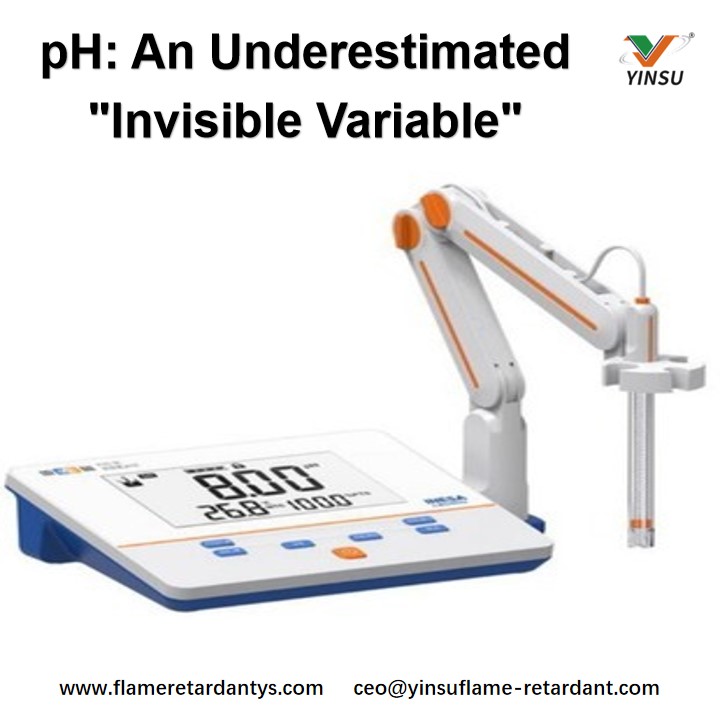

pH: An Underestimated "Invisible Variable"

For water-based systems, keep pH controlled at 7–8 to avoid overly acidic or alkaline conditions that disrupt dispersion balance.

Other Unavoidable Pitfalls

Too little flame retardant won't reach V-0; too much makes the coating brittle, reduces transparency, and hardens the feel. For water-based polyurethane coatings, composite flame retardants are generally added at 10–15 parts; flame-retardant emulsion types are recommended at 15–25 parts. Specific addition levels need to be determined experimentally based on the resin system, coating thickness, and flame-retardant requirements. The conventional range of 5–15% is a reference; every system has a "golden addition point," and anything beyond saturation solubility is wasted.

WPU coatings themselves have poor charring performance, and the melt-drip problem during combustion has never been fully resolved. Intrinsically flame-retardant water-based polyurethane is the direction forward—by bonding flame-retardant elements (organophosphorus or phosphorus-nitrogen systems) to the molecular chain, the drawbacks of additive-type flame retardants such as coating opacity, high addition levels, poor water resistance, migration, and toxic gas generation during combustion can be overcome.

Some Practical Recommendations

1. Selection comes first: for water-based systems, choose water-based flame retardants (such as water-soluble phosphorus-nitrogen systems, Deflamer® LFR-2260 flame-retardant emulsion, YF7030J, etc.); for solvent-based systems, choose solvent-based flame retardants (such as TCPP). Don't force solvent-based flame retardants into water systems.

2. Prioritize reactive-type: Reactive flame retardants participate in polyurethane crosslinking reactions and integrate with the molecular chain, offering far superior compatibility over additive types. DOPO-based reactive flame retardants can be introduced during the polymerization stage to achieve intrinsic flame retardancy. Although the process is more complex, the long-term stability and non-migration advantages are worth the investment.

3. If adhesion is poor, try adding coupling agents first: Silane coupling agents (KH-550, KH-570) at 0.5–2% can bridge between the flame retardant and resin, and often work better than switching resins.

4. Don't neglect pH: Keep water-based systems at pH 7–8 to avoid overly acidic or alkaline conditions that disrupt dispersion balance. The optimal pH window varies for different flame-retardant systems—test pH as an independent variable during small-scale trials.

5. Do the cost math: Halogen-free solutions are environmentally friendly, but raw material costs are higher (1.5–2×) and addition levels are larger (+10–20%). Factor in the cost difference when developing the solution, so the client doesn't abandon it at the last minute due to price.

Flame-retardant polyurethane coating is not a simple formulation of "add flame retardant and you're done." Water-based or solvent-based, additive or reactive, what pH to control, how to maintain adhesion—every choice affects the final outcome. Sometimes one parameter is off, and the entire batch is scrapped. Get the above points working first, then move to the next step.
