Views: 37 Author: Yinsu Flame Retardant Publish Time: 2026-10-27 Origin: www.flameretardantys.com
Why Copying PP Formulations for PA Flame Retardancy Fails (Plus a PA6/PA66 Pitfall Guide)
Last month, a customer in the low-voltage appliance industry sent us a PA6 sample loaded with 20% intumescent flame retardant for prototyping. The result was awkward: the vertical burn test failed due to dripping that ignited the cotton, and the injection molding machine's barrel started smoking and foaming.
I asked where the formula came from. He said, "This is how we added it when we were doing PP. PA has a higher oxygen index than PP, so logically it should be easier to flame retard, right? Why did it completely fail instead?"
This is a trap that compounders and injection molders easily fall into: blindly copying the flame-retardant logic of PP and applying it to PA (polyamide/nylon).
Although PA's Limiting Oxygen Index (LOI, 21~24%) is higher than PP's (17~18%), it doesn't mean it's easy to process. PP's difficulty lies in "how to stop it from burning," while PA's difficulty lies in "how to avoid decomposition at high temperatures and still pass the test." The starting lines are different, and the pitfalls are completely different.
Why is PA Harder to Deal With? Four Physical and Chemical Fault Lines
If you want to achieve halogen-free flame retardancy in PA6 or PA66, you must overcome these four fault lines—not a single one can be missed.
1. The Most Critical "Melt-Dripping Effect"
PA's molecular structure results in extremely low viscosity in the molten state. Once exposed to a flame, PA melt drips downward like water. In the UL94 vertical burn test, as long as the drips ignite the underlying absorbent cotton, it's an immediate V-0 failure, no matter how quickly the flame self-extinguishes upon removal.
Solution: Solving PA melt-dripping relies on enhancing char-forming capability and melt strength, not blindly piling on flame retardants. Adding too much (e.g., over 25%) causes impact strength to collapse, and the customer's injected parts will break upon dropping.
2. Processing Temperature "Screens Out" Half the Flame Retardants
PP's extrusion/injection temperatures are 200~230°C, while PA6 requires 240~280°C, and PA66 reaches 280~300°C. If glass fiber (GF) is added, frictional heat raises the melt temperature by another 10~20°C.
This means flame retardants with a decomposition temperature below 300°C will start decomposing in the barrel before injection even begins—causing yellowing, foaming, pungent odors, and severe mold deposit. The industry uses a decomposition temperature of ≥350°C as the "entry ticket" for PA flame retardancy.
3. Red Phosphorus's "Color Achilles' Heel"
Red phosphorus is extremely efficient and low-cost, making it a very mature solution for PA systems. But it has a fatal limitation: its inherent color is dark red to brown-black.
It can only be used for dark-colored parts. If your customer needs a white circuit breaker housing or a light-colored connector, red phosphorus is immediately out. You must switch systems: go with white ADP (aluminum diethylphosphinate) or MCA.
4. The "Chronic Disease" of Moisture Absorption and Blooming
PA naturally absorbs moisture. If the wrong flame retardant is chosen (e.g., a highly water-soluble system), it will be slowly extracted in humid environments. After a few months in the customer's warehouse, the flame retardant performance drops on its own. There are only two countermeasures: choose a water-insoluble flame retardant (like ADP), or choose a red phosphorus masterbatch with extremely strict encapsulation (preventing phosphine precipitation).

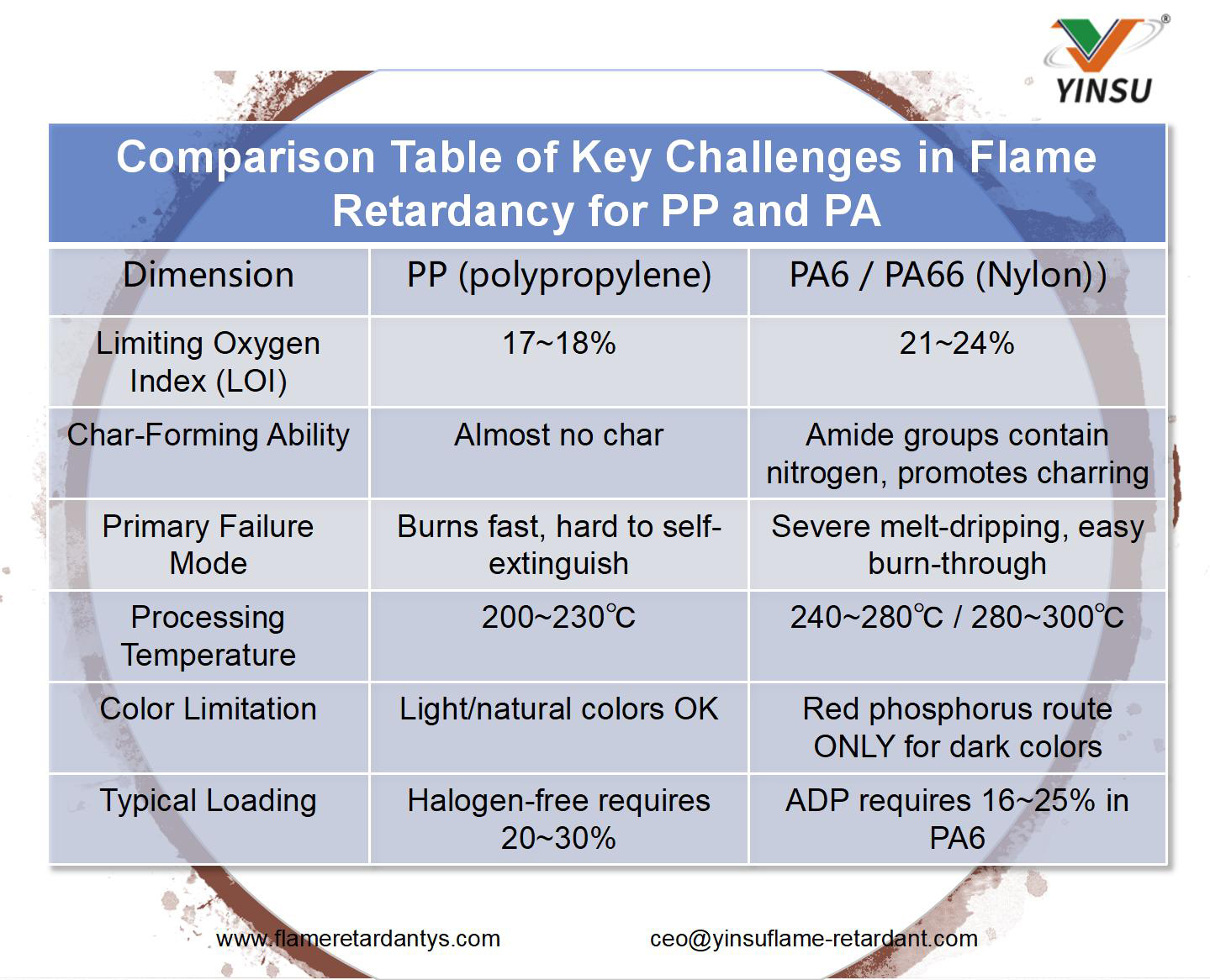

Comparison of Core PP vs PA Flame Retardancy Challenges
Selection Judgment: Don't Calculate Cost First, Calculate Color and Process First
When formulating flame-retardant PA, don't stare at the cost first. If the sequence is wrong, everything is lost.
Determine Color First: Color is non-negotiable. For light colors, red phosphorus is immediately excluded; for dark colors, red phosphorus's efficiency will surprise you.
Check Thickness and Glass Fiber: Glass fiber systems have a "wicking effect," and thin-wall parts are extremely prone to dripping. Direct dry-blending of powders tends to agglomerate; you must use highly pre-dispersed masterbatch products.
Calculate Cost Last: A low unit price doesn't mean it's affordable. You must calculate the "total flame-retardant cost per kilogram of resin" and factor in the scrap rate caused by physical property loss.

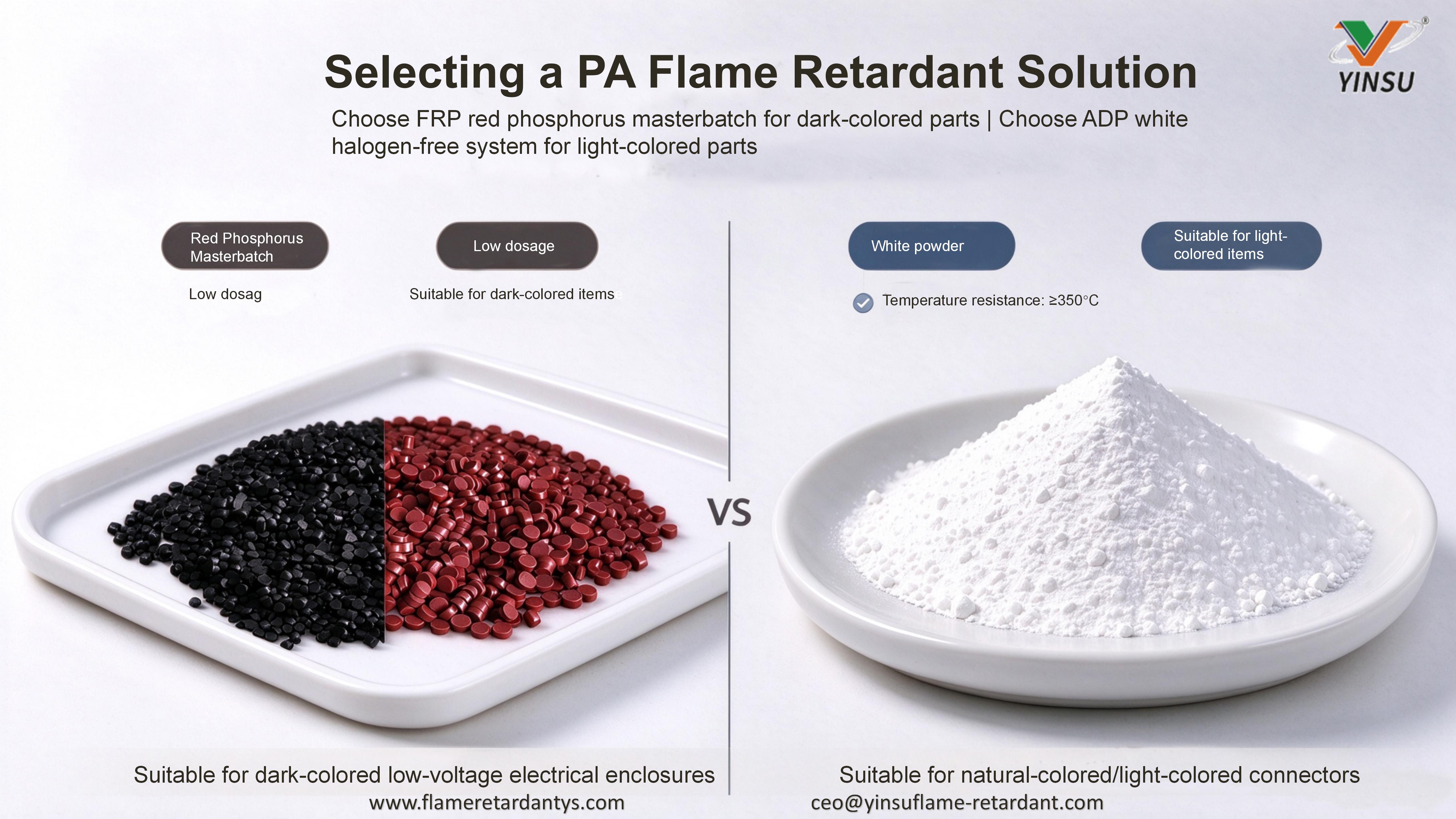

How to Implement for Specific Applications?
Dark Parts (Prioritize Red Phosphorus Masterbatches):
• Low Loading Option: Choose FRP-750A (red phosphorus content ≥70%). In glass-fiber reinforced PA66 systems, adding only 9% achieves V-0 (2.0mm), leaving ample space for glass fiber and resin with minimal mechanical loss.
• High Glow-Wire Option: Choose FRP-301Y3 (red phosphorus content ≥50%), specifically developed for 750°C/850°C glow-wire testing. With an imported virgin compatibilizer carrier, its resistance to phosphine precipitation is extremely robust.
Light/Natural Color Parts (Prioritize White Flame Retardants):
• Go with ADP (aluminum diethylphosphinate). A white powder (whiteness ≥98%) that perfectly matches PA's 280~300°C high-temperature processing. It is insoluble in water and non-blooming. Adding 16~25% in PA6 achieves V-0 while maintaining excellent electrical properties.
FAQ: High-Frequency Questions from Engineers
Q1: Why is V-0 so hard to pass in glass-fiber reinforced PA?
Glass fibers act like a wick, drawing the melt through the gaps into the fire zone while puncturing the char layer. Don't blindly increase loading; switching to high-concentration masterbatches and improving interfacial compatibility is the right answer.
Q2: Can flame retardants for PA66 be used directly in PA6?
No. PA66's processing temperature is 20~40°C higher, so the thermal stability of the flame retardant and system viscosity must be re-validated. You cannot directly copy the formula.
Q3: Is there a risk of phosphine precipitation in red phosphorus systems?
Cheap red phosphorus with inadequate microencapsulation will have this issue. Choose deeply encapsulated masterbatches (like our FRP series), which can pass long-term boiling and aging tests, ensuring safety.
The above data is for reference only; actual loading and formulation must be based on customer testing. If you need formulation evaluation for your base resin and application, please contact the YINSU Flame Retardant technical team.
