When It Comes To Flame Retardancy in Adhesives, The Biggest Challenge Isn’t “preventing Them From Catching Fire”—it’s That “adding Flame Retardants Ruins The Adhesive.”

Anyone who formulates adhesives has encountered this scenario: a flame retardant is added and tested, but the adhesive surface is covered with a dense network of white spots, and the peel strength drops significantly. When the customer takes it back to perform lamination, it fails to bond properly, resulting in the entire batch being returned.

This problem is not a coincidence. Flame retardants and adhesives are “incompatible”—this is the most common conflict in adhesive formulations.

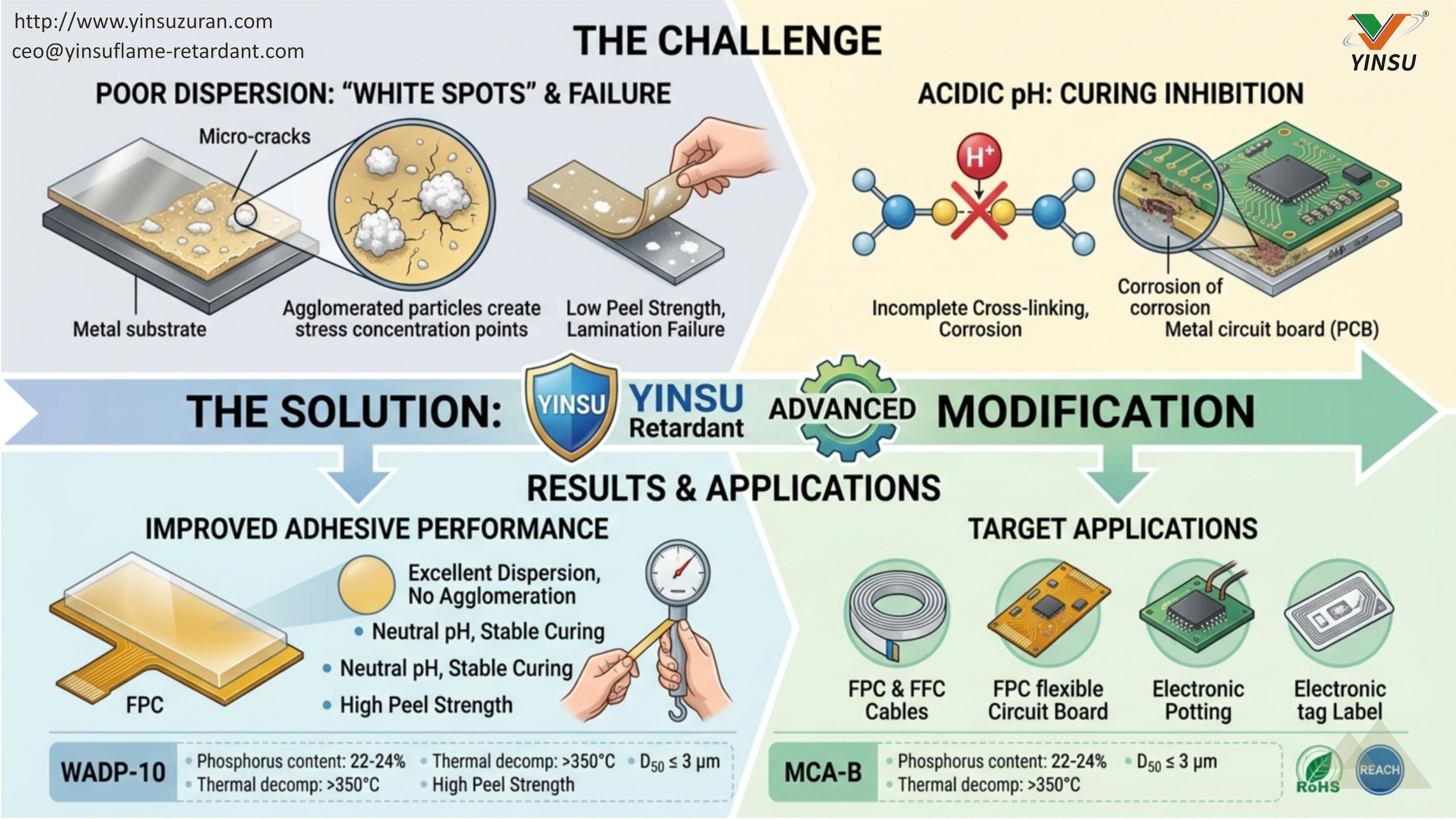

Where Do the White Spots Come From? — A Dispersion Problem

Flame retardant powders and adhesive matrices are inherently incompatible. Due to poor chemical compatibility, the powder particles cannot disperse uniformly in the adhesive and tend to clump together, forming white spots visible to the naked eye within the adhesive layer. These white spots are not only unsightly—they also act as stress concentration points within the adhesive layer, making it prone to cracking or delamination under even slight stress.

In ultra-thin adhesive applications such as FPCs, FFCs, and electronic tags, where the adhesive layers are becoming increasingly thin, this problem is further magnified. As soon as the particles become coarse or agglomerate, the uniformity of the adhesive layer is compromised.

Another Overlooked Pitfall—Acidic pH

Traditional halogen-free flame retardants (including some unmodified organophosphorus products) tend to have an acidic pH. The damage caused by acidic environments to adhesive systems is often more subtle and more devastating than poor dispersion.

Curing agents are sensitive to pH; under acidic conditions, the cross-linking reaction is inhibited, resulting in incomplete curing and reduced bond strength. Over time, an acidic environment corrodes metal substrates or printed circuit boards, leading to interface failure and reduced peel strength. An acidic environment may also trigger side reactions with fillers and additives in the adhesive, causing system instability and shortening the shelf life.

These issues often do not manifest immediately—at first glance, the formulation appears to meet flame-retardant requirements and looks acceptable. However, after some time has passed, or once the customer begins lamination, the problems surface.

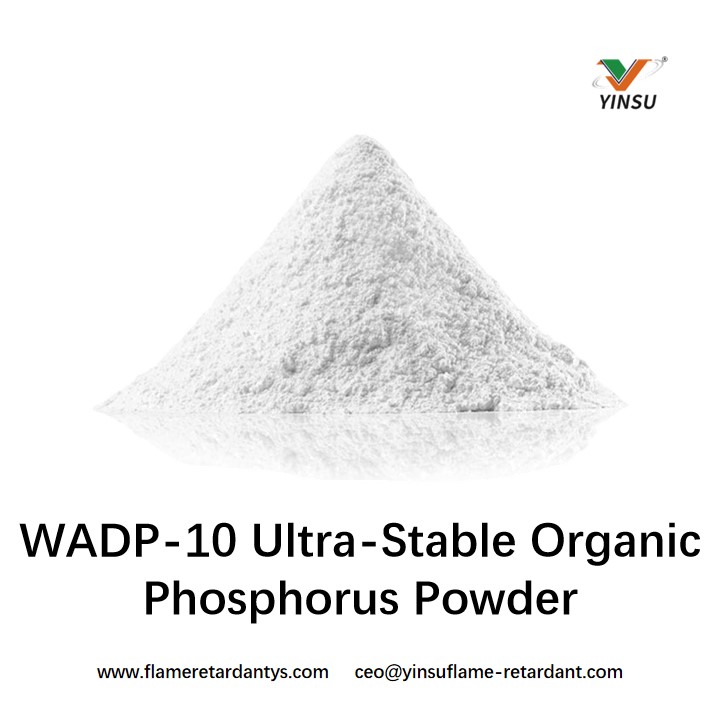

Yinsu Flame-Retardant WADP-10: Solving Two Pain Points at Once

The modification process for WADP-10 fundamentally addresses two key issues:

Dispersibility. The powder surface has been optimized to “get along” with the adhesive matrix. It disperses uniformly within the adhesive system without clumping or causing white spots. Thanks to its ultrafine particle size and excellent dispersibility, it is suitable for applications—such as FPCs, FFCs, and electronic potting compounds—that demand high uniformity in the adhesive layer.

pH. The pH has been adjusted from acidic to near-neutral. It does not interfere with the curing reaction, ensuring consistent bond strength. It does not corrode the substrate, and the peel strength remains stable. It is compatible with fillers and additives, ensuring system stability and no reduction in shelf life.

Key Parameters of WADP-10

• Phosphorus content: 22–24%, high flame retardancy efficiency

• Thermal decomposition temperature: >350°C; weight loss rate at 350°C: ≤1.8%

• Halogen-free and environmentally friendly; compliant with RoHS/REACH requirements

• Suitable for multiple fields including nylon, electronics and electrical appliances, adhesives, and building materials

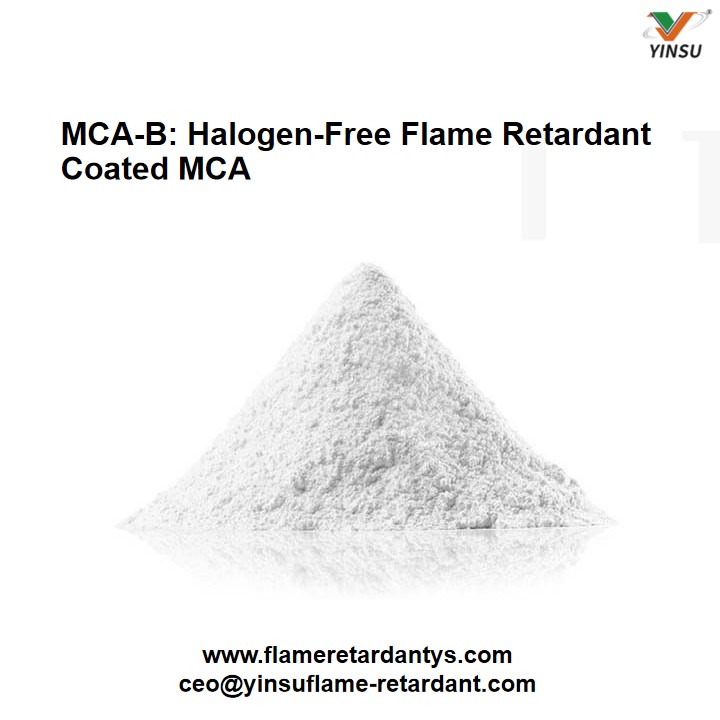

Another Option: MCA-B

If you are working with a PA6/PA66 nylon system or oil-based adhesives, you may want to consider MCA-B.

MCA-B is a specially modified melamine cyanurate (MCA) product with a D50 ≤ 3 μm and whiteness ≥ 99%. Adding 5–15% to PA is sufficient to achieve a V-0 rating (2.0 mm). Adding 10–20% to oil-based adhesives does not affect bonding or curing performance. It exhibits excellent dispersibility, with no agglomeration or precipitation, and is suitable for low-smoke, halogen-free applications such as wires and cables, building materials, and automotive interiors.

The Three Key Concerns for Adhesive Engineers

• Excellent dispersion, no white spots—modification significantly improves the compatibility of the powder with the adhesive matrix

• pH value close to neutral—does not interfere with curing, does not corrode substrates, and ensures stable peel strength

• Excellent thermal stability—decomposition temperature > 350°C, withstands high-temperature reflow soldering processes

FPC, FFC, electronic potting compounds, and label adhesives—for these applications that require flame retardancy, aesthetic appeal, and strong bond strength, both WADP-10 and MCA-B offer suitable solutions. For samples or technical specifications, please contact the YinSu Flame Retardant Technology Team.
