Ultrafine Halogen-Free Flame Retardants: Solving Four Major Application Challenges in Electronic Adhesives

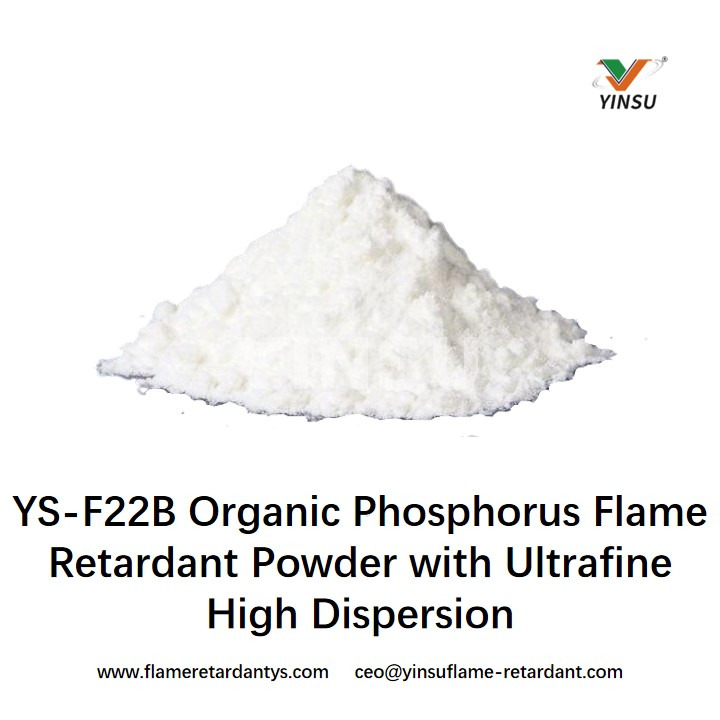

Electronic adhesives are widely used in flexible printed circuit boards (FPC), flat flexible cables (FFC), electronic potting, electronic tags, and other fields. As consumer electronics evolve toward lighter, thinner, and higher-performance designs, adhesive layers are becoming increasingly thin, and the requirements for flame retardants are also evolving—they must not only provide highly effective flame retardancy but also meet multiple demands, including environmental compliance, compatibility with ultra-thin applications, weather resistance and reliability, and the ability to prevent component contamination. Yinsu YS-F22B flame retardant, an ultra-fine, halogen-free aluminum diethylphosphinic acid flame retardant, offers a systematic solution to these challenges thanks to its carefully engineered particle size distribution, excellent chemical stability, and highly effective flame-retardant performance.

The Dual Pressure of Environmental Regulations and Flame Retardant Standards

Although traditional brominated flame retardants are highly effective, they release toxic fumes during combustion and are subject to strict restrictions under environmental regulations such as RoHS and REACH. The electronic adhesives industry urgently needs an alternative that meets halogen-free requirements while also passing the most stringent flame retardant standards.

YS-F22B fundamentally resolves this conflict. It is a halogen-free organic hypophosphite flame retardant that contains no halogens and offers excellent environmental and health characteristics. Its high phosphorus content confers exceptional flame-retardant efficiency. In epoxy resin systems, only a small amount is needed to achieve UL 94 V-0 rating (1.6 mm). For thermoplastic and thermosetting material applications that must meet the most stringent flame-retardant standards, YS-F22B offers a solution that combines environmental friendliness with superior performance.

Dispersion and Uniformity of Flame Retardants in Ultra-Thin Adhesive Layers

The trend toward miniaturization in consumer electronics has led to increasingly thinner adhesive layers in ultra-thin materials such as FPCs and FFCs. Traditional flame retardants consist of coarse particles that are difficult to disperse uniformly in thin layers, leading to localized agglomeration and stress concentration. This not only affects the flexibility and bond strength of the adhesive layer but may also compromise electrical insulation performance.

The YS-F22B was designed specifically for this application from the outset. It features a specially engineered ultra-fine particle size distribution—D95 ≤ 10 μm. This ultra-fine particle size makes it particularly suitable for use in adhesives for ultra-thin materials such as flexible printed circuit boards. Additionally, this product is non-hygroscopic and insoluble in water and common organic solvents such as acetone, dichloromethane, methyl ethyl ketone, and toluene; however, it disperses easily in solvents like acetone or methyl ethyl ketone. When using a high-shear mixer, it can be easily dispersed into epoxy resin systems. This characteristic ensures that the flame retardant is uniformly distributed throughout the ultra-thin adhesive layer without compromising the adhesive’s flexibility and electrical properties.

Reliability Degradation in Humid and High-Temperature Environments

Electronic devices are often exposed to harsh environments characterized by high temperatures and high humidity during operation. If conventional flame retardants absorb moisture or undergo hydrolysis, this can lead to a decline in the insulating properties of the resin layer and may even corrode precision circuits. Furthermore, the peak temperature of lead-free soldering processes reaches 260°C, requiring flame retardants to remain stable and non-volatile at high temperatures.

The YS-F22B mitigates these two risks thanks to its outstanding chemical stability. This product is non-hygroscopic, exhibits excellent hydrolytic stability, and has a decomposition temperature exceeding 300°C. It disperses well in solvents such as acetone and butanone, and does not volatilize or migrate. These characteristics enable it to withstand the high-temperature processes of lead-free soldering while maintaining stable electrical insulation performance in high-humidity environments. For applications requiring long-term reliability—such as FPCs, electronic potting compounds, and label adhesives—this ensures that flame retardancy does not diminish due to environmental changes, and that component protection remains consistently effective.

Component Contamination Caused by Flame Retardant Migration

Some flame retardants slowly migrate to the surface after the adhesive cures, not only affecting appearance but also potentially contaminating adjacent electronic components—leading to issues such as contact oxidation, poor contact, and signal distortion. For precision electronic equipment, this “invisible contamination” is often more subtle and difficult to trace than outright performance failure.

YS-F22B cuts off migration pathways through its insoluble and non-volatile chemical nature. It is insoluble in water and common organic solvents and exhibits an extremely low tendency to migrate within the polymer matrix. At the same time, it forms an intumescent char layer during combustion, providing thermal insulation, oxygen isolation, and preventing further flame spread. This mechanism not only ensures the durability of the flame-retardant effect but also fundamentally eliminates the risk of flame retardant leaching and component contamination.

Conclusion

The value of the YS-F22B ultrafine diethylphosphinic acid aluminum flame retardant lies in its ability to integrate four key performance characteristics—halogen-free and environmentally friendly (UL 94 V-0), ultrafine particle size (D95 ≤ 10 μm), high-temperature resistance (decomposition temperature > 300°C), and hydrolysis resistance with no migration—into a single material platform. It enables electronic adhesives to easily meet environmental compliance requirements, disperse uniformly in ultra-thin applications, remain stable and reliable in high-temperature and high-humidity environments, and prevent dust generation between precision components. Compared to Clariant’s OP930, as emerging applications such as 5G, AI, and wearable devices continue to expand, the demands on flame retardants for electronic adhesives will only grow—the “refined, functional, and eco-friendly” technical direction represented by YS-F22Bis becoming the standard choice for flame retardant solutions in electronic adhesives.

About Yinsu Flame Retardant: Guangzhou Yinsu Flame Retardant specializes in the R&D and production of various new types of environmentally friendly and highly efficient flame retardants, with products sold to countries and regions including Europe, North America, and Southeast Asia. As one of its core products, YS-F22B—thanks to its ultra-fine particle size, high dispersibility, and excellent overall performance—has been widely adopted in high-end electronic adhesive applications such as FPCs, FFCs, electronic potting compounds, and label adhesives.
