Ultimate Solution for Flame-Retardant EPS: Balancing Fire Safety, Thermal Insulation, And Moisture Resistance

Ultimate Solution for Flame-Retardant EPS: Balancing Fire Safety, Thermal Insulation, and Moisture Resistance

Executive Summary

For years, the Expanded Polystyrene (EPS) industry has faced an engineering bottleneck: a persistent trade-off between fire safety, thermal insulation, and environmental durability. While traditional halogen-free coatings often sacrifice moisture resistance or introduce harmful compounds, recent academic breakthrough offers a dual-functional, formaldehyde-free phosphorus-silicone coating. This technology achieves UL94 V-0 fire rating without deteriorating the core thermal efficiency of EPS foams—even in high-humidity environments.

1. The Core Bottleneck in Traditional EPS Flame Retardant Methods

Expanded Polystyrene (EPS) remains one of the most widely used materials in building insulation due to its lightweight properties, cost-efficiency, and superior low thermal conductivity. However, its volatile hydrocarbon structure poses significant fire hazards, manifesting in rapid flame spread and high smoke density.

Historically, manufacturers relied on Hexabromocyclododecane (HBCD). Following the global ban under the Stockholm Convention, alternative flame-retardant (FR) strategies have introduced new compromises:

• Additive Blending: Direct      modification of EPS resins often collapses the cellular structure during      extrusion or supercritical expansion, causing brittle matrix properties.

• Traditional FR Coatings:      Post-treatment coatings frequently rely on formaldehyde-based binders.      Under humid field conditions, these binders hydrolyze, triggering a severe      decline in thermal insulation.

As a result, technical buyers and R&D engineers have been trapped in a trilemma: prioritizing fire safety, maintaining long-term thermal resistance, or ensuring regulatory compliance.

2. Paradigm Shift: From Bulk Additives to "Core-Shell" Surface Micro-Encapsulation

To overcome these structural limitations, recent research led by Academician Wang Yu-Zhong’s team at Sichuan University presents a novel approach: transitioning from internal additive modification to a specialized surface coating framework.

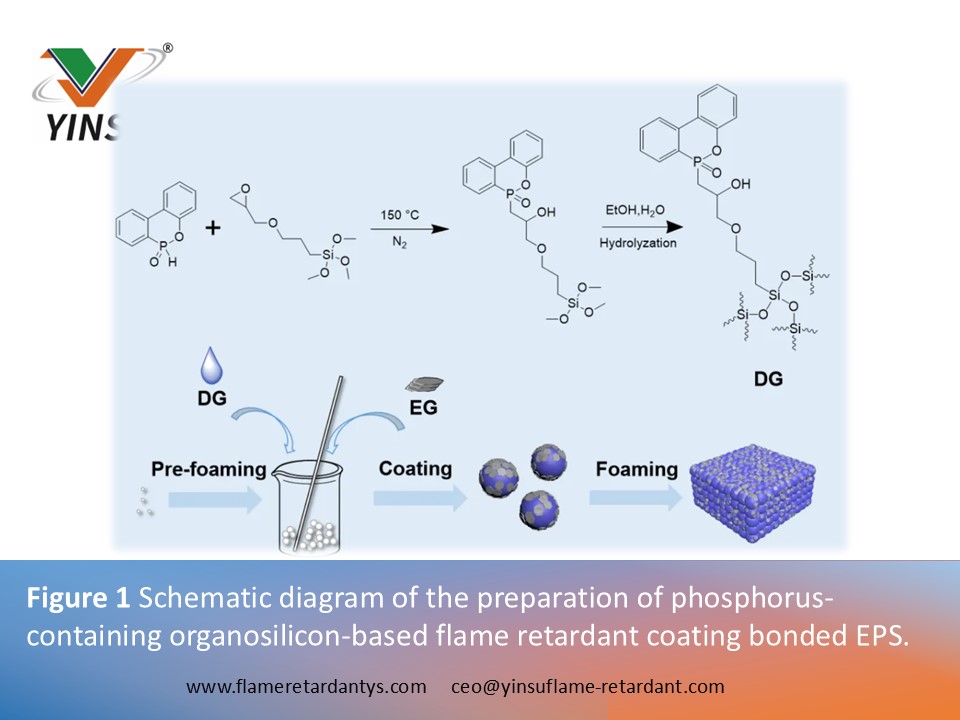

Instead of blending additives into the polymer melt, the system applies a formaldehyde-free, phosphorus-containing polysiloxane coating combined with Expandable Graphite (EG) directly onto the surface of pre-expanded EPS beads. This bio-friendly polymer matrix functions concurrently as a structural binder and an efficient carbon-source flame retardant, eliminating the need for hazardous phenolic or urea-formaldehyde resins.

[Raw EPS Bead] + [Formaldehyde-Free P-Si Coating + EG]

[Core-Shell Structured Flame-Retardant EPS Bead]

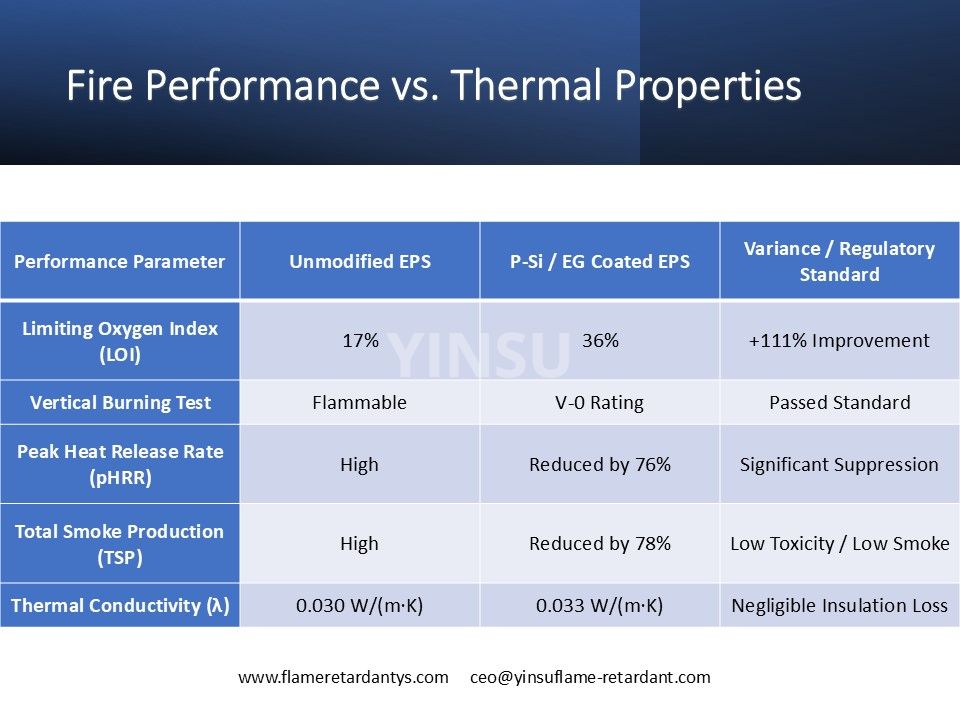

3. Quantitative Evaluation: Fire Performance vs. Thermal Properties

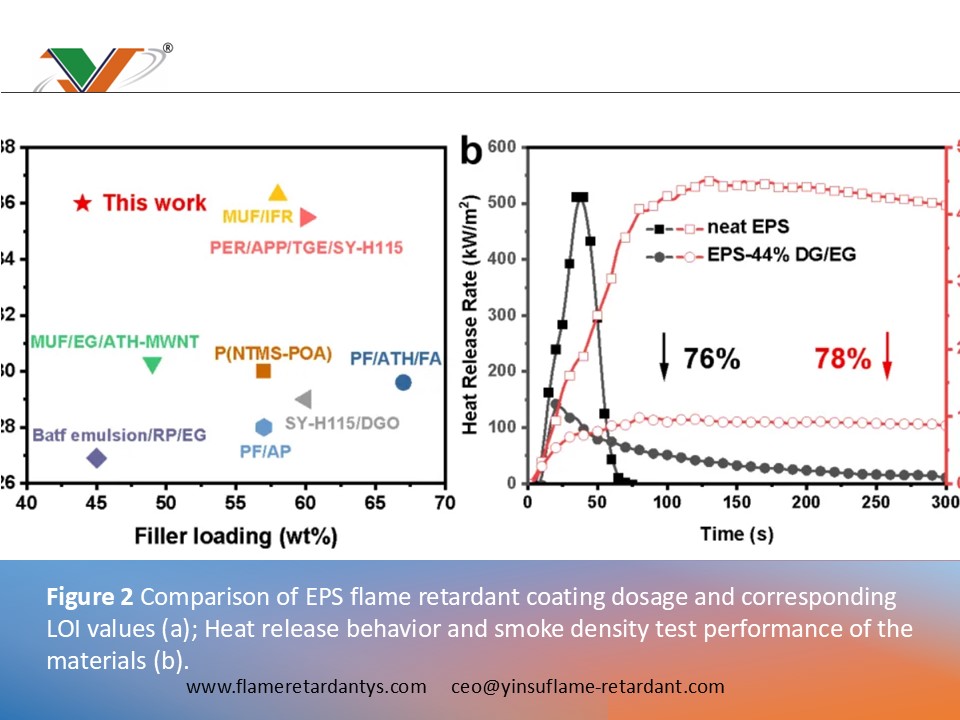

Empirical laboratory data confirms that this surface-functionalized modification improves fire behavioral parameters without compromising core physical specifications:

4. Overcoming Moisture Sensitivity in Industrial Applications

The most critical commercial advantage of this phosphorus-silicone technology is its excellent hydrolytic stability. Traditional intumescent or aqueous coatings degrade rapidly when exposed to atmospheric humidity, absorbing moisture and accelerating thermal degradation.

Under rigorous testing environments—maintaining 85% relative humidity for 30 days—the thermal insulation properties of this new EPS framework remained virtually unchanged. By replacing hydrophilic binder components with cross-linked silicon networks, the material successfully resists water vapor permeation. This breakthrough makes it highly viable for coastal regions and high-humidity climates where conventional coated insulation boards typically fail.

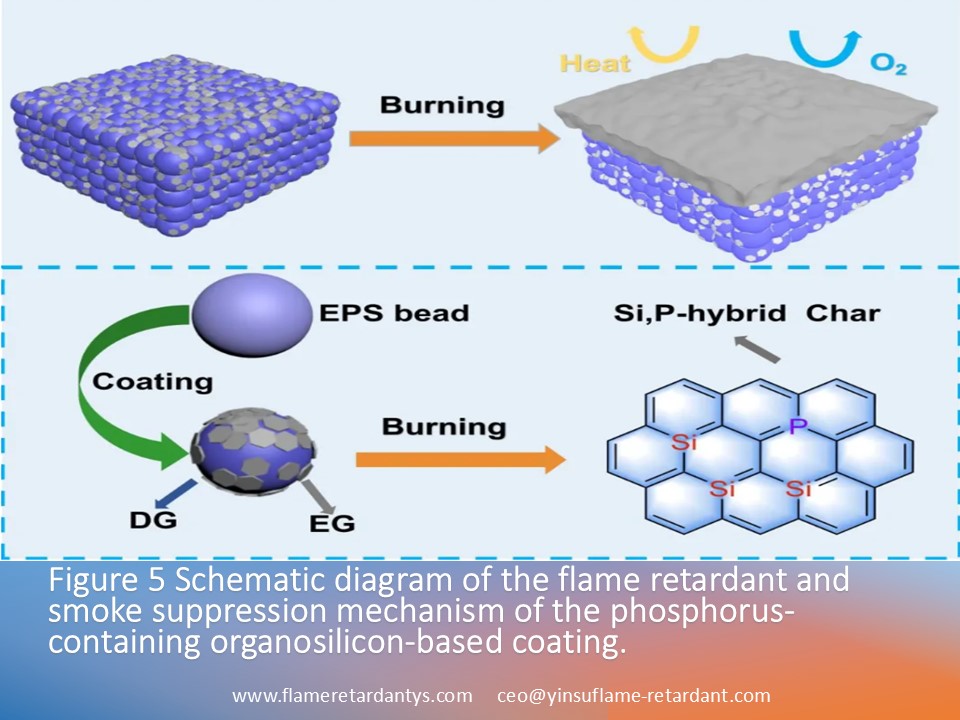

5. Chemical Mechanism: P/Si Synergistic Intumescent Carbonization

The superior fire-retardant behavior relies on a condensed-phase Phosphorus-Silicon (P/Si) synergistic mechanism:

P-Si Coating + Thermal Stress → Cross-linked Si-O-Si / C-O-P Ceramic Matrix

1. Dehydration and Cross-linking: Upon      exposure to heat, the phosphorus groups catalyze the dehydration and      charring of the adjacent polymer components.

2. Ceramic Shield Formation:      Concurrently, the silicone fragments migrate to the outermost layer,      forming stable Si-O-Si bonds.

3. Intumescent Barrier: Working in      tandem with the expanded graphite, this process constructs a dense, hybrid      inorganic-organic carbonaceous layer. This shield acts as a physical      barrier that restricts oxygen diffusion, suppresses volatile gas escape,      and shields the internal polystyrene matrix from heat flux.

6. Conclusion and Strategic Outlook

This phosphorus-silicone surface encapsulation technology resolves the long-standing contradictions within the insulation market: High Flame Retardancy vs. Low Smoke Toxicity vs. Long-term Thermal Performance. For technical directors, compliance officers, and polymer procurement managers, this development offers a commercially viable path toward producing sustainable, high-safety building materials.
