Flame Retardancy, Fogging, And Odor in Automotive PU Interiors: How To Control Them with A Phosphorus-Nitrogen Synergistic Solution?

Views: 35 Author: yinsu flame retadant Publish Time: 2026-07-25 Origin: www.flameretardantys.com

Inquire

Flame Retardancy, Fogging, and Odor in Automotive PU Interiors: How to Control Them with a Phosphorus-Nitrogen Synergistic Solution?

For engineers developing polyurethane formulations for automotive interiors, the biggest challenge isn’t a single parameter failing to meet standards, but rather the dilemma of “meeting flame retardancy requirements only to exceed atomization limits, or reducing atomization only to see odor levels rise.” Juggling these three factors simultaneously leaves very little room for formulation adjustments.

Regulatory requirements include passing FMVSS 302 (horizontal burn rate ≤ 102 mm/min) or UL-94 V-0; OEMs require low condensation (DIN 75201, condensate weight ≤ 2 mg); and passenger perception demands low odor (VDA 270 odor rating ≤ 3.0). These three sets of requirements are interlinked: adding too little flame retardant fails the combustion test, while adding too much increases volatile organic compounds (VOCs), causing both atomization and odor to fail.

The suitability of the phosphorus-nitrogen synergistic intumescent flame retardant (IFR) system for automotive interiors stems from a key characteristic: its low sensitivity to dosage, which allows the total flame retardant content to be reduced to 16–20 parts.

The IFR system consists of an acid source (ammonium polyphosphate, APP), a gas source (melamine or its derivatives), and a carbon source (pentaerythritol or the PU substrate itself). The synergistic effect between APP and melamine results in a nonlinear relationship for LOI improvement: adding 18 parts of APP alone yields an LOI of approximately 24%; adding 10 parts of melamine alone yields an LOI of approximately 22%; when blended in a 3:1 ratio, a total addition of 16 parts achieves an LOI of 29–30% and passes UL94 V-0 (1.6 mm). Reducing the flame retardant by 6–8 parts frees up formulation flexibility regarding misting and odor.

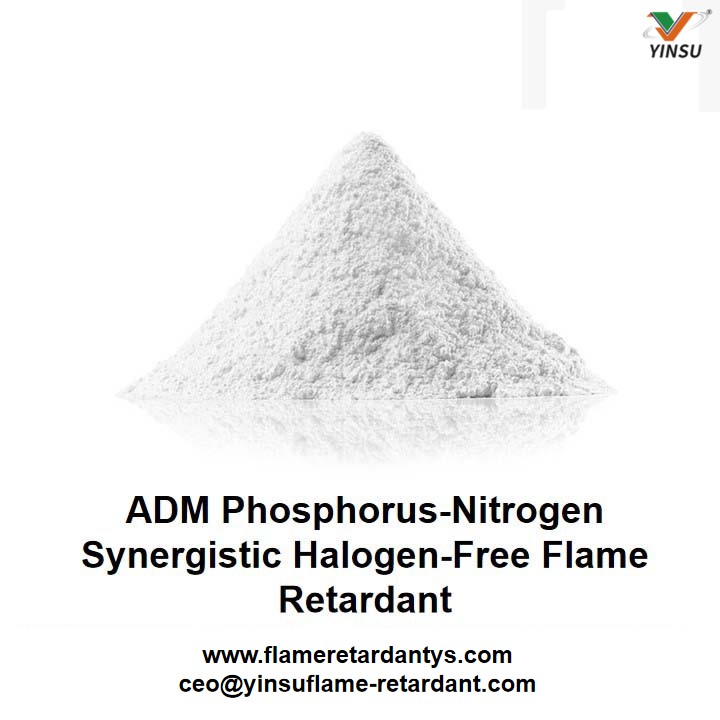

Yinsu’s phosphorus-nitrogen blended flame retardant, designed for automotive interior applications, incorporates two adjustments in component selection:

First, it replaces melamine, which is “prone to migration.” Traditional melamine has a sublimation temperature of approximately 350°C. While this may seem high, trace amounts of melamine can still volatilize and migrate to the surface during TPU injection molding (180–210°C) or PU leather drying (120–150°C), forming white precipitates—the quantity is small, but sufficient to cause misting levels to exceed standards. Yinsu employs a highly efficient, environmentally friendly, and cost-effective phosphorus-nitrogen-based flame retardant to partially replace melamine. Its decomposition temperature exceeds 250°C, and its thermal loss rate at conventional processing temperatures is less than 0.5%.

Second, the powder system is blended with a liquid carrier to form a paste, resolving the difficulty of dispersing APP in TPU. APP powder tends to disperse unevenly in the TPU melt, leading to localized enrichment that causes brittleness or depletion that results in failure. The paste form uses a liquid carrier to “soak” the APP and MCA in advance, significantly reducing the difficulty of mixing.

Three specific operational recommendations for formulation engineers:

1.Segmented temperature control. APP begins to release ammonia gas at temperatures above 220°C, causing bubbles to form in the TPU melt. It is recommended to set the rear section of the injection molding machine to 170–180°C, the front section to no more than 200°C, and the mold to 40–60°C; for PU leather drying, do not exceed 140°C and ensure adequate ventilation in the drying oven.

2.Migration pre-test. Before finalizing the formulation, use the film-lamination method to bake the sample for 72 hours at 80°C and 50% relative humidity, and observe whether any hazy deposits appear on the laminated surface. If you do not have equipment compliant with the PV 3900 standard, you can get a rough idea by using an oven with two flat glass plates—white haze marks are more intuitive than the standard, and most engineers will try this method first. In phosphorus-nitrogen composite systems, APP and MCA have higher molecular weights, and their migration rates are typically 1–2 orders of magnitude lower than those of liquid phosphate esters.

3.Compatibility verification with color pastes. APP is weakly acidic; certain organic color pastes (particularly those containing metal-complex dyes) may undergo color change in acidic environments. It is recommended to premix the flame retardant with the color paste in a polyol, stir for 30 minutes at 80°C, and then observe any changes in hue. If the color difference ΔE > 1.5, switch to inorganic pigments.

For projects exporting to the EU: In the phosphorus-nitrogen system, both APP and MCA are non-halogenated compounds. They do not release hydrogen chloride or hydrogen bromide during melt recycling and have minimal impact on the mechanical properties of recycled material, thus meeting the ELV requirements for recyclability. If you need to fine-tune the process window after the formulation has been finalized, it is recommended to conduct the first round of prototyping directly under the conditions of “16 parts of the formulation + 180°C temperature control in the final stage.” First, test the three parameters—flame retardancy, misting, and odor—all at once, then make minor adjustments. This approach saves you a detour, and the resulting savings in testing costs and time are well worth it.
